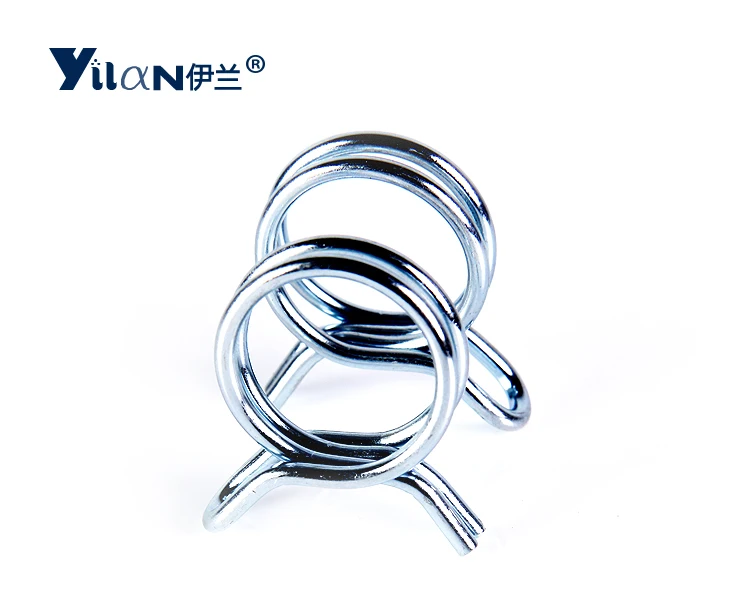

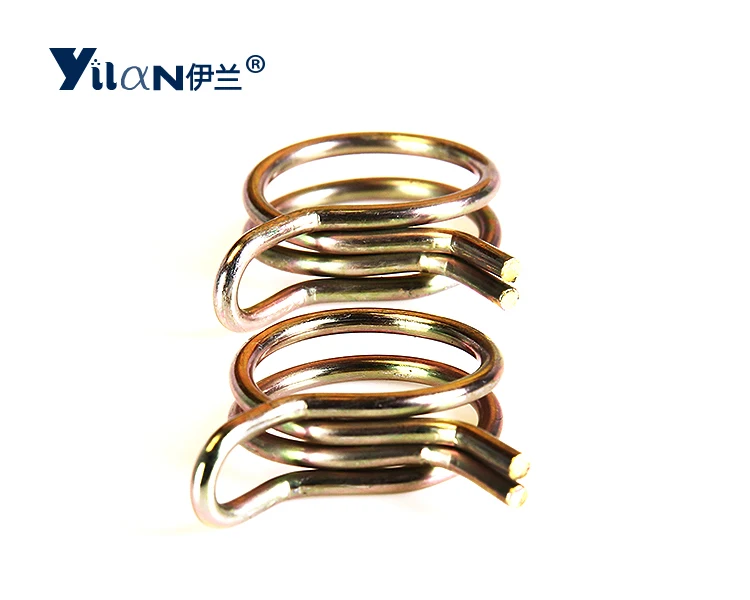

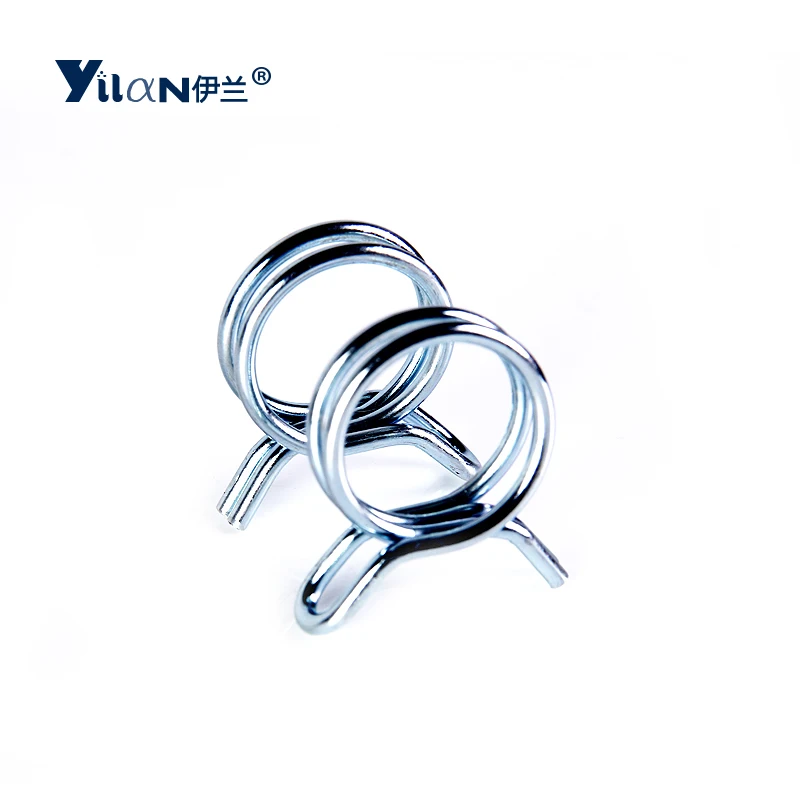

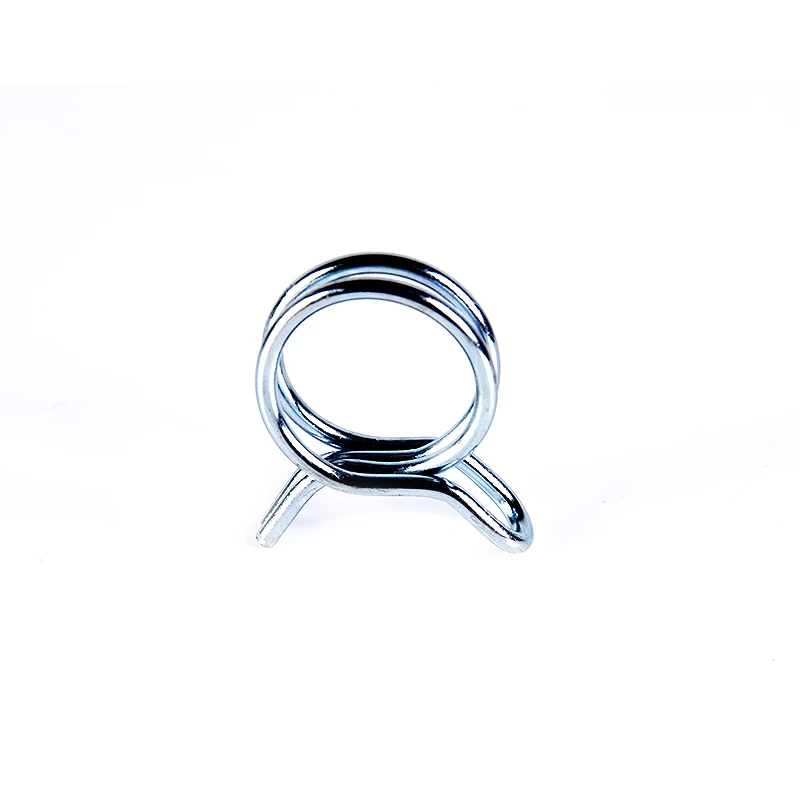

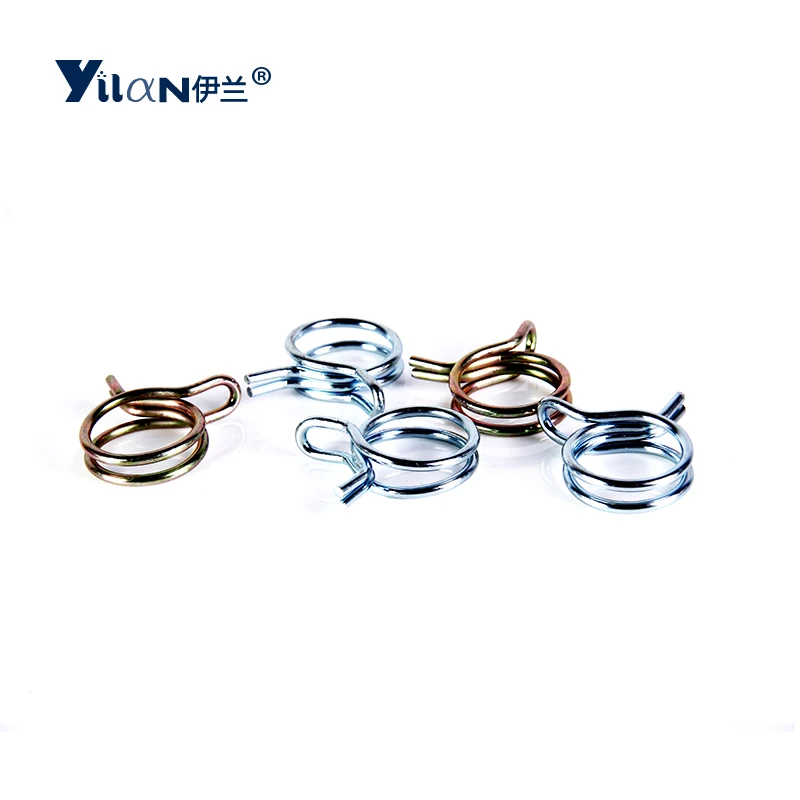

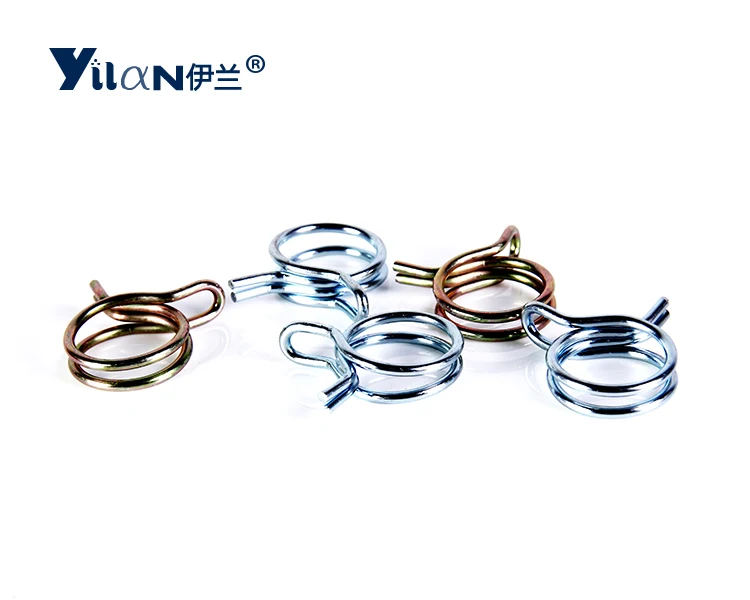

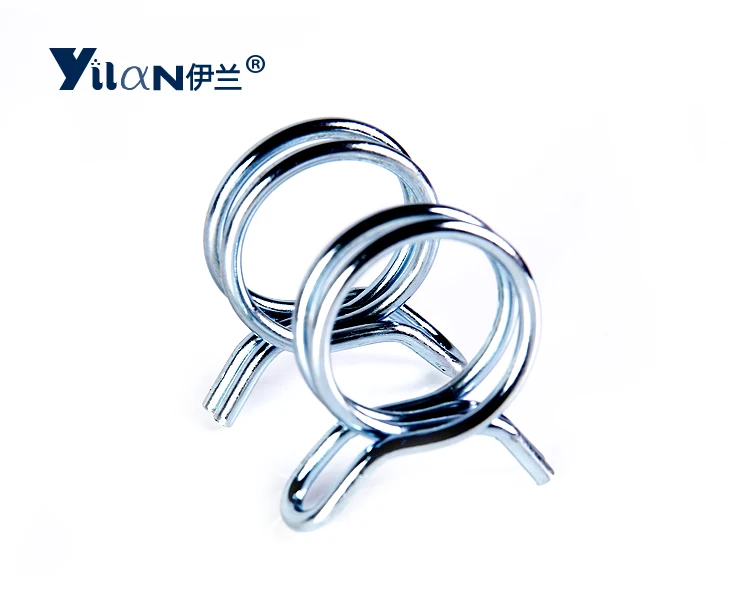

yilan galvanized double steel wire clamp strong water pipe clamp

Price:RUB 1.52 - RUB 3.80

Quantity:

BRAND	Yilan	NAME	Elastic clamp
STANDARD	Q671B	MATERIAL	65MN Spring steel
BORE SIZE	5mm - 23mm	THICKNESS	0.8 -2.6mm
PURPOSE	Used for automobile oil pipe and medical equipment pipe

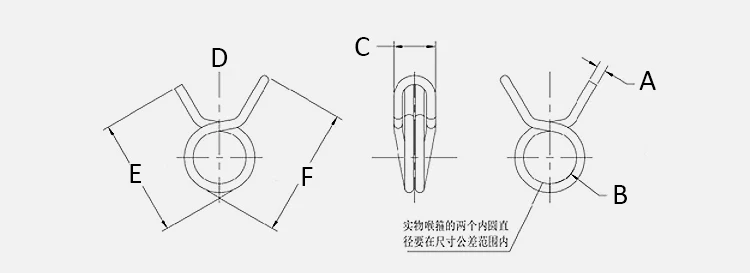

number	diameter	thickness(A)	angle(D)	material	Suitable size
Q671B055	5.5mm	0.8mm	70°	65mn	6mm~6.2mm
Q671B06	6mm	0.8mm	70°	65mn	6.2mm~7.2mm
Q671B07	7mm	1.0mm	70°	65mn	7.2mm~8.5mm
Q671B08	8mm	1.0mm	70°	65mn	8.4mm~9.5mm
Q671B085	8.5mm	1.0mm	70°	65mn	9mm~10.2mm
Q671B09	9mm	1.0mm	70°	65mn	9.5mm~10.5mm
Q671B10	10mm	1.0mm	70°	65mn	10.5mm~11.5mm
Q671B011	11mm	1.2mm	70°	65mn	11.4mm~12.5mm
Q671B012	12mm	1.2mm	70°	65mn	12.4mm~13.5mm
Q671B013	13mm	1.2mm	70°	65mn	13.4mm~14.5mm
Q671B014	14mm	1.5mm	70°	65mn	14.5mm~16mm
Q671B0145	14.5mm	1.5mm	70°	65mn	15mm~16.5mm
Q671B015	15mm	1.5mm	70°	65mn	15.5mm~17mm
Q671B016	16mm	1.6mm	70°	65mn	16.5mm~17.5mm
Q671B017	17mm	1.6mm	70°	65mn	17.5mm~18.5mm
Q671B018	18mm	1.6mm	70°	65mn	18.5mm~19.5mm
Q671B019	19mm	1.8mm	70°	65mn	19.5mm~21mm
Q671B020	20mm	1.8mm	70°	65mn	20.5mm~22mm
Q671B023	23mm	2.6mm	70°	65mn	23.5mm~24.5mm
Explain	The size is measured by vernier caliper, and the error is within the normal range of 0.2mm.
