2020 New Type CE Approved Single Lane Automatic Dolce Gusto Coffee Capsule Filling Sealing Machine
- Category: >>>
- Supplier: Jiangsu Sunyi Machinery Co. Ltd.
Share on (62427989059):
Product Overview
Description
Product Description
Jiangsu Sunyi Machinery Co., Ltd., which is the China top 1 professional manufacturer of the compatible coffee capsules filling sealing machine for over 10 years. During the past 10 years, Sunyi Machinery has developed a series of professional coffee capsules filling sealing machine models(SKP-1, SKP-1N, SKP-2. SKP-4, SKP-6, SKP-8, etc.)
This machine is special designed for Dolce Gusto coffee capsules filling sealing machine because there's two layers of film lids for Dolce Gusto capsules. However, this machine can also be used for compatible Nespresso, K-cup,
Due to unstackable Dolce Gusto, we recommend you the automatic bulk Dolce Gusto capsule elevator and the automatic centrifugal sorter to feed the capsules automatically.
For further more details, welcome to contact us!
Machine Photos for reference:
*Main Function
1. Due to unstackable Dolce Gusto coffee capsule, the capsule elevator and the centrifugal sorting machine is highly recommended.
2. Saving Labor: Only one person can operate this machine.
3. The operator poured the bulked capsules into the elevator, then the elevator will lift up the Dolce Gusto capsules into the centrifugal sorting machine that will sort the capsules in order into the customized slide conveyor. Them, a specially designed device will flap the capsules into the machine module plate.
4. With Photoelectric sensor, no capsules, no filling , no sealing
5. With Servo auger filling system
6. With Mixing system inside the hopper
7. With UV sterilization lamp, anti-static device
8. With Vacuum powder feeding machine
9. with Nitrogen flushing function
10. With Perforated film cutting sealing unit and top rolled film lids cutting sealing unit
11. With Twice heat sealing unit
12. With Swing output arm
13. With seperated control panel
Technical Parameter | ||
Filling weight range: | 0-20g | |
Filling accuracy: | ±0.15g | |
Max speed: | 50 Cup per minute | |
Hopper capacity: | 15L | |
Control system: | OMRON SCHNEIDER ROCKWELL | |
Displayer: | 7 Inch touchscreen | |
Power supply: | 220V/380V | |
Dimension: | 2300*1118*2432mm | |

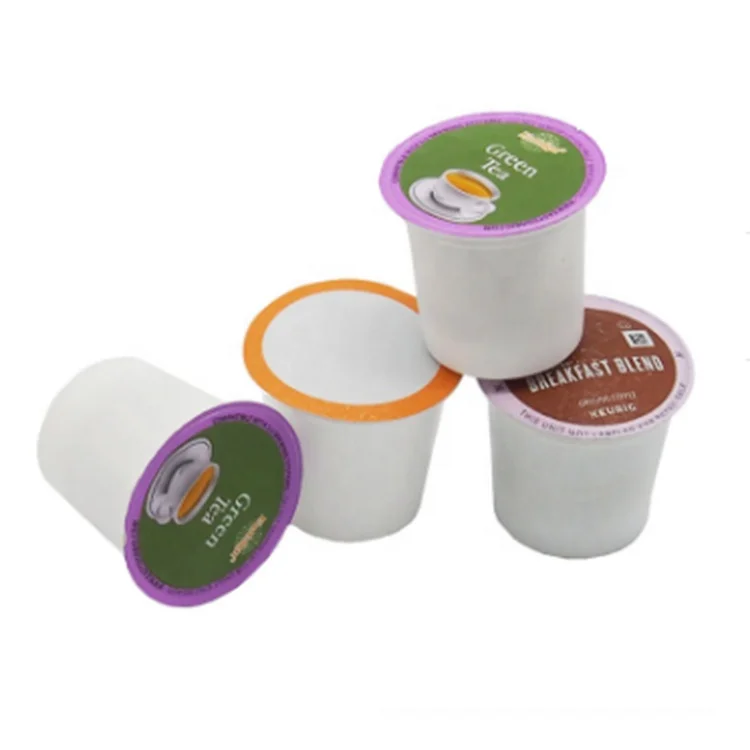

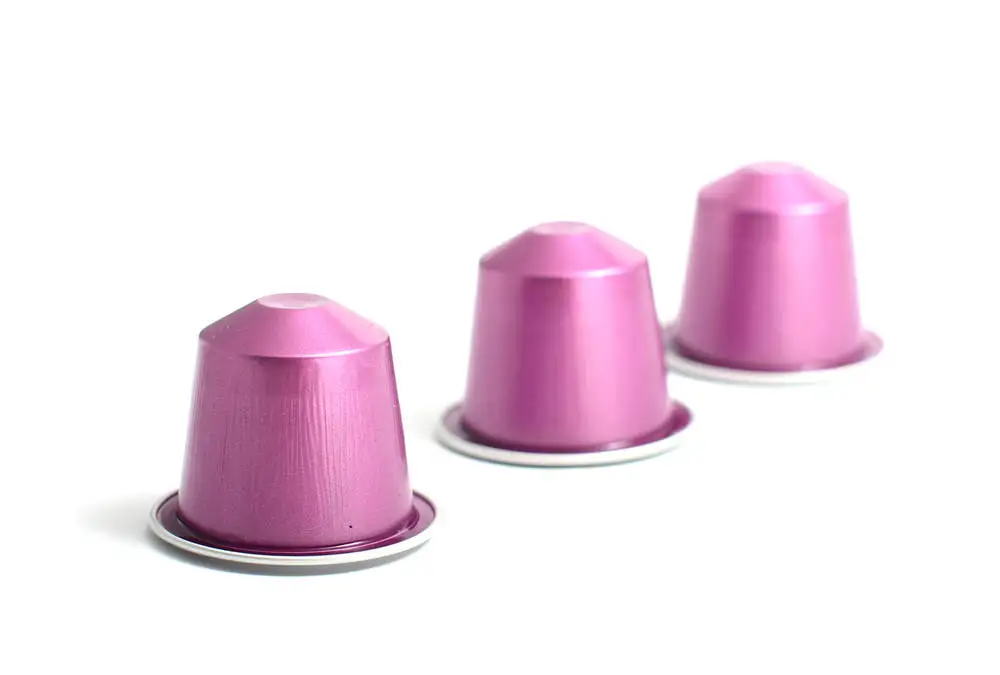

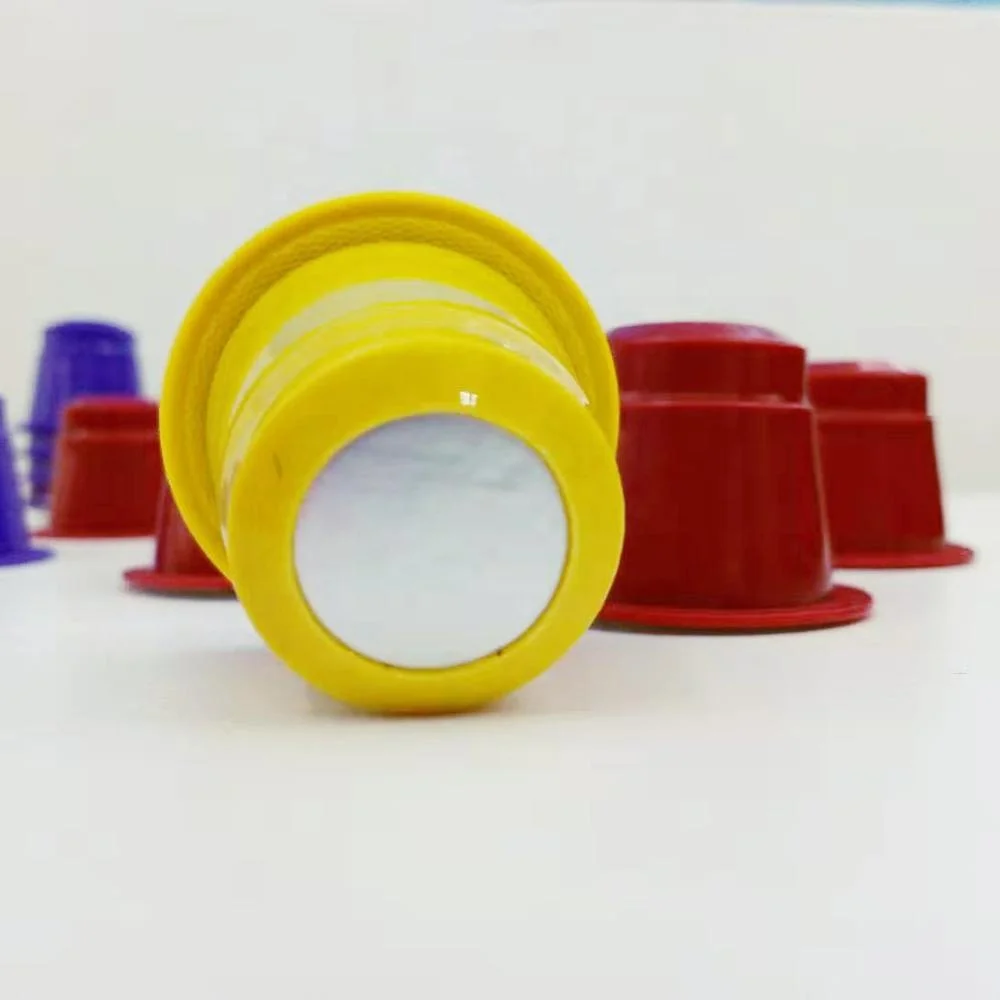

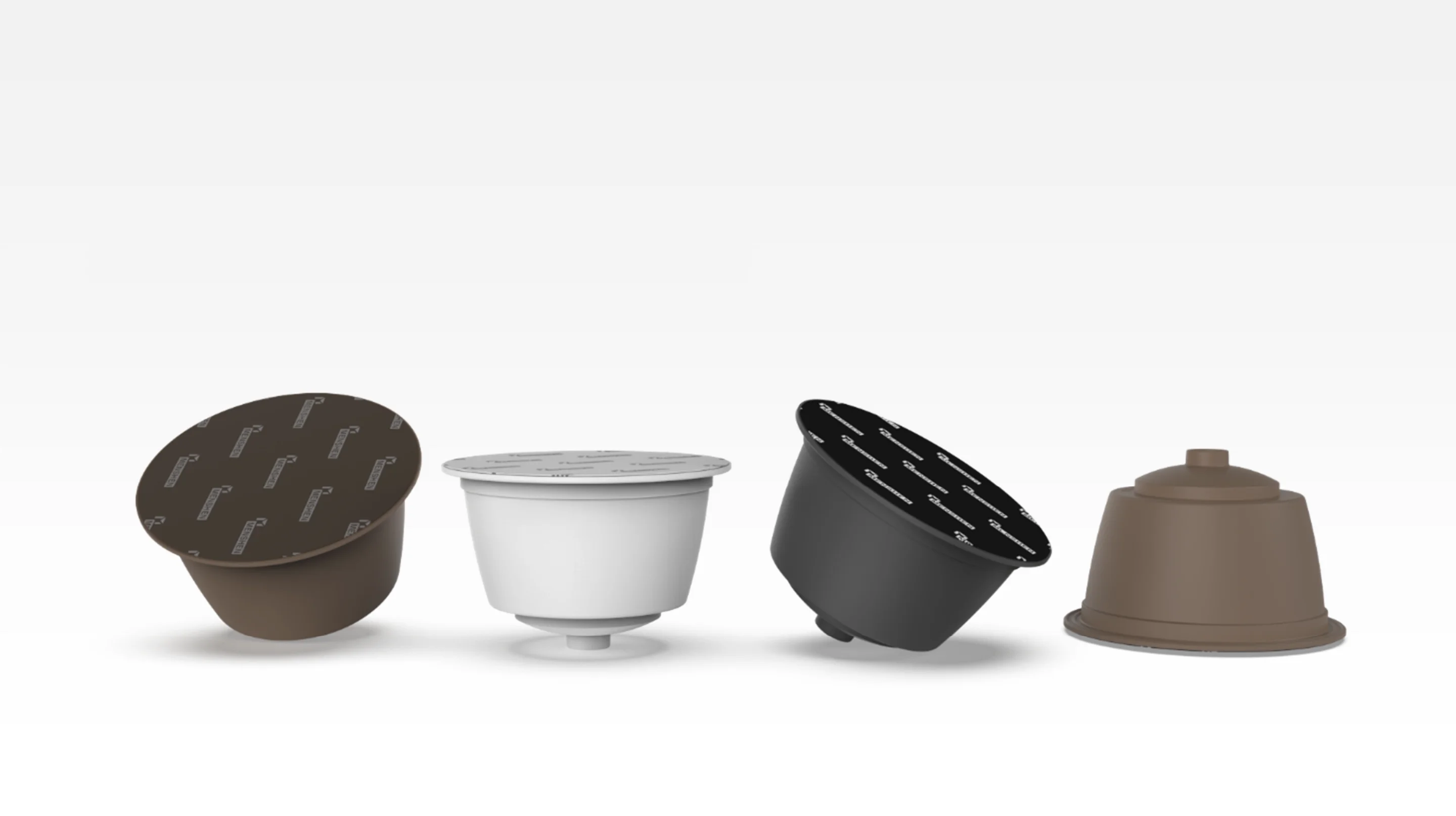

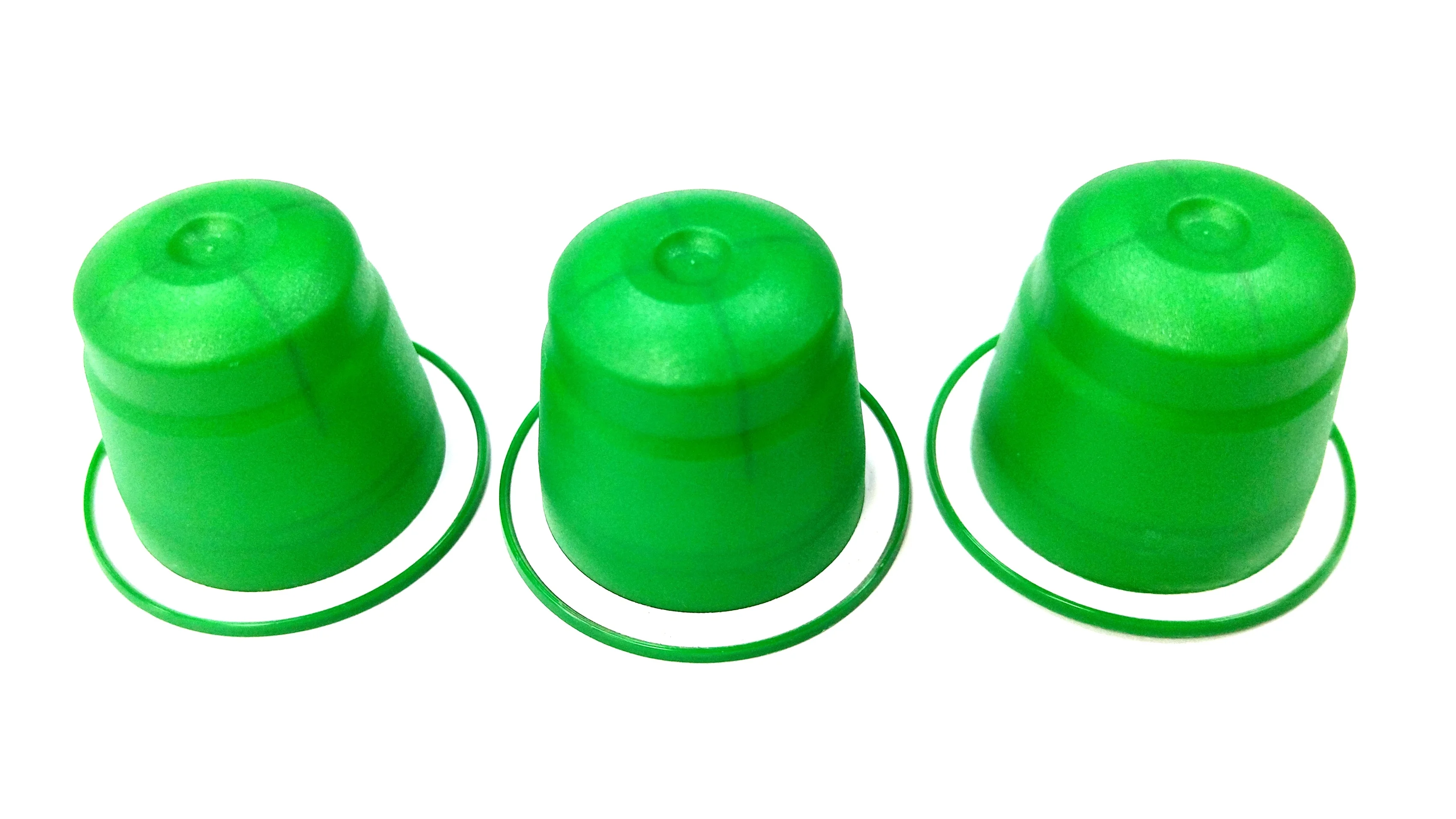

*Learn More about Our Capsule and What Can Be Filled in the Capsule.

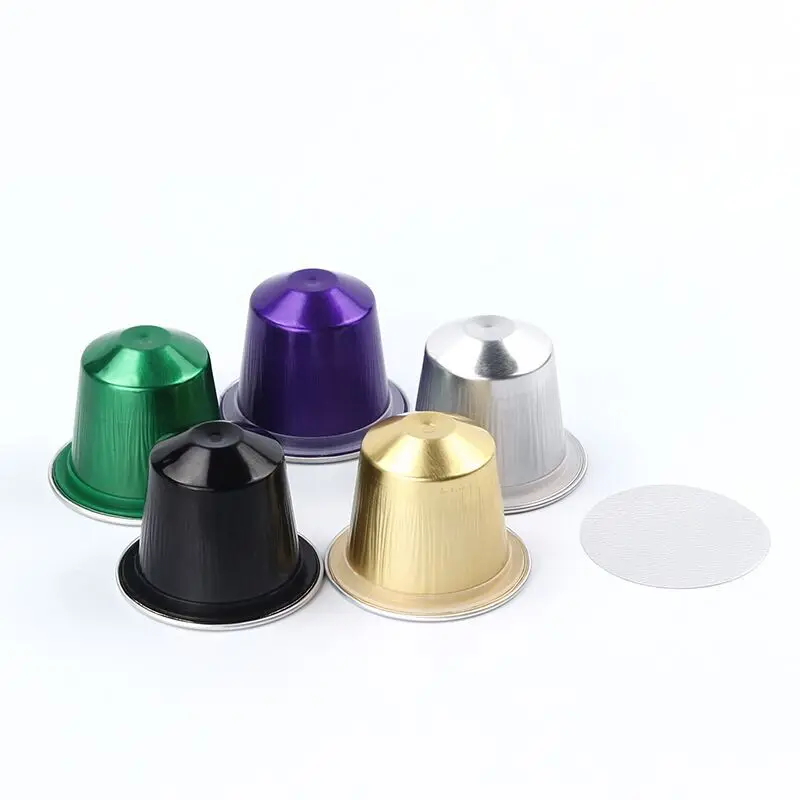

This machine is specially designed for dolce Gusto coffee capsules filling machine. However, this machine is also suitable for the main coffee capsules, such as compatible Nespresso, K-cup,
Jiangsu Sunyi Machinery Co.,LTD., founded in 2011, is headquartered in Kunshan city, Jiangsu province, the top of the country‘s top 100 countries. It has a subsidiary company, Zhejiang Sunyi Machinery. It is the national science and technology innovative enterprises. It’s a professional R&D, manufacturing, sales of intelligent food packaging machinery, packaging systems and a variety of automation control equipment technology innovative enterprises.
*Contrast Form of Other Production in Our Company
Since the establishment of company,we pour ourselves more into research and development of coffee packaging machine.We have produced SKP-1,SKP-2,SKP-4,SKP-6,SKP-8(Compatible nespresso,Dolce gusto,)automatic Coffee capsule filling and sealing machine.With good appearance,high filling accuracy,stable performance,which has won the favor of customers at home and abroad.The product has obtained many technical invention patents,through CE, certification,ISO9001 quality management system certification and got a number of Zhejiang science and technology.
Model | SKP-1 | SKP-1N | SKP-2 | SKP-4 | SKP-6 | ||||
filling weight range | 0-20*n | 0-20*n | 0-20*n | 0-20*n | 0-20*n | ||||
filling accuracy | ±0.1~0.3g | ±0.1~0.3g | ±0.1~0.3g | ±0.1~0.3g | ±0.1~0.3g | ||||
Max speed | 50cups/minute | 50cups/minute | 80-100 cups/minute | 160-200 cups/minute | 240-300 cups/minute | ||||
Hopper capacity | 1.0(2.5L) Option | 1.0(2.5L) Option | 10-24L Option | 10-24L Option | 2.5L Option | ||||
control system | PLC(OMRON,SCHNEIDER,ROCKWELL) | ||||||||
power | AC 220V/380V 50Hz/60Hz | ||||||||
Certifications
Product Details
Dolce Gusto Elevator & Centrifugal Sorter
The operator will pour the Dolce Gusto capsules inside the elevator that will lift up the capsules inside the centrifugal sorter.
The sorter will turn the Dolce gusto in order and blow into the customized conveyor.

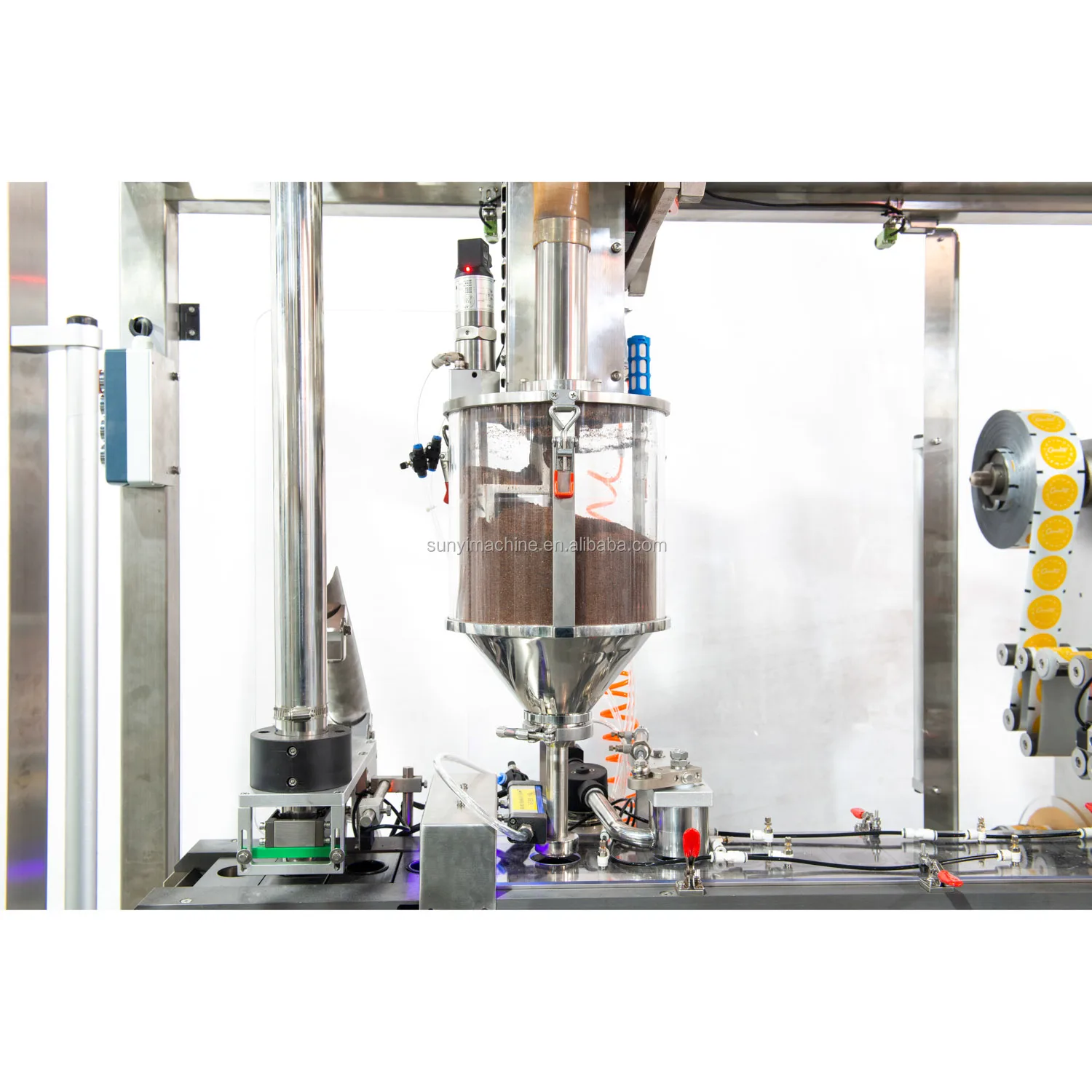

Servo Auger Filling & Powder Tamping
1. Schneider Servo Motor driving the auger filling system;
2. Mixing system to flat the powder level
3. With Nitrogen flushing point inside the hopper
4. With level sensor inside the hopper to control the vacuum powder feeding machine
5. With UV sterilization lamp
6. With Anti-static device for clean filling
7. With Nitrogen flushing tunnel
8. With powder tamping station to flat the powder

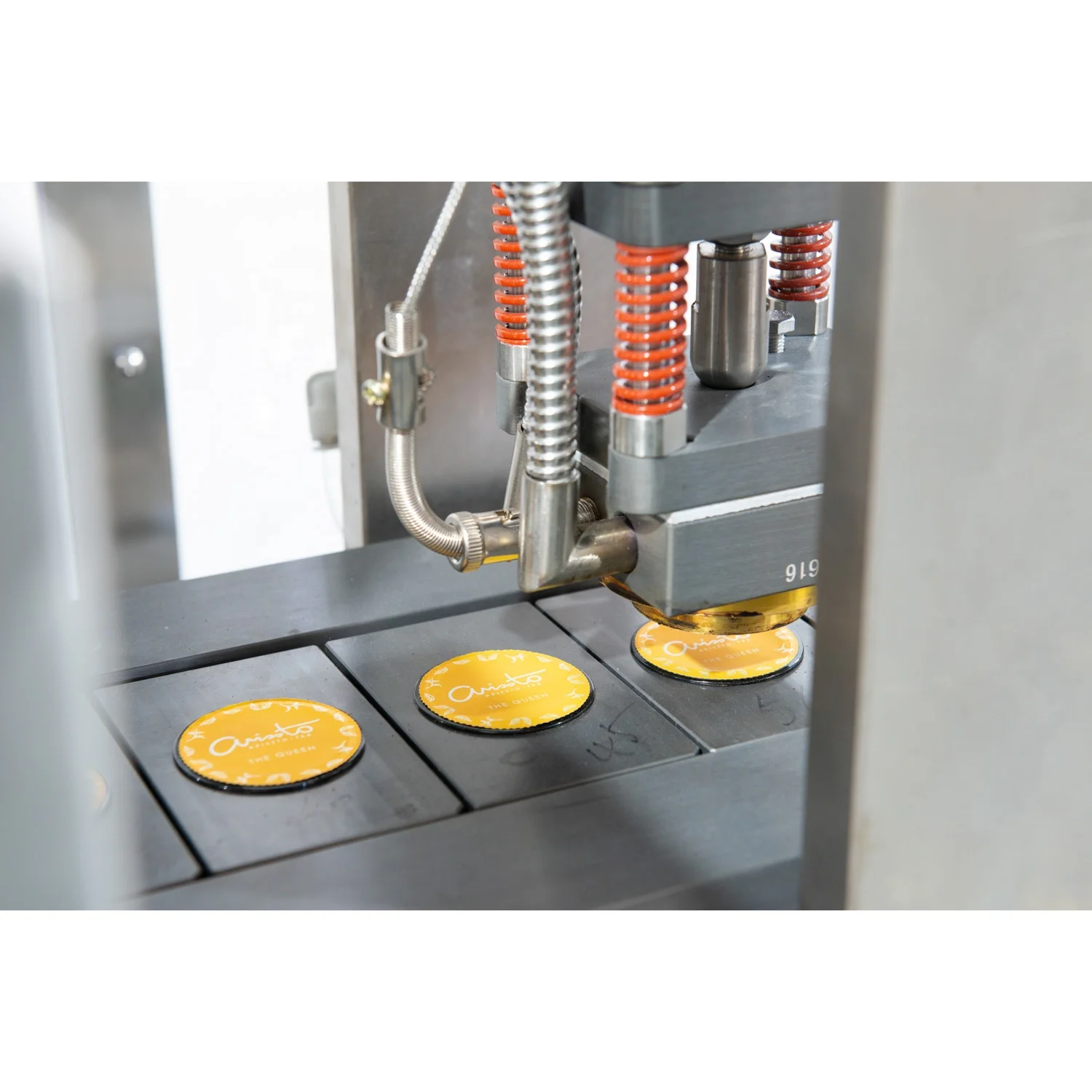

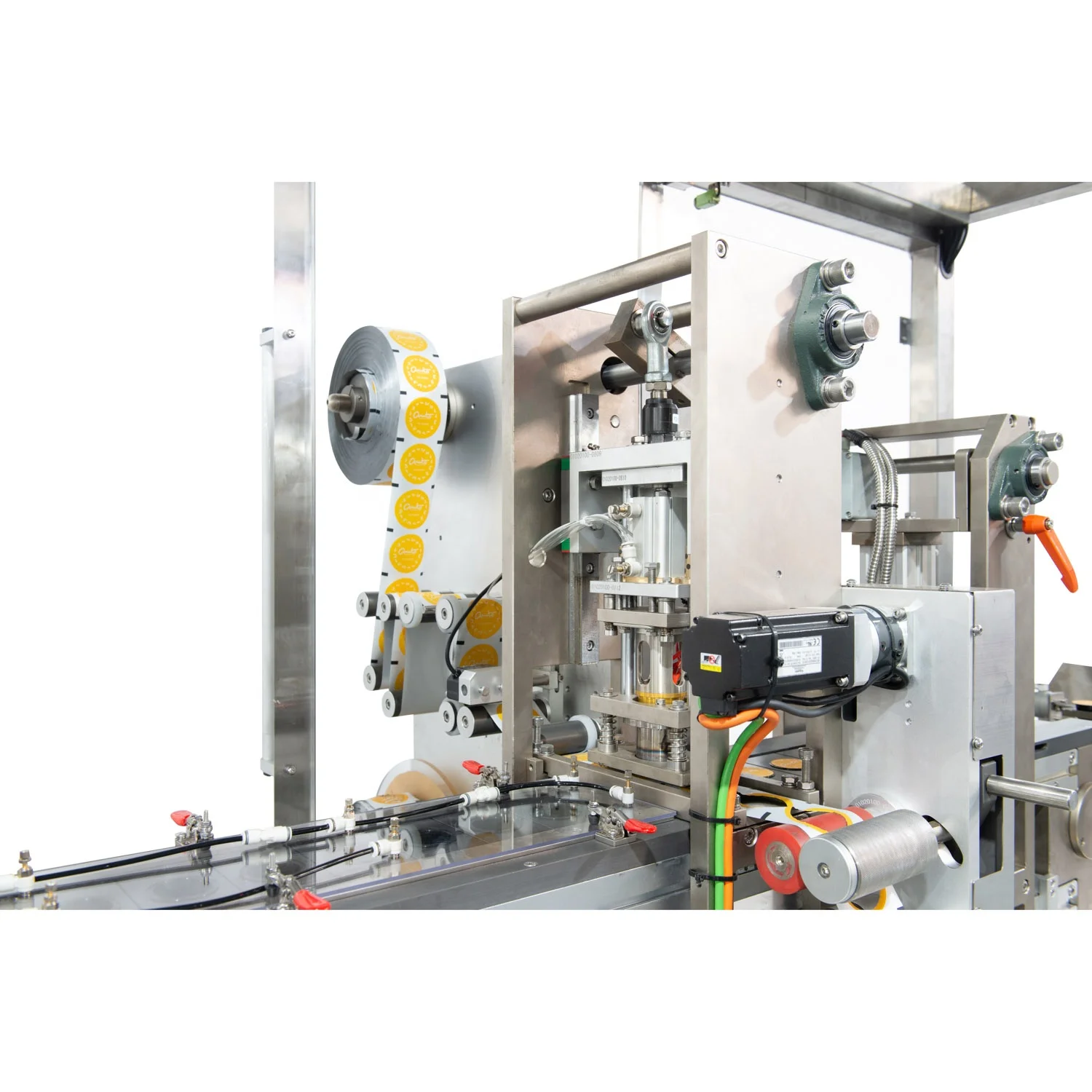

Rolled film cutting sealing station
There's two layers film for Dolce gusto. Thus, there's two units of such rolled foil cutting sealing station. One used for the perforated film, the other for top rolled lids
Twice Heat Sealing
After the rolled film cutting sealing station, we have an extra twice heat sealing station for a better sealing surface and more tight.

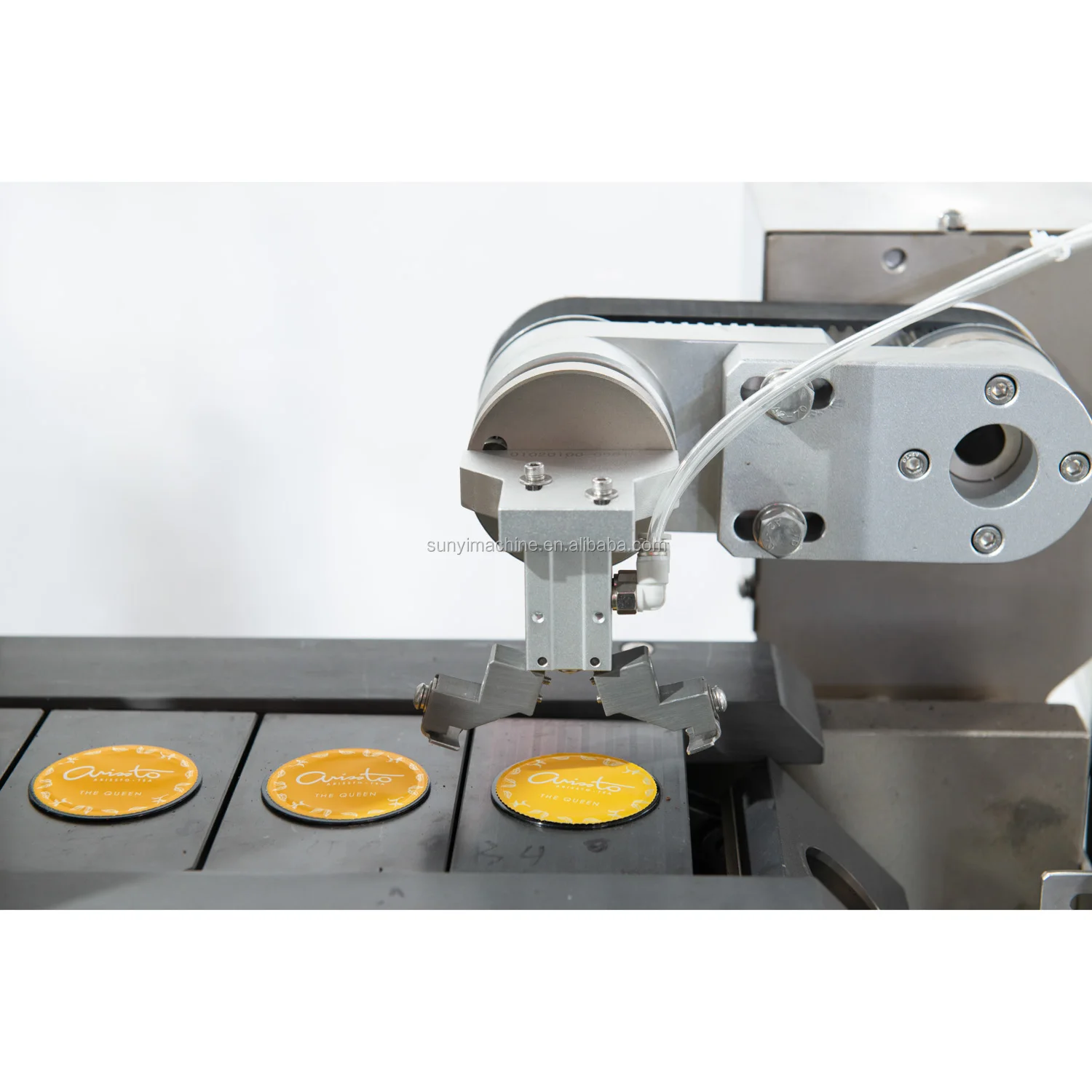

Swing Output Arm
With Swing finished capsules Output arm
