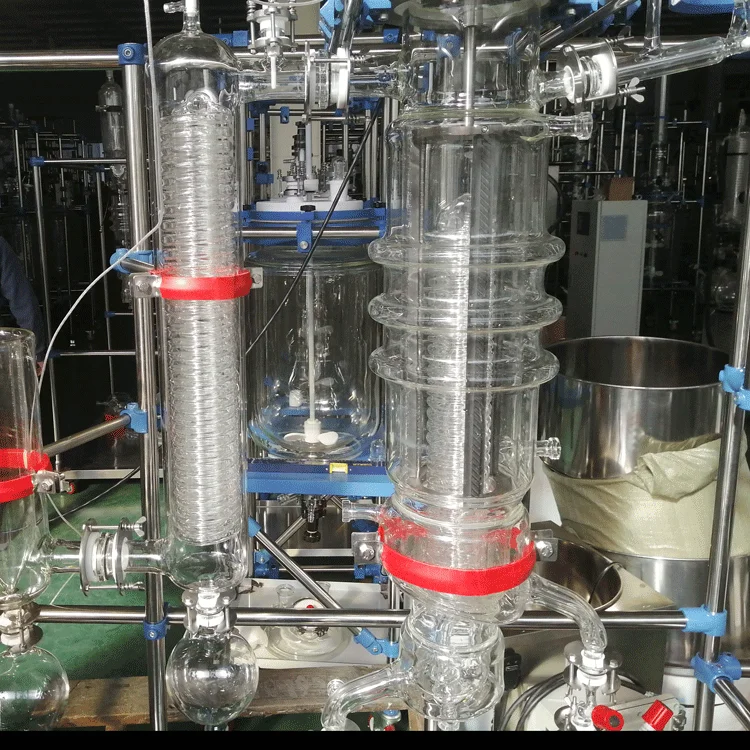

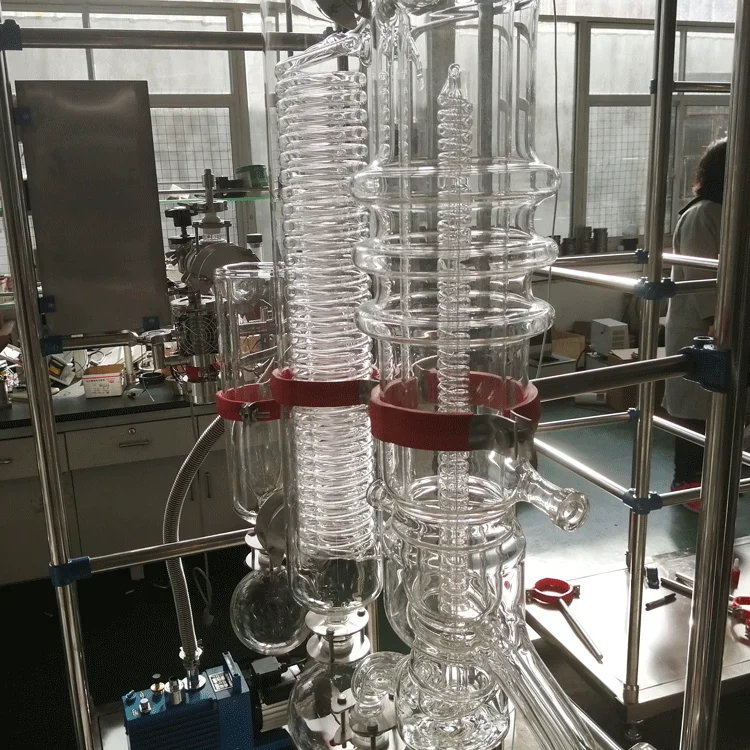

Usa top seller short path wiped film molecular distillation machine for cbd oil extraction
- Category: >>>
- Supplier: Nantong Sanjing Chemglass Co. Ltd.
Share on (62428035121):
Product Overview
Description
Product Description
Molecular Distillation is a special liquid-liquid separation technology, which is different from traditional distillation on the difference boiling point. This is a kind of distillation in high vacuum environment, for the difference of material molecular movement free path,was carried out in the heat sensitive materialor high boiling point material distillation and purification process. Short Path Distillation is mainly used in chemical, pharmaceutical,petrochemical, spices, plastics, oil and otherfields.
| Model | Effective evaporation area(m²) | Cooling area(m²) | Barrel inside diameter(m²) | Constant pressure feeding funnel volume(L) | Processing flow(kg/H) | Motor power(W) | Max rotation speed(RPM) |
| SPD-80 | 0.1 | 0.15 | 80 | 1 | 0.3-4.0 | 220V~/140W | 600 |
| SPD-100 | 0.15 | 0.2 | 100 | 2 | 0.5-5.0 | 220V~/250W | 600 |
| SPD-150 | 0.25 | 0.4 | 150 | 5 | 1.0-8.0 | 220V~/250W | 600 |
| SPD-200 | 0.3 | 0.4 | 200 | 5 | 2.0-10.0 | 220V~/250W | 600 |
Features
. High evaporation efficiency can reduce retention time with minimal time delay.
. Short path distillation is made of 3.3 high borosilicate glass and PTFE,
which has excellent corrosion resistance.
. Main body of short path distillation is made of 3.3 high borosilicate glass, allowing thewhole process to be observed very clearly.
. High-precision distillation barrel allows the liquid to form a complete and unified thinfilm on the heated surface.
The smooth inner surfacecan avoid stick and scaling.
. Frequency conversion deceleration motor with self-cooling fan, long time continuousworking.
Application

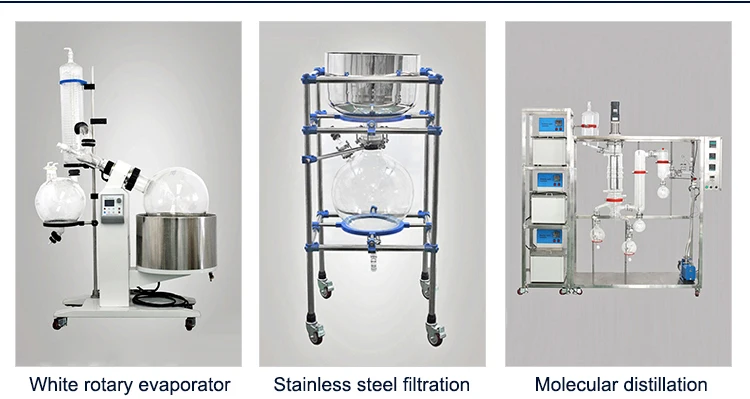

Related Products

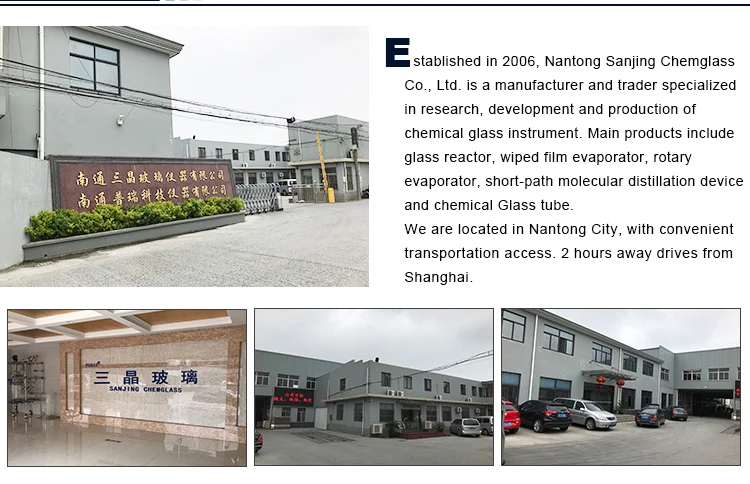

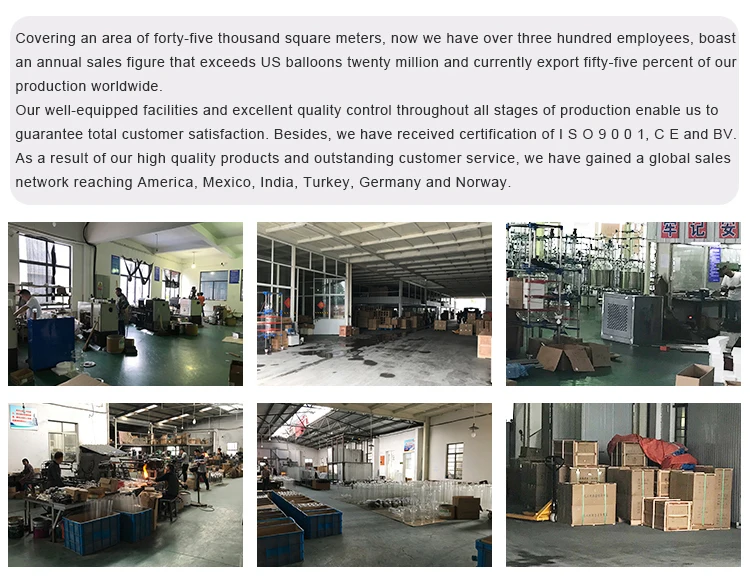

Company Information
