High transparency automatic zoom lens, F1.2, 8-48mm
Filter
Professional grade coating filter UV/IR 590nm, optional: 535/605/699nm
Light source
Light intensity
up to 1000 microns /m³
Lighting mode
uv transmission, white light transmission (uv conversion white plate), white light reflection
Excitation light source
transmission: 312nm (optional 254nm and 365nm)
Bilateral reflection
LED reflection white light lamp
UV transmission area
200×250mm
Visible light transmission area
210×260mm
Equipped with glue cutting device
drawer type sample storage platform, the line of sight is 90° with the sample, which can protect the operator and facilitate the
operation of glue cutting
Timed shutdown
turn off the uv light source for 15 minutes without operation, effectively extending the service life of the uv lamp and the uv
glass

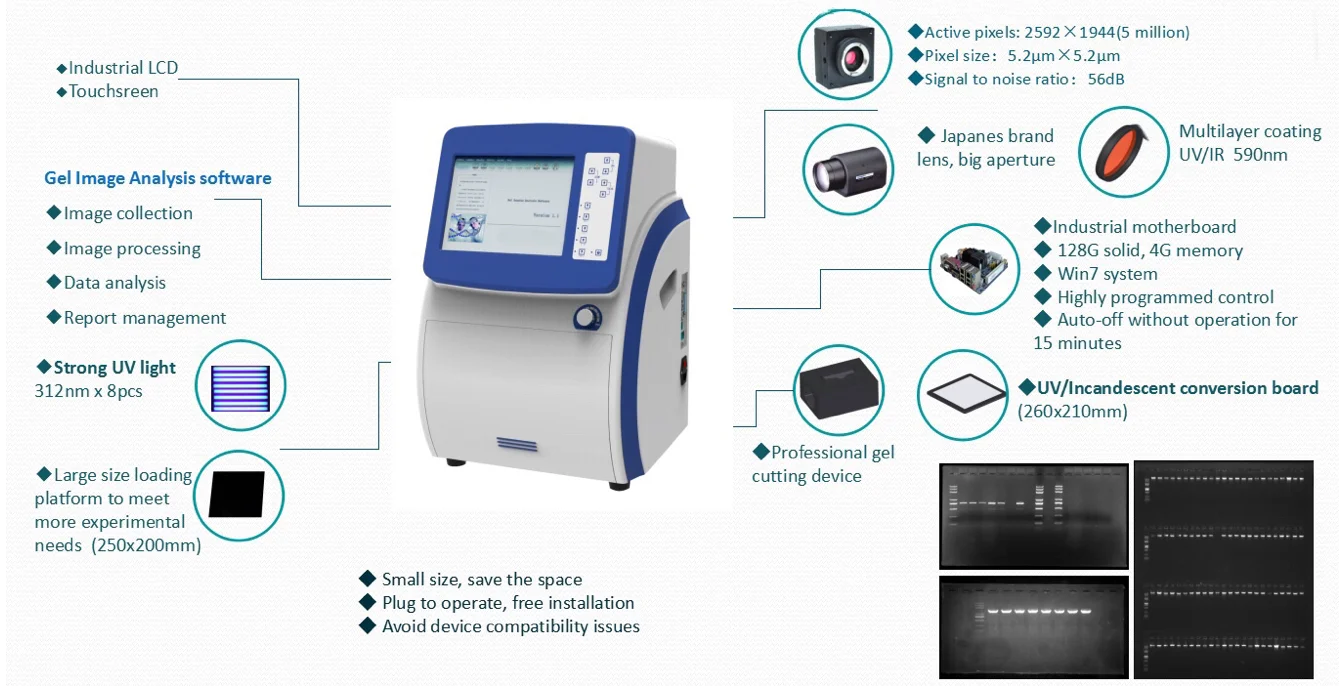

All-in-one machine design
it can be controlled by computer or cabinet panel, and can fully control zoom, focus, aperture, transmission ultraviolet lamp and
reflection lamp
Airborne display screen
12.1-inch LCD
Analysis software
customized software Gel Image Analysis
All-in-one machine design: it can be controlled by computer or cabinet panel, and can fully control zoom, focus, aperture, transmission ultraviolet lamp and reflection lamp
High-performance low-power I3 processor, dual-core four-thread 1.8g, solid state drive 128G, 4G memory, Windows10 system
With standard Internet port, USB, COM, VGA, keyboard and mouse, no need to have a computer
Recommend Products
Packing & Shipping
Company Information
AELAB GUANGZHOU CO.,LTD is a company that has many of manufacturing and selling wide range of science & laboratory instruments. The main product include liquid handing, nucleic acid and protein analysis instruments, general instruments, cleaning machines. Over 15 years international sales experience and already provide service over 100 countries. We are able to provide installation,debugging, training service onsite. For general machines we are providing online training service or telephone call training service to distributors. The machine basic information and brochure customers can download from our website directly.
Please do not hesitate, AELAB products are worth a try! Welcome to join us!
FAQ
Q: How about the warranty for your products?
A: All of our products have 1-2 year warranty. During the guarantee period, if there are any problem with our instrument, we will help you to solve it by sending pictures, videos or free spare parts until things get fixed. Out of guarantee, we will also help you solve the problem,but not including send free spare parts to your country. Q: Can you do OEM? A: Yes, we can do OEM/ODM as you required.
Q: Can you offer the technical support, online or site training or other
A: We will offer technical support like operating manual, operating videos to support or provided training material of the detailed products you are interested in. If you have chance to come to Guangzhou, welcome to our office, we have samples here, and we can show you how to operate them.
