Autocad designs 1325 4d carving cnc router wood cutting machine
- Category: >>>
- Supplier: Shandong Anben Machinery Co. Ltd.
Share on (62428229396):
Product Overview
Description
Product Description

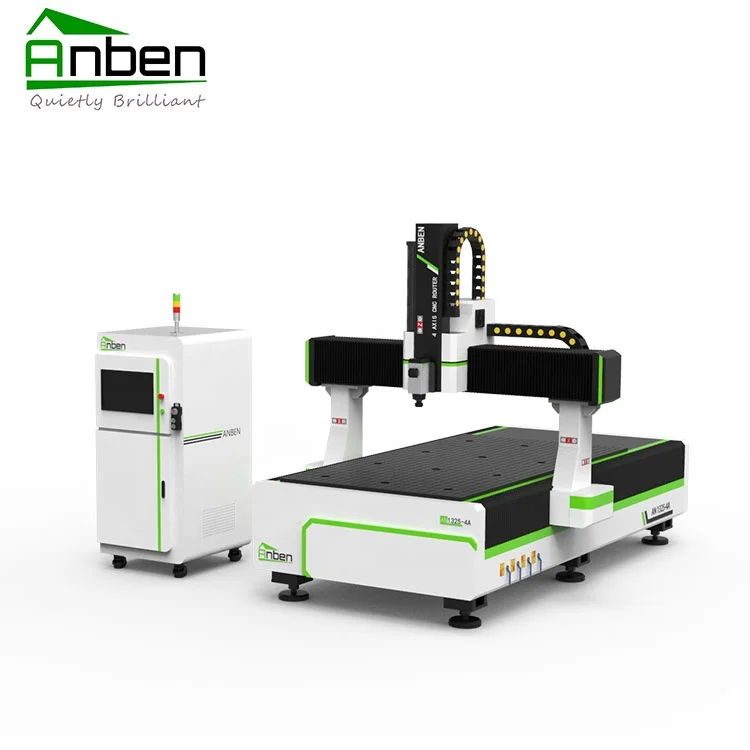

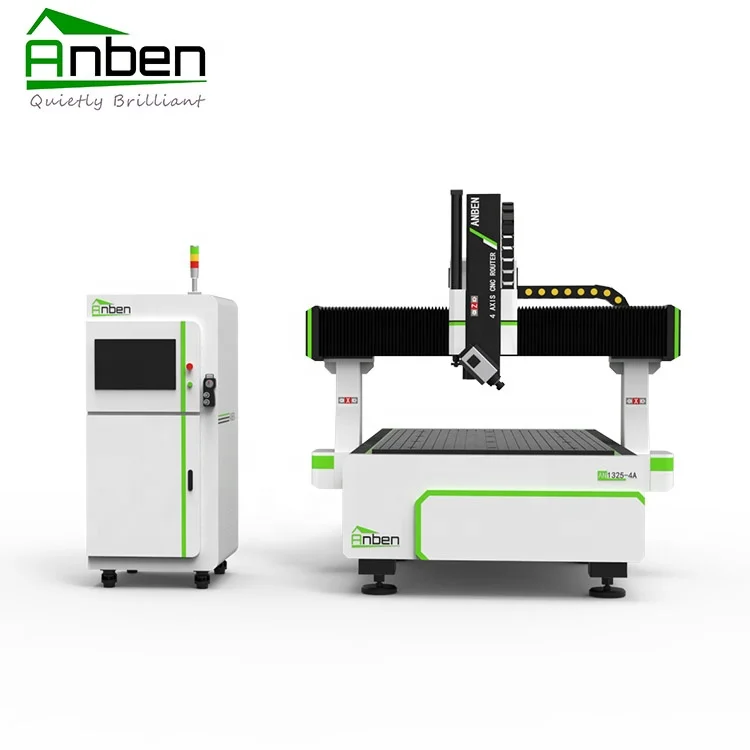

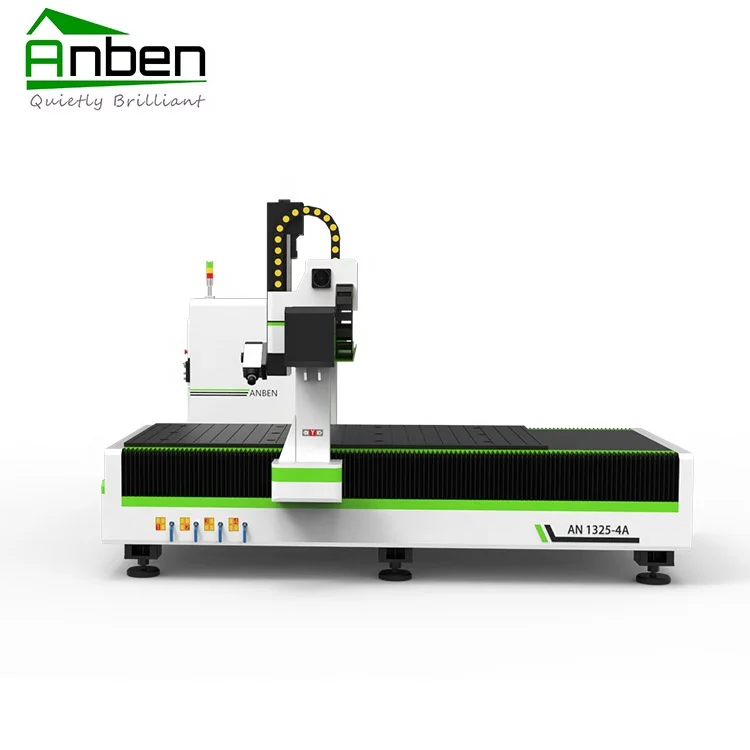

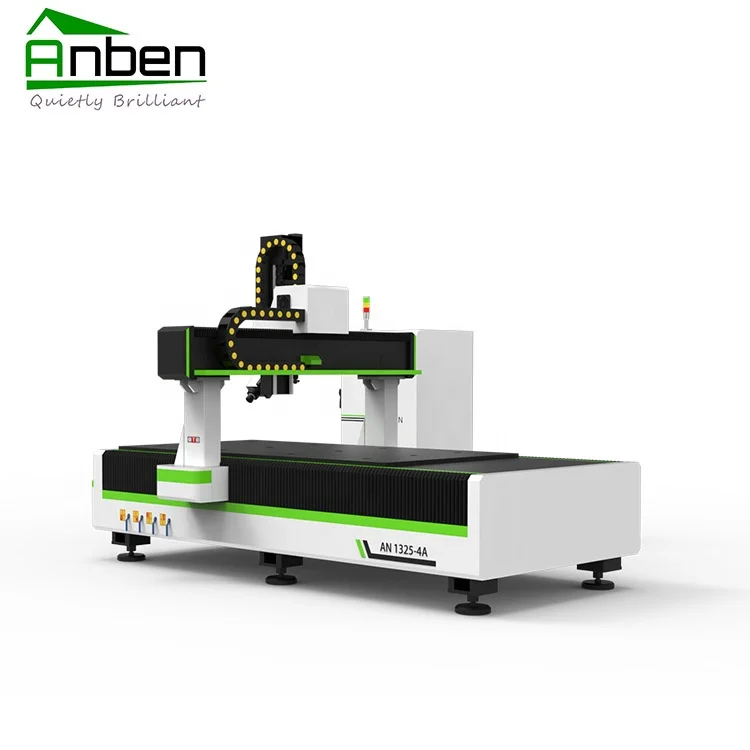

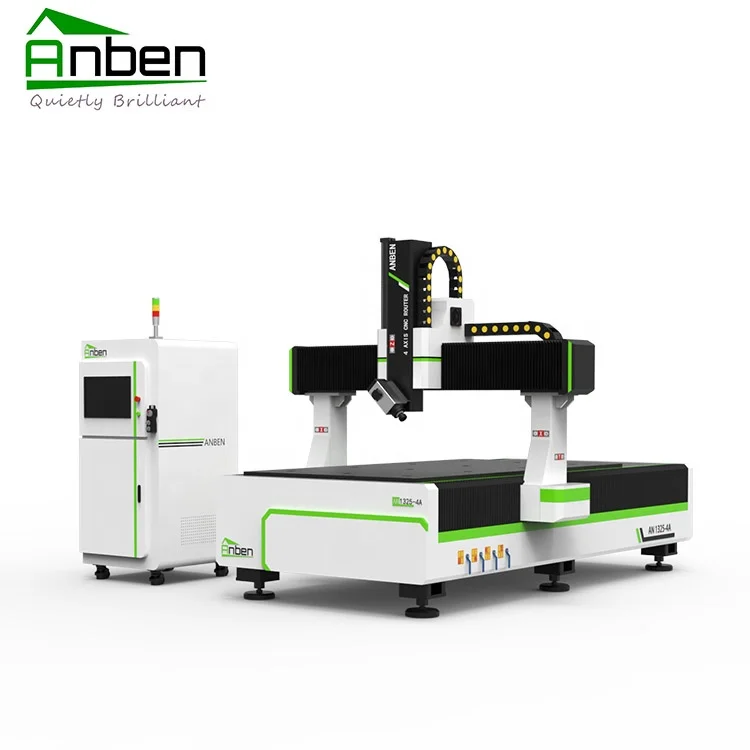

Autocad designs 1325 4d carving cnc router bosch wood cutting machine
Anben CNC Router AN1325 use the world top brand parts, DSP control system, popular and easy operation, and Chinese good brand 3.5KW air cooloing spindle, Stepper motor or japan Yaskawa servo motors for optional, high precision, reliable and stable, ensure the high speed operation of the whole machine.Taiwan Hiwin Guide and Block, guaranteed genuine rail with good quality, realizing smooth movement; Taiwan TBI ball screw: linear motion with high precision and and in high speed.
Anben CNC Router machine, great router ! Make you work efficiently !
Features of cnc router wood :
--1300*2500*400mm working area.
--4.5 KW HQD ari cooling spindle.
--5.5 KW Fuling Inverter.
--Syntec 6MB control system control system.
--1KW Japan YASKAWA servo motor and driver
--Spindle rotation angle +- 90°
Description | Parameter | |||
Model | AN1325 | AN1530 | AN2030 | AN-Customize |
Working area(X*Y*Z) | 1300*2500*200mm | 1500*3000*200mm | 2000*3000*200mm | Customize |
Table Surface | T-slot Table / Vacuum & T-slot Table | |||
Frame | Heavy-duty Industrial class square tube strong structure | |||
X, Y Structure | Helical Rack and Pinion Drive, Taiwan PMI linear guide rails | |||
Z Structure | Taiwan TBI Ball Screw Drive, Taiwan PMI linear guide rails | |||
Spindle Power | 3KW / 4.5KW / 5.5KW / 6KW / 7.5KW / 9KW-ATC | |||
VFD Power | 3.7KW / 5.5KW / 7.5KW / 11KW | |||
Operating System | DSP control system / Nc Studio control system/Syntec 6MB | |||
Drive Motors | Leadshine drive and Japan YASKAWA | |||
Max. Rapid Travel Rate | 33000mm/min | |||
Max. Working Speed | 23000mm/min | |||
Cutting accuracy | ±0.03/1000mm | |||
Working Voltage | AC380V, 50Hz, 3PH (Option: 220V) | |||
Command Language | G Code | |||
Software Compatibility | Artcam / Power mill / Type 3 / Ucancam | |||
Optional parts:
1. Rotary device: Dimensions can be customized
2. Lubrication system:Manual or automatic lubrication system
3. Vacuum pump:Water circulation pump/Germany Becker/Tongyou vacuum pump
4. Dust collector:Single or double packet dust collector
5. Reducer:Germany Eisele/Japan Shimpo/Taiwan APEX
6. Configure more spindles according to customer requirement
The format that our software can support on the cnc router engraving machine.
A comprehensive range of technologies and solutions for joiners and large furniture, windows, doors and timber building components manufacturers.
Application & Sample
Application of cnc router wood :
1.Mould: wood,wax, wood, gypsum,foams,wax 1325 cnc router wood working machine wood machine
2. Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
3. The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
4.Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5. Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper engraving and milling process. 1325 cnc router wood working machine wood machine
Popular Products
 |  |  |
 |  |  |
Packaging & Shipping
Standard Package: 1. Inner package: Covered with plastic film on the cnc machine.
2. Outside package: Standard marine export plywood case.
We can package according to your requests.
Delivery Detail: Shipped within 10 working days after payment.
Our Services
1.24 months quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period. wood cnc machine wood cnc router
2. Free training course at our plant. Lifetime maintenance free of charge.
3. Our staff can be sent to your company to install or adjust if necessary.
4. We will provide the consumable parts at an agency price when you need replacement.
5. 24 hours on line service each day, free technical support.
6. Machine has been adjusted before delivery. wood cnc machine wood cnc route
FAQ
Q:How to operate the machine ?
A: We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
Q:How can I get the sample to check you quality ?
A: If you want to marking sample to check the quality, we can help you do this. first you need to provide the logo or design to us, free mark samples can be provided.
Q:Does the machine can be customized according to my requirements ?
A: Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
Q:Can you arrange the shipment for me ?
A: We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.
