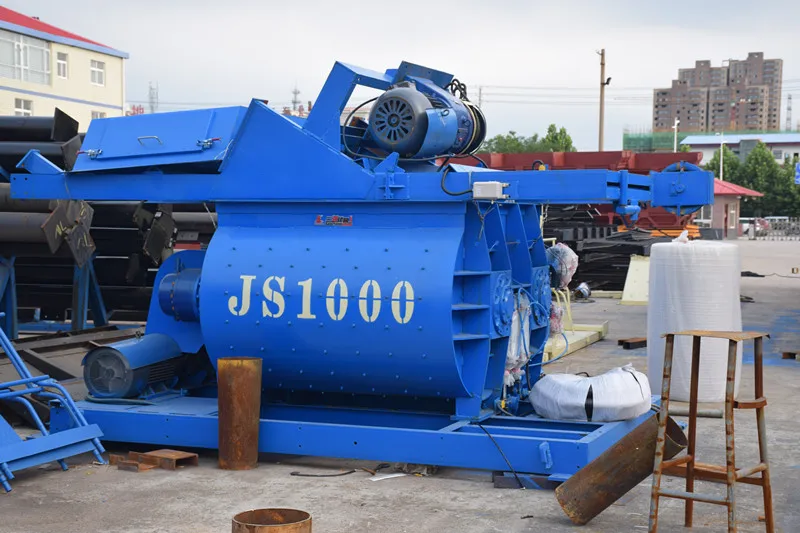

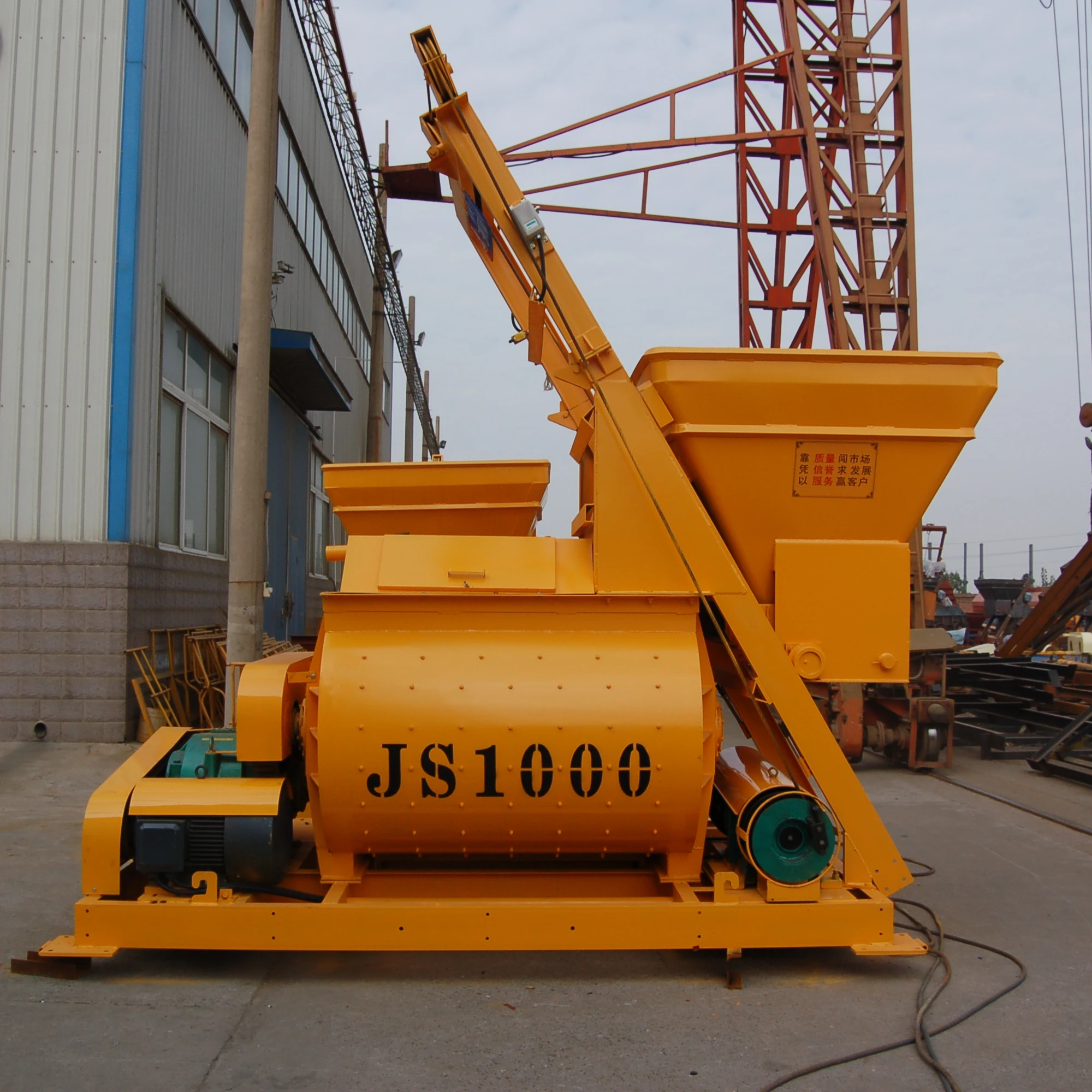

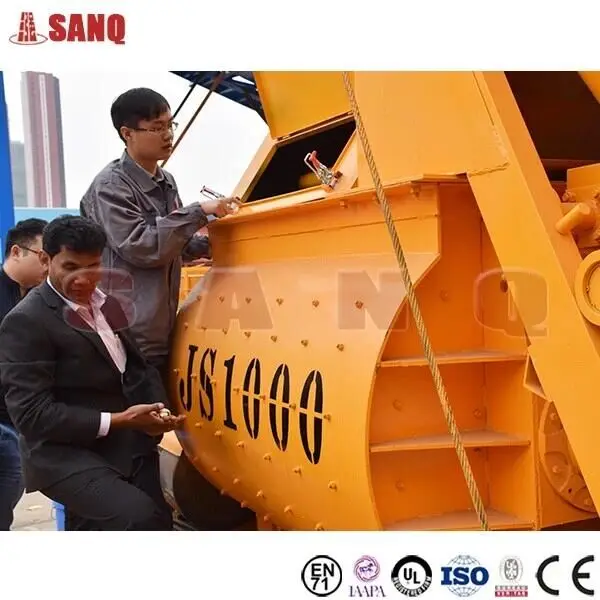

JS1000 Building Construction Machine and Equipment Concrete Mixer with factory price
JS concrete mixer, Twin shaft Concrete Mixer is the second generation of the compulsory horizontal type concrete mixer. It is excellent in energy efficiency and time saving. The technology of separating the shaft bearings from the shaft sealing makes the sealing is easily accessible for maintenance. Moreover, except for hydraulic control system for discharge electrically or manually, The machine is a classic twin shaft concrete mixer meeting the requirements of medium to high concrete output. JS concrete mixer is extremely reliable and reflects the state of the art.
MODEL | JS1000 |
Capacity | 50-60m³/h |
Discharge Volume | 1000L |
Charge Volume | 1600L |
Mixing blade speed | 30r/min |
Number of mixing blade | 6×2 |
Mixer motor power | 37kw |
Hoist Electromotor power | 11kw |
Water pump power | 2.2kw |
Lifting speed of hopper | 19m/min |
Max aggregate size | 60mm |
Discharge height | 3800mm |
Overall weight: | 10800Kg |
Overall dimensional(L*W * H) | 3660*2260*2800mm |
Feature:

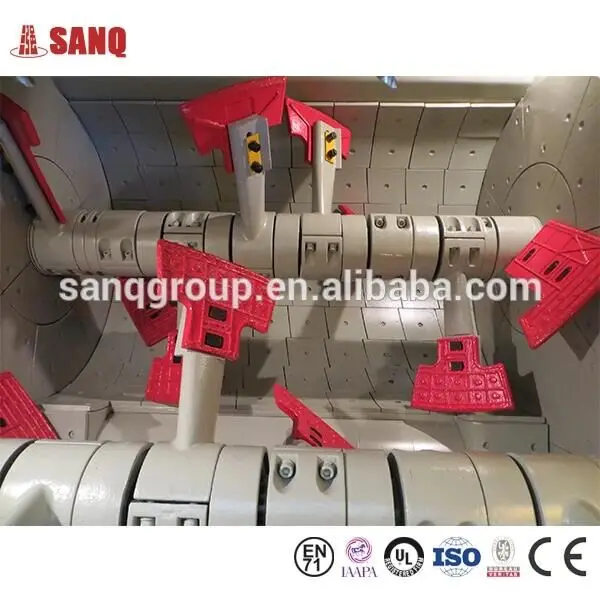

The mixing blade is made form high anti-abrasion alloy and its lifetime can reach 200000/times, no need to exchange always which lowed the cost.
High efficiency mixing motor with high protection level, it is designed according to F class insulation which guarantee the long lifetime and high reliability.
Manuel and fully automatic lubrication system as per your request.
Adopt 12.5mm steel wire with max. tensile force 10T, which makes sure lifting hopper’s loading speed and security.Lifting motor with brake and anti-bearing lock design to achieve safe running and low failure rate.
