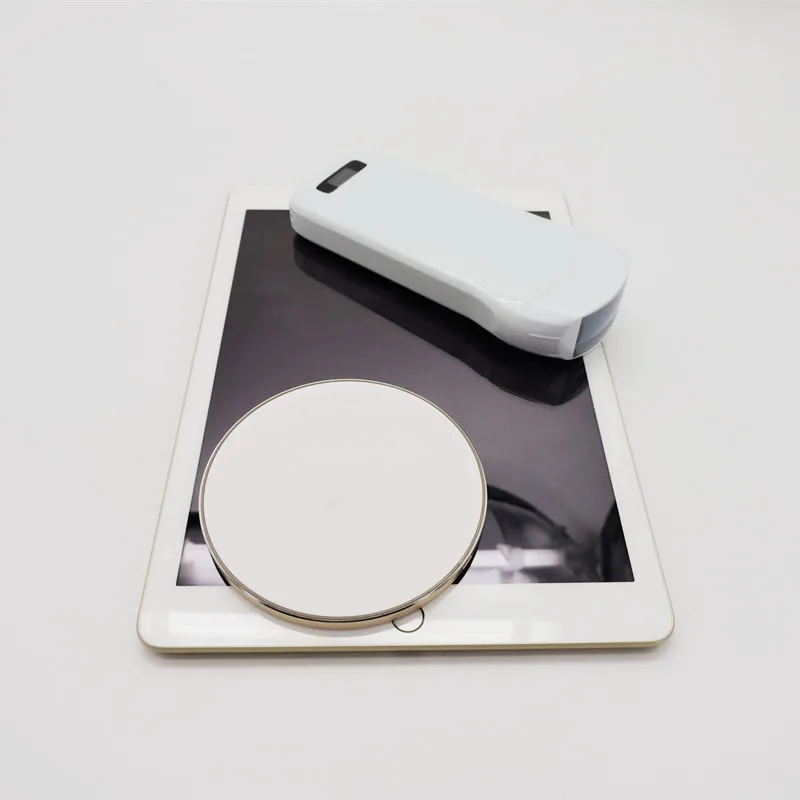

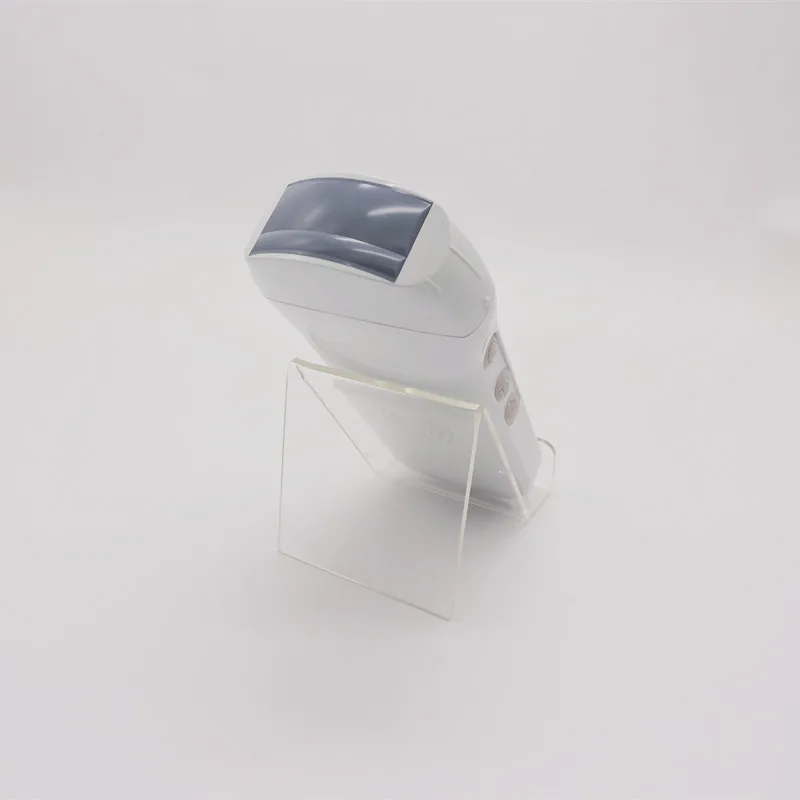

Original manufacturer konted C10T 3 in 1 portable color doppler ultrasound transducer machine
- Category: >>>
- Supplier: Beijing Konted Medical Technology Co. Ltd [Beijing China]Beijing
Share on (62428440671):
Product Overview
Description
Product Description
Original manufacturer portable color doppler ultrasound transducer machine
New product
introduction :

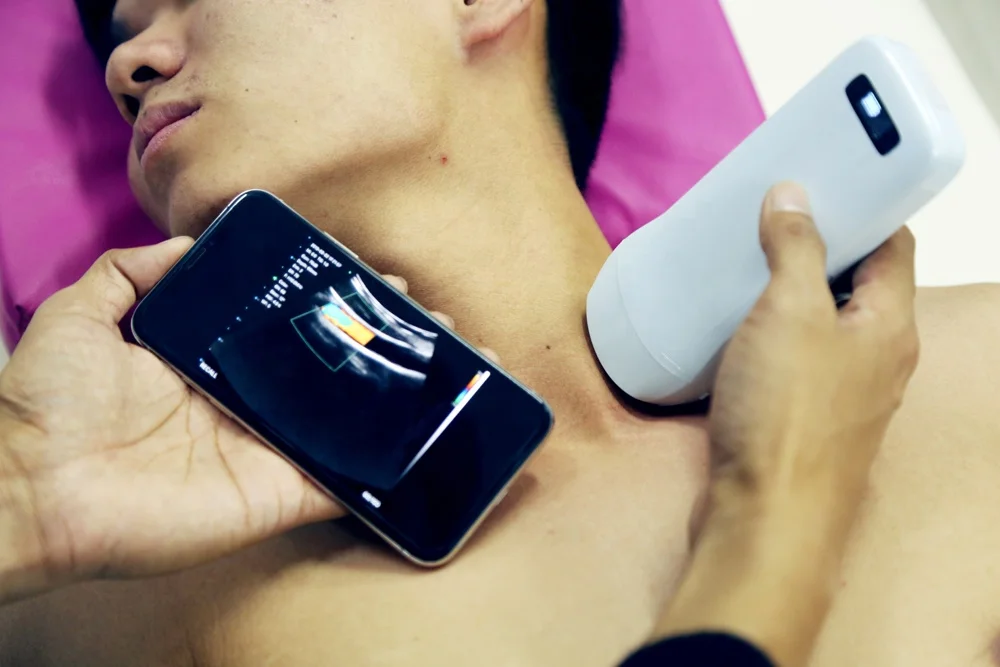

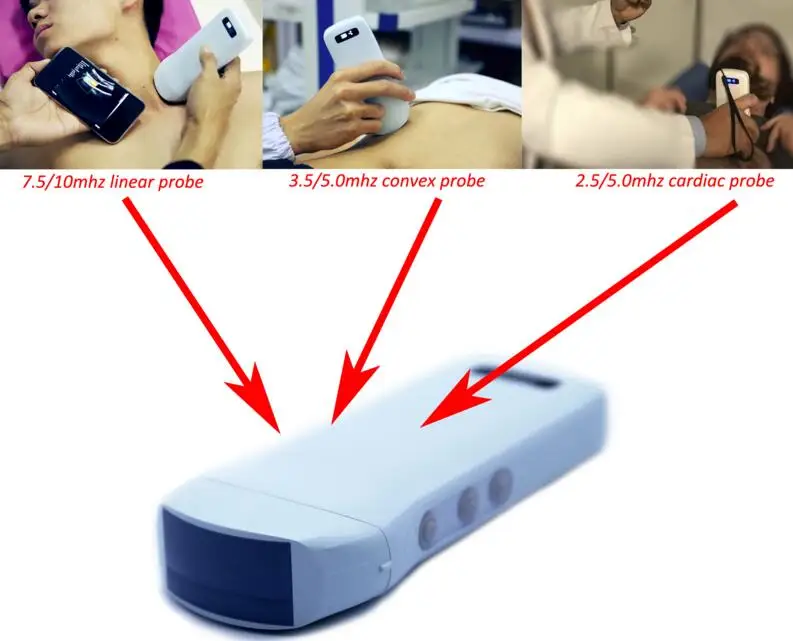

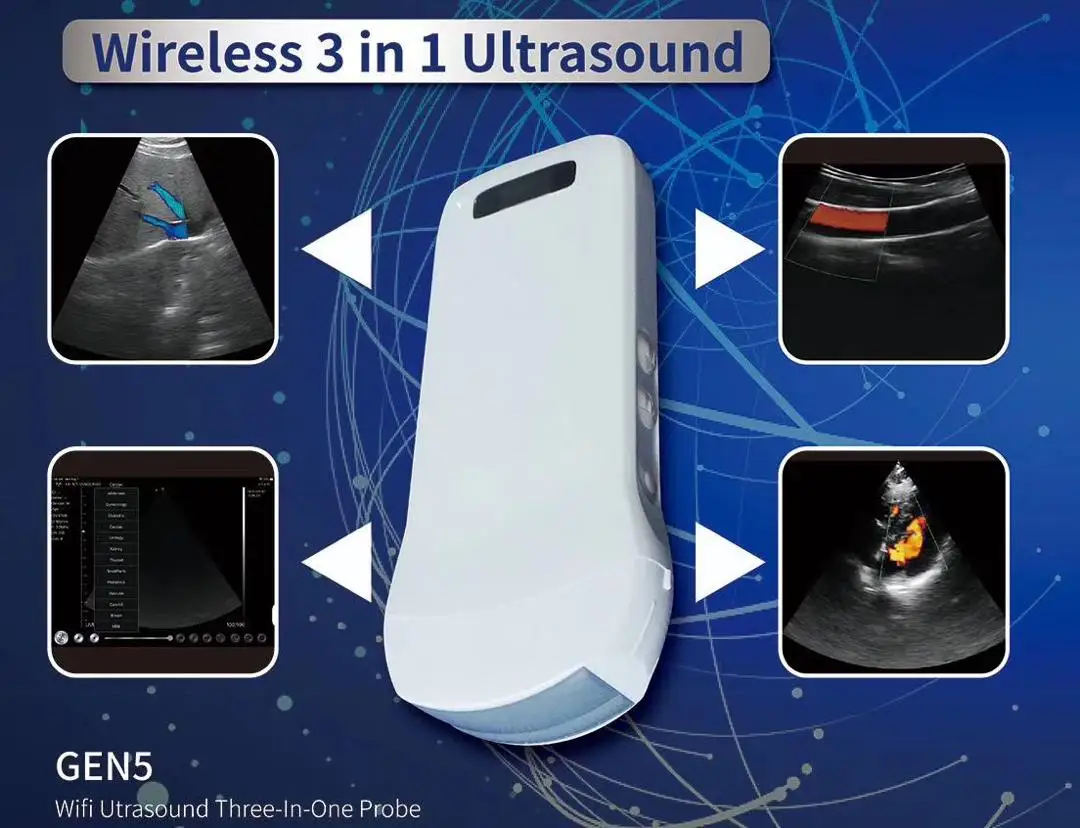

C10T is our company new designed 3 in 1 wireless ultrasound probe,no need changed the probe head can realized convex linear and cardiac scan,one probe have three function.
software
LATEST SOFT WARE UPGRADE(All the soft ware is free and free upgrade all life)
1. Measurement function Add "angle measurement", "trajectory measurement", "fetal weight"
2. Image flip
3. Software language Add "Russian, German, Italian, Spanish, Portuguese(Brazil)"
4. Report print ,with clinic image + diagnosis result.
Feature
Feature
-Small and Compact size, easy to carry.
no need changed the probe head can realied convex linear and cardisac scan.

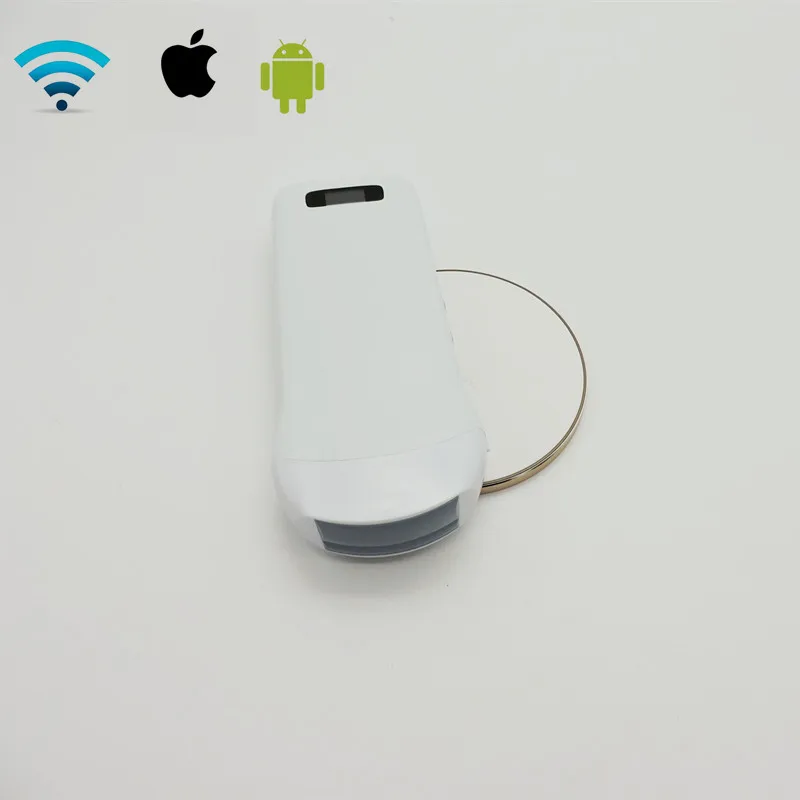

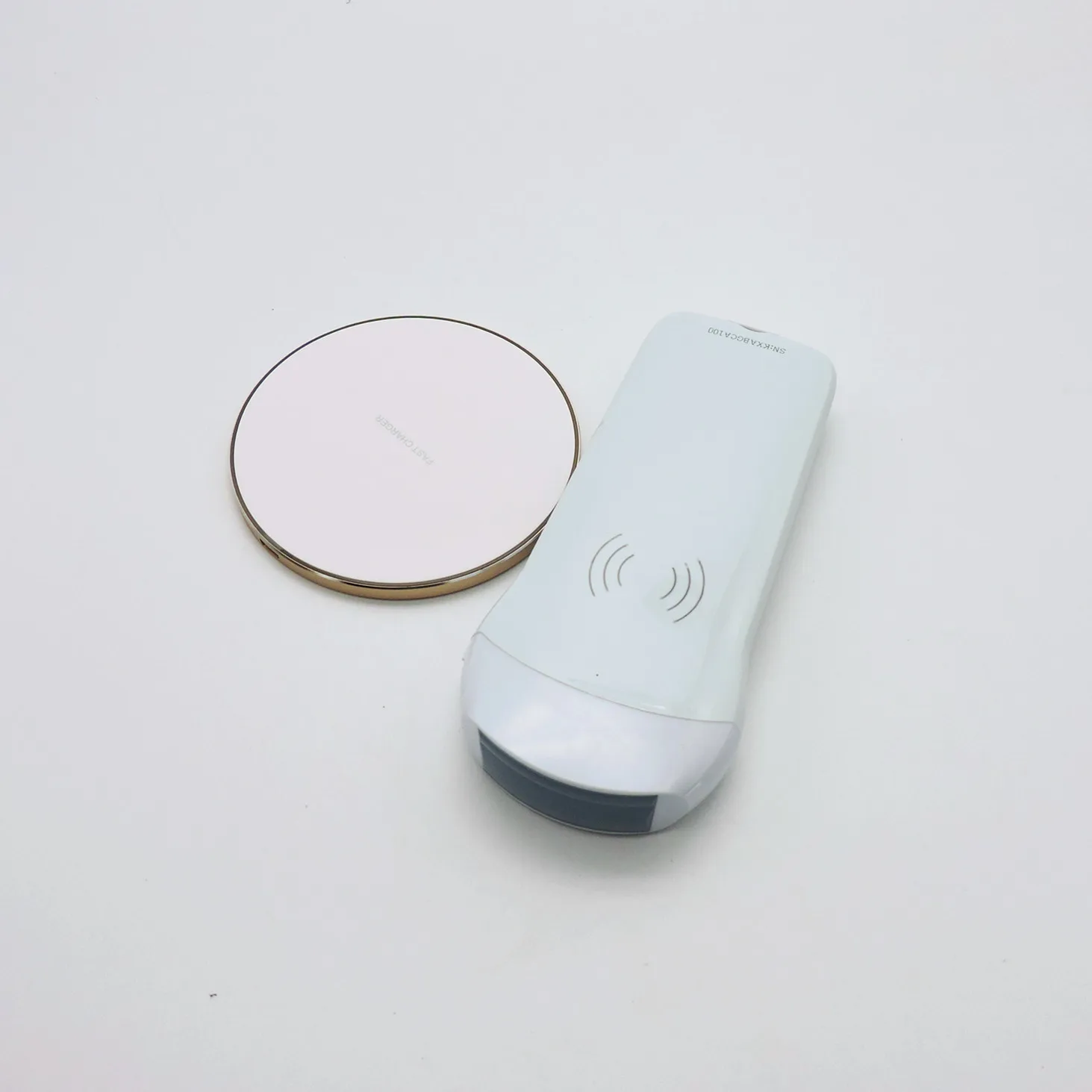

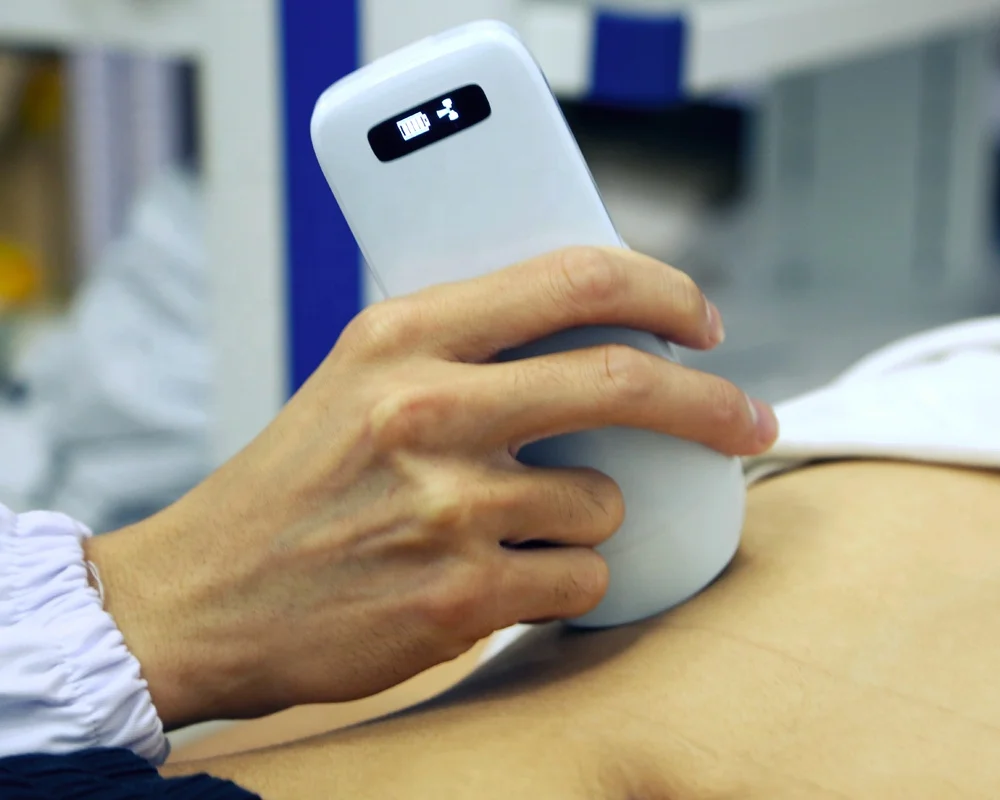

-Wireless type without probe cable, working freely.
-Waterproof design, convenient for sterilization.
-Remote diagnosis convenience, capable for images transfer to doctors.
Specification
GEN5 Color Doppler {B, B / M, color, PW, PDI}
| Specifications | |||
| Type | Linear/convex/cardiac | Imaging mode | B,BM,Color,PDL,PW |
| Frequency |
Convex:3.5/5Mhz Linear:7.5/10MHz Cardiac:2.5/5Mhz |
Depth | Convex:90~305mm Linear:20~80mm Cardiac:90~160mm |
| Elements | 128 | Working system | los,Android,Windows |
| Battery time | Working time:>=3h Standby time:>-12h | Battery life: | 5~8 years |
| Dimensions | 157(h)x70(w)x30(d)mm | Package size | 240(h)x235(w)x100(d)mm |
| Net weight | 227g | Gross weight | 1.1KGS |
| Radius | R45 | Length | N/A |
| WIFI type | 802.11n/20MHz/5G | Battery Replaceable | Yes |
| Battery Voltage | 3.7v | Battery Capacity | 4200mAh |
| APP interfaceadjustment |
GN(gain) D(depth) ENH(enhancement) DR(dynamicrange) F(frequency) Mode 8TGC Measure:Length,Area,Circumference, GA(CRL,BPD,GS,FL,HC,AC) |
Applications |
-Abdomen- Obstetrics/Gynecology -Cardiac -Kidney -Urology -Breast -Thyroid -MSK -Vascular -Pediatrics -CarotidSmall Parts |

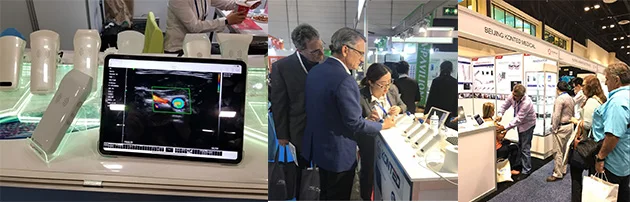

Our exhibition
Our exhabition

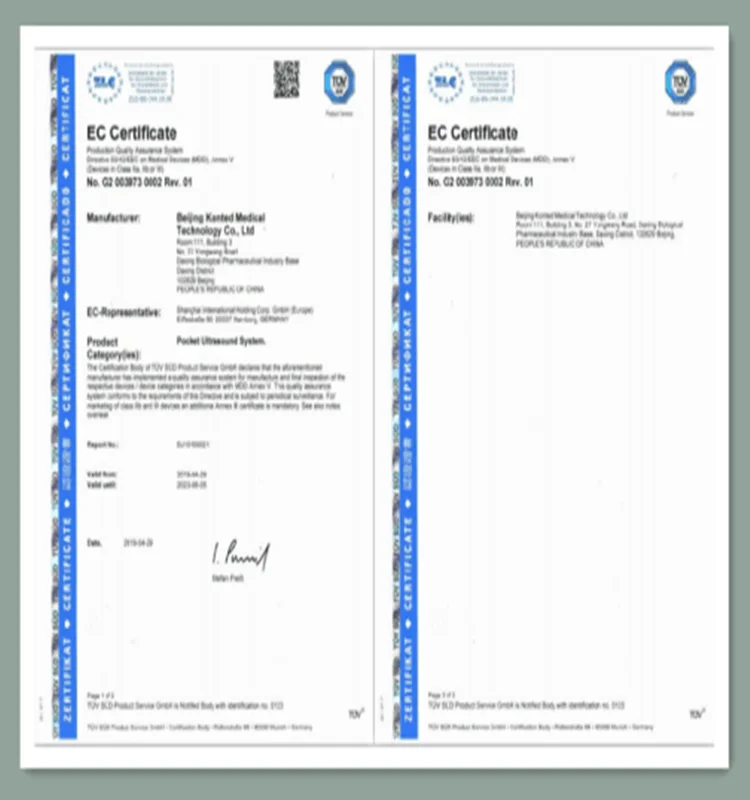

Certifications
Packaging & Shipping

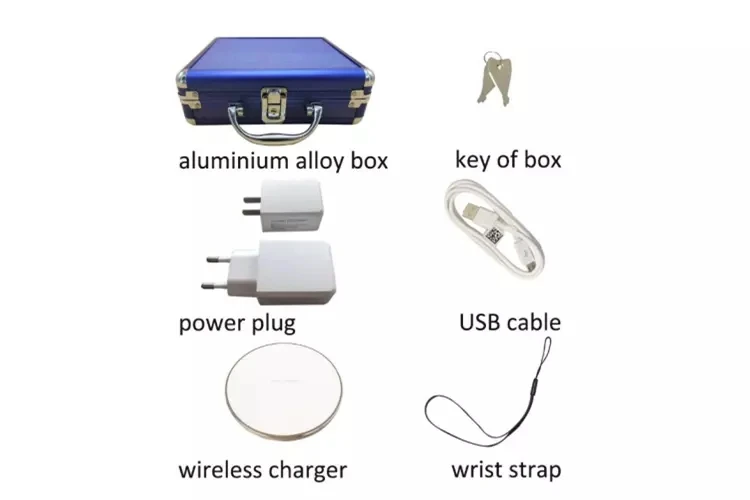

New Pakage : Aluminum packing
Shipping : DHL , Fedax , Aramex, EMS , TNT ect (You can choose the shipping method that suits you)
Our Services
1. We offer 18 month warranty period ,24 hours calling service.
2. Return Policy Allowed.
3. There is OEM&ODM service for distributor.
4. After you get the machine, there is user manual, maintain manual, training video guide you to operate the machine.
5. 100% Calibration before Shipment.
6. All products will be shipped within 1-3 working days upon payment .
