12v dc brushless cooling fan 12v 0.3 a 120x120x25
- Category: >>>
- Supplier: Shenzhen Yccfan Technology Co. Ltd.
Share on (62428492993):
Product Overview
Description
12v dc brushless cooling fan 12v 0.3 a 120x120x25
Product Description

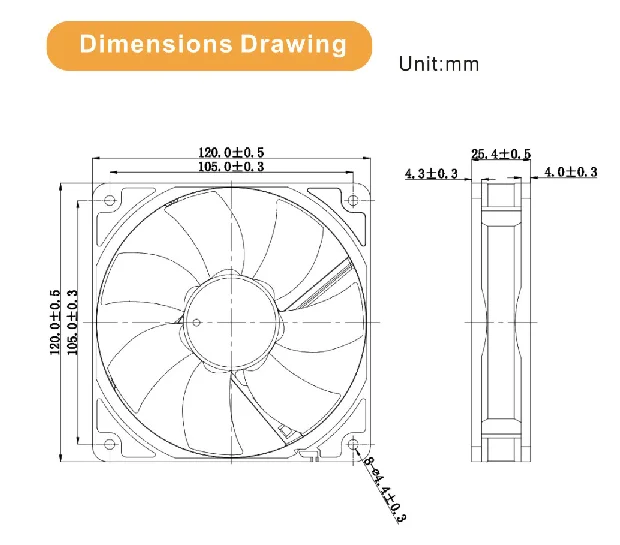

120x120x25mm fan specifications
ITEMS | PARAMETERS |
Dimension | 120*120*25mm |
Fan Frame | BLACK PBT (UL94V-0) |
Fan Impeller | BLACK PBT (UL94V-0) |
Bearing System | (YES)Sleeve bearing Hypro Bearing CycleSeal Bearing (YES)Dual Ball Bearing |
Rated Voltage | 12.0VDC |
Rated Current | 0.30Amp |
Rated Power | 3.60 Watt |
Rated Speed | 2000±10%RPM |

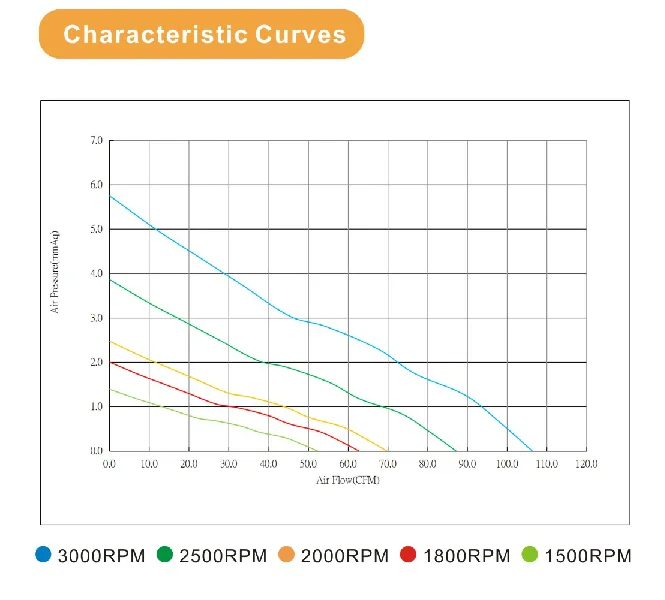

Air Flow | 64.64CFM |
Noise Level | 35.00dBA |
Rated voltage: 5v 9v 12v 14v 24v according to customer's demanding
Air flow, air pressure, speed and rated voltage can be customized based on customer's demanding.
Bearing Type : Sleeve : 30000 Hours At 25℃ Environment
Hydraulic : 30000 Hours At 40℃ Environment
Dual Ball : 50000 Hours At 40℃ Environment
YCCFAN ball bearing is Minebea NMB brand, it is imported from Japan
YCCFAN 100% inspected material, are all compliance to RoHS, environmental protection
and fireproofing material UL94V-0 .
Company Information
Shenzhen YCCFAN Technology Co.,Ltd
www.yccfan.com
DC Axial Fan (20mm - 172mm) : 3v / 3.3v / 5v / 12v / 18v / 24v / 36v / 48v all voltage aviliable
AC Axial Fan ( 60mm - 200mm) : 110v / 125v / 220v / 240v AC Voltage
DC Blower Fan( 20mm - 120mm) : As required
EC FAN ( 60mm - 120mm) : 110v - 220v both voltage
Founded in 2011,YCCFAN located in Shenzhen of China . 7000M2 plant , 300+ staff , 50000pcs daily capacity.
R&D equipment
Work shop
Prodution equipment
Since 2017,YCCFAN investes own injection factory.
Certificate:
Corporate certificates: ISO9001:2008 , ISO14001:2004 , IATF16949:2016
Product certificated: UL/CUL,CE,RoHS, SGS
Patents: CycleSeal bearing system
Client Recognition: Panasonic,Mitsubishi, Sony GP
R & D Ability
Every year, YCCFAN invest 50% of turnover to R&D new products, purchase experimental and detecting instrument.

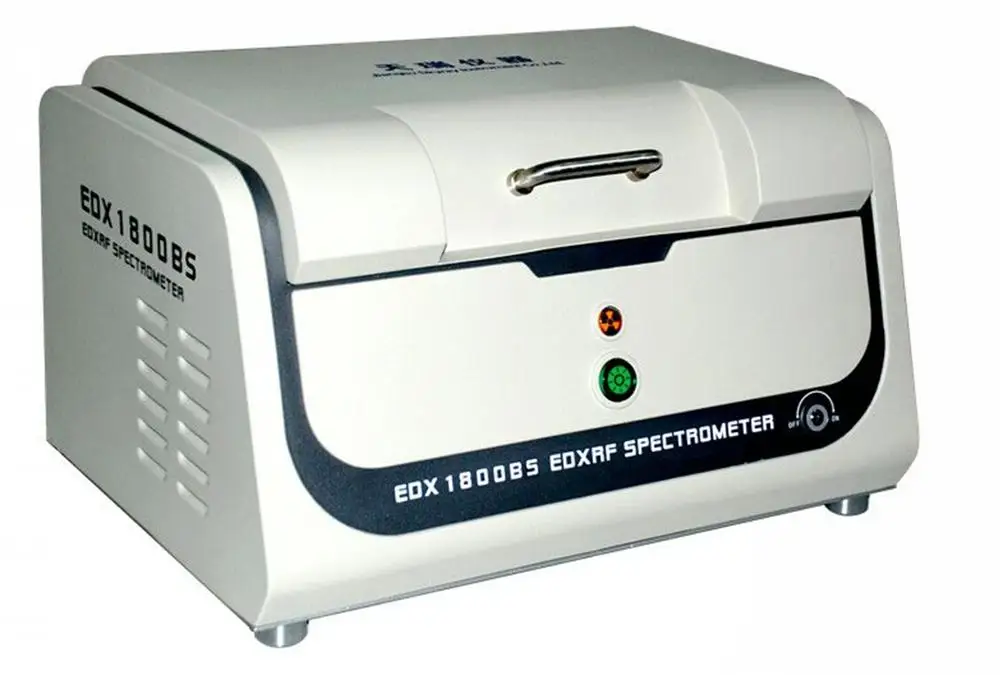

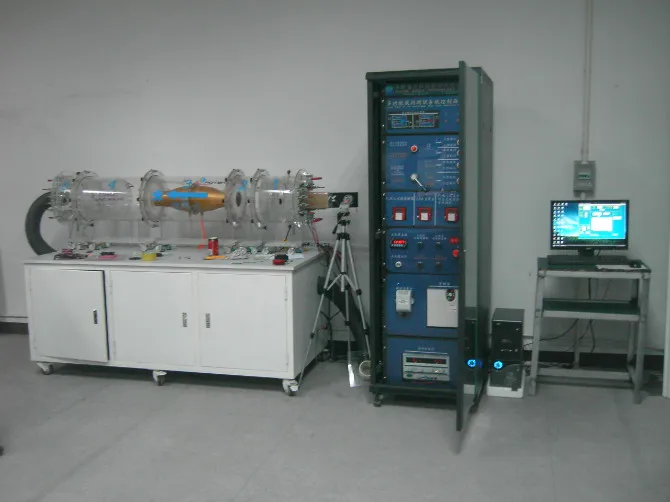

1.Noise Room 2.Wind Tunnel 3.XRF-RoHS
for testing the noise level(background precise air flow measure equipment element analysis range from S to U,
<=20dBA) ( 0 -400cfm) analysis unit from 1ppm to 99.99%

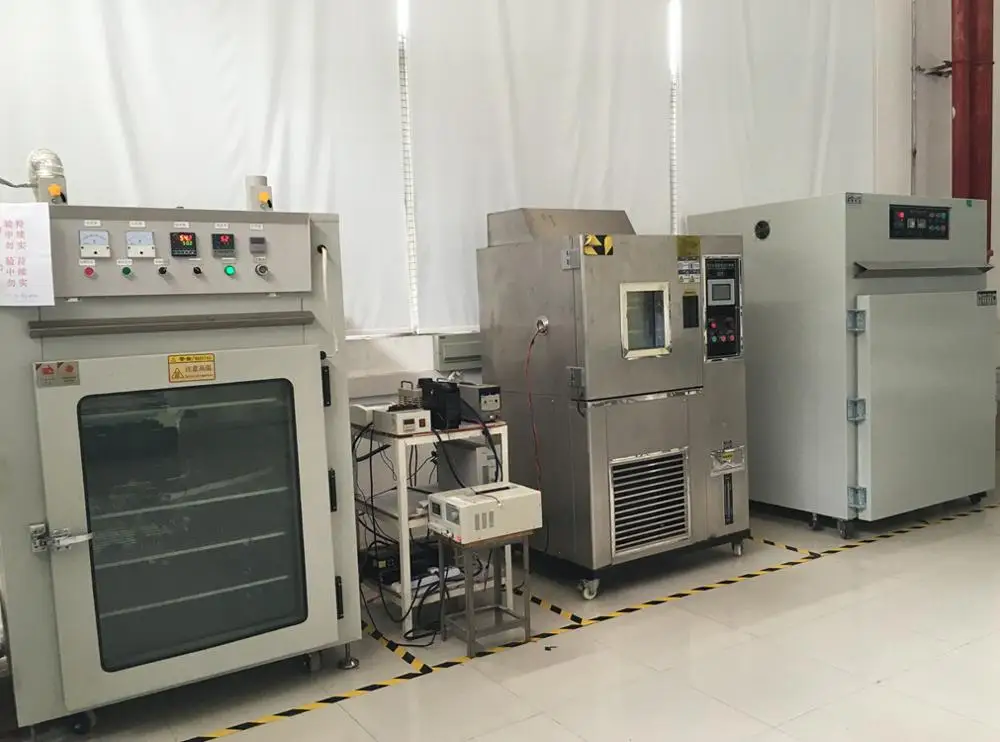

4. Precise analysis and inspection 5.Drop testing &Pull-push strength 6. The lifetime testing under high
instrment for reliability test & simulated transport vibration and normal temperature
40mm Micro Small DC Cooling Fan 40x40x20mm 12v / 24V Exhaust Fan dc Axial Fow Fans
fan's application
-----------------------------------------------------------------------------YCCFAN--------------------------------------------------------------------------
------------------------------------------------------------ Main Products ---------------------------------------------------------------------------
---------------------------------------------------------Your Correct Choice------------------------------------------------------------------
40mm Micro Small DC Cooling Fan 40x40x20mm 12v / 24V Exhaust Fan dc Axial Fow Fans
Our Certifications
UL & CUL & CE & RoHS & SGS & ISO9001 & ISO14001 &3C and more to be continued.
40mm Micro Small DC Cooling Fan 40x40x20mm 12v / 24V Exhaust Fan dc Axial Fow Fans
FAQ
Q1: How to choose a DC fan ?
A1: Consider main point:size,voltage,speed/airflow,lifespan
B1: Consider your product inlet&outlet,choose axial fan or blower fan.
Axial fan blows air along the axis and blades,while blower fan blows air from the fan hole.
Airflow of axial fan is powerful, while static pressure of blower is stronger.
Q2: Can you tell me the normal DC fan Model?
A2: 20*20*6mm 20*20*10mm 25*25*10mm 30*30*7mm
30*30*10mm 40*40*10mm 40*40*20mm 40*40*28mm
50*50*10mm 50*50*15mm 50*50*20mm
60*60*15mm 60*60*25mm 60*60*38mm 70*70*15mm
80*80*15mm 80*80*25mm 80*80*38mm 92*92*25mm 92*92*38mm
120*120*25mm 120*120*38mm
150*150*51mm 172*150*51mm 172*51mm
We have more model,just e-mail me to get details...
Q3: Can YCCFAN make special design fan ?
A3: Sure, just tell me the request deetails, our R&D will provide the solution.
Q4: Can I get samples before order?
A4:Definely,that's our suggestion too.when mass production,performance is compliance to sample checked.
A1: Consider main point:size,voltage,speed/airflow,lifespan
B1: Consider your product inlet&outlet,choose axial fan or blower fan.
Axial fan blows air along the axis and blades,while blower fan blows air from the fan hole.
Airflow of axial fan is powerful, while static pressure of blower is stronger.
Q2: Can you tell me the normal DC fan Model?
A2: 20*20*6mm 20*20*10mm 25*25*10mm 30*30*7mm
30*30*10mm 40*40*10mm 40*40*20mm 40*40*28mm
50*50*10mm 50*50*15mm 50*50*20mm
60*60*15mm 60*60*25mm 60*60*38mm 70*70*15mm
80*80*15mm 80*80*25mm 80*80*38mm 92*92*25mm 92*92*38mm
120*120*25mm 120*120*38mm
150*150*51mm 172*150*51mm 172*51mm
We have more model,just e-mail me to get details...
Q3: Can YCCFAN make special design fan ?
A3: Sure, just tell me the request deetails, our R&D will provide the solution.
Q4: Can I get samples before order?
A4:Definely,that's our suggestion too.when mass production,performance is compliance to sample checked.
