Tobee Effluent Handling
$12,600
Monoblok Centrifugal Pompa Manufactures For Propane
- Category: >>>
- Supplier: Shanghai Shuangbao Machinery Co. Ltd.
Share on (62428615245):
Product Overview
Description

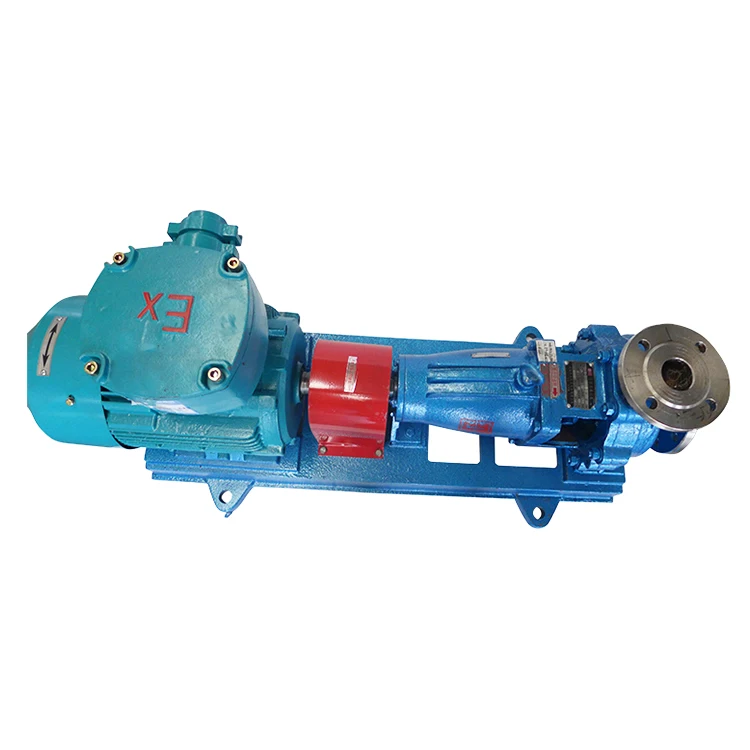

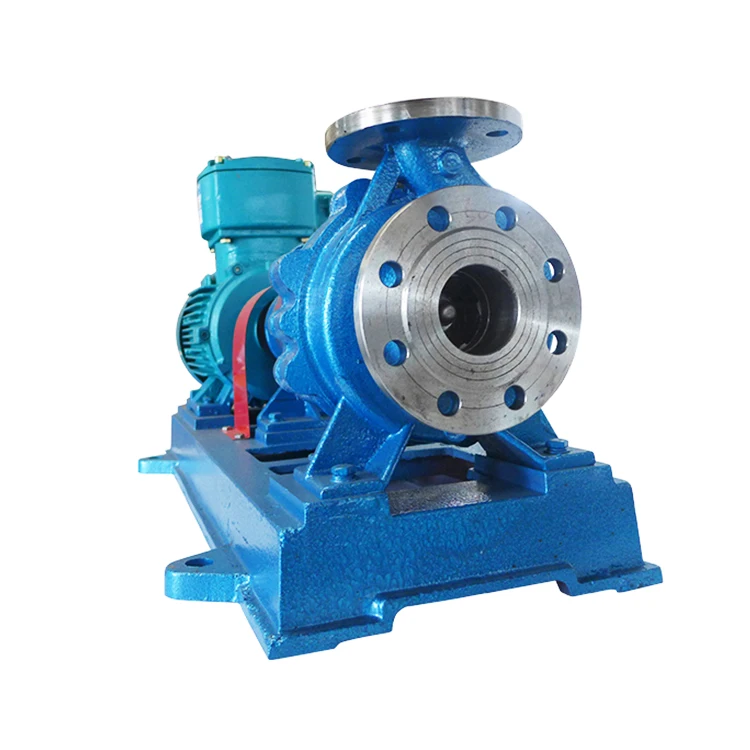

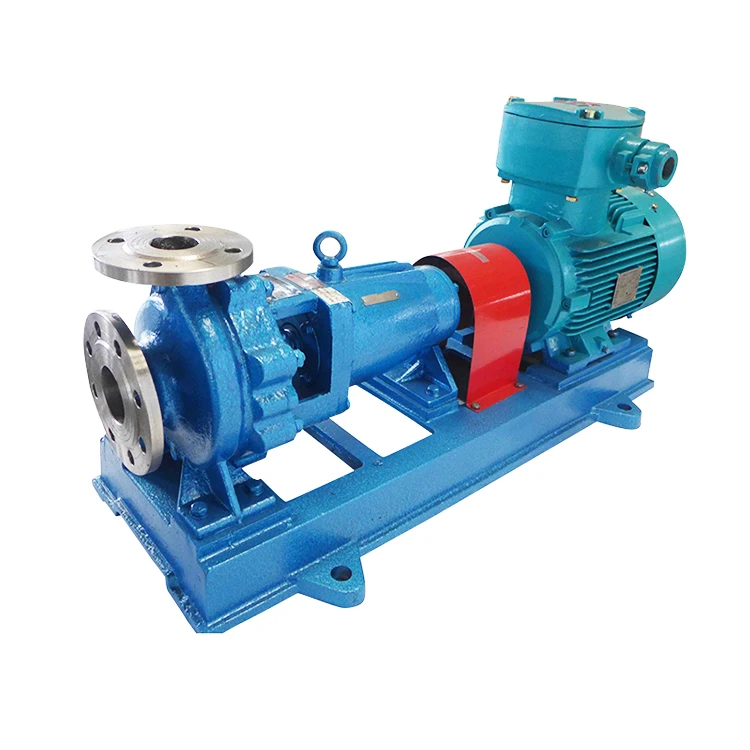

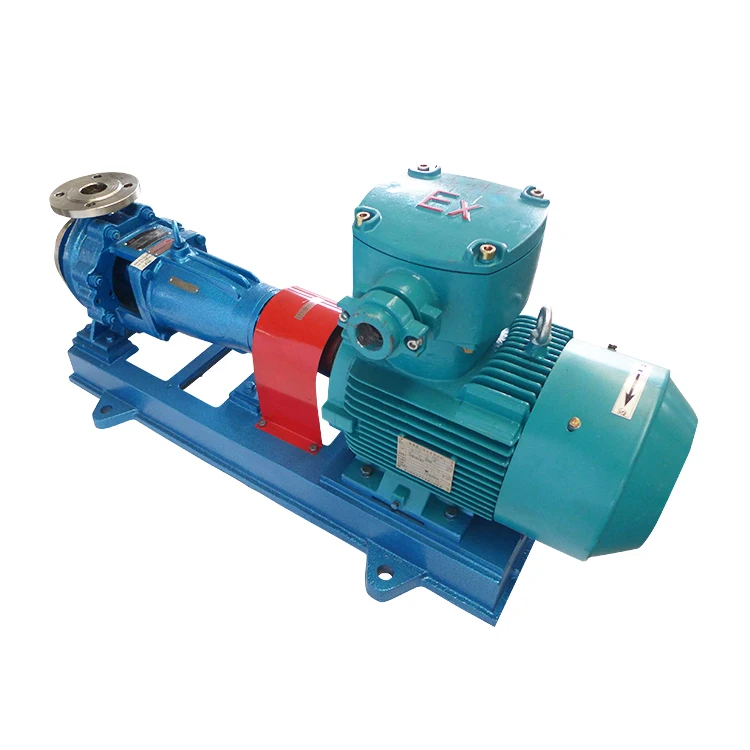

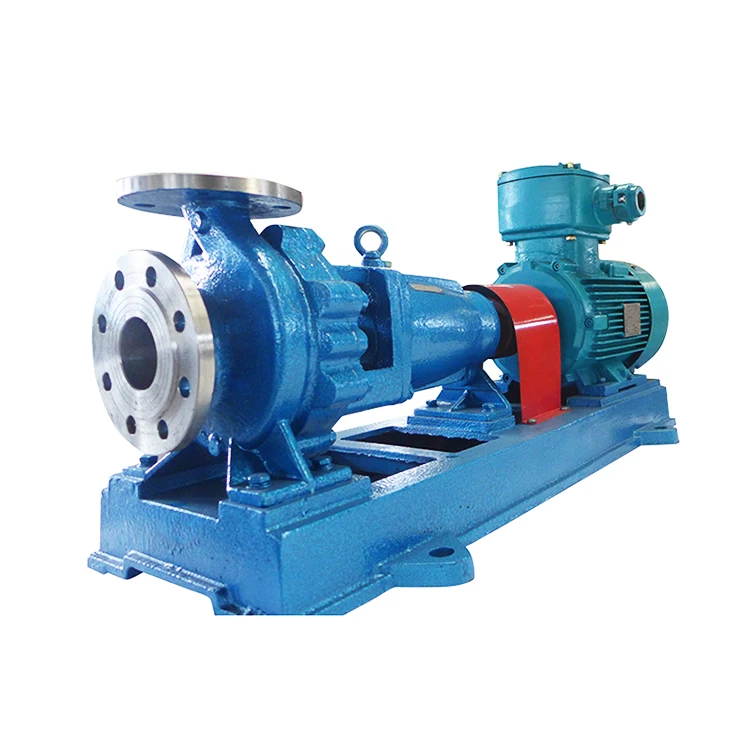

Monoblok Centrifugal Pompa Manufactures For Propane
Product Description

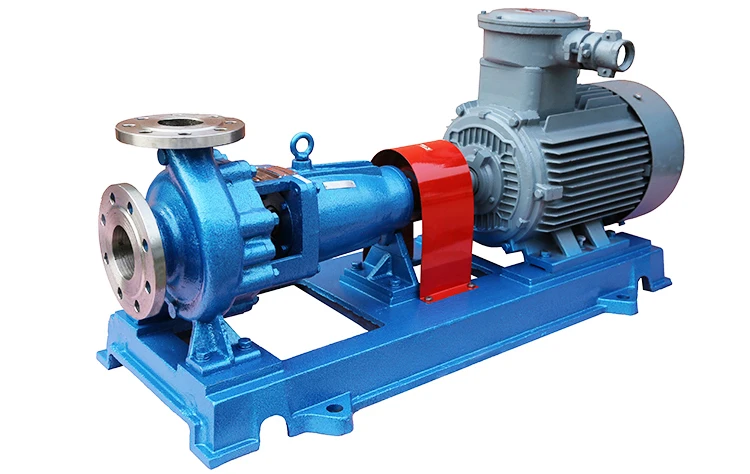

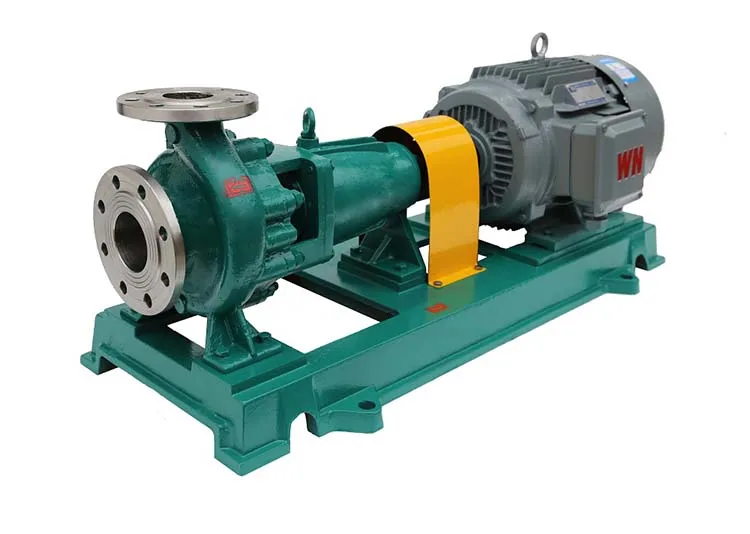

IH-type pump is a horizontal single-stage, single-suction chemical pump for industrial, agricultural and drainage. it is mainly used for transferring various corrosive liquids, and liquids containing a small amount of particles. The production is in strict accordance with ISO2858.
Operating range:
Capacity: 6.3m3/h-480m3/h
Head: 5-125m
Temperature: 0°C-150°C
Max. working pressure: 1.6Mpa
Process Media:
acid, alkali / salt solution / strong oxidant / organic solvents / corrosive slurries, solvents / hydrocarbons and other strong corrosive medium / ammonia water ion film caustic soda / wastewater
Application Industry:
Acid pickling process
Painting process
Textile industry
Pharmacy and Health
Electroplating industry
Chlorine water and waste water treatment
Petroleum Industry
Chemical Industry
Adding acid process.
Model and Parameter:
| Item | Model | Flow (m3/h) | Pump head (m) | Inlet(mm) | Outlet(mm) | NPSHa (m) | Speed(RPM) | Power (kw) |
| 1 | IH50-32-125 | 12.5 | 20 | 50 | 32 | 2 | 2900 | 2.2 |
| 6.3 | 5 | 50 | 32 | 2 | 1450 | 0.55 | ||
| 2 | IH50-32-160 | 12.5 | 32 | 50 | 32 | 2 | 2900 | 3 |
| 6.3 | 8 | 50 | 32 | 2 | 1450 | 0.55 | ||
| 3 | IH50-32-200 | 12.5 | 50 | 50 | 32 | 2 | 2900 | 5.5 |
| 6.3 | 12.5 | 50 | 32 | 2 | 1450 | 1.1 | ||
| 4 | IH50-32-250 | 12.5 | 80 | 50 | 32 | 2 | 2900 | 11 |
| 6.3 | 20 | 50 | 32 | 2 | 1450 | 2.2 | ||
| 5 | IH65-50-125 | 25 | 20 | 65 | 50 | 2 | 2900 | 3 |
| 12.5 | 5 | 65 | 50 | 2 | 1450 | 0.55 | ||
| 6 | IH65-50-160 | 25 | 20 | 65 | 50 | 2 | 2900 | 5.5 |
| 12.5 | 5 | 65 | 50 | 2 | 1450 | 0.75 | ||
| 7 | IH65-40-200 | 25 | 32 | 65 | 50 | 2 | 2900 | 11 |
| 12.5 | 8 | 65 | 50 | 2 | 1450 | 1.5 | ||
| 8 | IH65-40-250 | 25 | 50 | 65 | 40 | 2 | 2900 | 15 |
| 12.5 | 12.5 | 65 | 40 | 2 | 1450 | 3 | ||
| 9 | IH65-40-315 | 25 | 125 | 65 | 40 | 2 | 2900 | 30 |
| 12.5 | 32 | 65 | 40 | 2 | 1450 | 5.5 | ||
| 10 | IH80-65-125 | 50 | 20 | 80 | 65 | 3 | 2900 | 5.5 |
| 25 | 5 | 80 | 65 | 2.5 | 1450 | 0.75 |
FAQ
Q:Can you supply pump qualified with ANSI and ASME standard?
A:Yes, our pump compliant with ISO / ASME/ANSI standard.
Q:How to customize pumps and mechanical seals ?
A:Customers could send us application data, we will select suitable pump and seal types, or client could send us drawings, We are well in OEM and ODM.
Q:How can I pay for my items? What is the payment you can provide?
A:Usually by T/T, 30% down payment once PI confirmed, the balance will be paid after inspection and before shipment. L/C at sight
Q:How long is warranty?
A:1 year for main construction warranty.
Q:How long is production lead time?
A:Normally 25 days. If client need urgently, we have a huge spare parts stock, we could finish assembly and testing in 7-15 days.
Q:What is the shipping terms you can provide?
A:Depnends on customer's requirements, we can provide different transportantin terms, such as EXW, FOB, CIF.
Q:Who is in charge of after-sales?
A:Shuangbao has professional after sales service team, we will follow up the client's comments and suggest them good solutions. Solve client's problems and keeping the clients profit.
Q:Who is in charge of maintenance?
A:Local agent. If pump running has any problem on site, our local agent will arrival the plant within 24 hours
