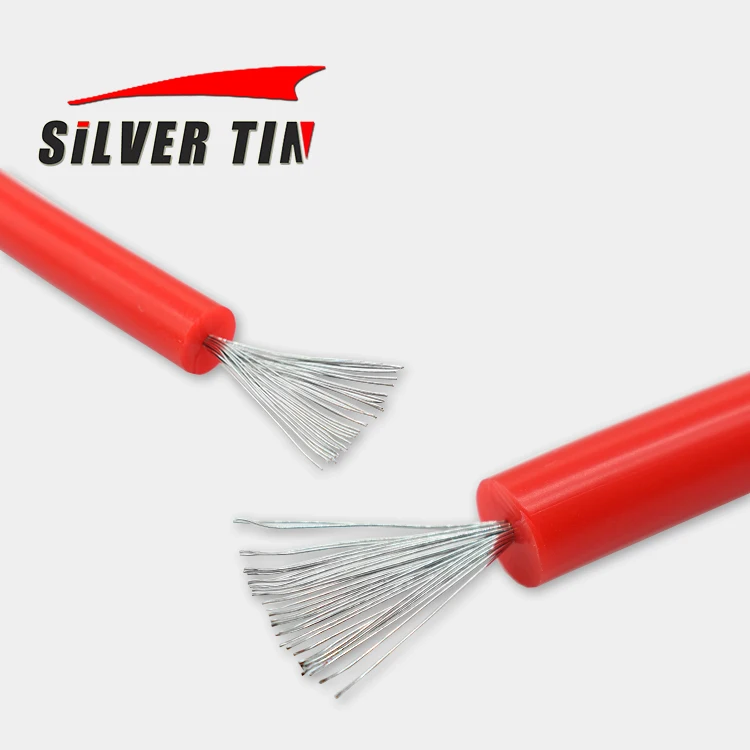

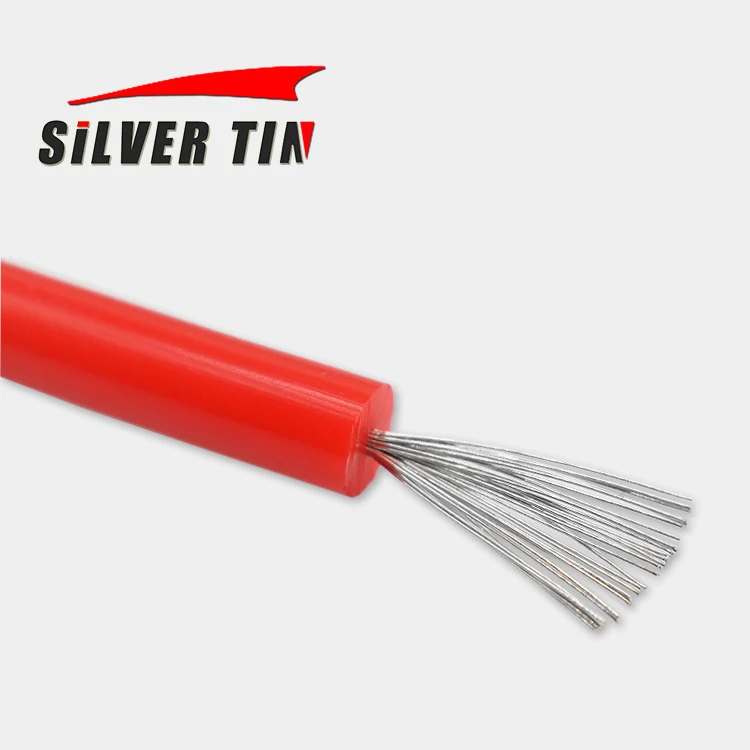

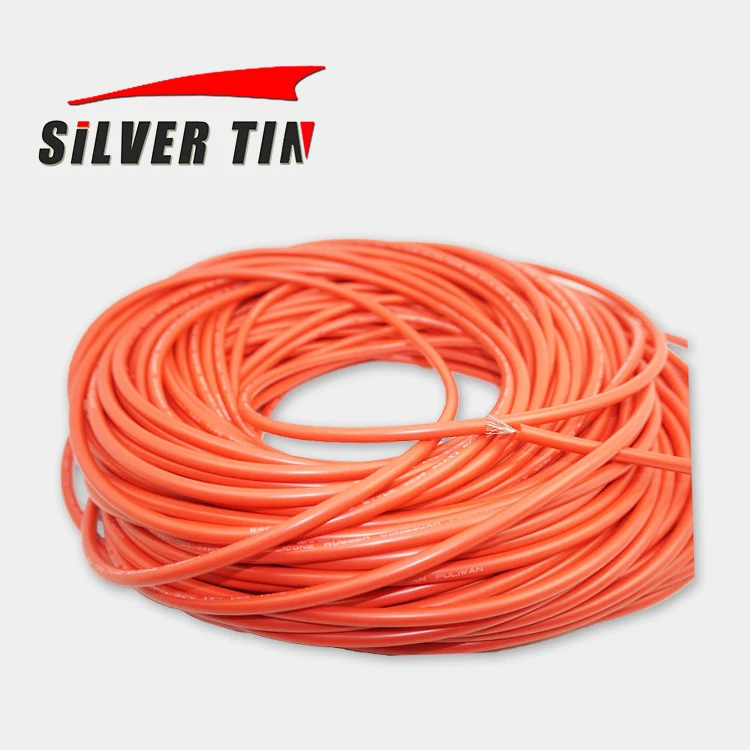

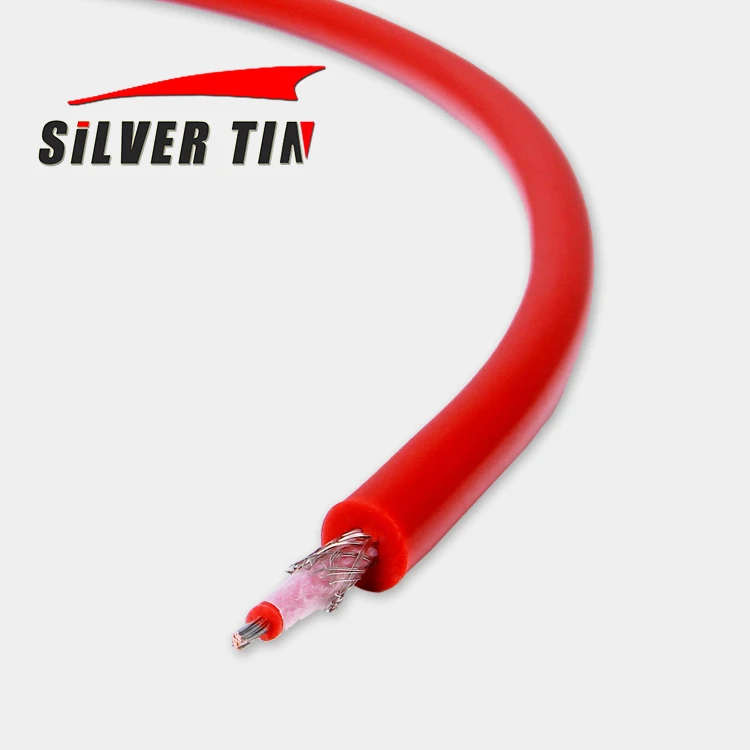

AGG 5kv 10kv 20kv 30kv 50kv silicone rubber high voltage electrical wire cable
- Category: >>>
- Supplier: Shanghai Silver Tin Temperature Measuring Equipment Co. Ltd.
Share on (62428637399):
Product Overview
Description
Product Description
AGG 5kv 10kv 20kv 30kv 50kv silicone rubber high voltage electrical wire cable
The silicone rubber high-temperature wire is mainly used for connecting household appliances, the motors, electric heating appliances, lighting equipment and instruments with the rated ac voltage of 500V and below. It has excellent aging resistance, softness and long service life.Silicone rubber material is non - toxic and tasteless, it is more safe and reliable when used in a variety of household appliances.

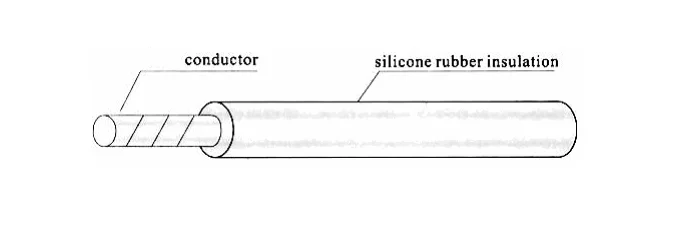

Composition
1.Conductor: tinned copper or Bare copper
2.Insulator:Silicone rubber
Composition
1.Conductor: tinned copper or Bare copper
2.Insulator:Silicone rubber
Description
★1.Style No.: AGG
★2. Size: 0.1~100mm2
★3. Rated Voltage: 5KV,10KV,15KV,20KV,25KV,30KV,50KV,100KV
★4. Rated Temperature:-60°C~+200°C
★5.Conductor: Stranded Tinned-copper
★6.Insulation: silicone rubber
★7. Color: red / yellow / blue / white / black / yellow green / brown / orange / purple / green / etc
★2. Size: 0.1~100mm2
★3. Rated Voltage: 5KV,10KV,15KV,20KV,25KV,30KV,50KV,100KV
★4. Rated Temperature:-60°C~+200°C
★5.Conductor: Stranded Tinned-copper
★6.Insulation: silicone rubber
★7. Color: red / yellow / blue / white / black / yellow green / brown / orange / purple / green / etc
Product features
★1.Excellent high temperature and low temperature performance
★2.excellent electrical insulation properties
★3.excellent chemical stability
★4.high voltage resistance
★5.aging resistance
★6.long service life
★7.soft and easy to install
★2.excellent electrical insulation properties
★3.excellent chemical stability
★4.high voltage resistance
★5.aging resistance
★6.long service life
★7.soft and easy to install
Applications
★Widely used in gas ignition, car ignition, high pressure test stand,
★TV, microwave ovens, neon lights,
★instrumentation internal high voltage,
★installation and connection of electronic appliances and other equipment,
★high voltage occasions
★TV, microwave ovens, neon lights,
★instrumentation internal high voltage,
★installation and connection of electronic appliances and other equipment,
★high voltage occasions
Parameters
KV | AWG | Cross section(mm²） | Conductor | Insulation thickness(mm) | Diameter(mm) | Maximum conductor resistance at 20 ° C |
Construction (No./mm) | ||||||
5 | 24 | 0.20 | 7/0.20 | 1.00 | 2.60 | 95.0 |
22 | 0.35 | 19/0.16 | 1.00 | 2.80 | 53.1 | |
20 | 0.50 | 16/0.20 | 1.00 | 3.00 | 10.1 | |
18 | 0.75 | 24/0.20 | 1.20 | 3.60 | 26.7 | |
17 | 1.00 | 32/0.20 | 1.30 | 4.00 | 20.0 | |
15 | 1.50 | 30/0.25 | 1.50 | 4.60 | 13.7 | |
13 | 2.50 | 49/0.25 | 1.60 | 5.40 | 8.21 | |
10 | 24 | 0.20 | 7/0.20 | 1.30 | 3.20 | 95.0 |
22 | 0.35 | 19/0.16 | 1.30 | 3.40 | 53.1 | |
20 | 0.50 | 16/0.20 | 1.30 | 3.60 | 10.1 | |
18 | 0.75 | 24/0.20 | 1.50 | 4.20 | 26.7 | |
17 | 1.00 | 32/0.20 | 1.50 | 4.40 | 20.0 | |
15 | 1.50 | 30/0.25 | 1.80 | 5.20 | 13.7 | |
13 | 2.50 | 49/0.25 | 1.80 | 5.80 | 8.21 | |
11 | 4.00 | 56/0.30 | 2.00 | 6.80 | 5.09 | |
9 | 6.00 | 84/0.30 | 2.00 | 7.60 | 3.39 | |
15 | 24 | 0.20 | 7/0.20 | 1.70 | 4.00 | 95.0 |
22 | 0.35 | 19/0.16 | 1.70 | 4.20 | 53.1 | |
20 | 0.50 | 16/0.20 | 1.70 | 4.40 | 40.1 | |
18 | 0.75 | 24/0.20 | 2.00 | 5.20 | 26.7 | |
17 | 1.00 | 32/0.20 | 2.00 | 5.30 | 20.0 | |
15 | 1.50 | 30/0.25 | 2.20 | 6.00 | 13.7 | |
13 | 2.50 | 49/0.25 | 2.20 | 6.60 | 8.21 | |
11 | 4.00 | 56/0.30 | 2.40 | 7.60 | 5.09 | |
9 | 6.00 | 84/0.30 | 2.40 | 8.40 | 3.39 | |
20 | 24 | 0.20 | 7/0.20 | 1.80 | 4.20 | 95.0 |
22 | 0.35 | 19/0.16 | 1.80 | 4.40 | 53.1 | |
20 | 0.50 | 16/0.20 | 1.80 | 4.60 | 40.1 | |
18 | 0.75 | 24/0.20 | 2.20 | 5.60 | 26.7 | |
17 | 1.00 | 32/0.20 | 2.20 | 5.80 | 20.0 | |
15 | 1.50 | 30/0.25 | 2.40 | 6.40 | 13.7 | |
13 | 2.50 | 49/0.25 | 2.40 | 7.00 | 8.21 | |
11 | 4.00 | 56/0.30 | 2.60 | 8.00 | 5.09 | |
9 | 6.00 | 84 | 2.60 | 8.80 | 3.39 | |
25 | 24 | 0.20 | 7/0.20 | 2.50 | 5.60 | 95.0 |
22 | 0.35 | 19/0.16 | 2.50 | 5.80 | 53.1 | |
20 | 0.50 | 16/0.20 | 2.50 | 6.00 | 40.1 | |
18 | 0.75 | 24/0.20 | 2.70 | 6.60 | 26.7 | |
17 | 1.00 | 32/0.20 | 2.70 | 6.80 | 20.0 | |
15 | 1.50 | 30/0.25 | 2.90 | 7.50 | 13.7 | |
13 | 2.50 | 49/0.25 | 2.90 | 8.00 | 8.21 | |
11 | 4.00 | 56/0.30 | 3.10 | 9.00 | 5.09 | |
9 | 6.00 | 84/0.30 | 3.10 | 9.80 | 3.39 | |
30 | 24 | 0.20 | 7/0.20 | 3.00 | 6.60 | 95 |
22 | 0.35 | 19/0.16 | 3.00 | 6.80 | 53.1 | |
20 | 0.50 | 16/0.20 | 3.00 | 7.00 | 40.1 | |
18 | 0.75 | 24/0.20 | 3.40 | 8.00 | 26.7 | |
17 | 1.00 | 32/0.20 | 3.40 | 8.20 | 20.0 | |
15 | 1.50 | 30/0.25 | 3.60 | 9.00 | 13.7 | |
13 | 2.50 | 49/0.25 | 3.60 | 9.40 | 8.21 | |
11 | 4.00 | 56/0.30 | 3.80 | 10.5 | 5.09 | |
9 | 6.00 | 84/0.30 | 3.80 | 11.2 | 3.39 | |
50 | 24 | 0.20 | 7/0.20 | 7.00 | 14.6 | 95.0 |
22 | 0.35 | 19/0.16 | 7.00 | 14.8 | 53.1 | |
20 | 0.50 | 16/0.20 | 7.00 | 15.0 | 40.1 | |
18 | 0.75 | 24/0.20 | 7.20 | 15.6 | 26.7 | |
17 | 1.00 | 32/0.20 | 7.20 | 15.8 | 20.0 | |
15 | 1.50 | 30/0.25 | 7.50 | 16.6 | 13.7 | |
13 | 2.50 | 49/0.25 | 7.50 | 17.2 | 8.21 | |
11 | 4.00 | 56/0.30 | 18.00 | 19.0 | 5.09 | |
9 | 6.00 | 84/0.30 | 8.00 | 20.0 | 3.39 | |
100 | 17 | 1.00 | 32/0.20 | 12.0 | 25.0 | 20.0 |
15 | 1.50 | 30/0.25 | 13.0 | 27.8 | 13.7 | |
13 | 2.50 | 49/0.25 | 13.0 | 28.5 | 8.21 |
