It is adapted for sawing aluminum extrusion material, aluminum doors and windows, radiating rib, wooden material, water pipes and sound faceplate.

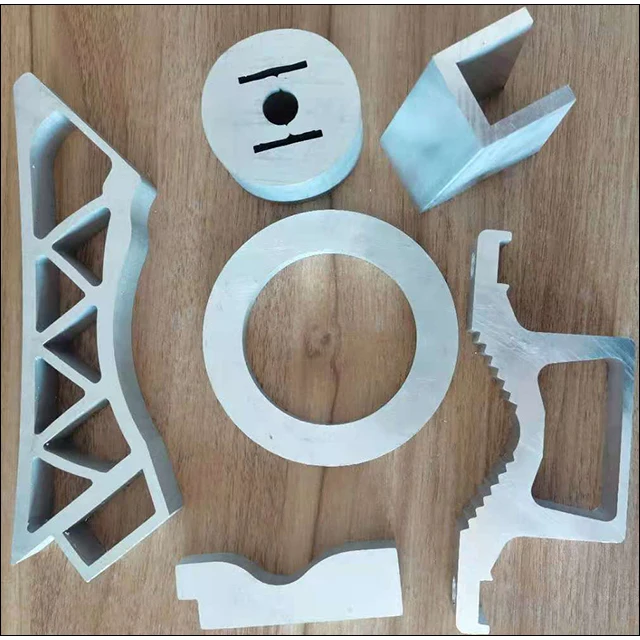

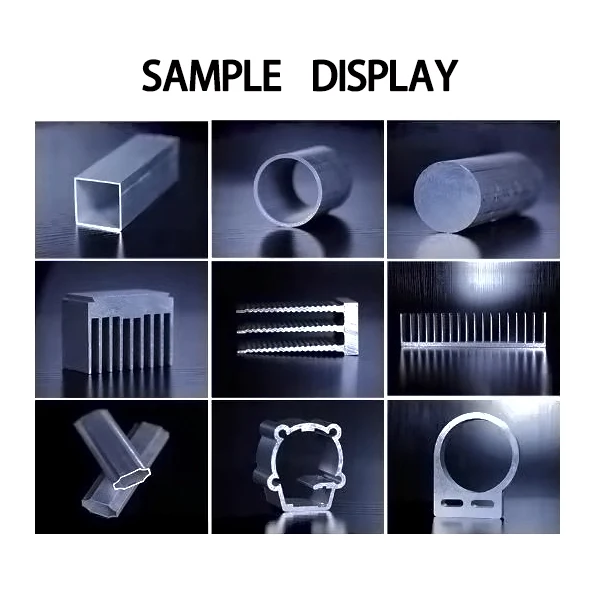

It is suitable for cutting various materials, such as aluminum, brass, heat sink, PVC, plastic steel, Bakelite, acrylic plastic,honeycomb board, wood and other non-ferrous metals.
Feature
1. When operating the machine, just step on the foot switch, the machine will automatically clamp and cut, easy to operate.
2. Hidden blade up and down can be very safe work.
3. Vertical slideway for advance and retreat blade up and down.
4. The cutting feed is stable, the service life of the cutter is long, and the sawing accuracy is high.
5. Cooling liquid and lubricating liquid spray out automatically during cutting to ensure smooth cutting surface and prolong the service life of saw blade.
6. The cutting feed is driven by the cylinder so the cutting speed is extremely stable.
7. The saw blade Angle is fixed and the cutting precision is improved.
8. The shelves have a positioning panel, which is more convenient to cut the material.
Technical parameter
Model
JR-S455
Cutting Angle
90 °
Cutting Capacity(HxW)
120*300mm
Spindle Speed
2800-3300 R.P.M.
Saw Blade Size
φ355-455mm
Table Area
645*668mm
Table Height From Floor
850mm
Motor Power
4 kw
Air Pressure
4-6 kg/cm²
Conveyor Length (opt.)
According to customer’s requirements
Voltage
380V or customized
Feed Mode
Up and down
Weight
300 kg
Company Information
Our Services
1.Warranty period: We guarantee machine quality for one year, during this year, if spare parts of the machine were damaged, we can send the component to the customer by DHL, TNT freely.
2.Our company can send our engineer to the customer’s factory install, commission and training freely. The customer has to provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our company to learn the operation and maintains freely.
3.Our company provide the service for the customer forever, if the customer need operation help, you can contact us by Skype, Email and Telephone at any time.
Packaging & Shipping
Packaging Details:
Packed in plywood case. If the customer has special requirements in packing, we can meet them.
Port:Shanghai
Lead Time: 3-10working days after receiving the deposit
FAQ
About warranty
We are confident in our products, and pack them well before delivery, so usually you will receive your order in good condition. Any quality issue, we will deal with it immediately.
About Payment or other question
50% T/T before production, balance before shipment.
