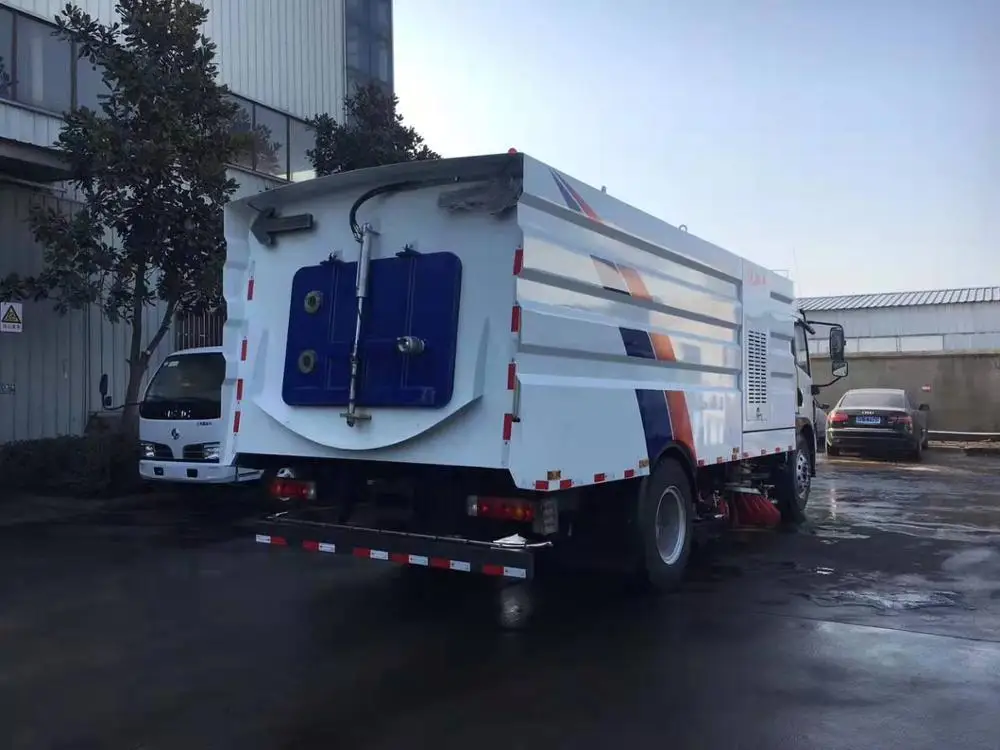

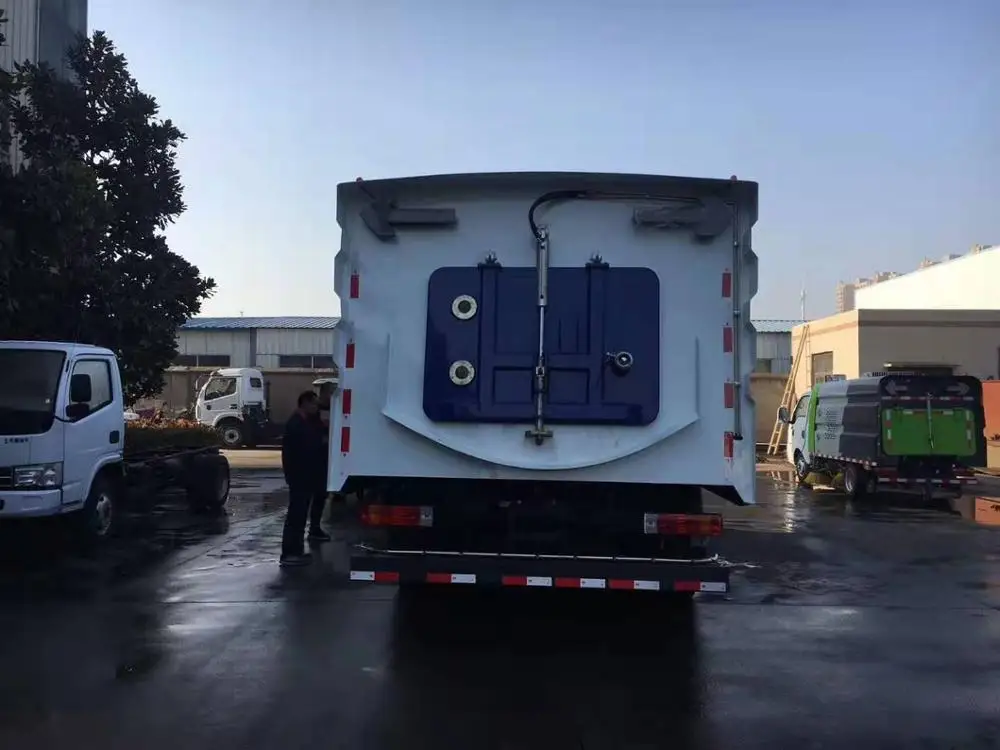

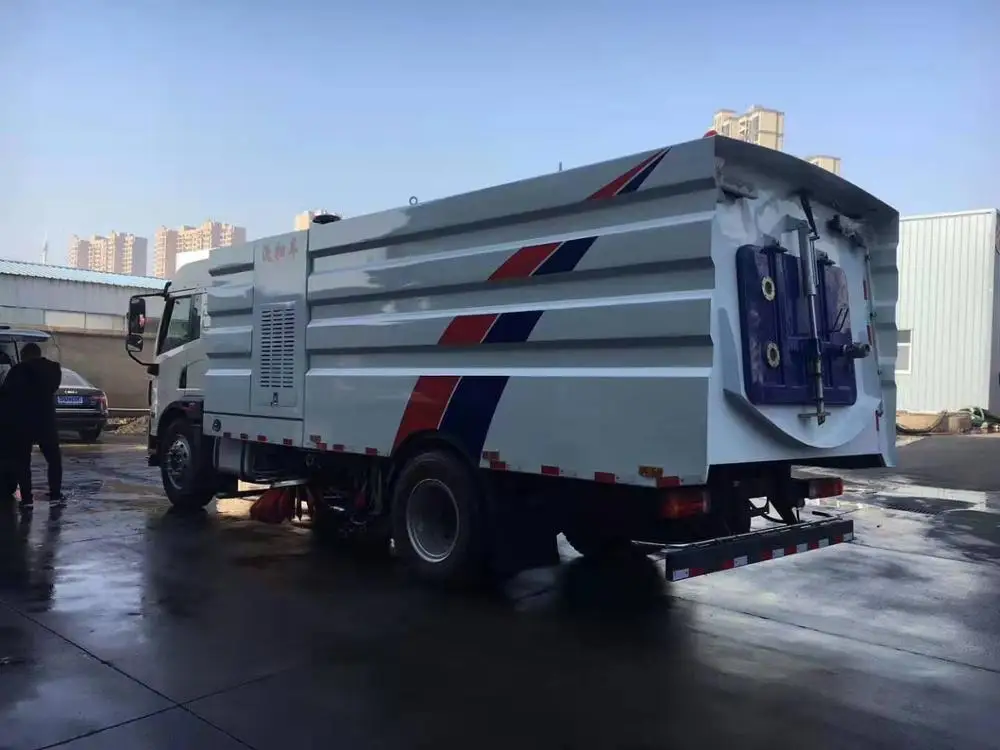

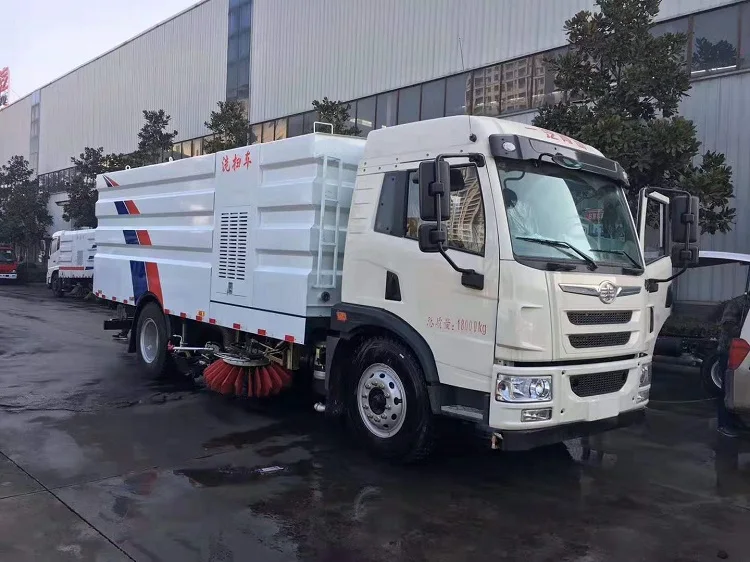

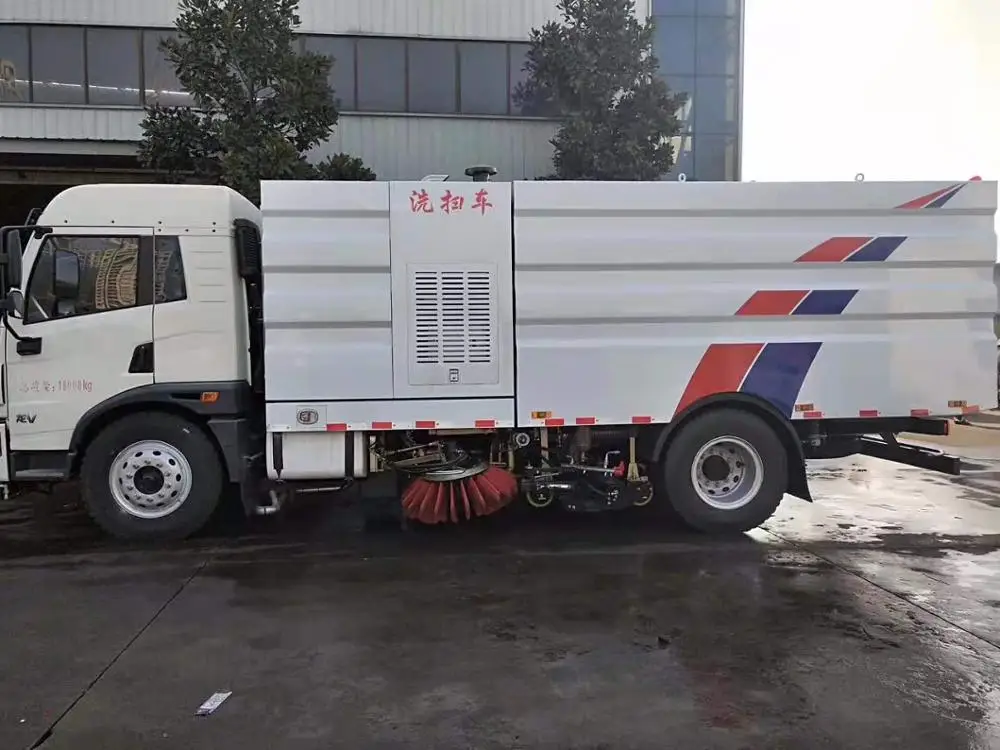

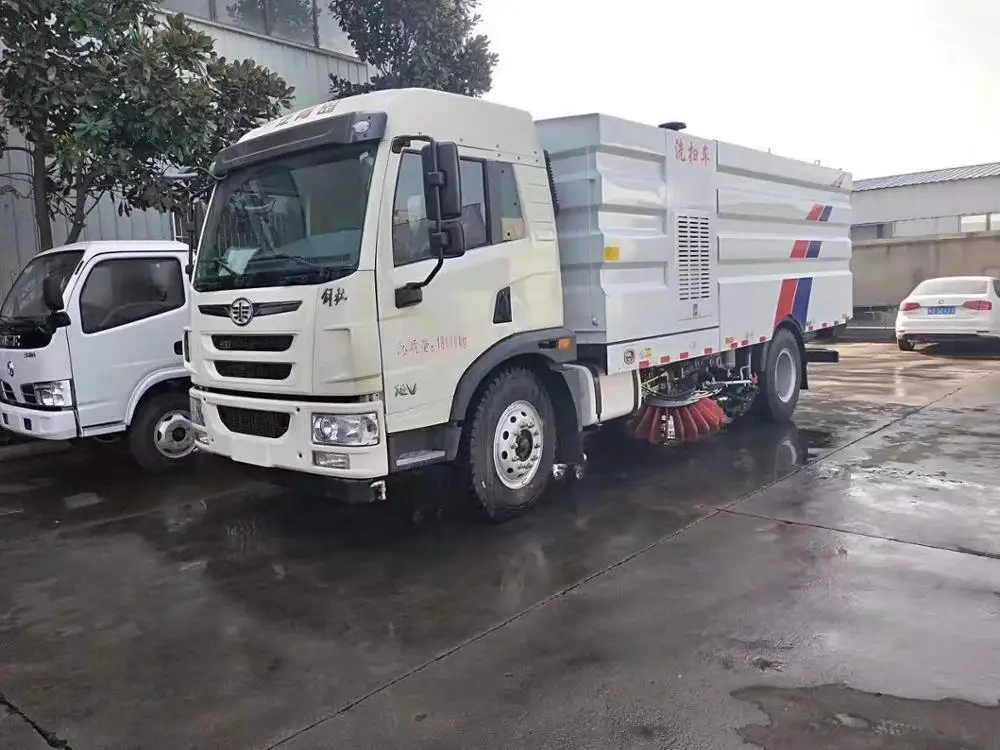

High efficiency 4x2 Runway Street Road Highway Airport Vacuum Road Sweeper truck Sweeping cleaning truck
Specifications
Item
Specifications
Item
Specifications
Truck
Name
Mini road sweeper
Model
HNY5180TXSC5
Gross Weight
18000kg
Overall dimensions
8350mm*2500mm*3000mm
Curb Weight
10200kg
Wheelbase
4700mm
Approach angle
21°
Front Track
1914mm
Departure Angle
13°
Rear Track
1860mm
Front Overhang
1332mm
Number of axles
2
Rear Overhang
2000mm
Max speed
98km/h
Number of Tyres
6
Traction system
4*2
Tyre
10.00R20,275/80R22.5
Transmission
FAW,manual
Allowable Cab Passengers
3
Chassis
Model
CA1180PK2BE5A80
Brand
FAW
Engine (Motor)
Brand
FAW
Type
Diesel
Model
CA4DLD-18E5 /CA6DH1-24E5
Displacement
4400-6600ml
Horse power
180hp-240hp
Emission standard
Euro 5
Equipment
Water Tank
0.5cbm
Tank Material
Stainless
Garbage Tank
9cbm
Sweep width
2.8m
Sweep rate
≥95%
Sweeping speed
3-25km/h
Remarks
Leadtime
Within 30 days
Warranty
12 months
1.New generation of cleaning tool which equipped with power device, cleaning device, suction device, spraying&hydraulic system
2.The hydraulic valve group can reach35MPa, flow rate up to 300L/Min, can be of various industrial valves and hydraulic walking hydraulic valve dynamic.
3. The truck's pumping sucker adopts a fully floating connecting structure, can fully guarantee the cleaning operation, chuck can be based on road conditions, followup, to ensure that the sucker and the road clearance remains constant. Posterior sucker walking mechanism is advanced, encountering small deceleration strip easily cross.

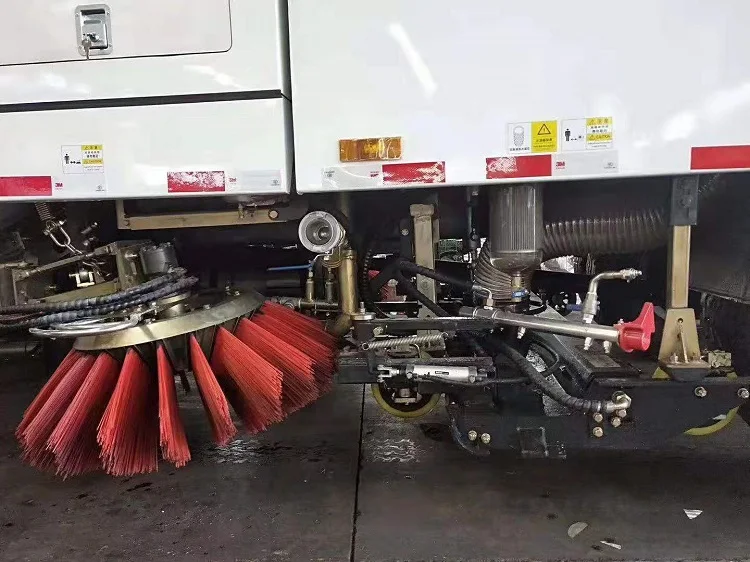

4.The left and right front brush disc can be independent or linked, so that the vehicle in work can selectively use right or left anterior sweep sweep before working on the side of the highway, make the working mechanism in the choice of the left and the condition of out body not only reduces the width of Zhandao, improve the operating and traffic safety, and reduce the brush wear, reduce running cost.
