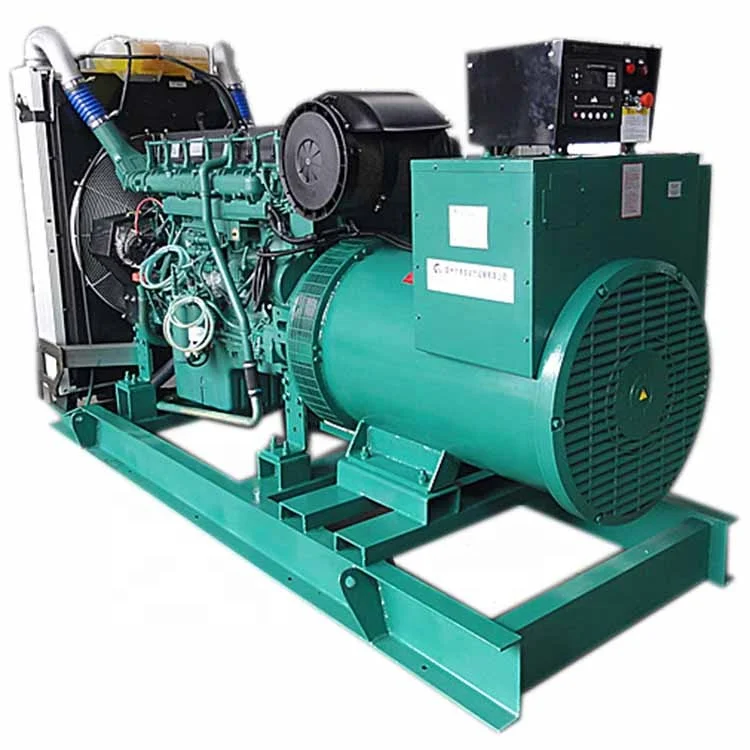

250kva 200KW volvo TAD734GE diesel generator set factory price

Sales commitment

   The products that we provide are all new, each unit all get through the strict production testing.

   12 months or 1000 hours(whichever occurs first) of Warranty Time for all our products. We take the full responsibility only in

the fault that created by the quality, the wearing-parts, daily consumables and human error of operating & maintenance are not included in.

• GB/T19001-2008


• SO9001:2008 Quality Control System


  The main parameters of the generator set












































































































































































  Technical data
  Genset Model	FF-200GFV
  Prime Power	250kva/200kw
  Rated Voltage	400/230V
  Frequency	50/60Hz
  Power Factor	0.8(lagging)
  The regulating rate of steady voltage	≤±0.5%
  The regulating rate of instantaneous voltage	≤-15%/ +20%
  The time of steady voltage	≤1.5sec
  The waving rate of voltage	≤1.0%
  The regulating rate of steady frequency	≤3%
  The regulating rate of instantaneous frequency	≤±10%
  The time of steady frequency	3sec
  Dimension (L×W×H) (mm) of naked unit	2750*1005*1530
  Genset weight (kg)	1750
  Diesel Engine
  Brand	volvo
  Model	TAD734GE
  Number of Cylinders	6
  Rotating Speed	1500 RPM
  Cycle	Four stroke
  Type	waste gas turbine boost,direct spurting type
  Bore×Stroke(mm)	108*130
  Displacement(L)	7.15
  Lubricating Capacity(L)	38
  Speed Governor	Electrical
  Cooling System	Water-cooled
  Speed Stability (%)	≤5%
  Fuel Consumption at 100% Load	204g/kw.h
  Starting Method	DC24V Electrical starting
  Alternator
  Brand	kaijieli
  Number of Phase	3
  Connecting Type	Three Phase and Four Lines
  Number of Bearing	1
  Grading Protection	IP22
  Altitude	≤1000m
  Exciter Type	Brushless (AVR automatic voltage regulating)
  Insulation Class	H degree
  The components of the genset
  (1) volvo  Diesel Engine;        (2)kaijieli  Alternator;     (3) Harsen Control Panel
  Control Panel
  The control panel is Quadruplication protection control panel, with the display of frequency table/water temperature/schedule/battery voltmeter. The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection.









  For better meet user's demands, the alternator is selectable, we have Stamford, Marathon, KAIJIELI, Engga and other famous brands.
