close loop motion control 24v 200w low voltage brushless servo motor
- Category: >>>
- Supplier: Jinan Keya Electron Science And Technology Co. Ltd.
Share on (62428877323):
Product Overview
Description
Product Description
Overview
*High Torque to inertia ratio&up to 25000Nm/kgm²
*Fast dynamic response, time constant <20ms
*Wide speed adjusting&feedback up to 1000:1
*Steady speed precision up to 0.5%
*High overload, 2N.m/30s, 3.5N.m/10s
*Small volume and light weight
*Silent, the lowest noise is only 45dB(A)
*Protected with IP55, Class F insulation
Work Environment:
1. Altitude less than 1000M.
2. Environment temperature: -25℃~+50℃
3. The most moist month average relative humidity should less than 90%, and this month's average lowest temperature should less than 25℃.
*Fast dynamic response, time constant <20ms
*Wide speed adjusting&feedback up to 1000:1
*Steady speed precision up to 0.5%
*High overload, 2N.m/30s, 3.5N.m/10s
*Small volume and light weight
*Silent, the lowest noise is only 45dB(A)
*Protected with IP55, Class F insulation
Work Environment:
1. Altitude less than 1000M.
2. Environment temperature: -25℃~+50℃
3. The most moist month average relative humidity should less than 90%, and this month's average lowest temperature should less than 25℃.

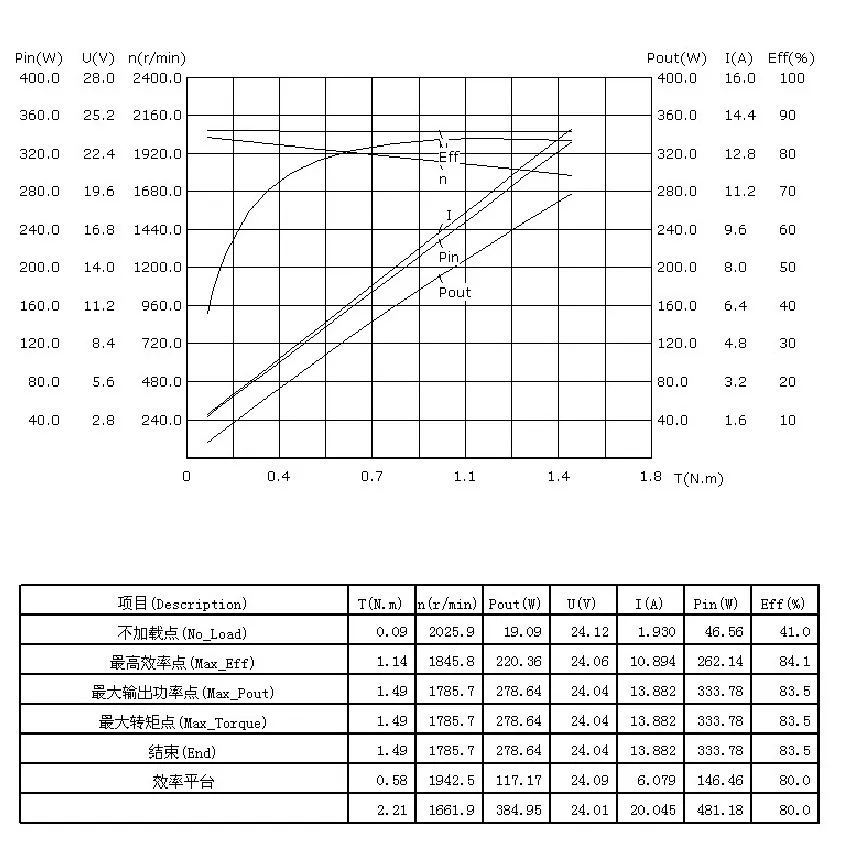

Product Name | close loop motion control 24v 200w low voltage brushless servo motor |
Motor rated voltage | 24V |
Motor rated power | 200W |
Rated current | 9.4A |
Rated speed | 1500rpm |
Rated torque | 1.27N.m |
Peak torque | 3.8N.m |
Encoder | 2500ppr, optical |
Brake | If you need brake, kindly advcise |

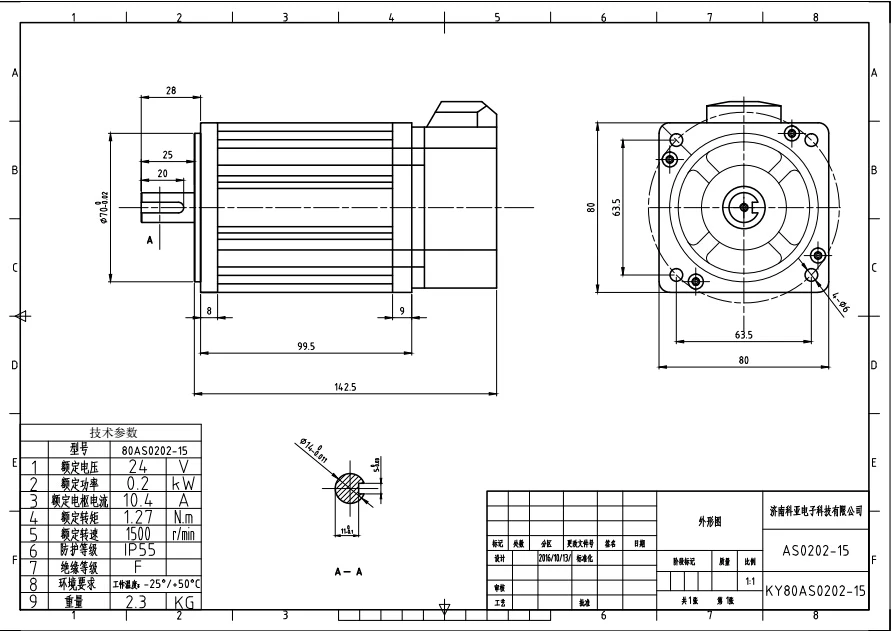

Motor length | 142.5mm, without shaft |
Motor shaft diameter | 14mm |
Weight | 2.2kg |
Details Images
The standard motor don't have BRAKE, if you need brake, please contact us.
Email: sales@jnky.com

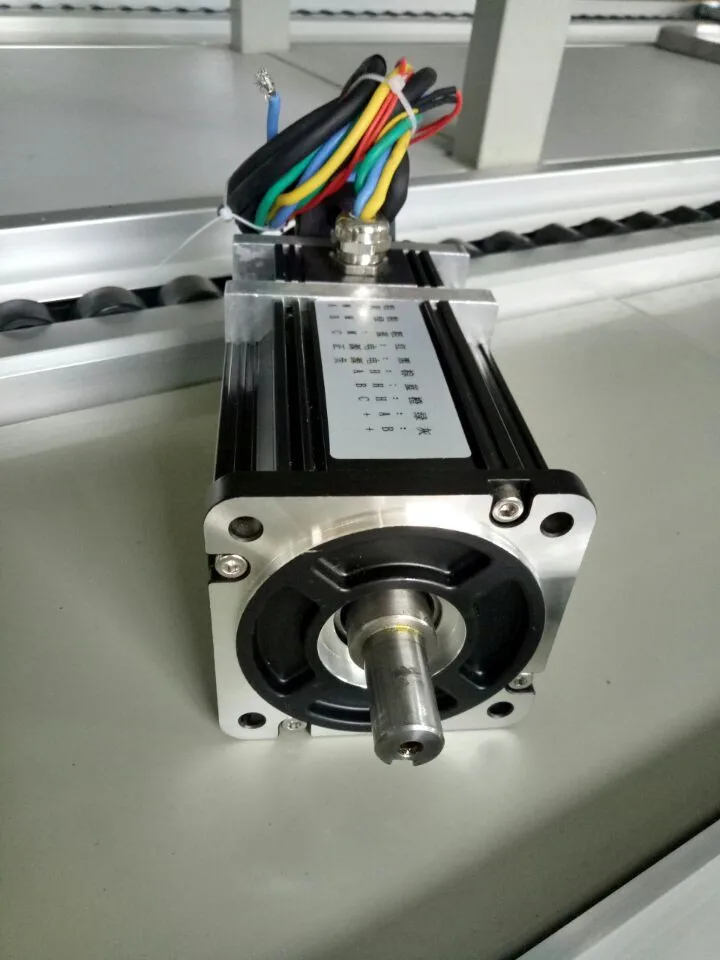

close loop motion control 24v 200w low voltage brushless servo motor
Product Usage
Product usage introduction
24v 48v dc servo system be widely used in mobile robot, for example, crawler robot chassis, inspection robot, automatic guided vehicle, fire fighting robot, self-guided vehicle
Description of product use effect

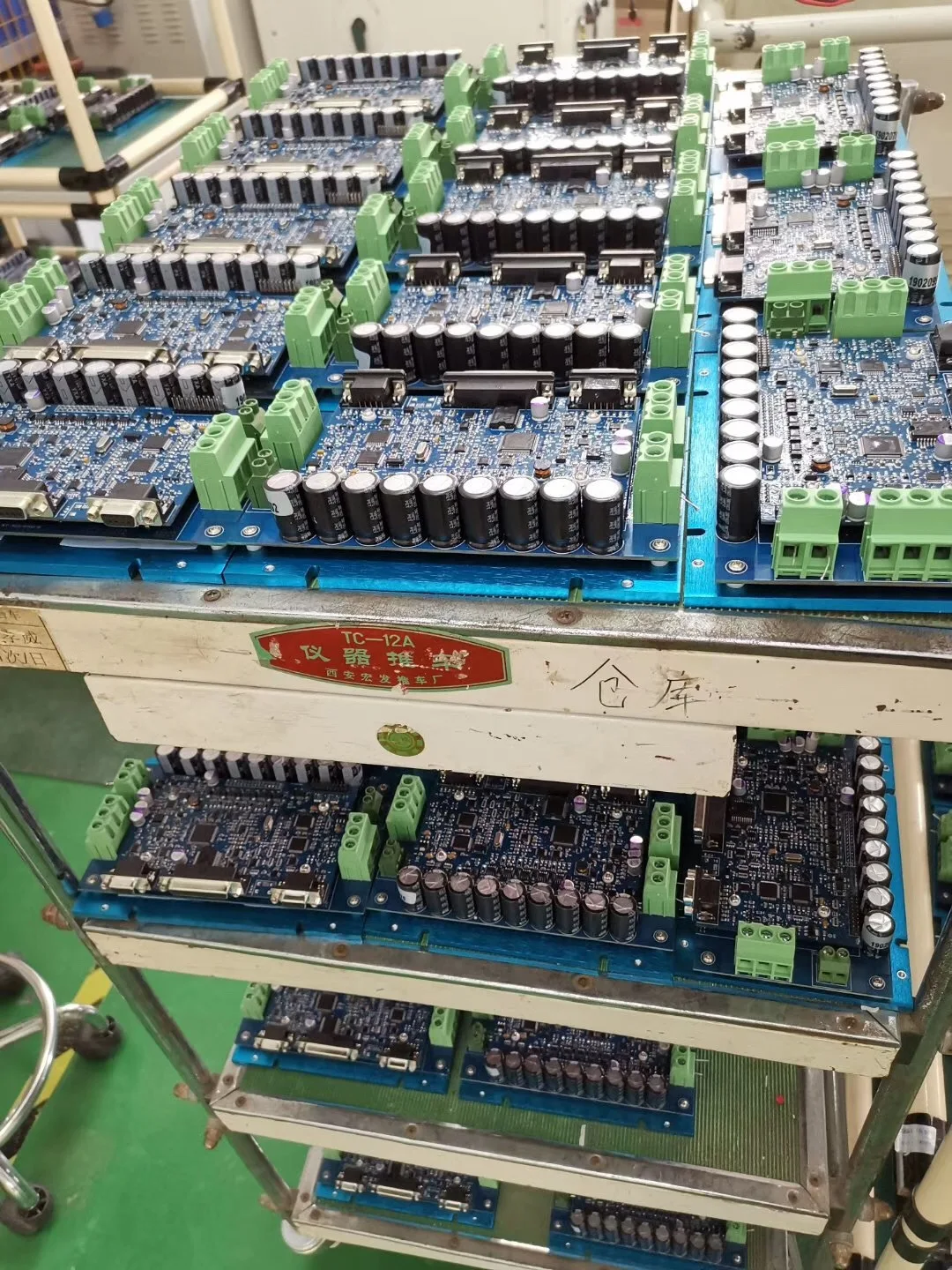

We have dual channel bldc servo controller, built in differential method, support electronic differential, you can control 2 motors at same time, save your cost for secondary development.
Control signal: RS232, CAN open, PWM, RC, 0-5V, 0-2.5V-5V
Related Products
Packing&Shipping
Standard export carton
close loop motion control encoder 2500ppr low voltage brushless dc 24V 48V 200w high torque servo motor rc servo motor
Company Introduction

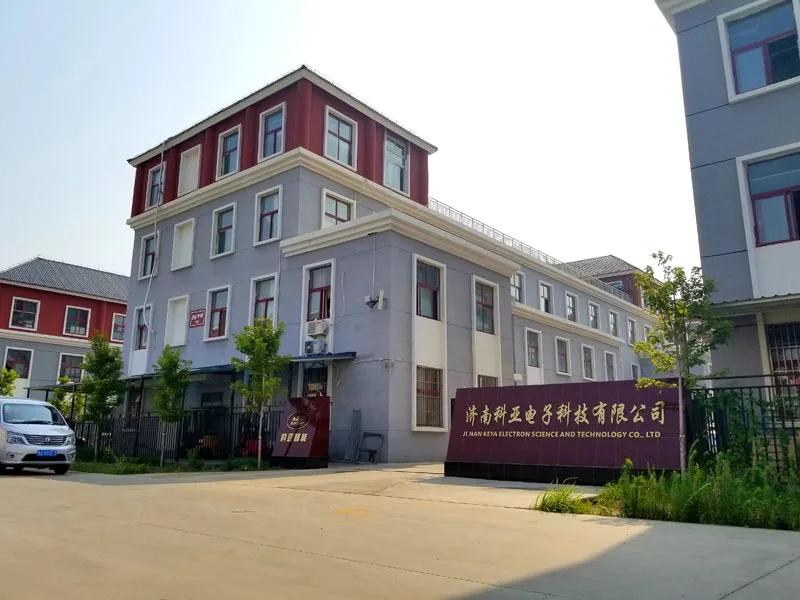

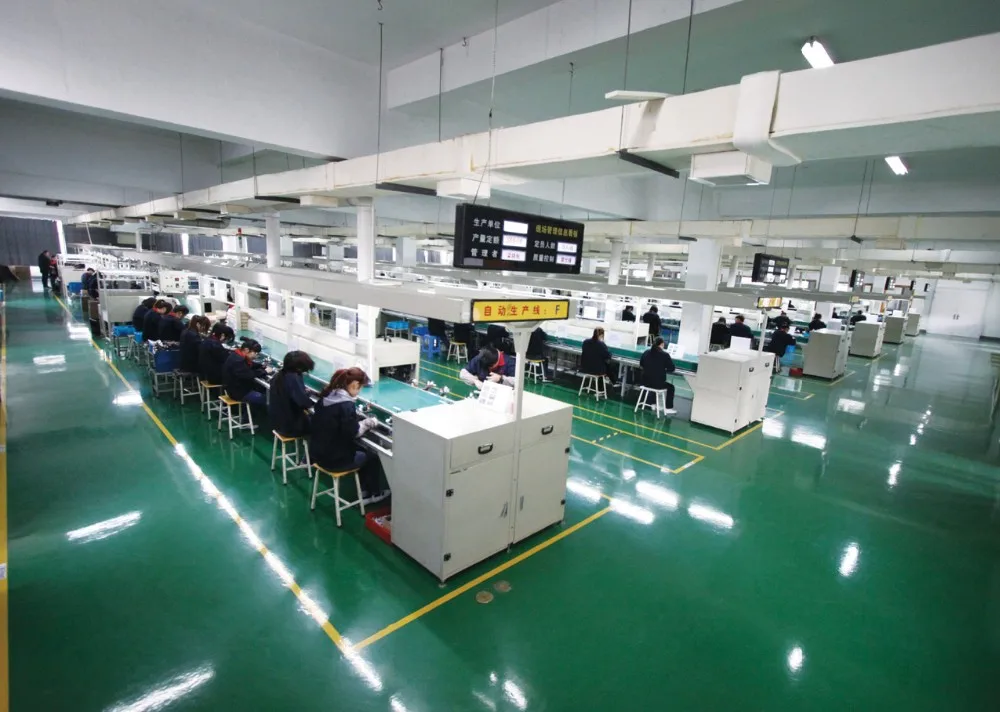

Jinan Keya Electron Science and Technology Co., Ltd, founded in 2001, has been trading in the research &development, manufacturing and sales of BLDC motor and control system for 15 years. Company set technology, talent, management and other resources advantages, to effectively integrate, has maintained a healthy, stable and rapid growth.
Our company has adopted ISO9001:2015 quality management system certification, products through the CE certification. More than 3000 large and medium-sized domestic equipment manufacturers designated as supporting products, and exported to the United States, Europe, Southeast Asia and other countries.
Product range:
Motor: bldc motor, brushless dc motor, dc servo motor, 24V 48V bldc motor, high torque servo motor. pmdc motor
Controller: dc controller, bldc controller, dual channel brushless dc controller, mobile robot controller
Product application scope:
Mobile robot, self guided robot, AGV, automatic guided vehicle, trackless vehicle,crawler vehicle chassis, electric platform vehicle,industrial platform
Our Services & Strength
We devote ourself to Research & Development, welcome Costom-made products, if you need some unusual products, let's have further communication.
Contact: Nancy Ni
E-mail: sales@jnky.com
FAQ
1. Q: What are your main products?
A: We produce various kinds of bldc servo motor & controller.
2. Q: How long have you been in this field?
A: More than 15 years in this field.
3. Q: Do you have your own R&D team?
A: Yes. R&D is our core competitiveness, continuous innovation is just what we are seeking for all the time. Some of our engineers have more than 20years experience in the industry, and we also cooperate with colleges, scientific research institutions and large enterprises.
4. Q: How soon can you deliver the goods?
A: That depends on the exact model you order. For regular products, usually we will prepare some units in stock, we can deliver them within 3 working days.
5. Q: Can you make the product according to customer’s requirements?
A: Yes, welcome costom-made products.
6. Q: What is your payment term?
A: You can pay by TT, Paypal, Western Union.
