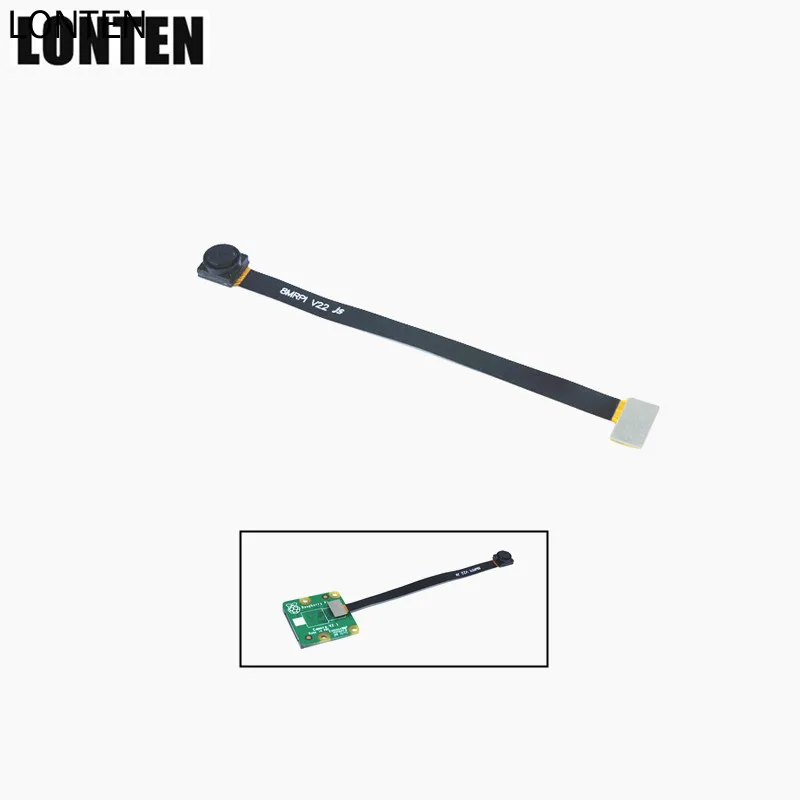

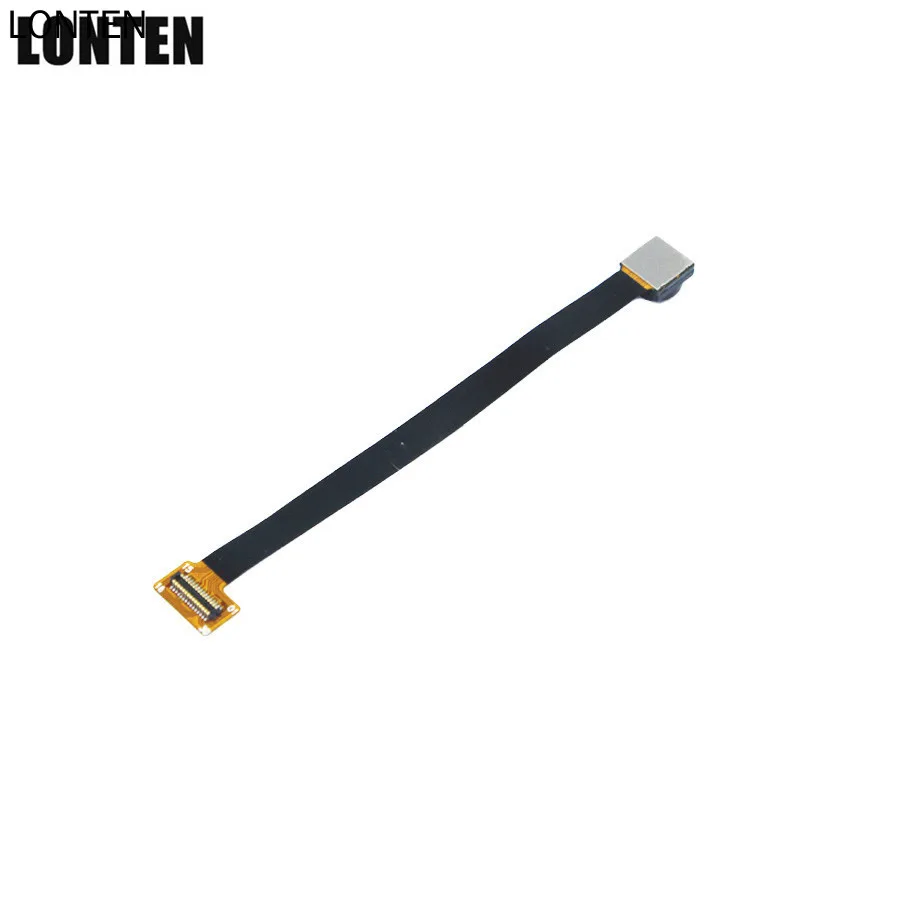

Lonten Lonten 160 8MP IMX219 Camera Module, Undistorted Lens Camera 8 Megapixel for official Raspberry Pi Camera Board V2

Description

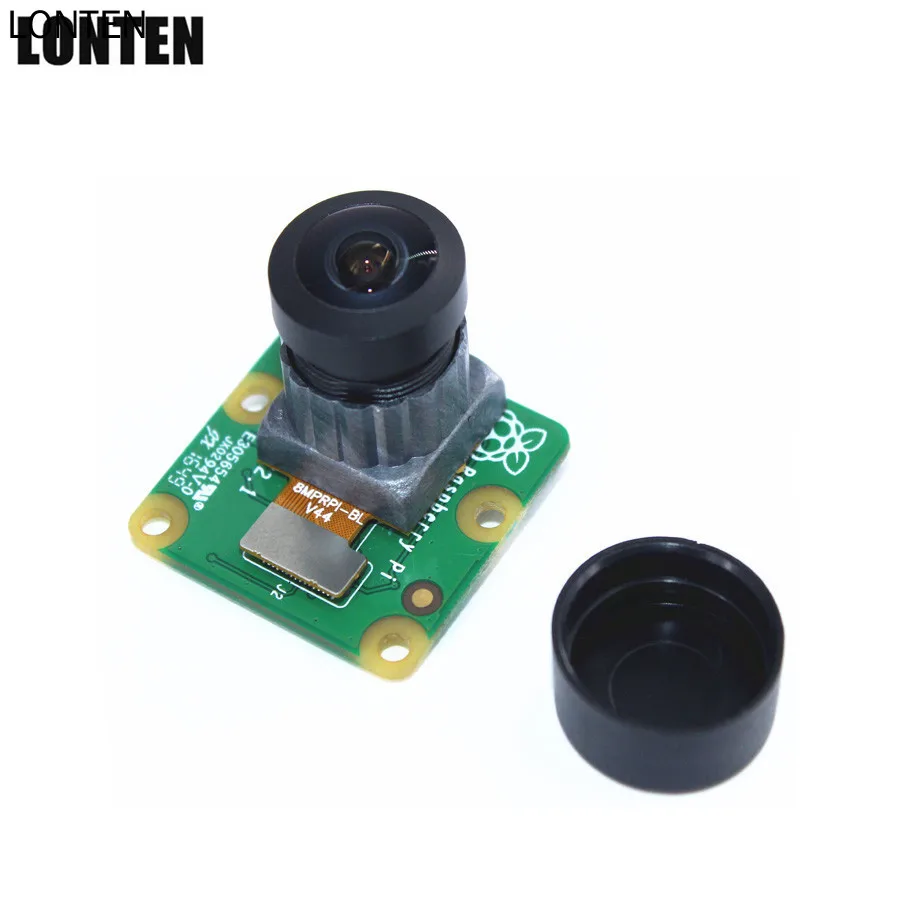

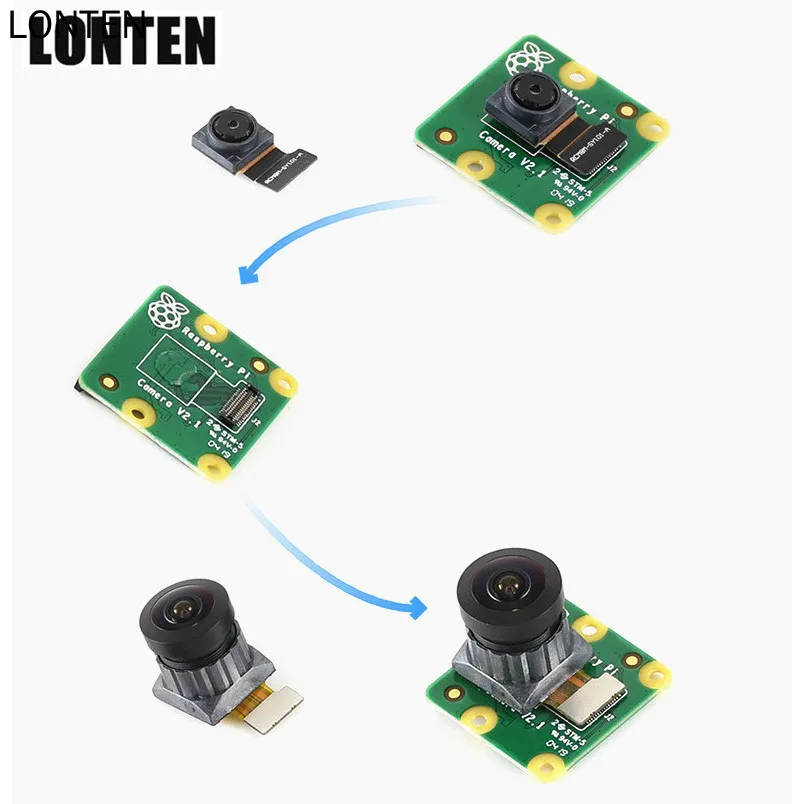

This list is for the camera with connector,but not include the PCB,you can replace your own 8 megapixel official raspberry pi camera V2.as the picture shows.

160° camera

IMX219 8-megapixel sensorCamera specificationsCMOS size : 1/4inchAperture (F) : 2.35Focal Length : 3.15mmAngle of View (diagonal) : 160 degree (while the original V2 camera is only 62.2 degree)Distortion: < 14.3%Focusing Range: 20cm ~ infinity3280 x2464 still picture resolutionSupport 1080p30, 720p60 and 640x480p90 video record

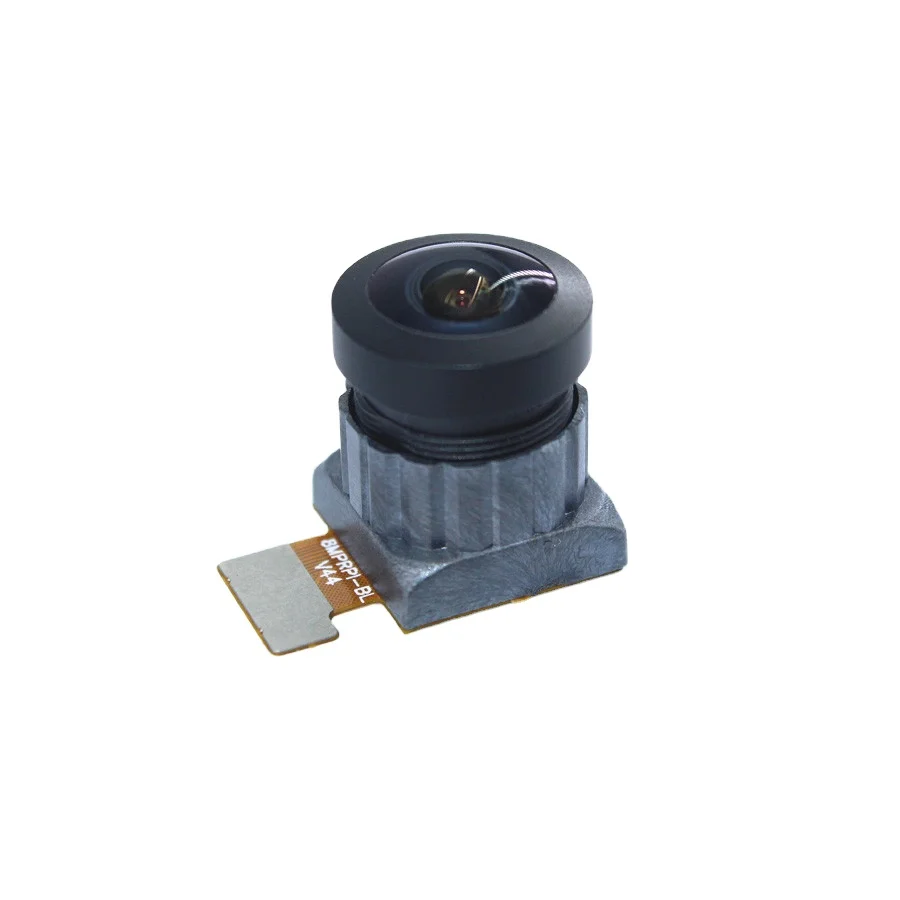

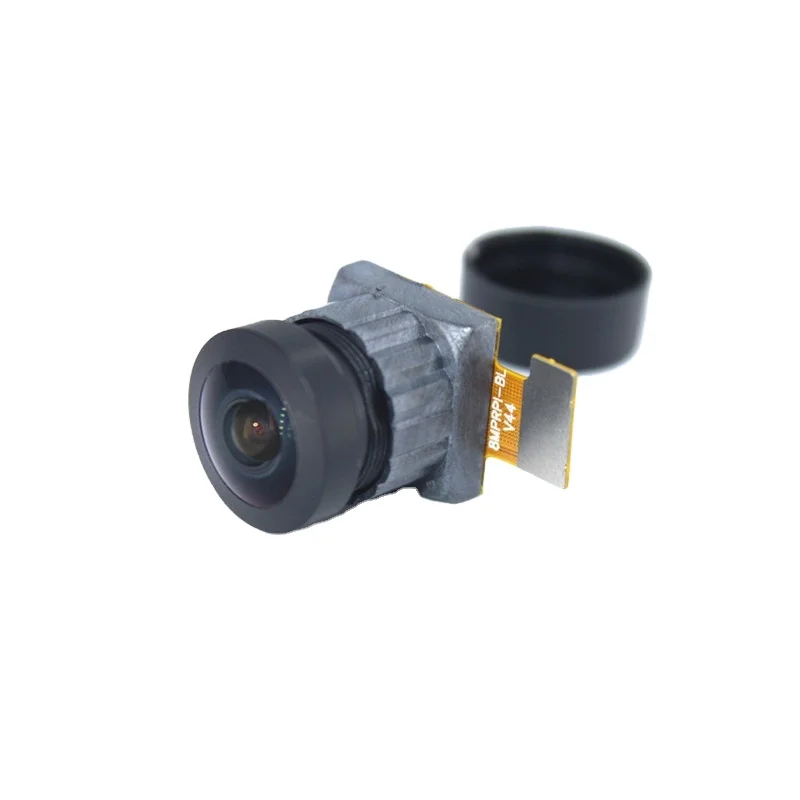

Undistorted lens

8,000,000 pixelsPhotosensitive chip for Sony IMX219Camera parameters:CMOS size: 1/4 inchAperture (F): 2.0Focal Length: 2.96mmField of View (FOV): 77.6 degrees (Raspberry Pi V2 version camera is only 62.2 degrees)Distortion: < 1%Fousing Range: 20cm ~ infinityLens size: 6.5*6.5mm (official lens size 8.5*8.5mm)Cable length: 8cm (length can be customized)The static image resolution is 3280 × 2464Support 1080p30, 720p60 and 640 × 480p90 video recording

What is Included

1 x camera (160° or Undistorted lens version)
