Современная модульная вилла с сборной конструкцией стальной рамы

Product Overview

Description

Prefab house Luxury Modern Prefabricated Light Steel Structure House Villa





CHARACTERISTICS

1.Shock resistance: It can withstand 9 rare earthquakes and is suitable for areas with seismic intensity above 8
2.Wind resistance: resistant to 70m/s hurricane, wind resistance rating is 14 or above
3.Durability: The main structure can last for more than 150 years
4.Fire resistance: refractory time of up to 1~4 hours according to different designs
5.Sound insulation: the sound insulation of the external wall can reach 75dB, and the inner wall can reach 55dB.
6.Heat Insulation: The thermal resistance of 200mm thick composite wall can reach 3.2m2K/W, which is 11 times that of traditional buildings of the same thickness.

7.Environmental protection: more than 90% of steel structure materials can be recycled, and most other supporting materials can be recycled.

8.Energy-saving: using new materials for heat preservation and heat insulation, the energy required for heating and cooling is 65% more energy-efficient than traditional buildings.
9.Housing rate: Light steel integrated housing increases the practical area by about 12% compared with traditional buildings

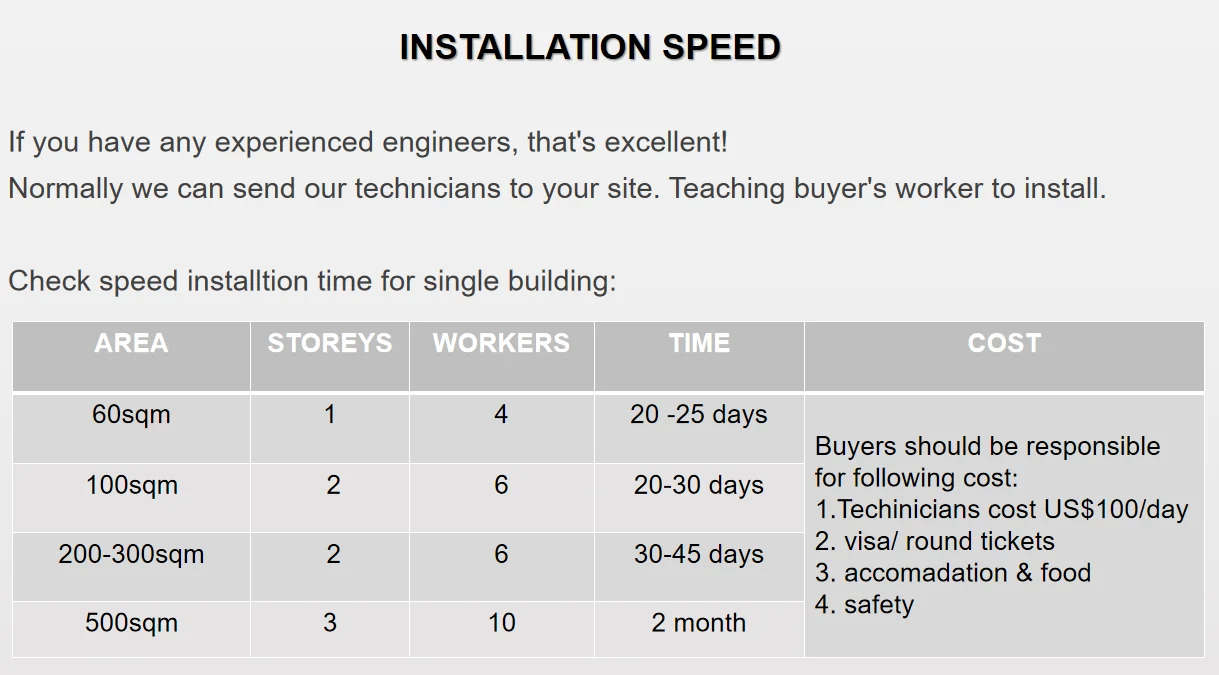

10Construction period: assembly and standardization of light steel structure houses is simple and fast, saving 2/3 construction period compared with traditional structure

DEDIGN METHODS

By using Auto CAD, PKPM,3DMAX,SAP2000,Tekla,etc. We can design different houses according to customes requirement.



TECHNICAL PARAMATERS

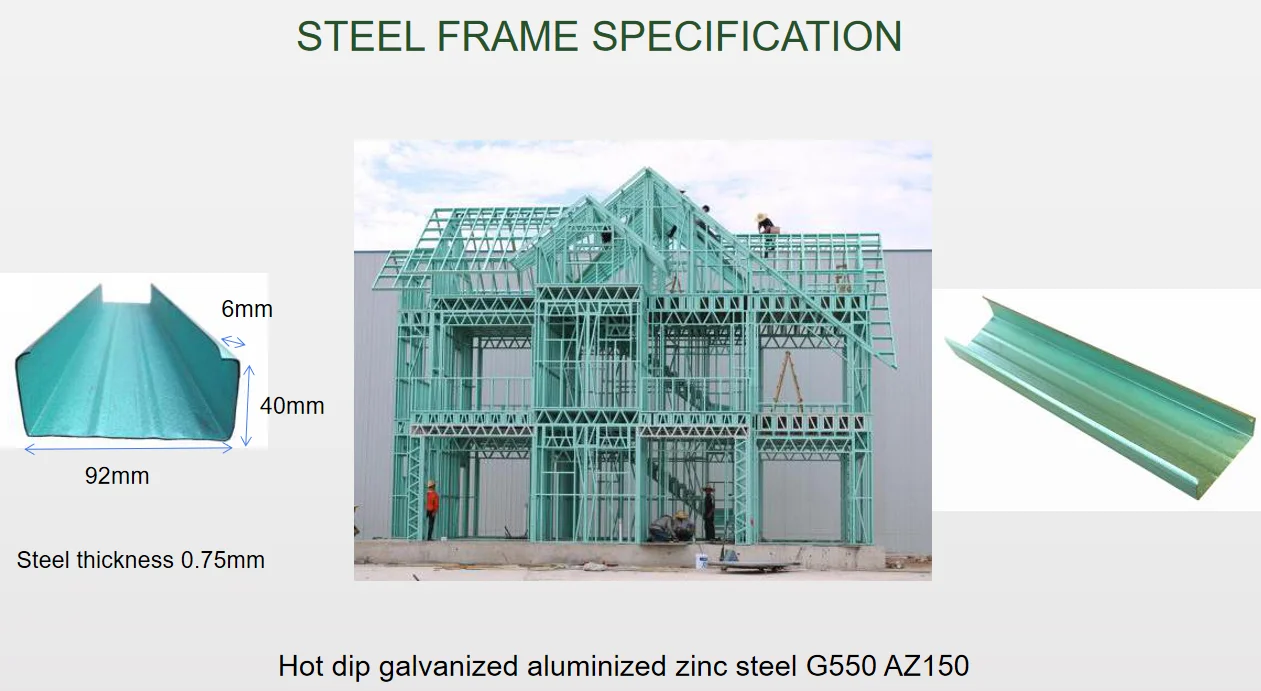

Steel Column	G550 AZ150 Galvanized Steel (Hot-formed Aluminum coating steel)

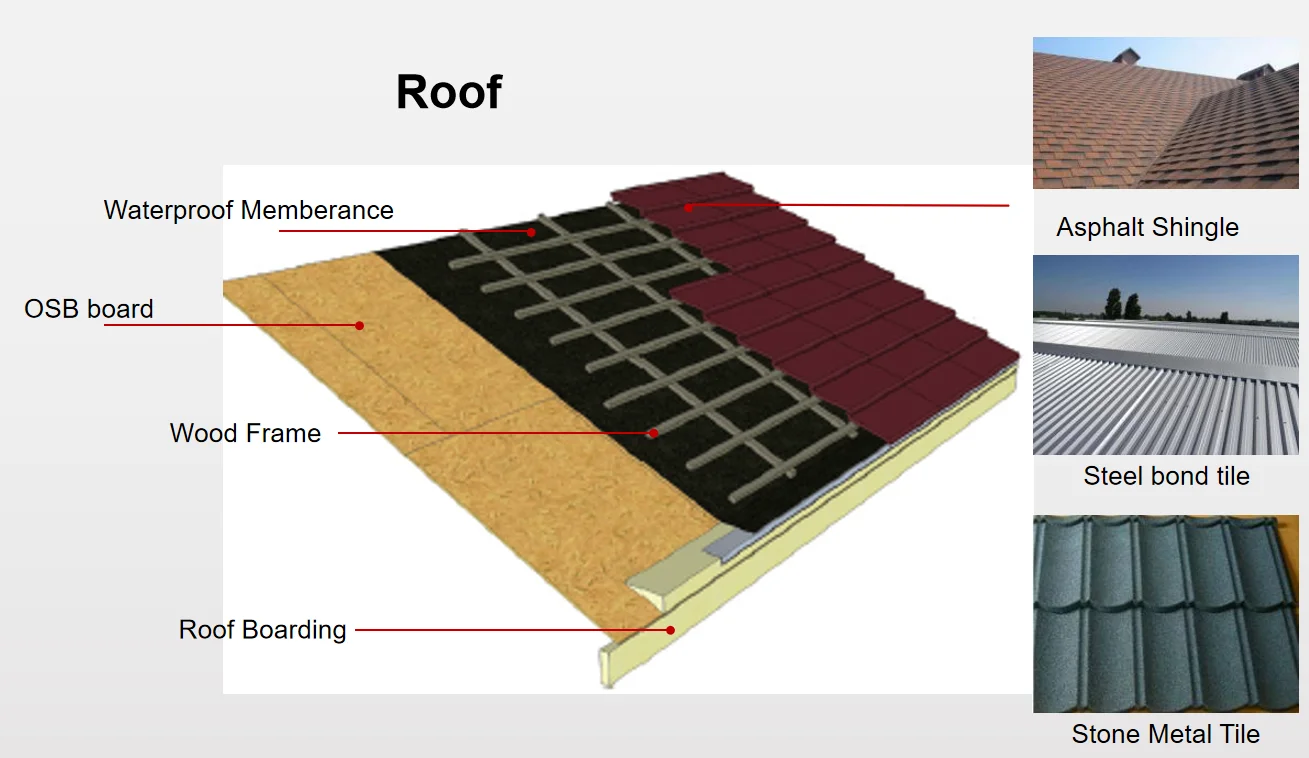

Roof Frame	G550 AZ150 Galvanized Light Steel keel
Structural slab	Oriented Stand Board(OSB board)
Insulation	Glass wool

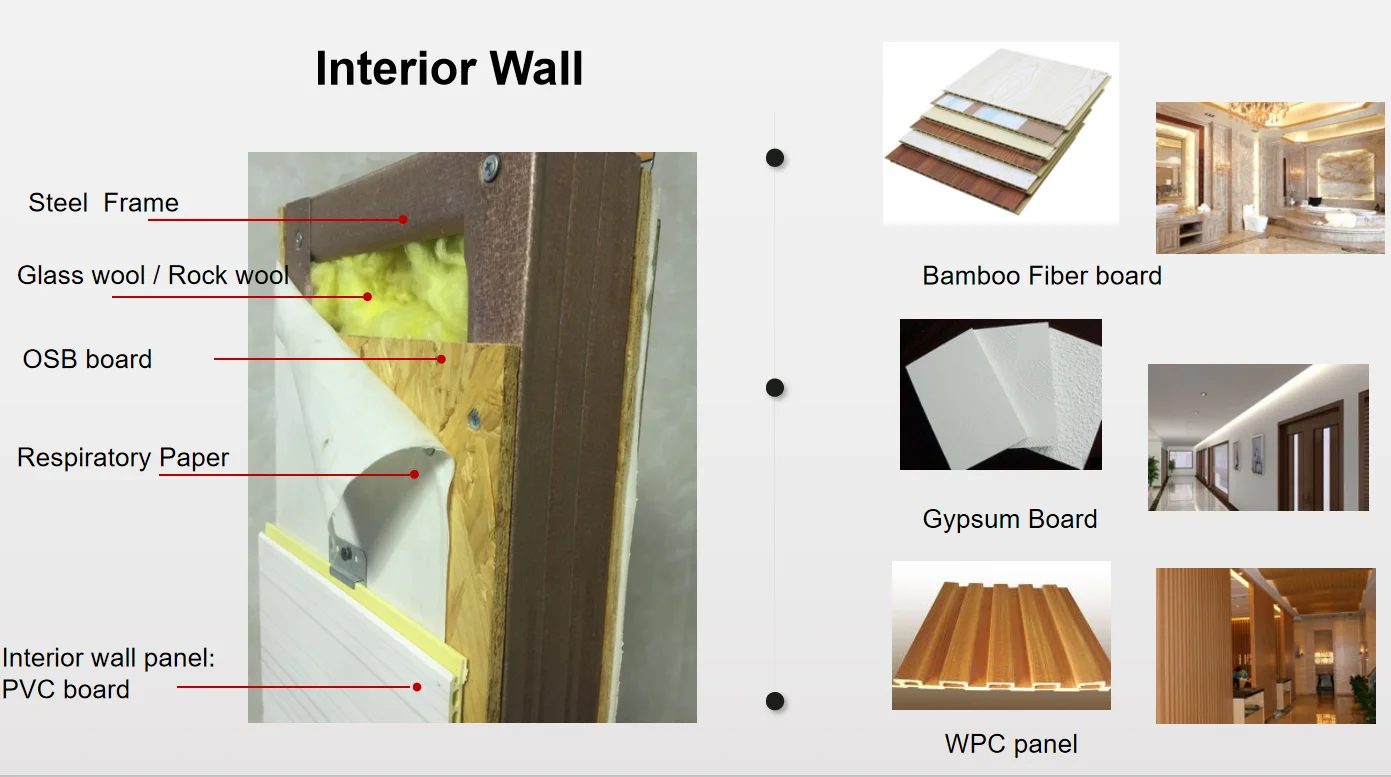

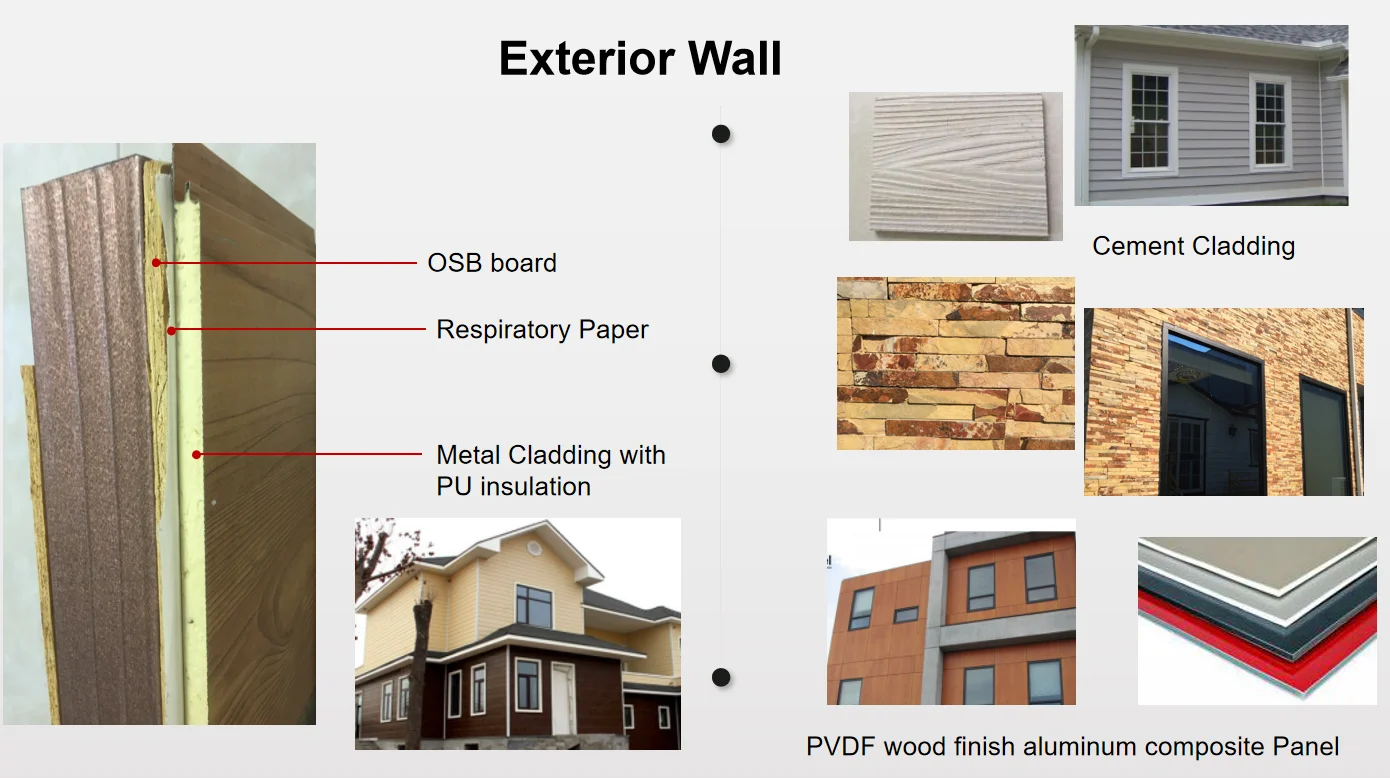

Wall	Exterior wall cladding/Interior wall bamboo fiber board
Floor	Ceramic tile/wooden ground floor
Ceiling	12mm Gypsum board/10mm Banboo fiber board
Electric	Ceiling lights, electric wire, socket
Window	Aluminum window/hollow glass window
Doors	Entrance door: steel security door, Inner door: wooden molded door
Toilet	Sprinkler, hand basin ,water closet
Drainage system	Provide plan, design and materials
Life span	70 Years
Container loading	According to the order and custumer's requirements
Delivery time	20-30 working days after recepting the deposit
Application	Hotel,House,Office,Shop,Villa



 Free !!!

We offer Layout/floor plan to customer

3DMAX / CAD  Visual sketch

All designs can be customized!

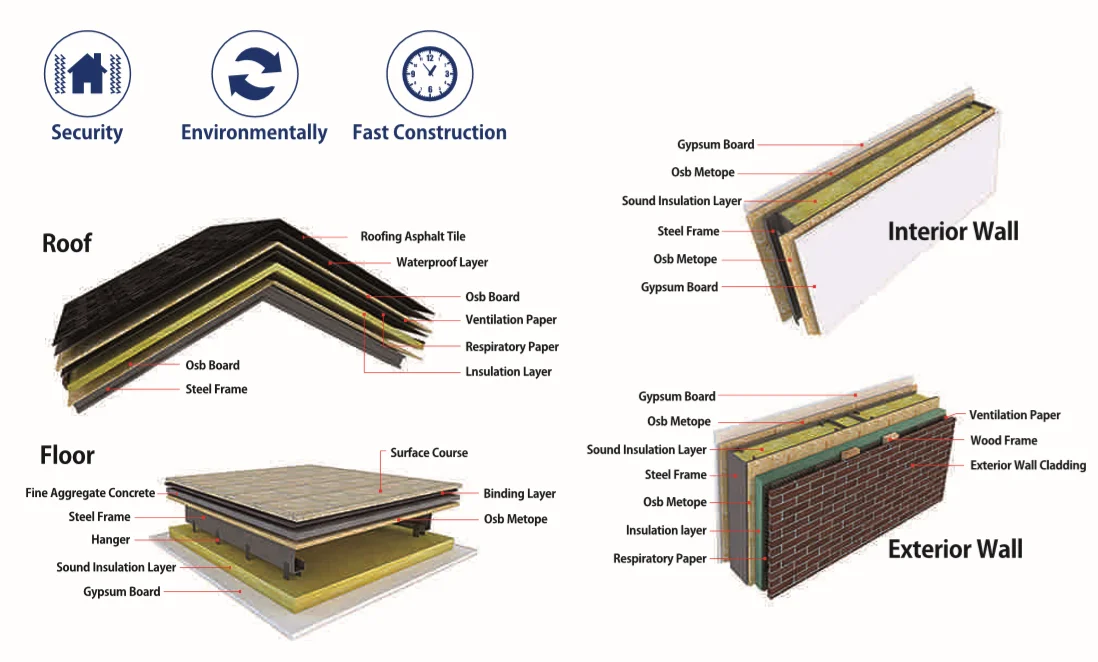

Structure Details
