SMD carrier tape chips packing machine SMD components Taping packing machine
- Category: >>>
- Supplier: Shenzhen Gosmt Technology Co. Ltd.
Share on (62429587382):
Product Overview
Description
Product Description

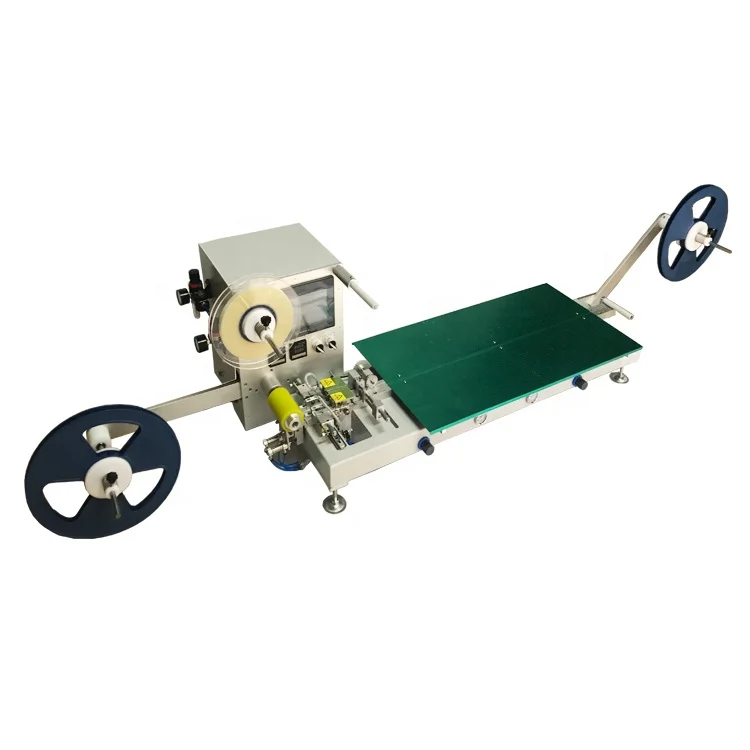

Name:SMD carrier tape chips packing machine SMD components Taping packing machine
Model: GS-10W
Capability and parameter:
Packing mode: Automatic sealing and furling and manual emptying.
Operating mode: Text screen
packing speed:the speed may be adjusted and is as high as 400 meters/hour, and the running speed of the machine is adjusted according to the speed of loading parts by operators and the specific sealing process requirements in the actual production.
Applicable scope: 8 to 72mm carrier tapes, and 8 to 200mm specifications can be customized.
With inching sealing and flat pressing continuous sealing, applicable to self-adhesive cover tape and heat sealing cover tape; adjustable tension intensity.

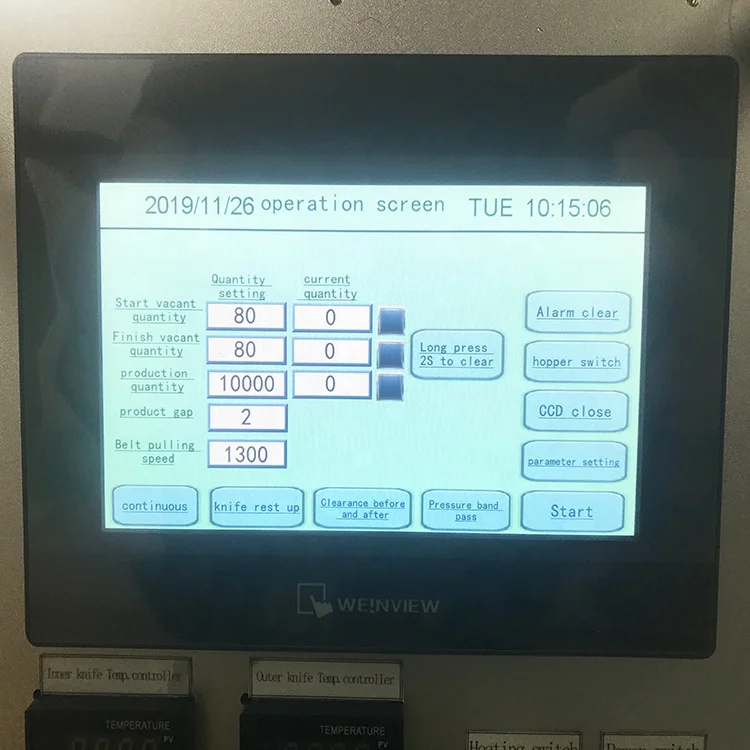

PLC control, stable temperature and accurate count; the touch-screen LCD interface is used so that the operations and settings are more simple and intuitive.
With more functions: starving detection and alarm function, and the front and rear empty lead tape and the actual number of loading can be set; the number of tapes every time and seal pressure pause and reset time (0.1 to 99.9 seconds) and other parameters be more accurately set, and a video detector can be selected.
Power supply: AC220V,50H Power consumption: 400W
Pressure: 0.4 ~ 0.6MPa.

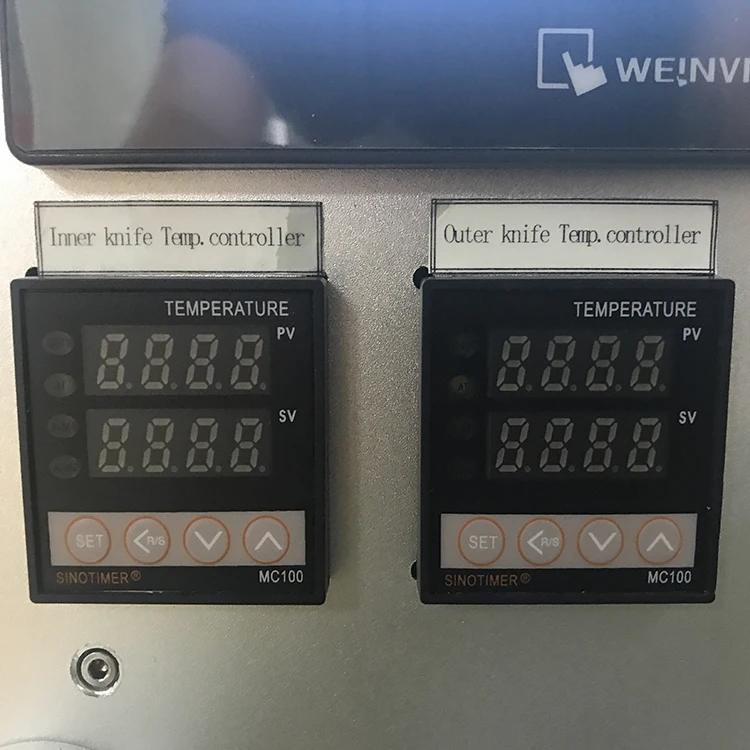

Temperature range: room temperature ~ 300 °C.
Volume: L170cm × W60cm × H60cm, Other specifications can be customized
Packaging reel diameter within 560mm, Empty reel diameter within 980mm.
Weight: 35kg.
Name: Professional Semi-Auto SMD Taping Machine for SMD components packaging
Packing mode | Automatic sealing, furling and manual empty |
Operating mode | Touch screen |
Packing speed | Adjustable, as high as 400 meters per hour |
Applicable scope | 8 to 72 mm and 8 to 200mm carrier tapes |
Function | Starving detection and alarm |
Power supply | AC220V |
Power consumption | 400W |
Pressure | 0.4 to 06 MPa |
Temperature range | Room temperature to 300 centigrade degree |
Volume | L170 x W60 x H60 cm |
Weight | 35kg |

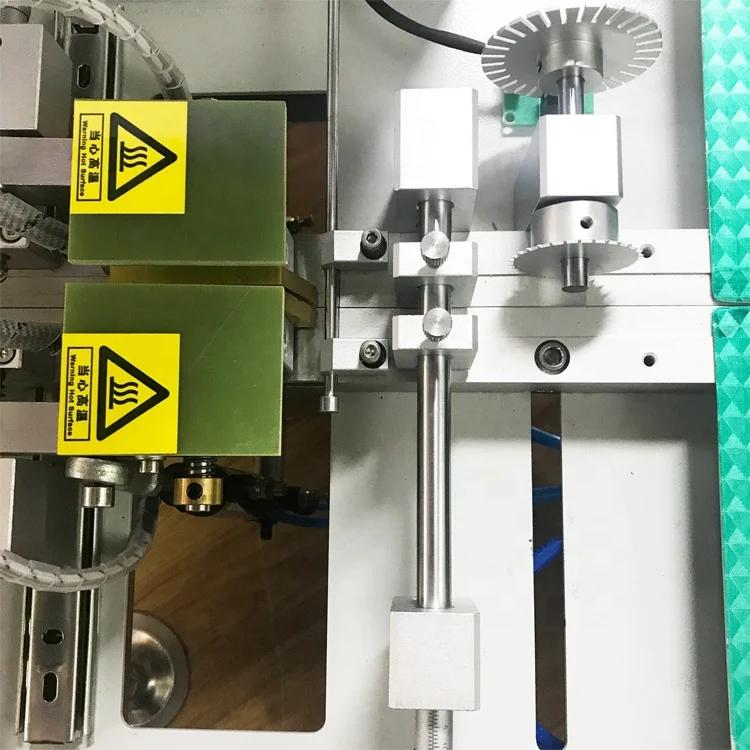

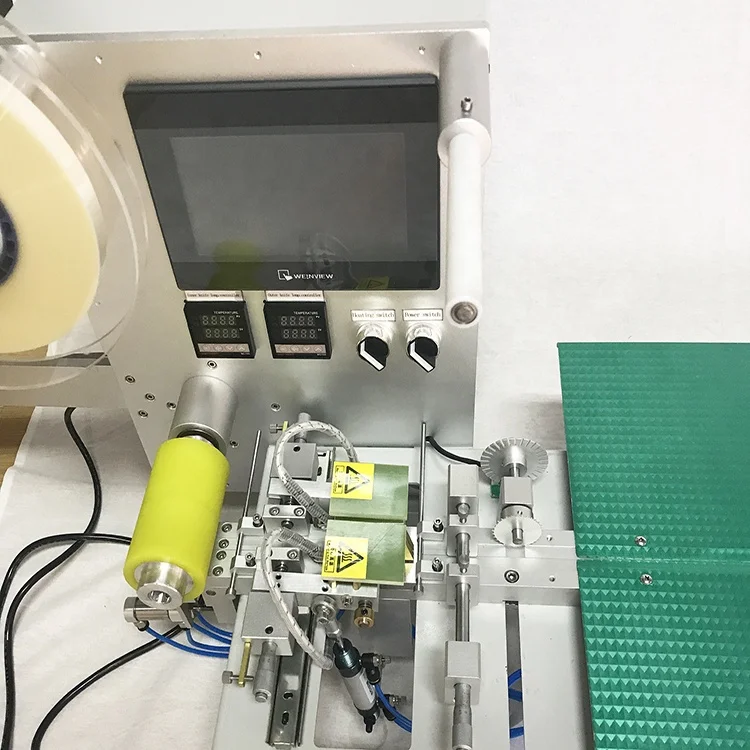

Picture of Details
Peripheral Machines Collection
Factory Pictures
Packaging & Shipping
Packaging by Plywood Case for Cargo Safety
Our Services
- Services cover the whole business procedure, from quotation to goods receiveing.
- Technique support shall be provided always, without time limitation.
- Oversea technician dispatch would be proceeded when it is necessary or requested by client.
- Our warranty is valid for all products in our business.
FAQ
Q: Why choose Gosmt?
A: We professionally supply full range of SMT peripheral Equipments, all relatives to serve SMT production line.
Q: How about our Machines quality?
A: We`ve been doing exportation to Europe and USA for years , quality is the premier factor we concern.
Q:What is the warranty of Machines ?
A: We provide 12 months` warranty , Technique Supports would be always online, Oversea Technician service would be provided when it is necessary or requested by clients.
