Product Overview
Description

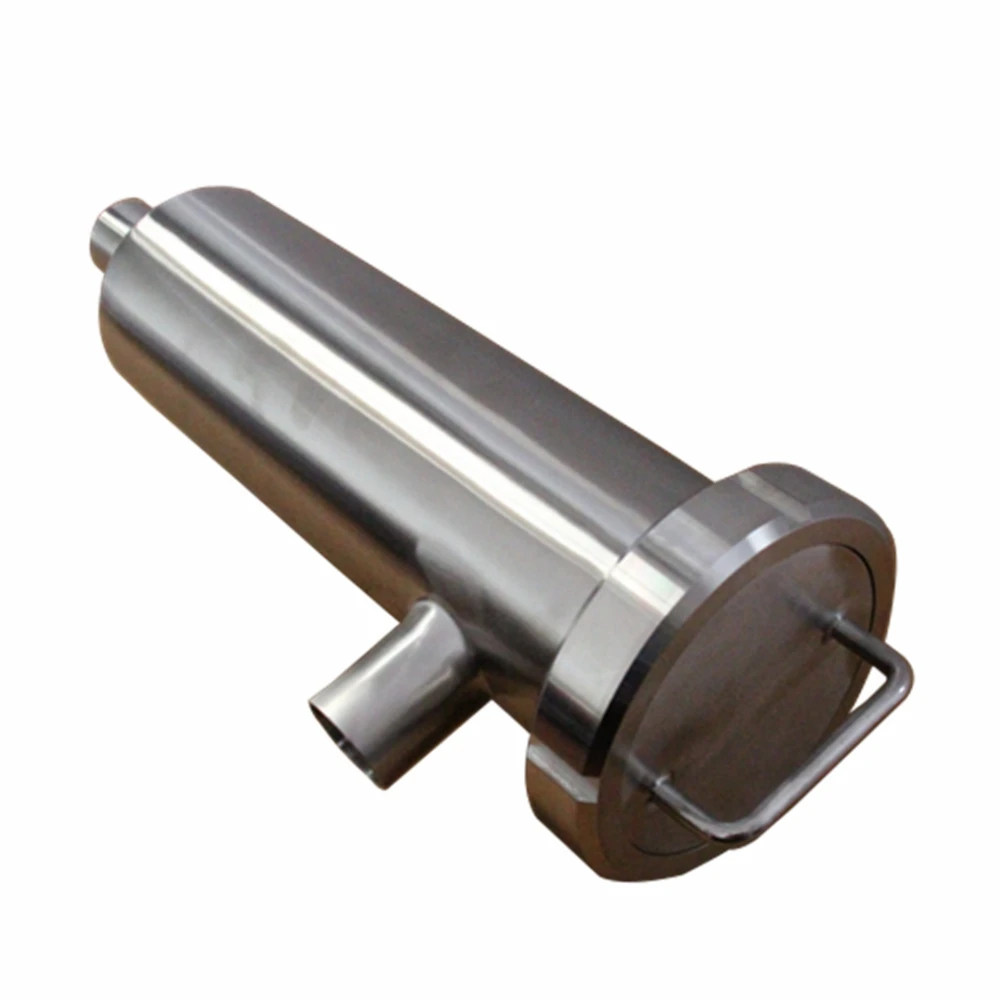

Sanitary different diameter size stainless steel 0.22um membrane beer filter

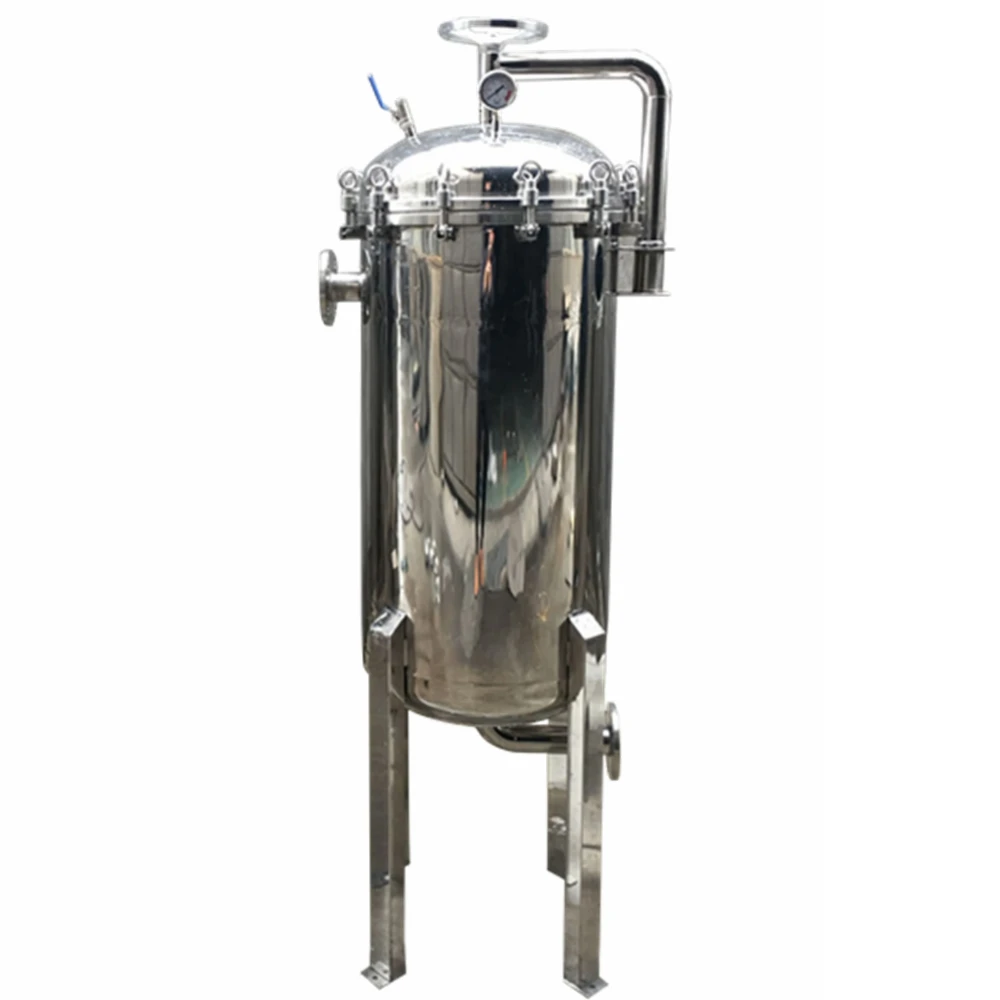

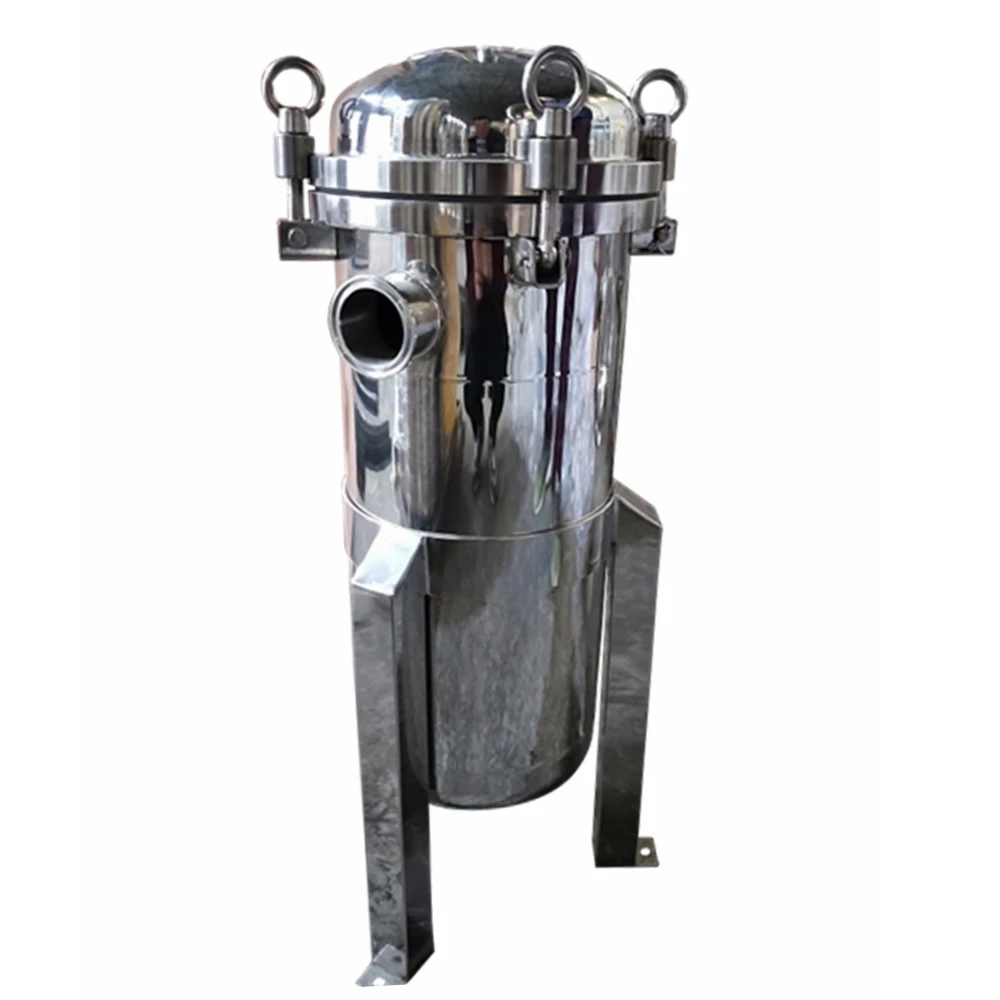

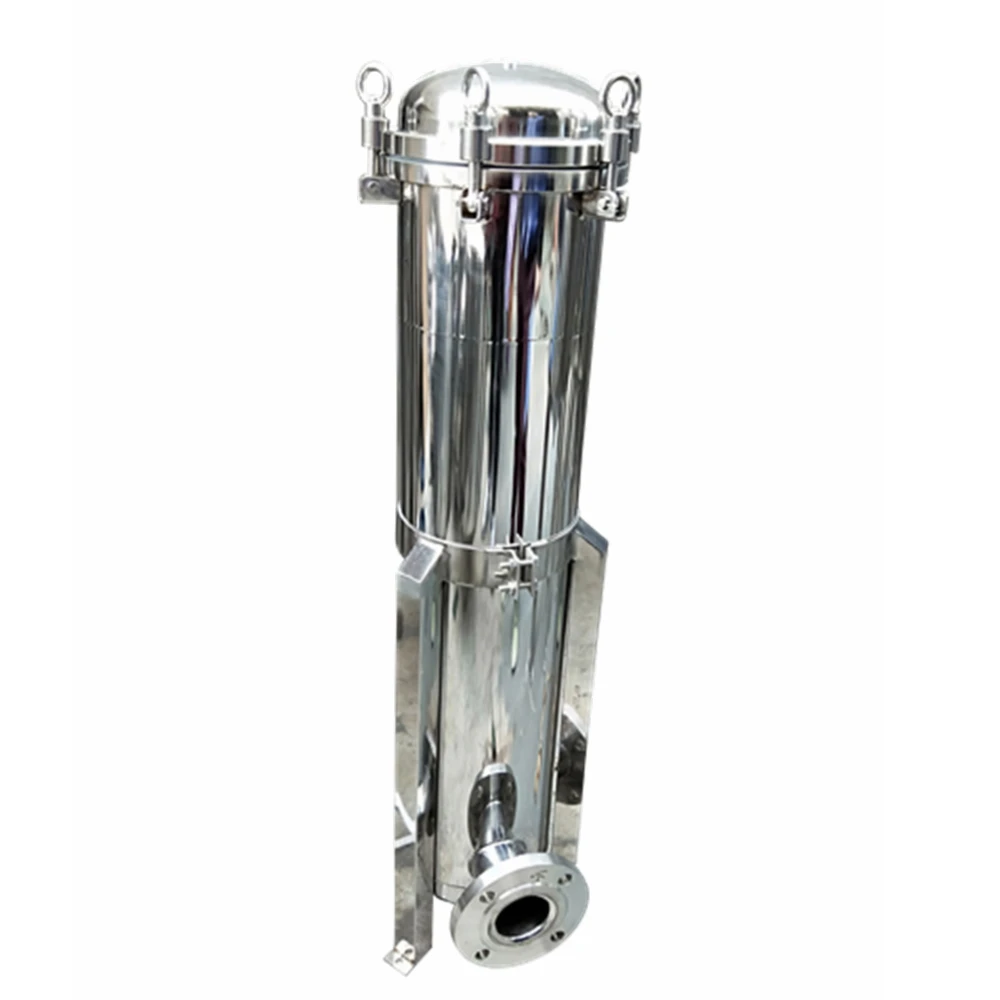

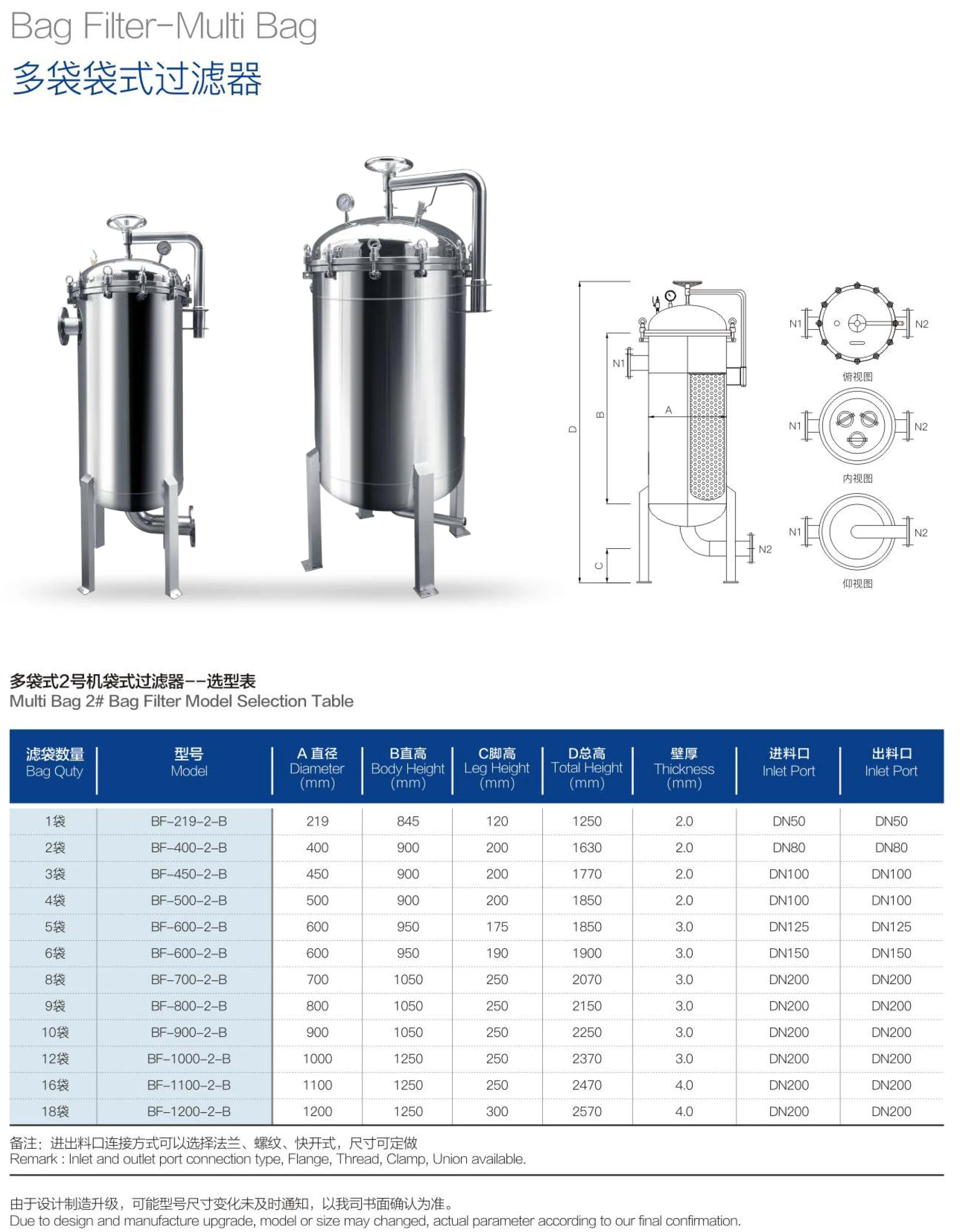

Membrane beer filter is a widely used for liquid filtration,it can remove the particles of different size from liquid,in order to achieve liquid filtration,purification,separation,recovery purposes.It consists of three parts:bag housing,supporting basket and filter bags.According to flow rate,you may use multiple bags in a bag housing.First,the liquid enter into the housing from the inlet,which may placed in the side or on the top,and then flow into the filter bag which is braced by basket.Due to the impact pressure of fluid,the bag will extend and the liquid get evenly filtered through the bag and flow out of the outlet pipe.Impurities are trapped in the bag,the filtration process is complete.When you replace or clean the bag,just simply loosen the bolt,rotary hand wheel lifting the lid,and get the bag.
Advantages of bag filter:
1. compact structure and reasonable size of bag filter.The installation and operation are simple and convenient, occupying a small area.
2.The bag filter with high accuracy, suitable for any fine particles or suspended matter, the filter range from 0.5 to 200 microns.
3.The unit filtration area of the treatment flow is large, small resistance, high filtration efficiency.The filtration function of a liquid filter bag is 5~10 times of the filter element, which can greatly reduce the cost.The design flow can meet the requirements of 1~500m3/h with low cost.
4.Bag filter is widely used, can be used for coarse filter, medium filter or fine filter;Under the condition of the same filtering effect, the equipment such as the fine filter and the filter element filter has the advantages of low investment cost, long service life and low filtering cost.
5.It has the features of high precision, large filtration processing capacity, low cost and high efficiency.
6.The liquid bag filter is free of cleaning and can be replaced within 30 seconds.
Sanitary different diameter size stainless steel 0.22um membrane beer filter
Membrane beer filter with high accuracy, suitable for any fine particles or suspended matter, the filter range from 0.5 to 200 microns.
Feature
Bag filter Characteristics
1.Unique design to prevent the bag sunk into basket under pressure,it ensure 100% no spills.
2.Rational allocation of seals on both single bag and multi-bag filter.It ensures the reliability of
the sealing system.We can use ordinary steel ring sewn bag, or weld melt bag, to ensure no spill phenomenon.
3.Basket is made of perforated mesh, with molding, polishing, the impurities won’t stick with it.
4.A variety of optional material for basket, such as high-quality stainless steel SS304,SS316, we can also provide a variety of special metal filter container. Peide water treatment company provides economical filters, can provide users with a more affordable option.
5.Compact structure, reasonable size. Simple to install and operate, convenient, small occupation.
6.High filtration accuracy, for any fine particles or suspended matter, Range from 1 to 800 microns;
7.Unit filter area is large, a smaller filtration resistance, high filtration efficiency. A bag filter function is equivalent to 5-10 times of filter element of the same function,it can greatly reduce the cost; Range of flow rate: 1 ~ 1000m3 / h.
8.Extensive application:it can be used for coarse filtration, medium filter or fine filter.Compared with frame fine filter, cartridge filter, raw water pre-filter and fine filter and other devices,it is with low investment, longer lifetime and low operation cost, filter bag can be used repeatedly.
9.In the same reasonable structure, low operating costs, filter effectiveness and treatment capacity, the price is far lower than imported bag filter.
Except for bag filter, we also have:
FAQ:
1:Are you manufacturer?
Yes, we are. Welcome to visit our factory.
2:Can you change the machine voltage as our request?
Yes, we can.
3: How about the delivery time?
With the standard products delivery time will be15-35 days after we receive your payment.
4: What's the payment terms?
Usually is T/T, L/C, or Western Union. We also accept Money Gram, PayPal and other payment terms.
5: Where are the main markets for your products?
Products have been exported to all over the world, especially in Northern Europe Western Europe, Eastern Europe North American, South American, Middle East, South Asia, Eastern Asia, African and etc.
