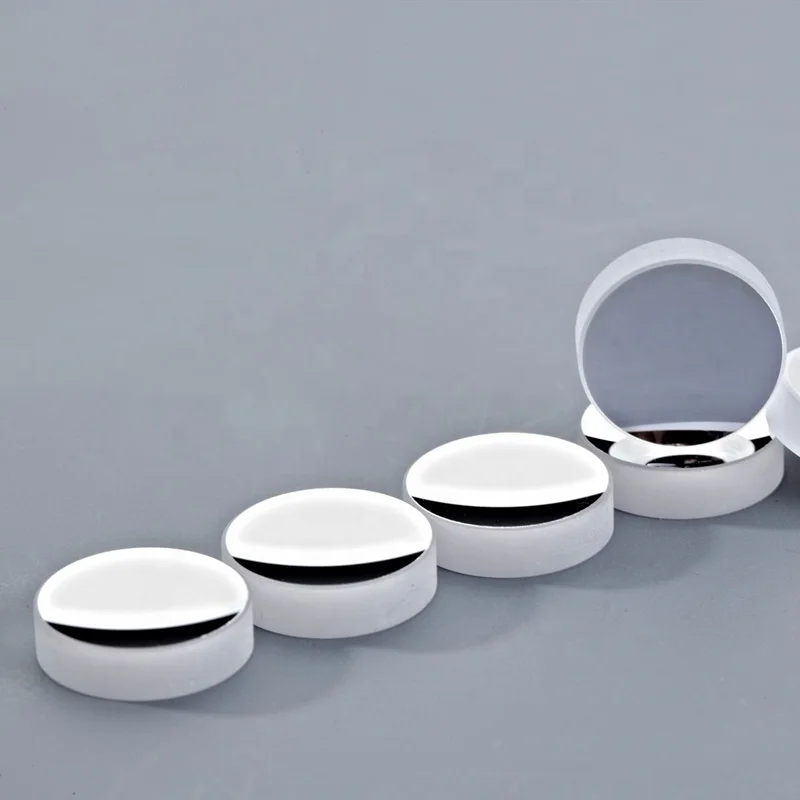

optical narrow bandpass filter 905nm high pass IR filters for Laser ranging radar
- Category: Optical Filters >>>
- Supplier: Shenzhen Kaitao Optical Technology Co. Ltd.
Share on (62429834812):
Product Overview
Description

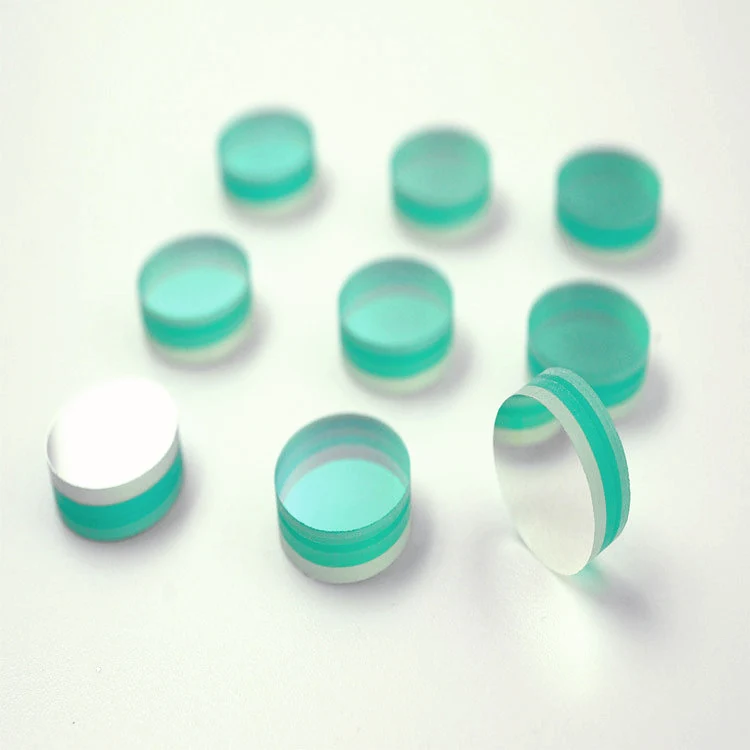

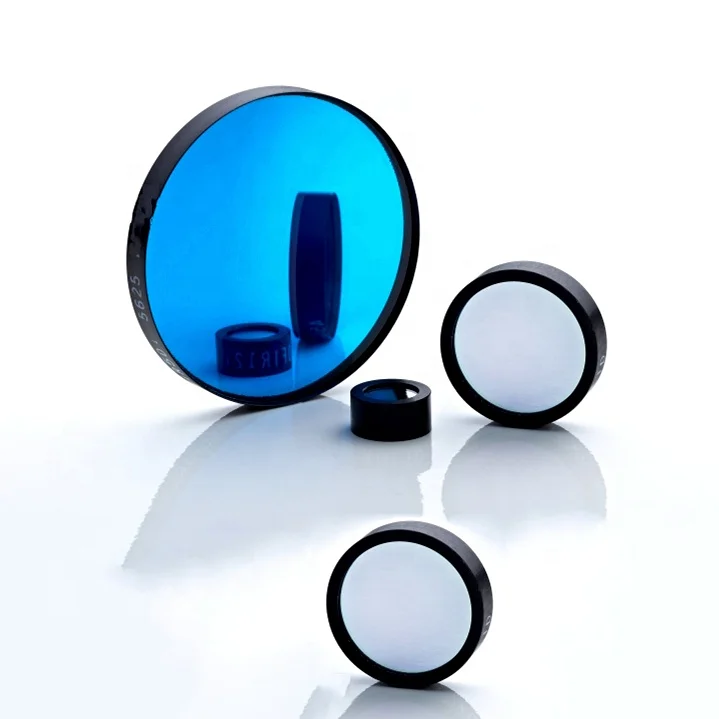

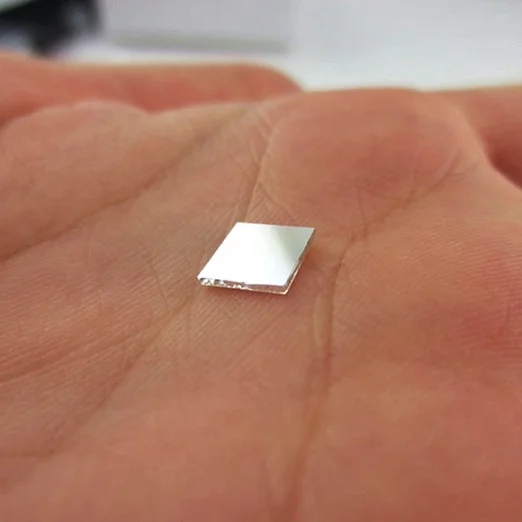

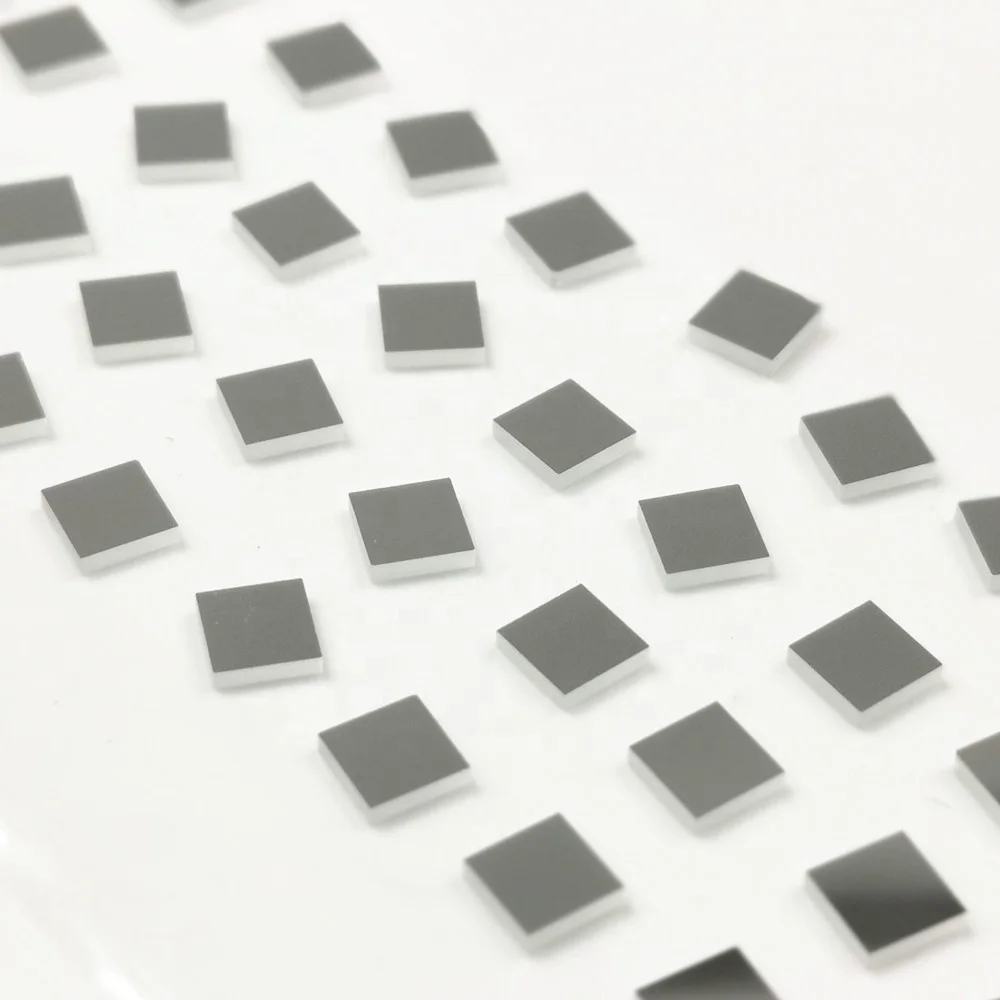

905nm Bandpass Filters
The narrow-band filter is an optical lens that suppresses the light source, the sensor, and the natural light and separates a specific monochromatic spectrum. The narrow-band filter is a filter that cuts off the interference light and transmits the characteristic wavelength. The 905 nm narrow-band filter produced by KaiTao The advantage of the light film is that it pays more attention to the customer's application field and customizes the narrow-band filter with the best price/performance ratio.

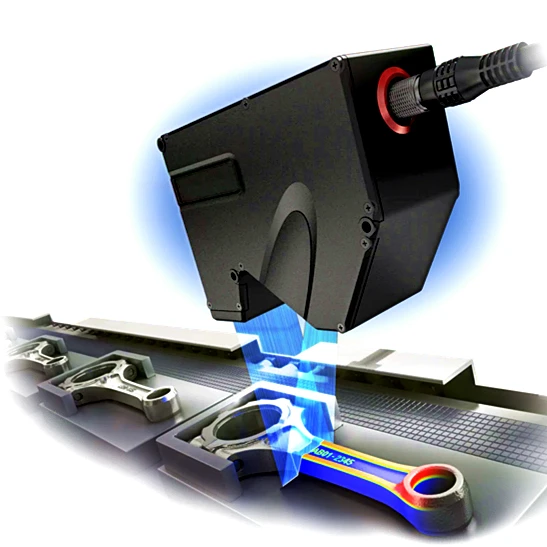

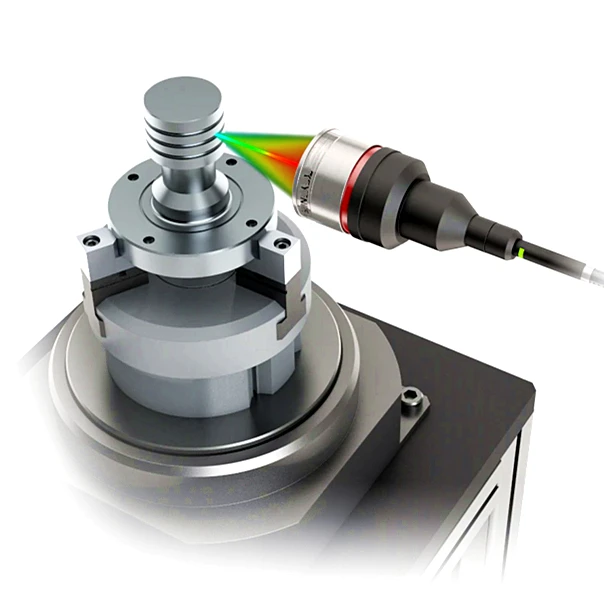

Narrowband filters are mainly used in semiconductor lasers, surveillance cameras, sensor packages, medical instruments,

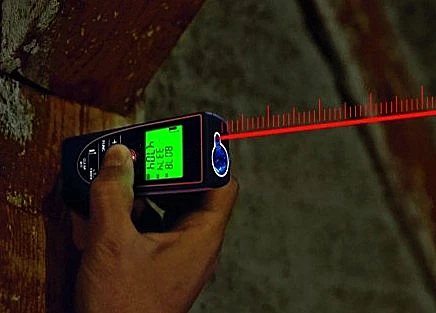

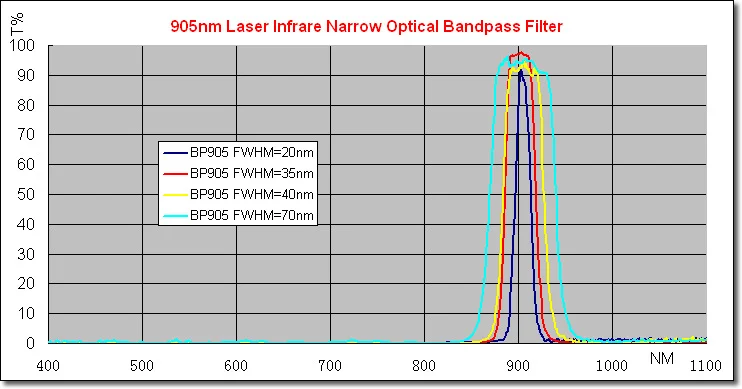

fluorescent microscopes, and the like. Recommended: The filter for 905nm narrowband filter for Infrared lidar infrared ranging laser range finder is 905nm±5nm@T≥90%, bandwidth 20nm, out-of-band cutoff depth 350~1100nm@T<0.01% The wave bands of semiconductor lasers developed and put on the market now include 370nm, 390nm, 405nm, 430nm, 480nm, 635nm, 650nm, 670nm, 780nm, 808nm, 850nm,
980nm, 1310nm and 1550nm, of which 1310nm and 1550nm are mainly used in the field of optical fiber communication
fluorescent microscopes, and the like. Recommended: The filter for 905nm narrowband filter for Infrared lidar infrared ranging laser range finder is 905nm±5nm@T≥90%, bandwidth 20nm, out-of-band cutoff depth 350~1100nm@T<0.01% The wave bands of semiconductor lasers developed and put on the market now include 370nm, 390nm, 405nm, 430nm, 480nm, 635nm, 650nm, 670nm, 780nm, 808nm, 850nm,
980nm, 1310nm and 1550nm, of which 1310nm and 1550nm are mainly used in the field of optical fiber communication
Product name : Bandpass filters | Transmittance ：＞92% （customized） |

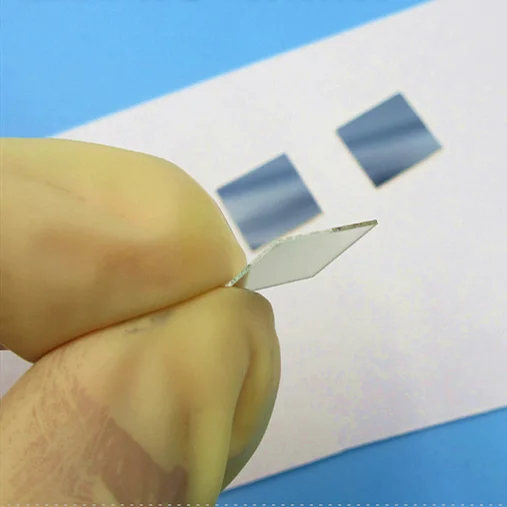

Size ：2 - 200mm （Square / round / customized） | Blocking Band ：200 - 1200nm |
Thickness ：0.21 - 5.0mm / customized | Optical Density OD (Average): OD2 - OD6 |
Material : K9/BK7/B270/quartz/Float glass | Coating : Hard Coated |
Model | CWL | FWHM | Transmittance | Blocking | ||||
UV | ||||||||
BP355 | 355±2nm | 10nm--50nm/customized | ＞55%-95%/customized | 200 - 1200nm | ||||
BP360 | 360±2nm | 10nm--50nm/customized | ＞55%-95%/customized | 200 - 1200nm | ||||
BP365 | 365±2nm | 10nm--50nm/customized | ＞55%-95%/customized | 200 - 1200nm | ||||
VIS | ||||||||
BP400-495 | 400--495±2nm/customized | 10nm--50nm/customized | ＞55%-95%/customized | 200 - 1200nm | ||||
BP500-595 | 500--595±2nm/customized | 10nm--50nm/customized | ＞55%-95%/customized | 200 - 1200nm | ||||
BP600-695 | 600--695±2nm/customized | 10nm--50nm/customized | ＞55%-95%/customized | 200 - 1200nm | ||||
NIR | 420±2nm | 10nm/20nm / 35nm /40nm /50nm/customized | ＞60%/70%/80%/90% | 200 - 1200nm | ||||
BP700-795 | 700--795±2nm/customized | 10nm--50nm/customized | ＞55%-95%/customized | 200 - 1200nm | ||||
BP800-895 | 800--895±2nm/customized | 10nm--50nm/customized | ＞55%-95%/customized | 200 - 1200nm | ||||
BP900-995 | 900--995±2nm/customized | 10nm--50nm/customized | ＞55%-95%/customized | 200 - 1200nm | ||||
BP10--95 | 1000--1095±2nm/customized | 10nm--50nm/customized | ＞55%-95%/customized | 200 - 1200nm | ||||
BP20--95 | 1100--1195±2nm/customized | 10nm--50nm/customized | ＞55%-95%/customized | 200 - 1200nm | ||||
Workshop environment
New membrane system design, IAD Hard Coating, Cleanroom-furification roduction environment, High precision test equipment testing.
Inspection
Advanced testing equipment and methods are important guarantee for the production of high-precision products.
Advanced processing equipment and complete production system are ensure that we can effectively control every aspect of the
product process to ensure product quality, and reduce losses and reduce costs!
product process to ensure product quality, and reduce losses and reduce costs!
Packing Details : carton packaging
Delivery Details : 3-15 days after ordering
Delivery Details : 3-15 days after ordering
High quality
Passed the ISO9001:2015 quality system authentication and ISO14001:2015 quality system authentication.
High quality can be customized according to customer needs
Products are sold globally, provide one-stop shopping for optical lenses, and are well received by users
Strict quality control, professional instrument testing
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: Where is your factory located ?
A:1st Floor, Building A,No. 18, Zone B, Dashuitian Industry Zone, Guanlan, Longhua District Shenzhen Guangdong China
Q: What's the material of your products ?
A: K9/ BK7 / B270 / Float glass / Quartz /Optical Glass
Q: If i place an order now ,how long would it be before i got delivery ?
Depending on the number of orders, the normal time of 3-15 days, the specific time can contact us directly

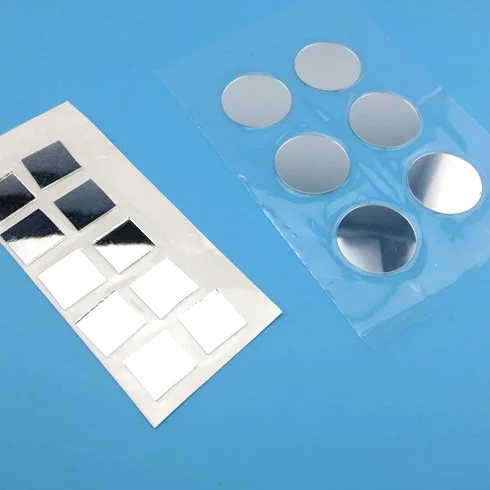

Q. How do you package the product?
A: Generally speaking, we put the goods in a neutral white box and a brown carton. Can be packaged according to your needs, you need to contact us in advance
