500kHz Air Flow Meter Sensor Piezo Transducer

Product Overview

Description

You are here:Home >> Piezoelectric UltrasonicTransducer > Piezoelectric Ultrasonic Senser

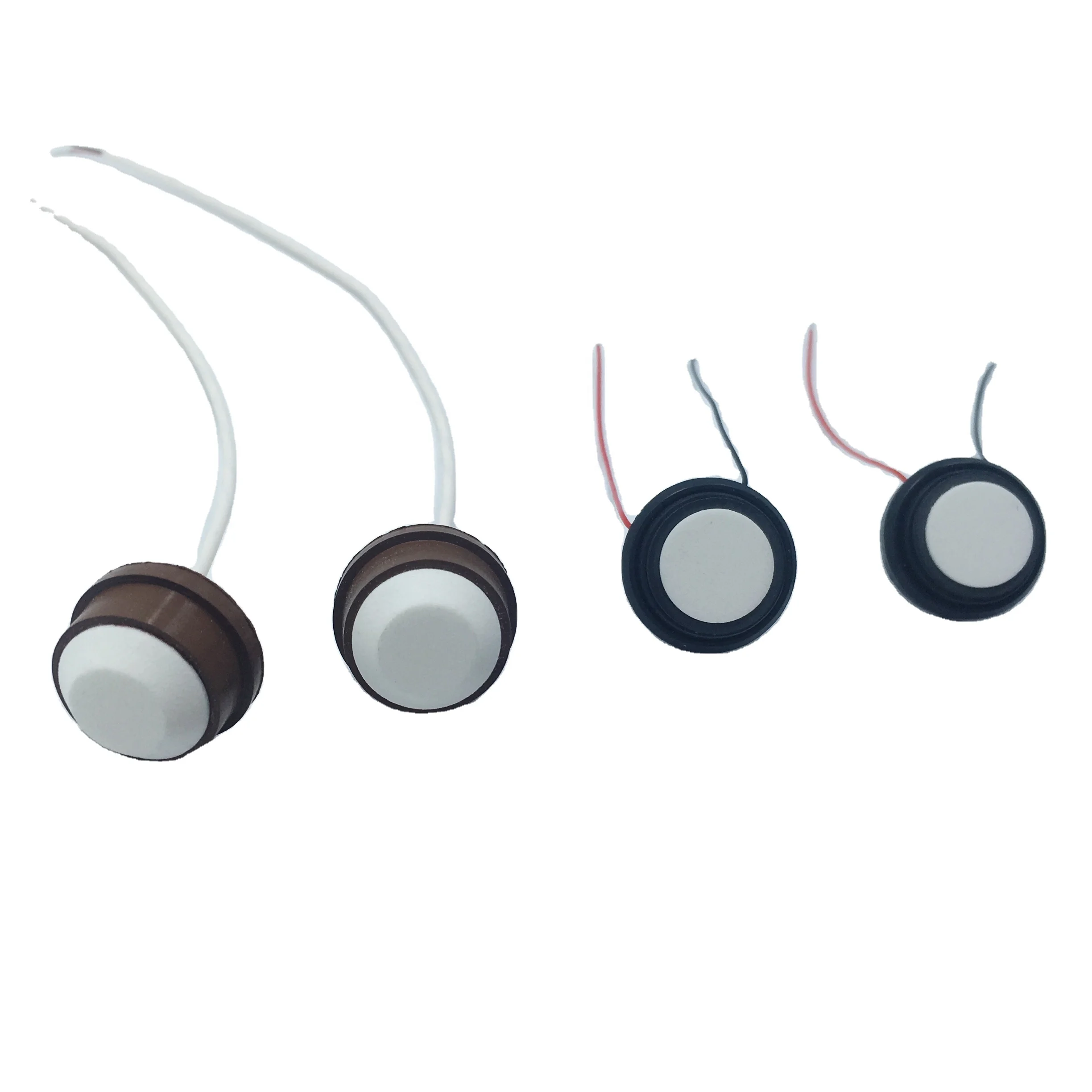

500kHz Air Flow Meter Sensor Piezo Transducer

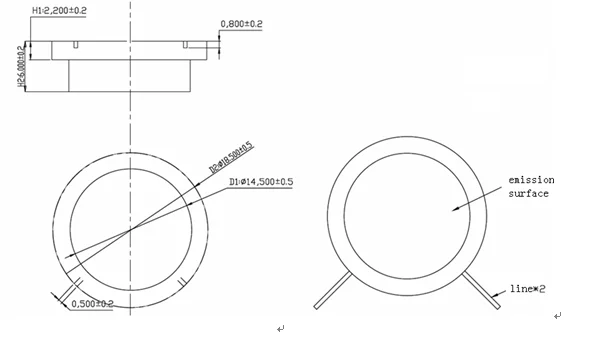

Dimensions (Unit: mm)



 ELECTRICAL SPECIFICATIONS

Items	Unit	Content
Center Frequency(Fn)	kHz	500±10
Static Capacitance(CP)	pF	470±10%
Signal Sensitivity	mV	≥50
Directive property	°	about 6(Half the whole corner)
Operating temperature range	℃	-35~70
Storage temperature range	℃	-40~85
Quality	g	about 4.5

 TEST

1 Center Frequency Test

Parts shall be measured under a condition (Temp.:25℃±3℃, Humidity: 40%~70% R.H). Tested the electrical performance curve of transducer by HP E5100A network analyzer.

2 Static Capacitance Test

Parts shall be measured under a condition (Temp.:25℃±3℃, Humidity: 40%~70% R.H). Digital Electric Bridge (at 1kHz/1V).

3 Sensitivity Test

Parts shall be measured under a condition (Temp.:25℃±3℃, Humidity: 40%~70% R.H);Output voltage of standard signal source:20Vp-p,7cycles,Rated frequency square wave,pulse interval:ms;Vertical distance of transducer transmitting surface  :70mm,Horizontal opposition;Receiving peak voltage of oscilloscope.

 PHYSICAL AND ENVIRONMENTAL CHARACTERISTICS

After test,The sensitivity of receiver and transmitter varies within + 3DB.

High Temperature Exposure :85±2℃,96h

Low Temperature Exposure : -40±2℃,96h

Humidity: 60±2℃,90±3%, 96h

Mechanical Shock.Drop the resonator randomly onto a wooden floor from the height of 100cm 3 times.

7.5 Vibration. Subject the part to vibration for 2h each in x,y and z axis With the amplitude of 1.5mm, the frequency shall be varied uniformly between the limits of 10 Hz-55Hz-10 Hz.

7.6 Insulation Resistance :300V,>1TΩ

7.7 High Voltage Impact: 100VDC/60±5s





 Frequency available: 40kHz,60kHz,100kHz,125kHz, 150kHz, 200kHz, 500kHz.

Click for more information



Click for more information

Ceramic ultrasonic transducer, the core element of ultrasonic flow meters, is a liquid-medium sensor. It can be used in liquid flow meter, or as liquid level sensor. Products are made from the piezoelectric ceramic developed by ourselves, has the advantages of better temperature stability and superior piezoelectric effect.   We have been in the research and development of PZT materials and products nearly 30 years.We are director of Piezoelectric Ceramic Device Specialized Committee, in charge of drawing China’s “The 11th Five-year Plan” and “The 12th Five-year Plan” for development of piezoceramics. Chooosing us will make your developping process earlier and faster.
