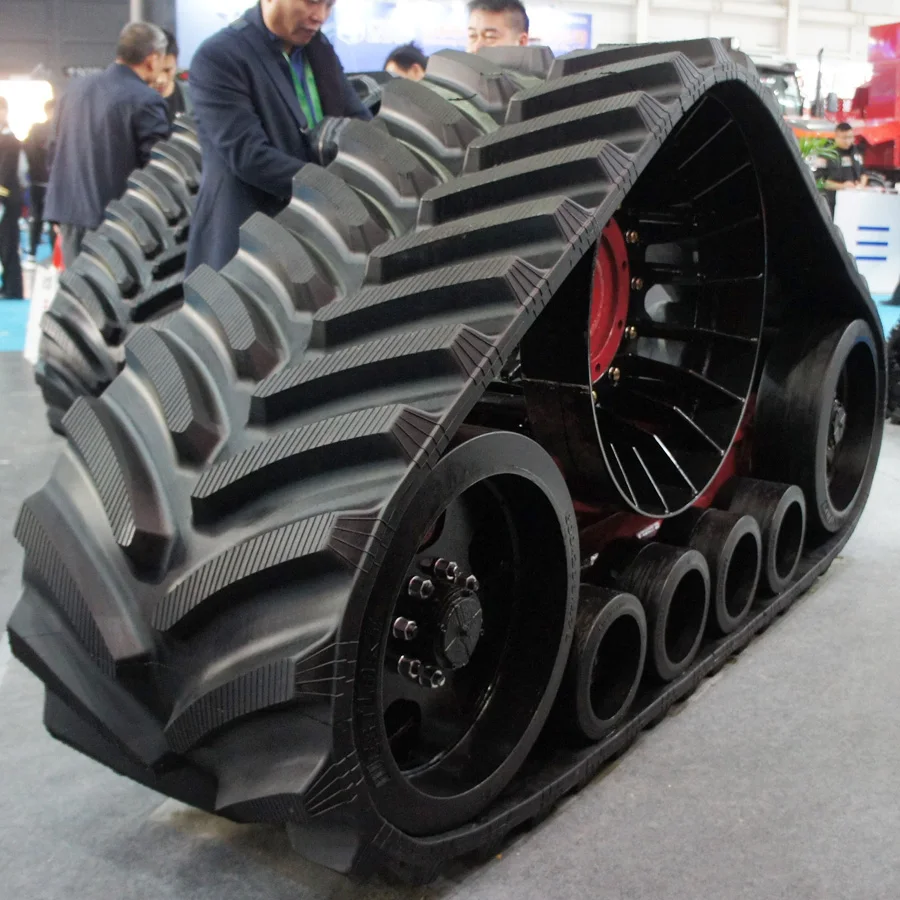

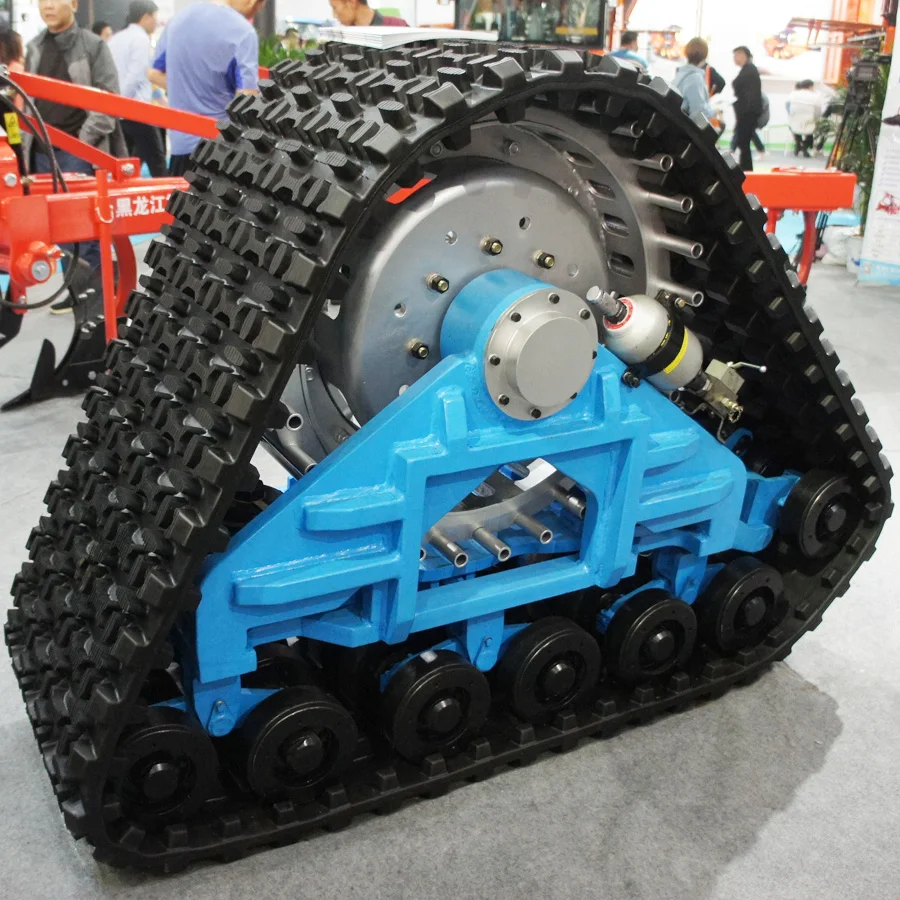

agricultural tractor Tracks Rubber Track drive System

Product Overview

Description

agricultural tractor off-road drive system for Amphibious Vehicle Performance features:

The maximum speed 35km / h.

Reduce the specific voltage of vehicle to ground and improve vehicle trafficability.

The structure is simple and easy to install.

Protect cultivated land, prevent land from hardening and help green agriculture.

Reduce fuel consumption by 10% - 30%, energy saving and environmental protection.

Configuration the self-adjusting hydraulic tension system.









Model	BLTS-635
Length	2580 mm
Width	698 mm
Height	1345 mm
Grounding length	1800 mm
Grounding area	2.28 m
Configuration model	1000 series Medium combine
Max speed	35 km/h
Tighten adjustment	Self adjusting hydraulic tension system

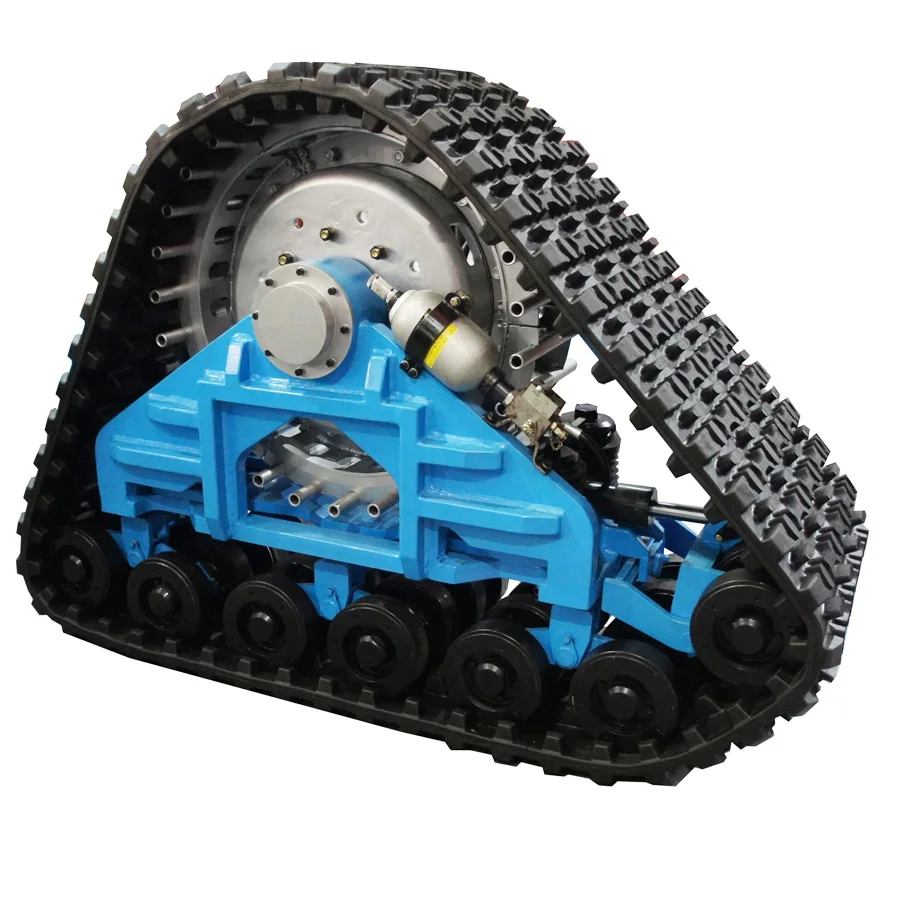

Introduction to main components of rubber half track

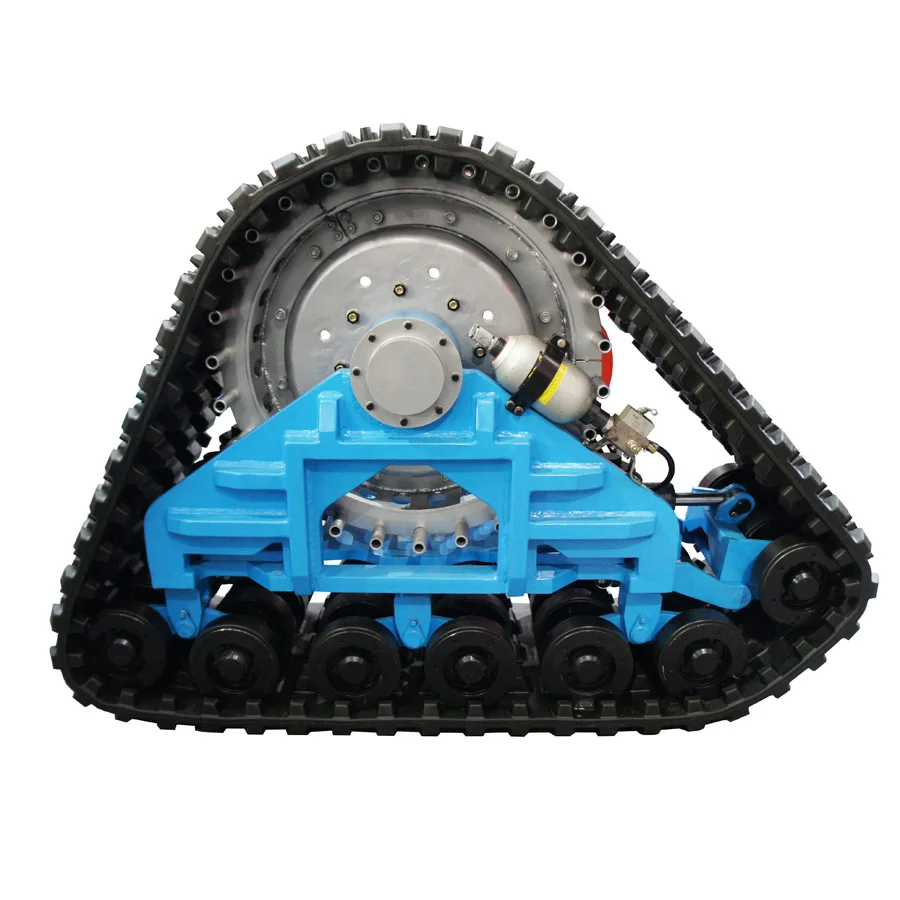

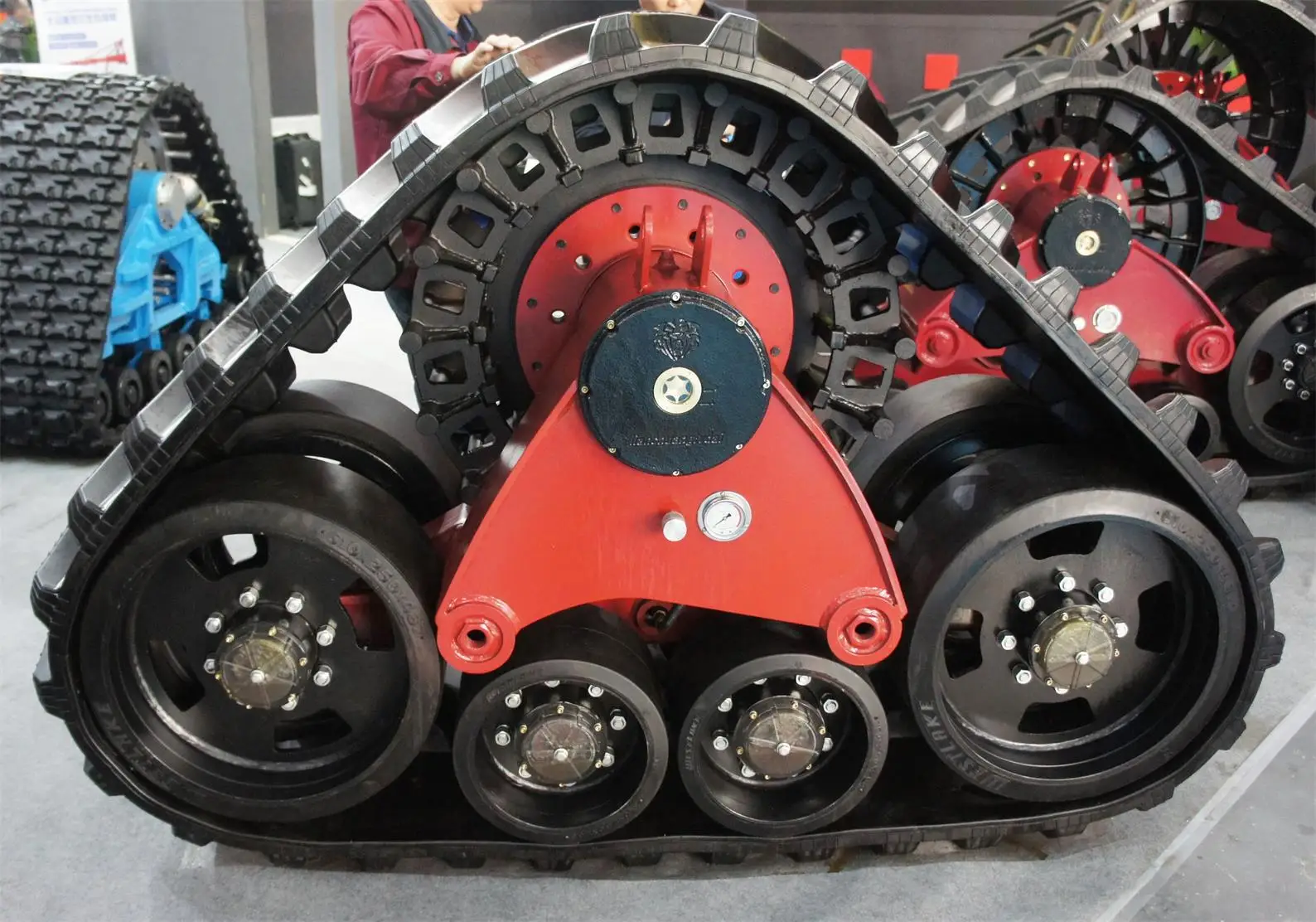

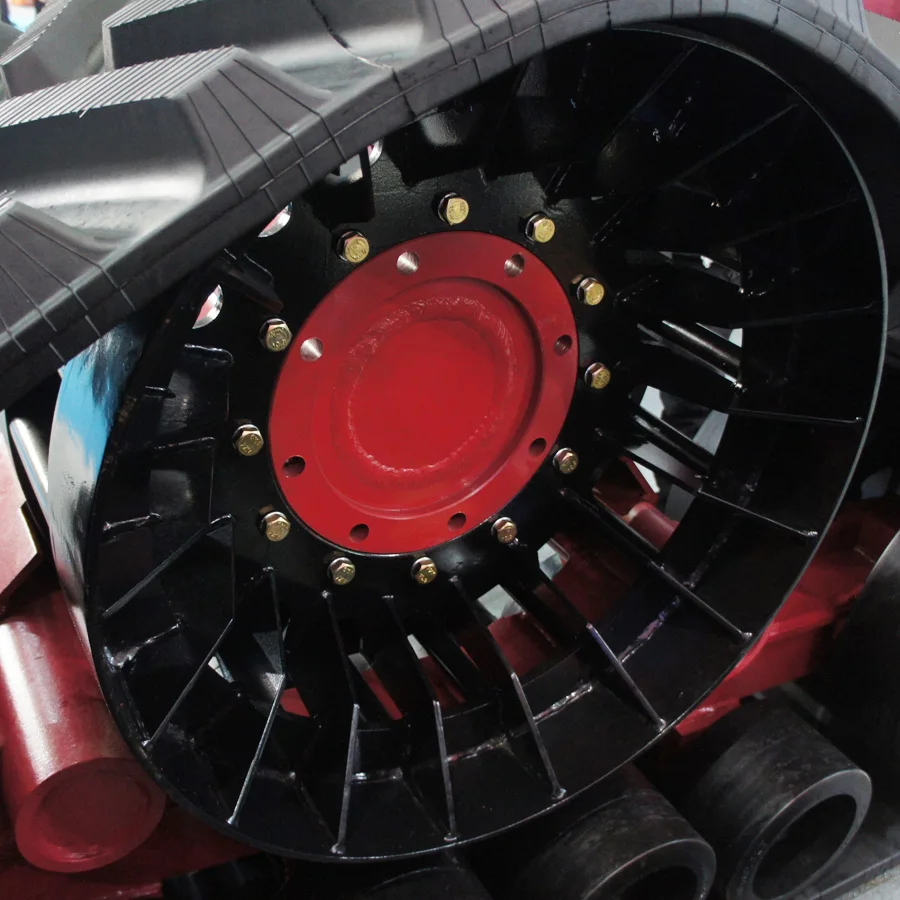

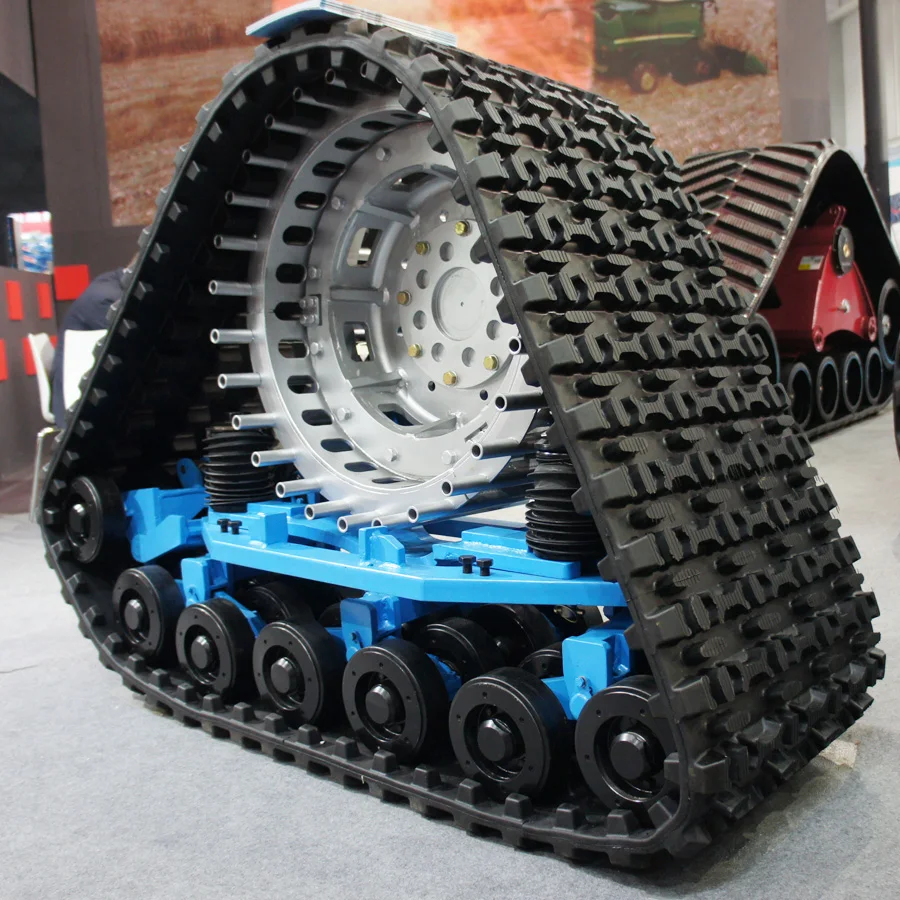

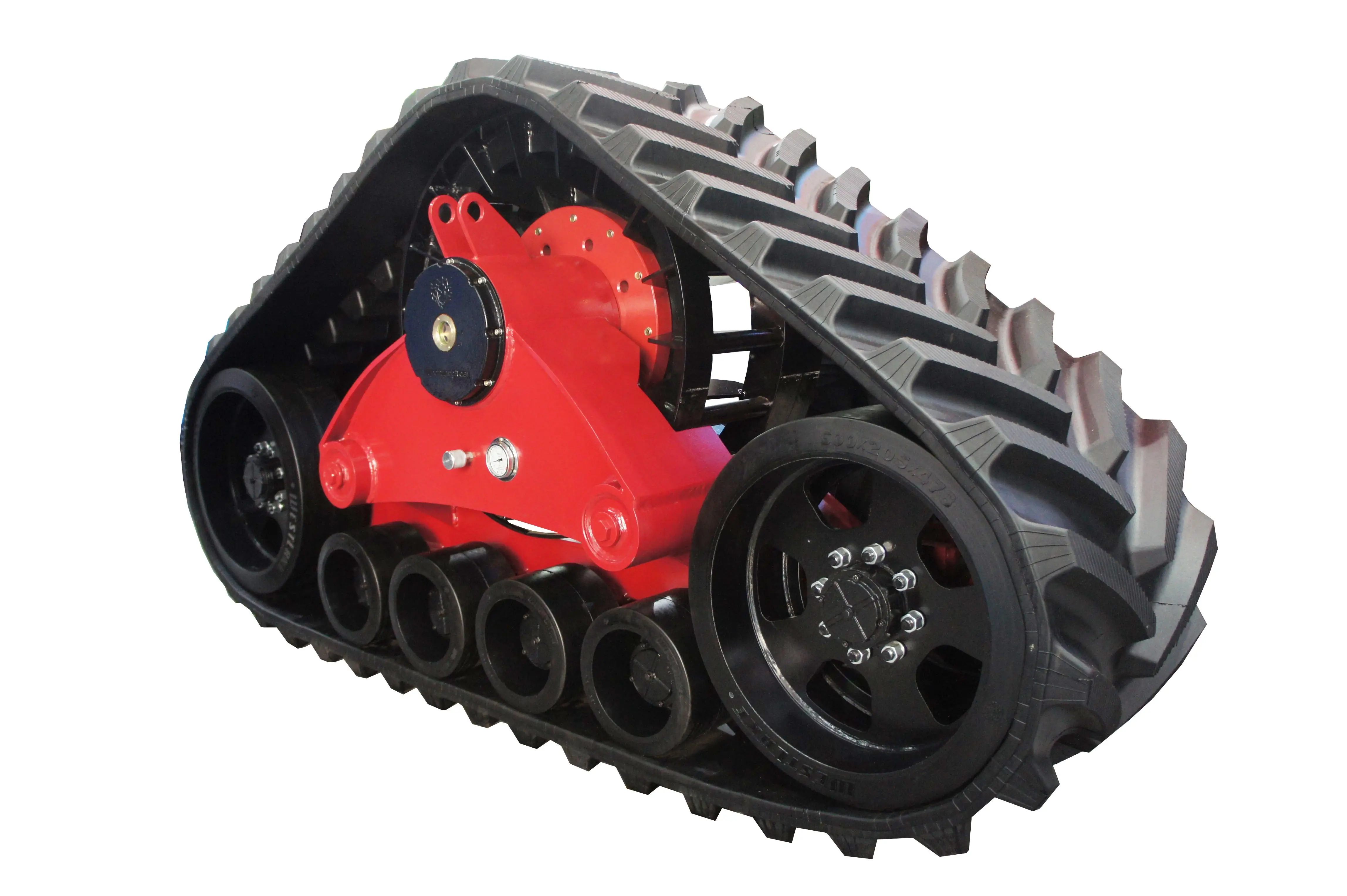

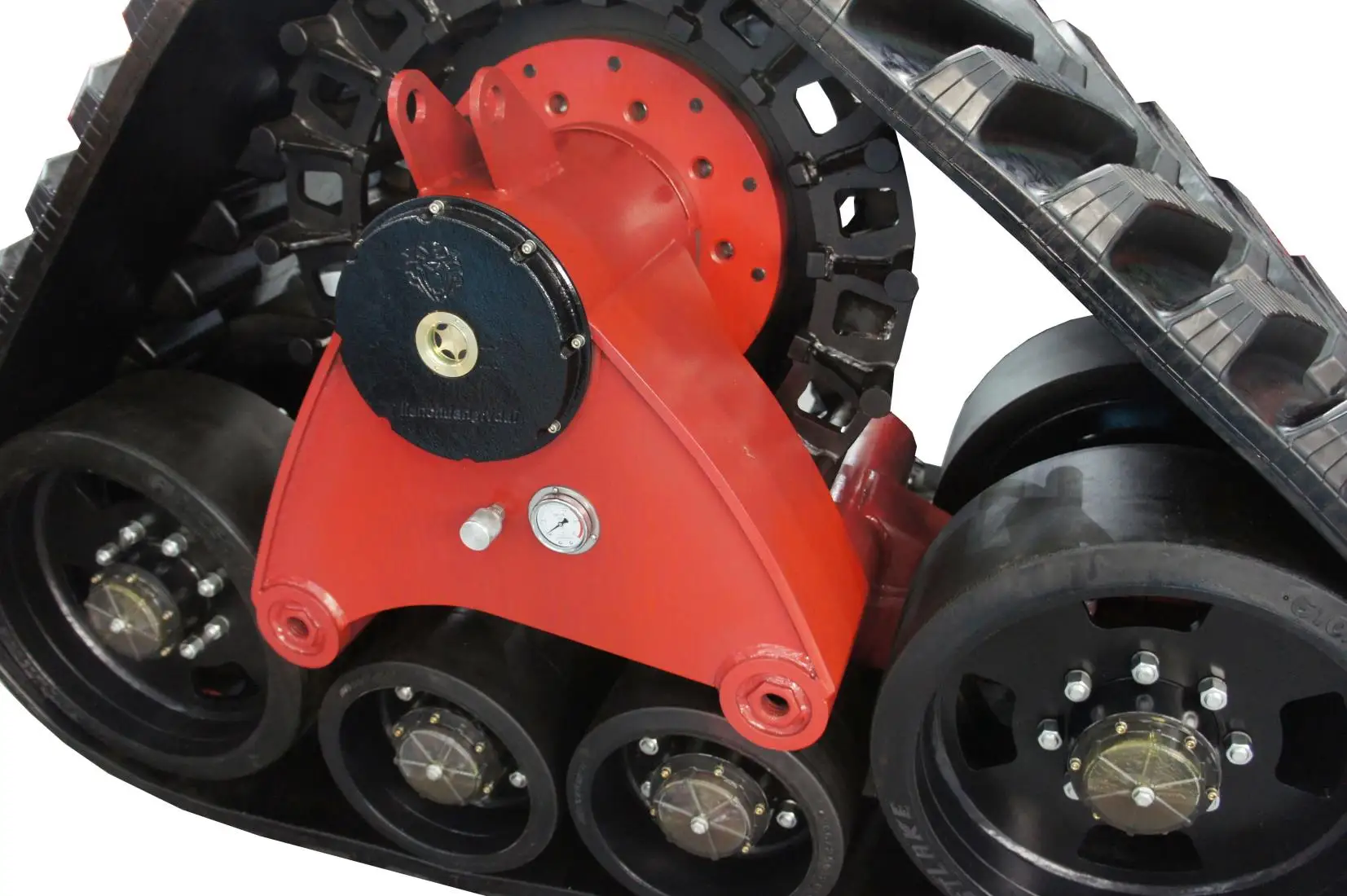

Rubber half track is mainly composed of driving wheel, guide wheel, roller, track frame, tensioning device and rubber track. The crawler frame is the basic part of the whole mechanism, which is divided into the upper frame and the lower frame, which are connected by bolts. The guide wheel and the roller are fixed on the lower frame through the slips, which plays the role of supporting the whole structure, and clamps the track to prevent the track from derailing. The driving wheel is installed in the shaft sleeve of the upper frame, which is the main power component of the whole half track device.

The half track connects the front axle connecting disc and the half track connecting disc of the harvester through the connecting disc to drive the whole mechanism to run. The tension of the half track is completed by the expansion and contraction of the tension cylinder.
