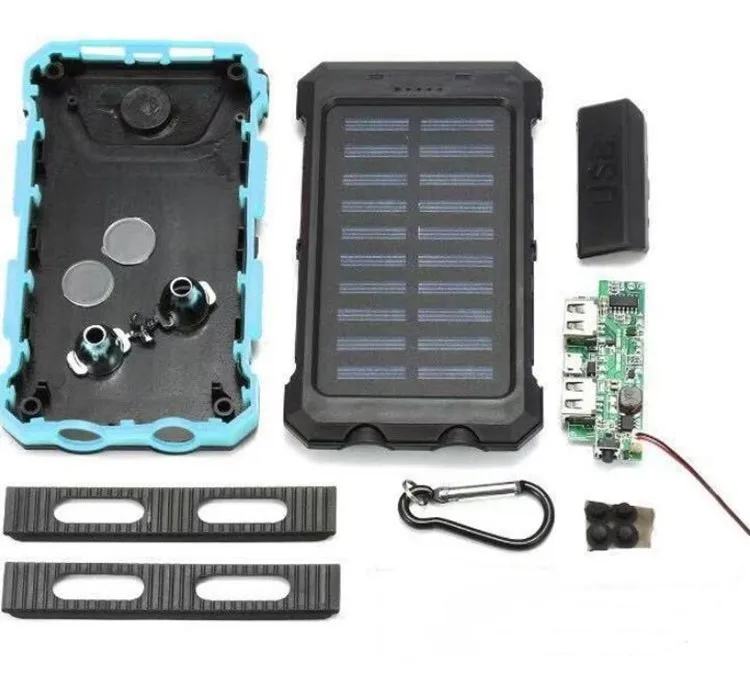

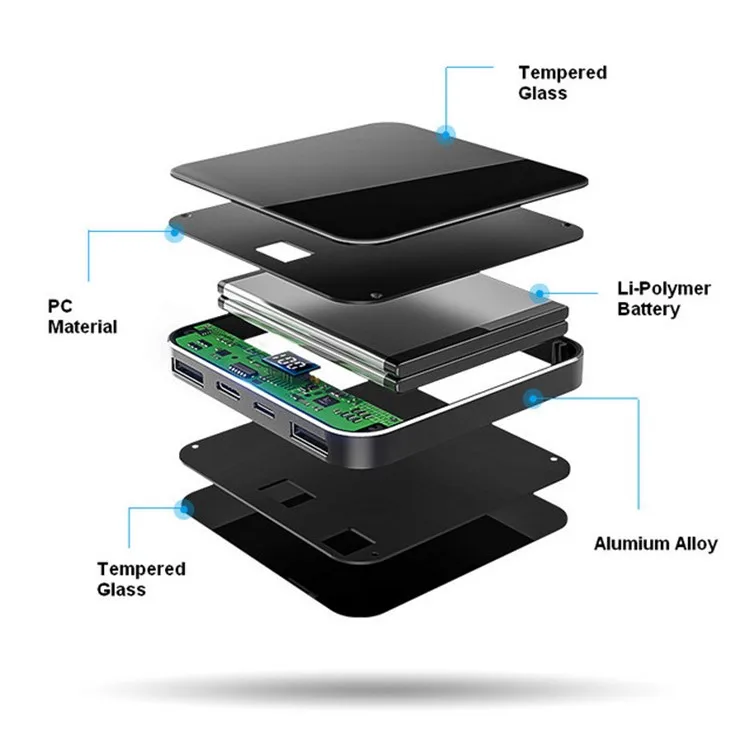

Professional development of power bank wall charger management scheme and enclosure

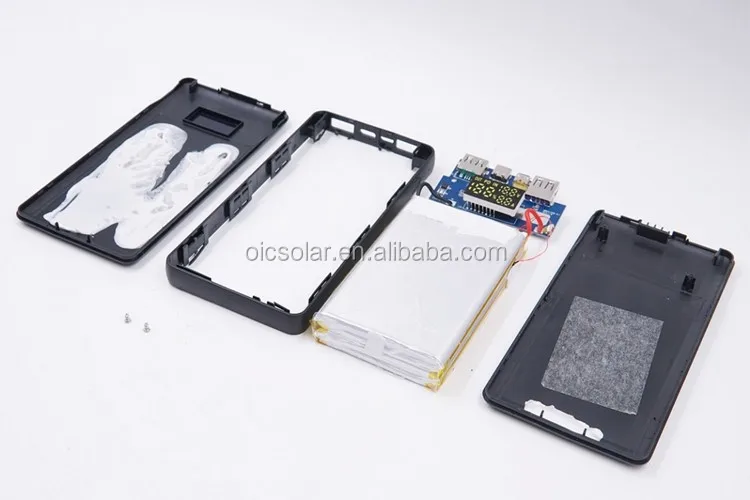

5W power bank PCBA

Input:5V/1A

Output:5V/1A

10W power bank PCBA

Input:5V/2A

Output:5V/2A

18W power bank PCBA

Input:5V/2A, 9V/2A, 12V/1.5A

Output:5V/2A, 9V/2A, 12V/1.5A

30W power bank PCBA

Input:5V/2A, 9V/2A, 12V/1.5A, 15V/2A

Output:5V/2A, 9V/2A, 12V/1.5A, 15V/2A

45W power bank PCBA

Input:5V/2A, 9V/2A, 12V/1.5A, 15V/3A

Output:5V/2A, 9V/2A, 12V/1.5A, 15V/3A

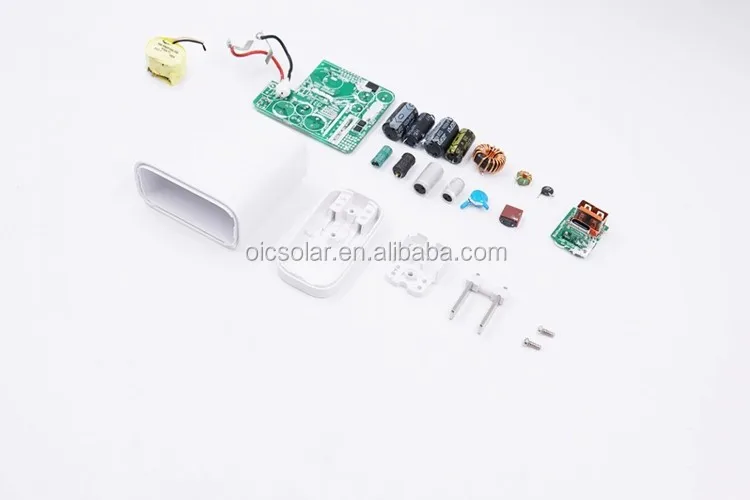

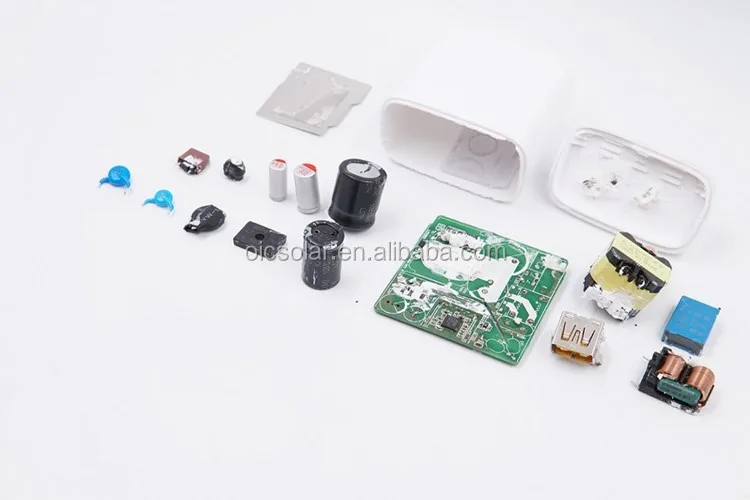

30W adapter PCBA

Input:220V

Output:5V/2A, 9V/2A, 12V/1.5A, 15V/2A, 20V/1.5A

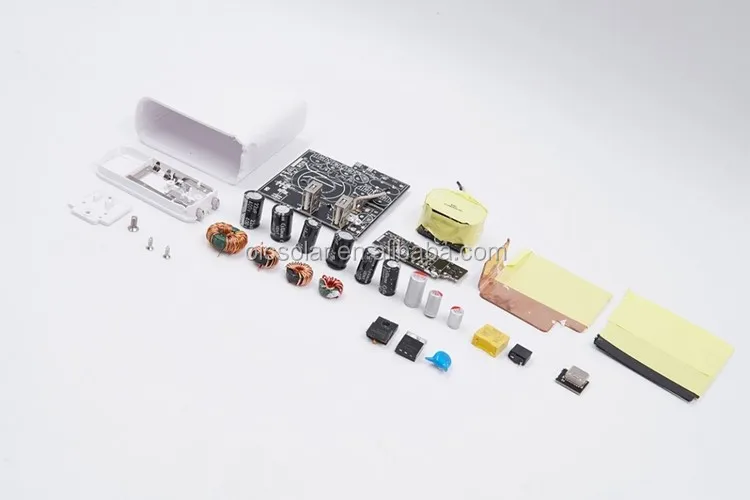

60W adapter PCBA

Input:220V

Output:5V/2A, 9V/2A, 12V/1.5A, 15V/2A, 20V/1.5A, 20V/3A

Compatiable

PD3.0, QC3.0, QC2.0, Apple 5V/2.4A, BC 1.2 DCP
