2 ply Corrugated carton box Paperboard Making Machine/electric mill roll stand/Single Facer/Sheet cutter

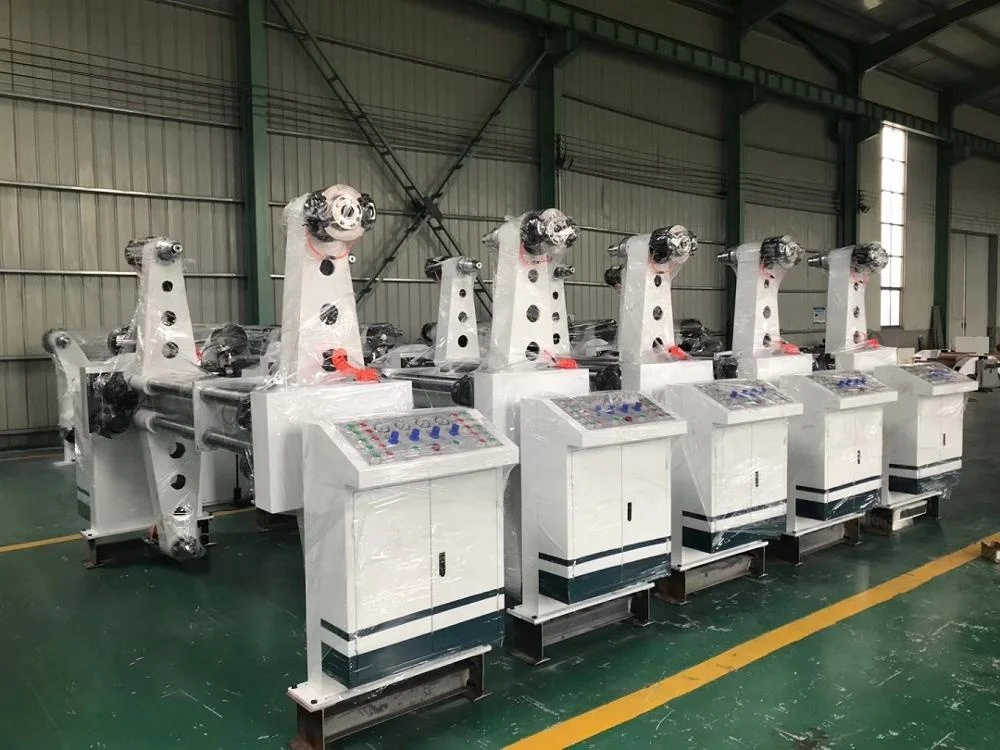

electric mill roll stand
*The symmetric structure can be installed with two bundles of base paper at the same time used to change papers without halt.
*This machine adopts the electrical driver to finish lifting up or down, clamping, loosening and centering the base paper.
*This machine adopts the pneumatic tension controller to adjust the tensile force of base paper.
*The head of clip paper adopts expansion style.
*The tension control adopts pneumatic braking, which can also be on-line control together with Paper Splicer.
*This machine adopts the electrical driver to finish lifting up or down, clamping, loosening and centering the base paper.
*This machine adopts the pneumatic tension controller to adjust the tensile force of base paper.
*The head of clip paper adopts expansion style.
*The tension control adopts pneumatic braking, which can also be on-line control together with Paper Splicer.

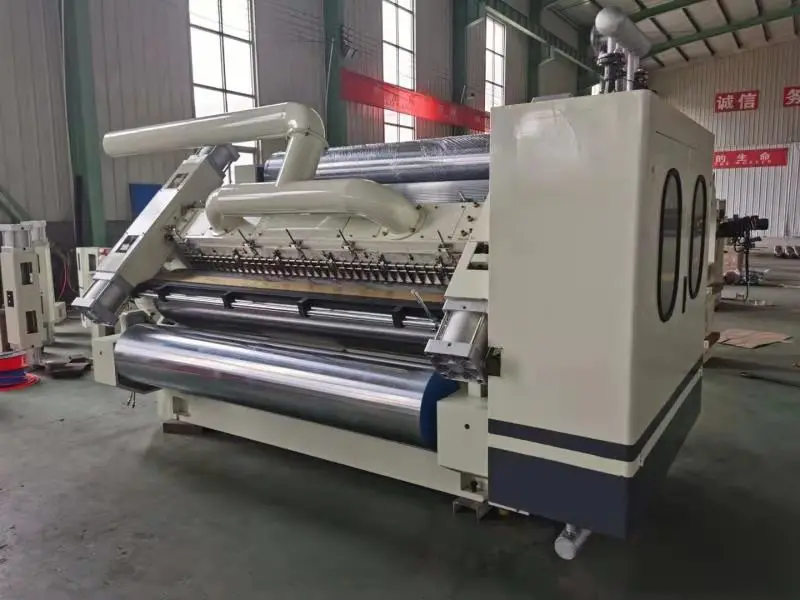

Single facer
*The paper guiding adopts wind adsorption, keeping the stability of flutes under the condition of high speed.
*The corrugated paper is adsorbed to the middle corrugated roller to form a negative pressure zone of 180°and then to finish the rolling of corrugation through the vacuum box by fan.
*The width of suction slot of lower corrugated roller is not more than 2.6mm, able to reduce the stripe mark on single side corrugated cardboard.
*The transmission part adopts universal joint transmission and separates the vibration source, which makes the maintainability higher, the transmission more stable and the operation more reliable.
*The reducer casing adopts oil bath lubrication and closed gear transmission, reducing the vibration of machine.
*This machine adopts auto-cycle glue supply and pneumatic control glue supply and return, making it be characterized by buffering effect.
*The glue roller surface is treated with special mesh nicking and chrome-plating.
*The upper and lower corrugated rollers are made of 48CrMo high quality alloy steel. After heat-treatment, the rigidity is HRC58-62.The surface is grinded and chrome plated.
*Flute profile: up to the customer.
*The corrugated paper is adsorbed to the middle corrugated roller to form a negative pressure zone of 180°and then to finish the rolling of corrugation through the vacuum box by fan.
*The width of suction slot of lower corrugated roller is not more than 2.6mm, able to reduce the stripe mark on single side corrugated cardboard.
*The transmission part adopts universal joint transmission and separates the vibration source, which makes the maintainability higher, the transmission more stable and the operation more reliable.
*The reducer casing adopts oil bath lubrication and closed gear transmission, reducing the vibration of machine.
*This machine adopts auto-cycle glue supply and pneumatic control glue supply and return, making it be characterized by buffering effect.
*The glue roller surface is treated with special mesh nicking and chrome-plating.
*The upper and lower corrugated rollers are made of 48CrMo high quality alloy steel. After heat-treatment, the rigidity is HRC58-62.The surface is grinded and chrome plated.
*Flute profile: up to the customer.

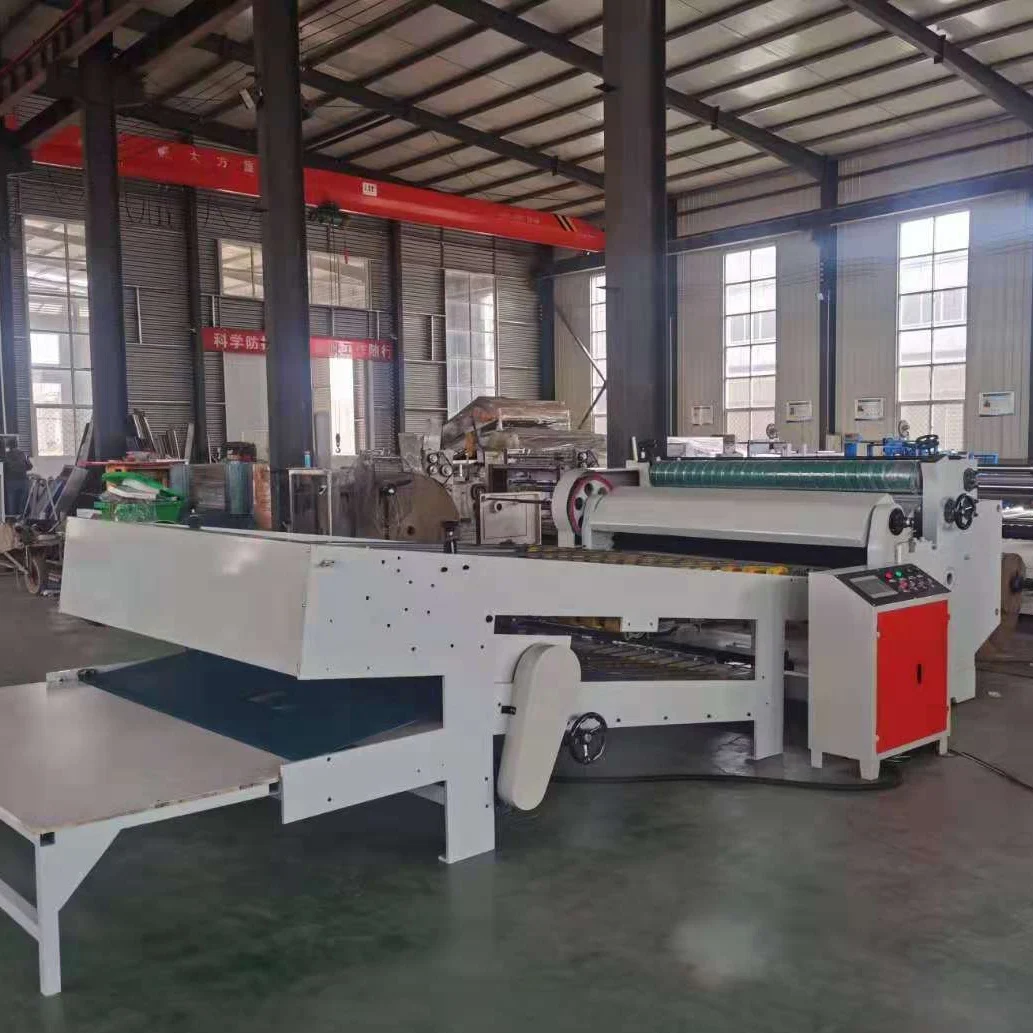

Sheet cutter
*Single cutter can do single corrugated cardboard vertically and horizontally cutting, it has change order fast and high cutting
precision,working speed fast etc.make little waster, when changed the order, it suit for the top grade color printing machine.
*This machine adopt PLC touch screen to design, through it operator motor can know all the production status, adopt variable
frequency motor to adjust the speed, servo control make the cutting length more exactly, making the cutting precision perfectly,(error±1,5mm) mechanical behavior will more fine.
precision,working speed fast etc.make little waster, when changed the order, it suit for the top grade color printing machine.
*This machine adopt PLC touch screen to design, through it operator motor can know all the production status, adopt variable
frequency motor to adjust the speed, servo control make the cutting length more exactly, making the cutting precision perfectly,(error±1,5mm) mechanical behavior will more fine.
Mode | 1400 | 1600 | 1800 |
Work speed | 0-100 m/min | 0-100 m/min | 0-100 m/min |
Corrugated type | (U/V) A C B E F | (U/V) A C B E F | (U/V) A C B E F |
Heating mode | steam, oil, electric, gas | steam, oil, electric, gas | steam, oil, electric, gas |
Our services
1.One year overall warranty with free supply of spare parts.
2. Supply of spare parts at low (cost) price out of warranty.
3. Free training in our company
4. 24 hours on-line service, free support technically
5. Well-adjusted machine before delivery, with operation manuals and disc.
6. Quick response for on site overseas service requests
2. Supply of spare parts at low (cost) price out of warranty.
3. Free training in our company
4. 24 hours on-line service, free support technically
5. Well-adjusted machine before delivery, with operation manuals and disc.
6. Quick response for on site overseas service requests
