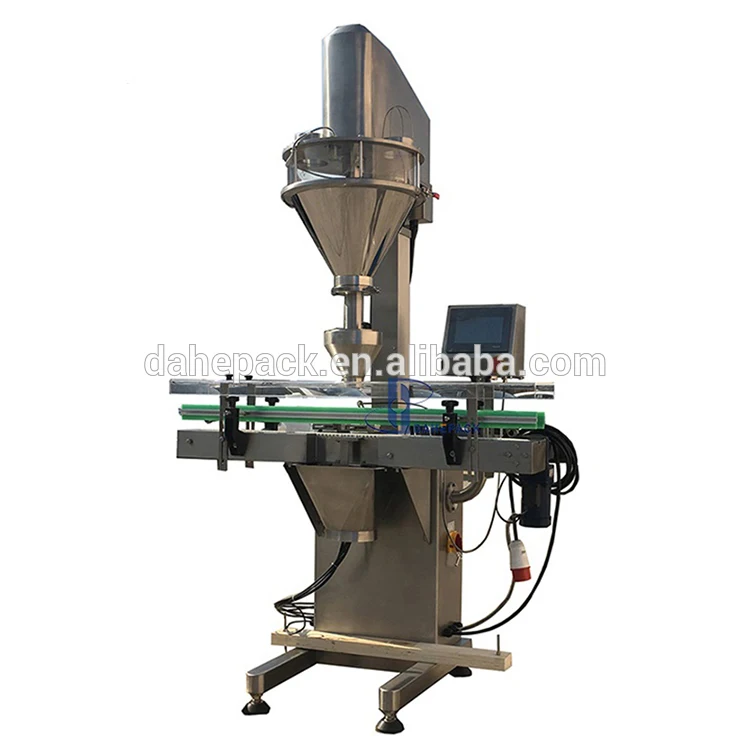

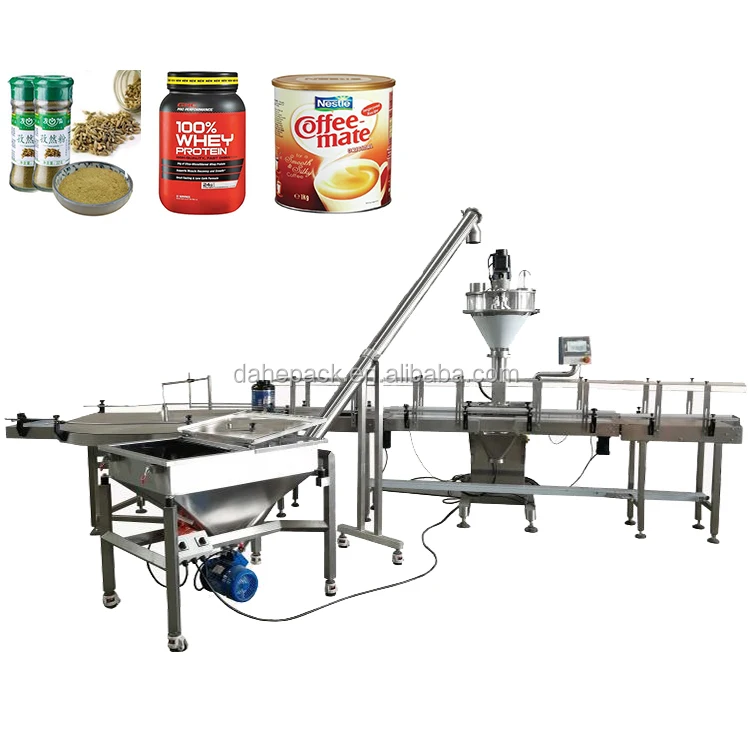

1 Mg Automatic Powder Bicarbonate Powder Filling Machine For Dialysis

Product Overview

Description





   Filling Machine,Packing Machine, Packaging Machine.



    Introduction:

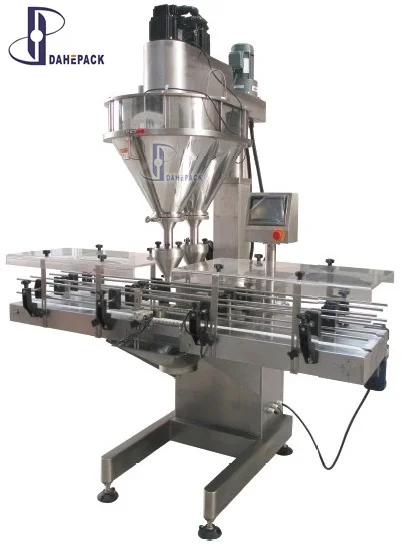

         This is a automatic dual lanes filling machine,designed to dose all kinds of dry powder into rigid containers: Bottles, Cans and Jars etc. With two filling lanes design,two containers get filled at the same time. Featured with high filling capacity, compact design, stable performance ,good price ,high reliability and easy to operate.



     Specifications:

Model	DH-Q1-S100	DH-Q1-S160
Control System	PLC and Full Color HMI
Twin Hopper Volume	50L	85L
Filling Weight Range	1-500g (With different size auger tools)	10-2000g(With different size of auger tools)
Filling Accuracy	<100g  <+/-1.5%     100-500g  <+/-1%    >500g  <+/-0.5%
Filling Capacity	40-60Units/Min (Dual Lanes)
Contact Parts	Fully Stainless Steel Construction and SUS304 for product contact parts
Total Power	2KW	2.6KW
Air Consumption	4-6Bars
Power Supply	3P  208-415V 50/60HZ
Total Weight	240KGS	400KGS
Overall Size	1500*860*1850MM	2000*1050*210MM

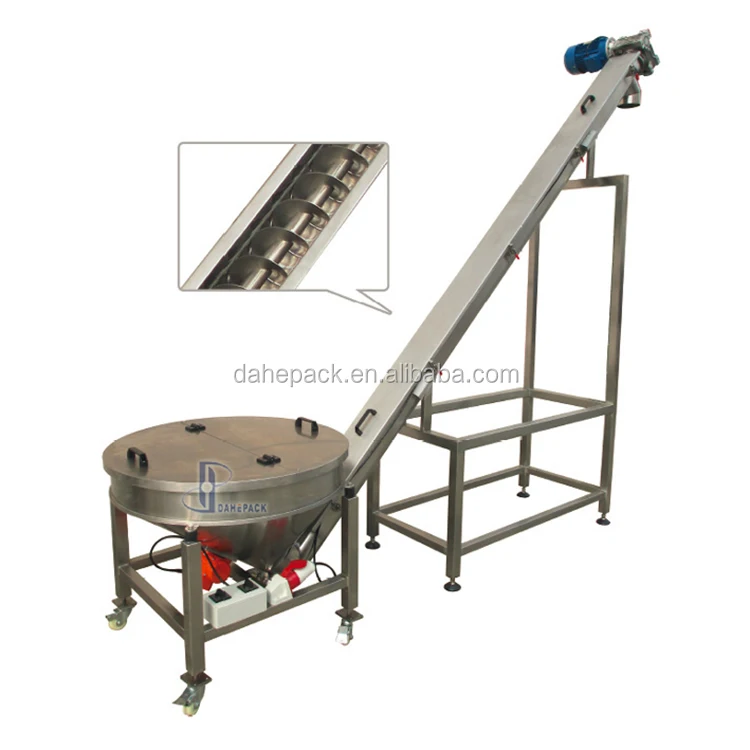

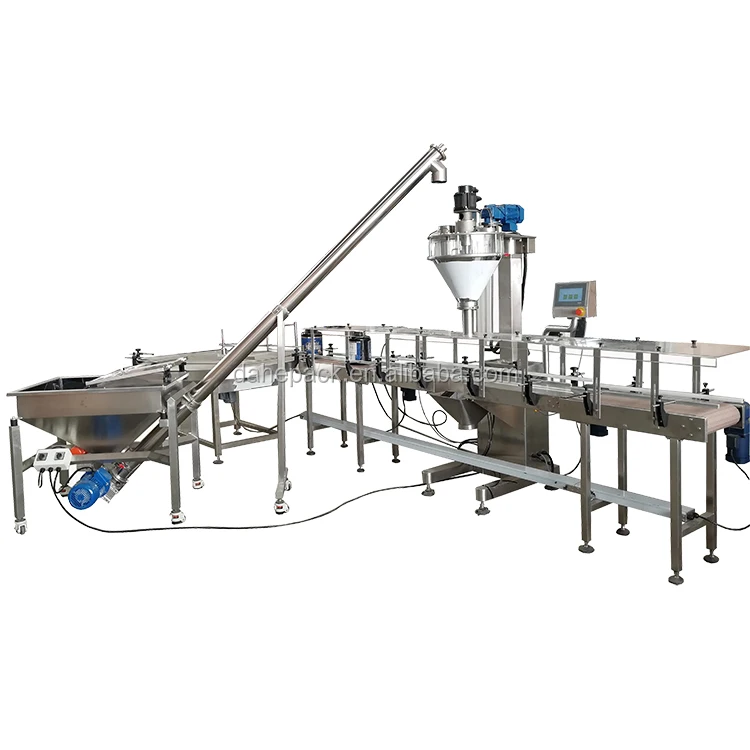

Optional: Unscrambing Table, Collecting Table, Connecting Belt Conveyor,Capping Machine, Induction Sealer, Labelling Machine, Screw Conveyor.
