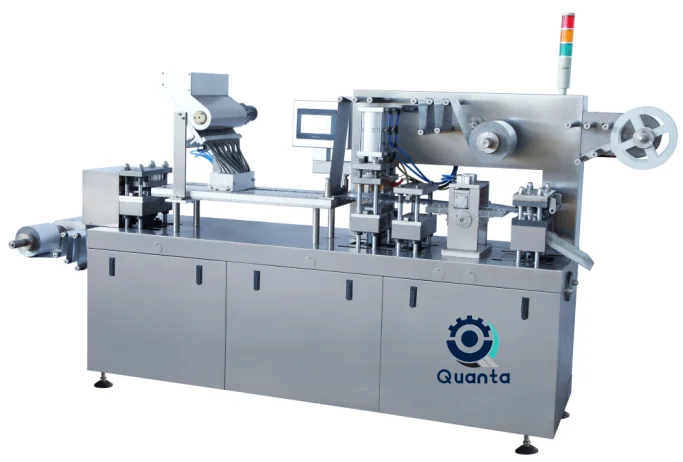

DPP 180H Automatic Tablet Capsule Blister Packing Machine
- Category: >>>
- Supplier: Taizhou Quanta Machinery Equipment Co. Ltd.
Share on (62430324314):
Product Overview
Description
Product Description
Introduction :
DPP - 180 - H type multifunctional automatic (aluminum-plastic blister packaging machine,our company integrated the advantages of aluminum-plastic packaging machine at home and abroad and innovative design,parts contacted with the products are made of stainless steel and high grade aluminum alloy materials, applicable to the pharmaceutical, food, health food industry packing element, sugar pill, capsule, or packaging tomato sauce, chocolate sauce, honey, etc.This machine integrates ten functions of uncoiling, aluminum-plastic (aluminum-aluminum) feeding, blister forming, filling, waste recovery, heat sealing, batch number printing, screen indentation, plate punching, display finished product counting, etc.
This machine is used in medicine packing ,carries on the technical improvement and the implementation GMP production equipment, the product has been sold to the domestic and foreign each big pharmaceutical factory and the large, the medium hospital, and exports more than 20 countries and the region, received the customer favor and the high praise.
This machine is used in medicine packing ,carries on the technical improvement and the implementation GMP production equipment, the product has been sold to the domestic and foreign each big pharmaceutical factory and the large, the medium hospital, and exports more than 20 countries and the region, received the customer favor and the high praise.
Features:
1. Speed regulation with frequency conversion and mechanical traction;
2.Adjustable stroke, adjustable range of 30-100mm, convenient adjustment, accurate synchronization;
3. It is standard equipped with four stations (molding, heat sealing, indentation and blanking) and installed with four columns for each station, making the adjustment more convenient and stable;
4. Plate mold, positive pressure molding, batch number, indentation and tangent, aluminum foil/aluminum automatic hair;
5. Equipped with a set of universal feeder, the filling rate is up to 99.5% or more;
6. Small size, light weight, adjustment and maintenance space, etc.
2.Adjustable stroke, adjustable range of 30-100mm, convenient adjustment, accurate synchronization;
3. It is standard equipped with four stations (molding, heat sealing, indentation and blanking) and installed with four columns for each station, making the adjustment more convenient and stable;
4. Plate mold, positive pressure molding, batch number, indentation and tangent, aluminum foil/aluminum automatic hair;
5. Equipped with a set of universal feeder, the filling rate is up to 99.5% or more;
6. Small size, light weight, adjustment and maintenance space, etc.
Technical Parameters :
Model | DPP-180H |
Aluminum/Plastic :25-50 times per minute | |
Aluminum/Aluminum :25-40 times per minute | |
Stroke range | 30-110mm（adjustable） |
Max.forming area | 160×100mm |
Max.forming depth | 20mm( can be customized as client's request ) |
Main motor power | 1.5kw |
Air pressure | 0.4-0.6Mpa |
Air volume | ≥0.2m2/min |
PVC | 0.25-0.5×180mm |
PTP | 0.02-0.035×180mm |
Dialyzing paper | 50-100g×180mm |
Overall dimension | 3050×590×1550 mm |
Weight | 780kg |
Machine Pictures :
Detailed Images
PLC control : can be english and chinese language ,easy to be operated
Aluminum seal mold: heating and sealing with nice design
Cutting mold : finished products cutter
PVC roll
PVC mold: Heating blow molding with cold water circulation cooling
Aluminum foil roll

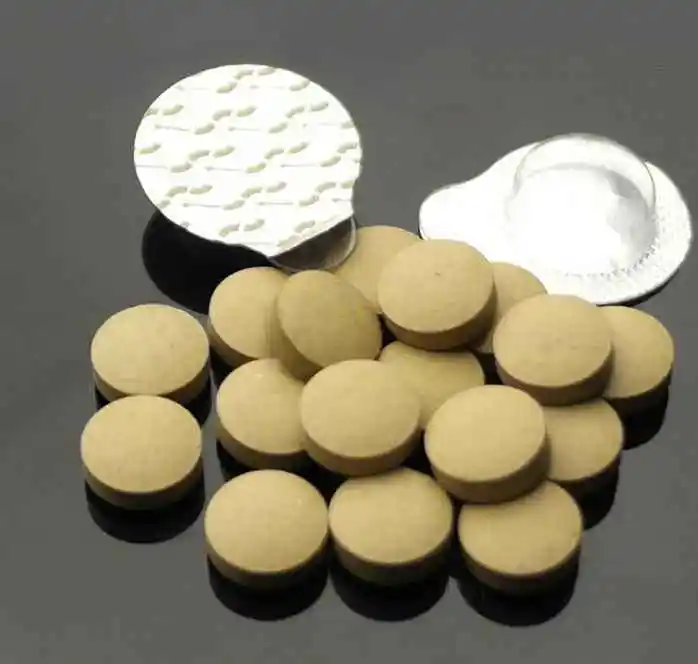

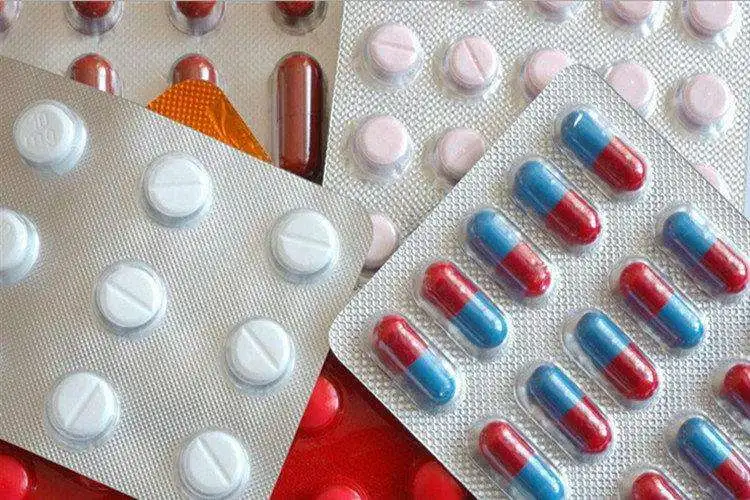

Tablet / Capsule Blister Sample Pictures:

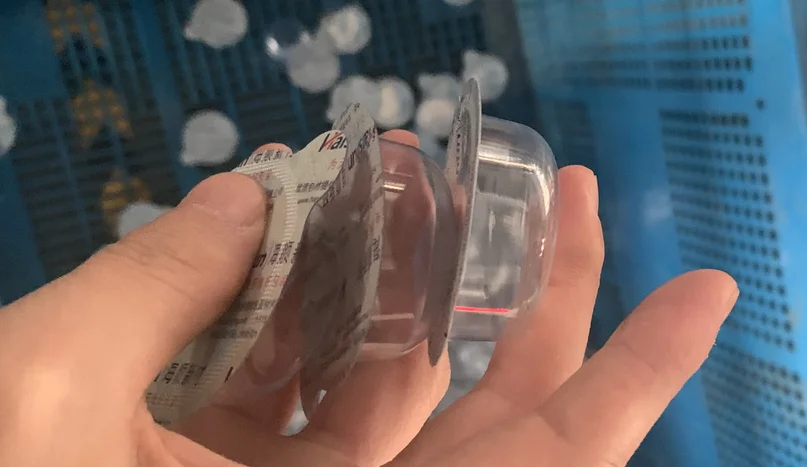

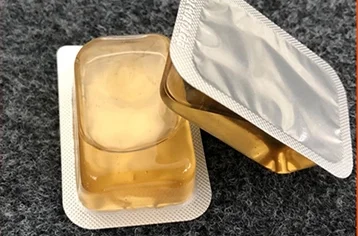

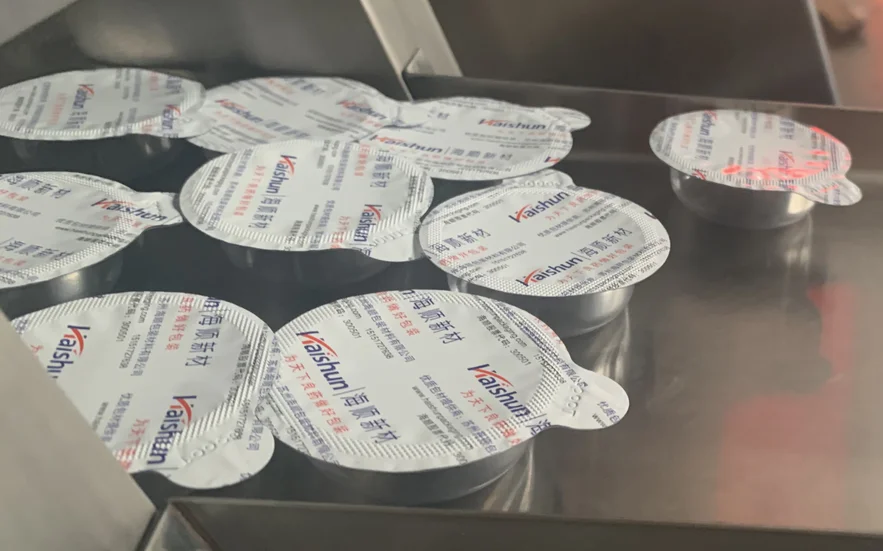

Blister Packing Sample for jam/oil /honey /sauce/paste :
Related Products
Packaging & Shipping

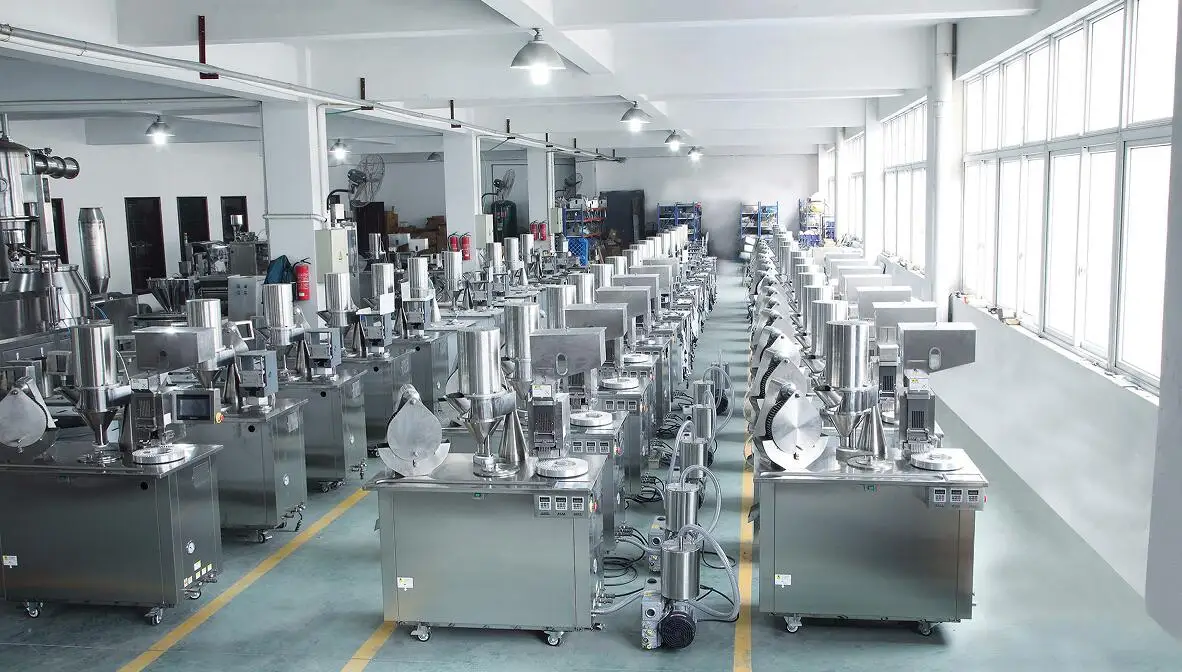

Company Introduction
