china new ford Mobile Hospital Emergency Ambulance Patient Transport with Medical Equipment for sale
Product Description

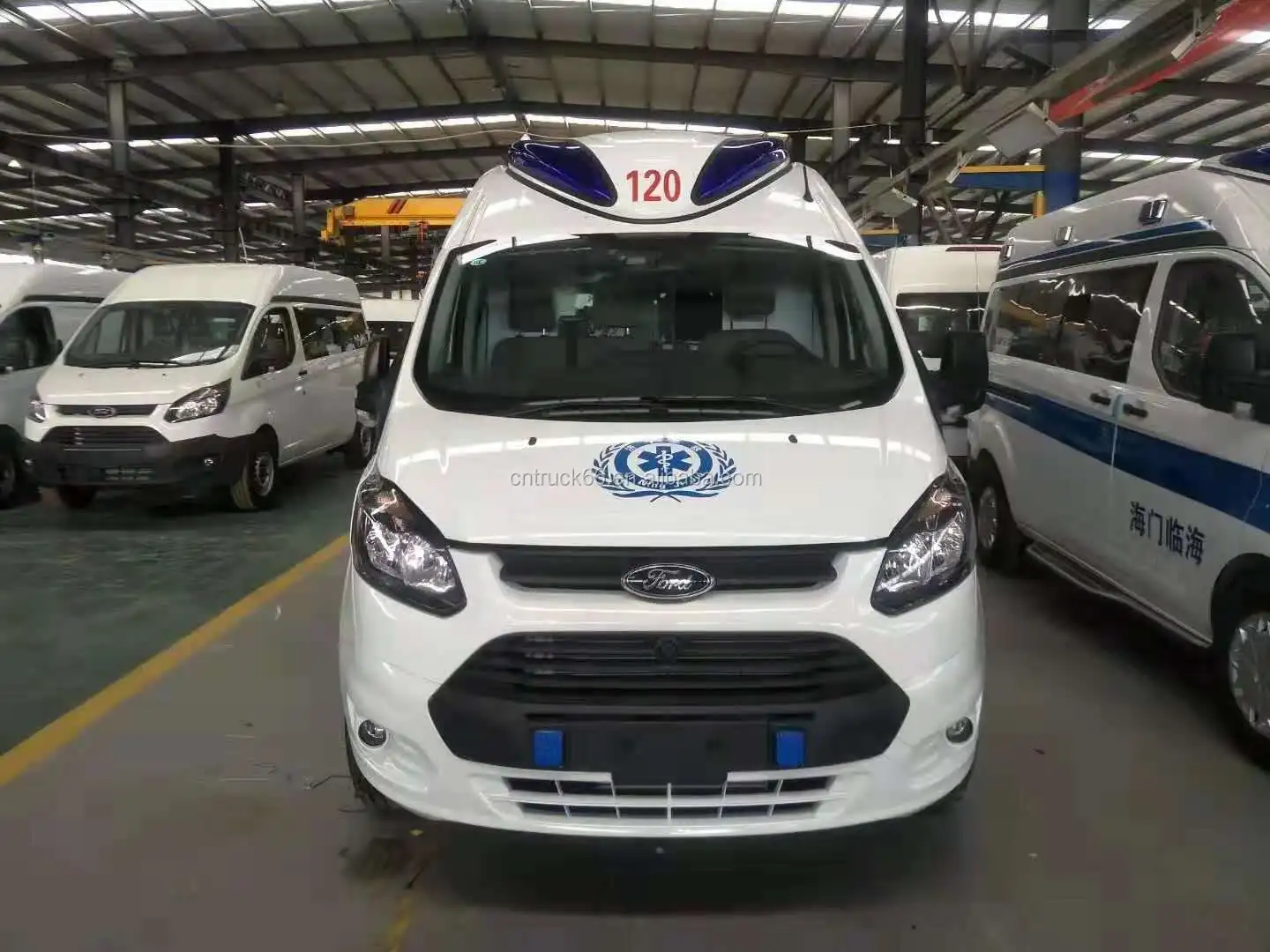

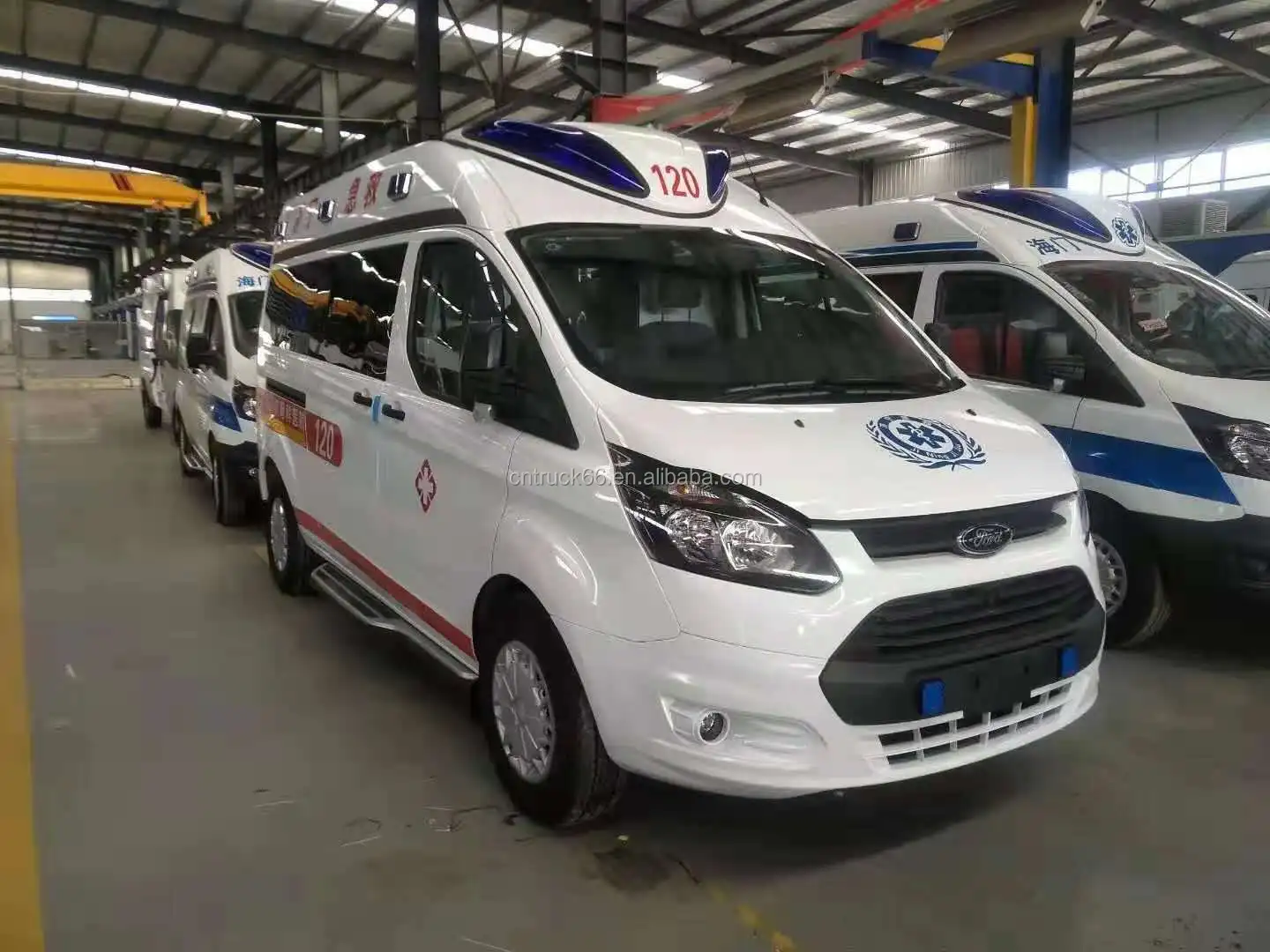

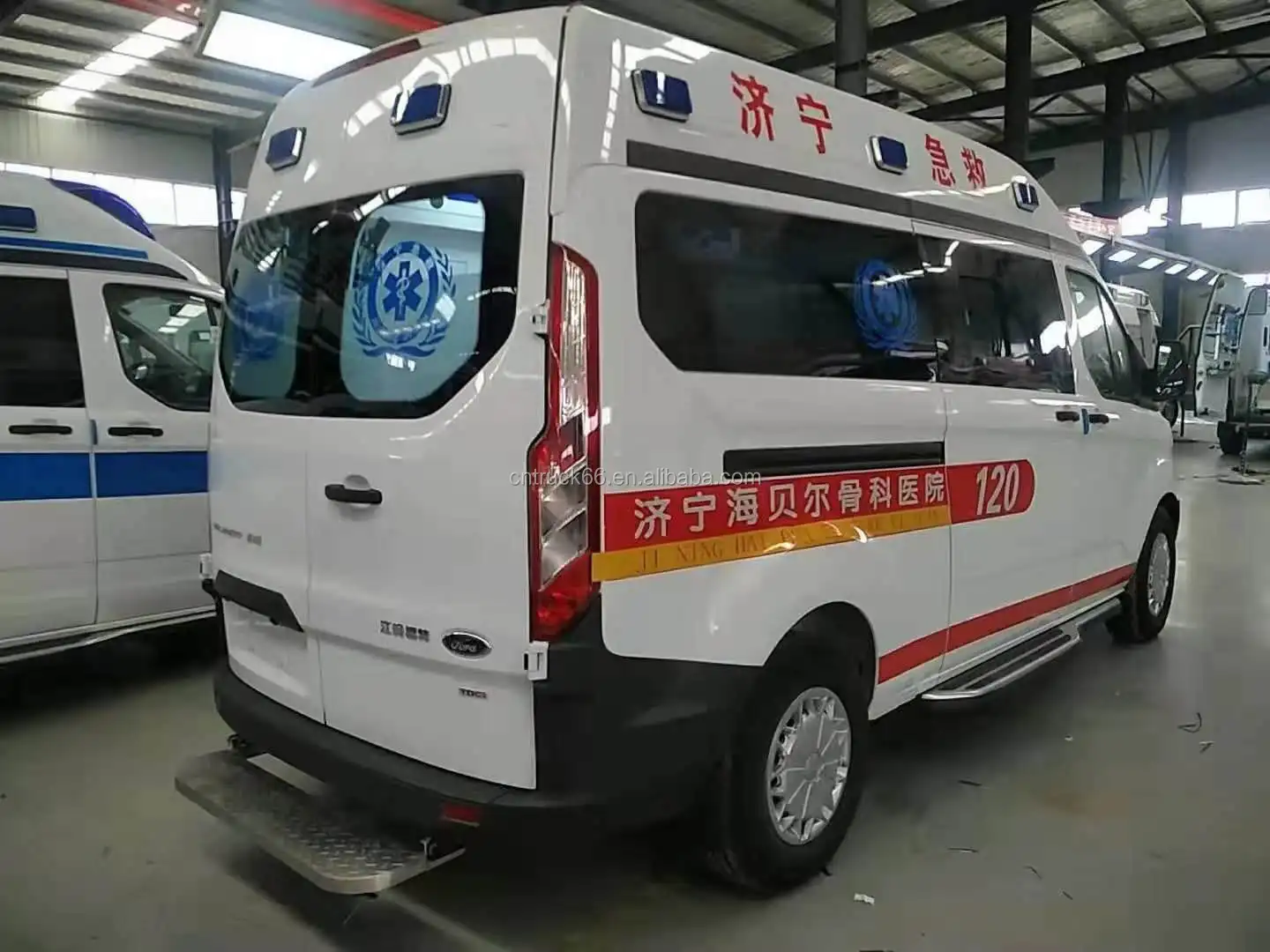

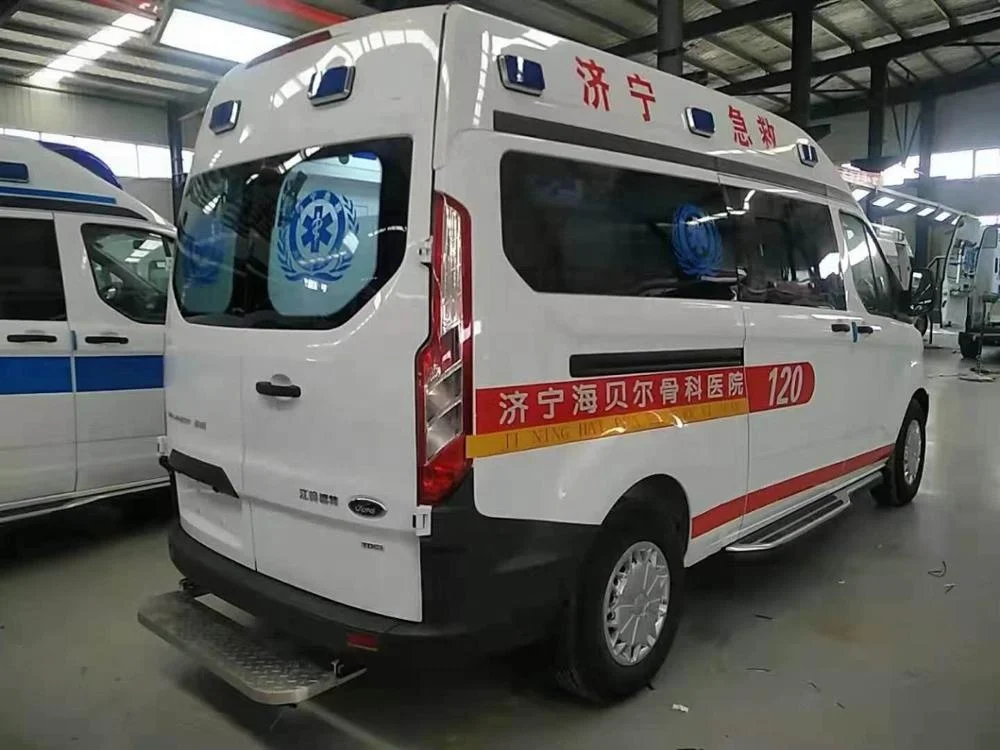

Mobile Hospital Emergency Ambulance Patient Transport with Medical Equipment
The ambulance car is also called ambulance, ambulance vehicle, icu ambulance, etc. It is usually consisted of truck chassis, ambulance equipment,etc.
Ambulance equipment include one portable ambulance stretcher, one medical locker, one oxygen bomb,two transfusion hooks, one sterilizing lamp, one sewage barrel, three single seats, preserve with two soft cushion, soft back and life belt, one aluminum alloy slid window, one top alarm lamp, two headlamps, one converter, one power jack, handrail,footstep, plastic floor, ambulance cross sticker.
As a professional ambulance manufacturer, the ambulance for sale is with light curb weight,
smooth surface,clean easily and other advantages.
Dimensions | |
1 | Wheelbase (mm): 3610 |
2 | Overall Size(mm): 5750*2036*2500 |
3 | GVW(kg): 3750 |
4 | Chassis Model: dongfeng |
Engine | |
5 | Fuel Type: Diesel |
6 | Engine Model: JX493ZLQ5 |
7 | Displacement (ml) 2.771 |
8 | Emission Standard: Euro 3 |
9 | Engine Power(kw): 85(Kw) |
Gearbox | |
10 | Manual Gearbox: 5 speed forward, 1 reverse |
11 | Max. Speed(km/h): 120 |
12 | Brake System: Front Disc, rear drum |
Emergency Alarm System | |
21 | Front: LED light bar on cabin top |
22 | Rear:LED rotate lamps on left and side top |
23 | Control button of sirens and warning light in the cabin |
24 | Alarm built-in speaker |
25 | New Focus 1000W Pure sinusoidal Inverter Power supply Assembly |

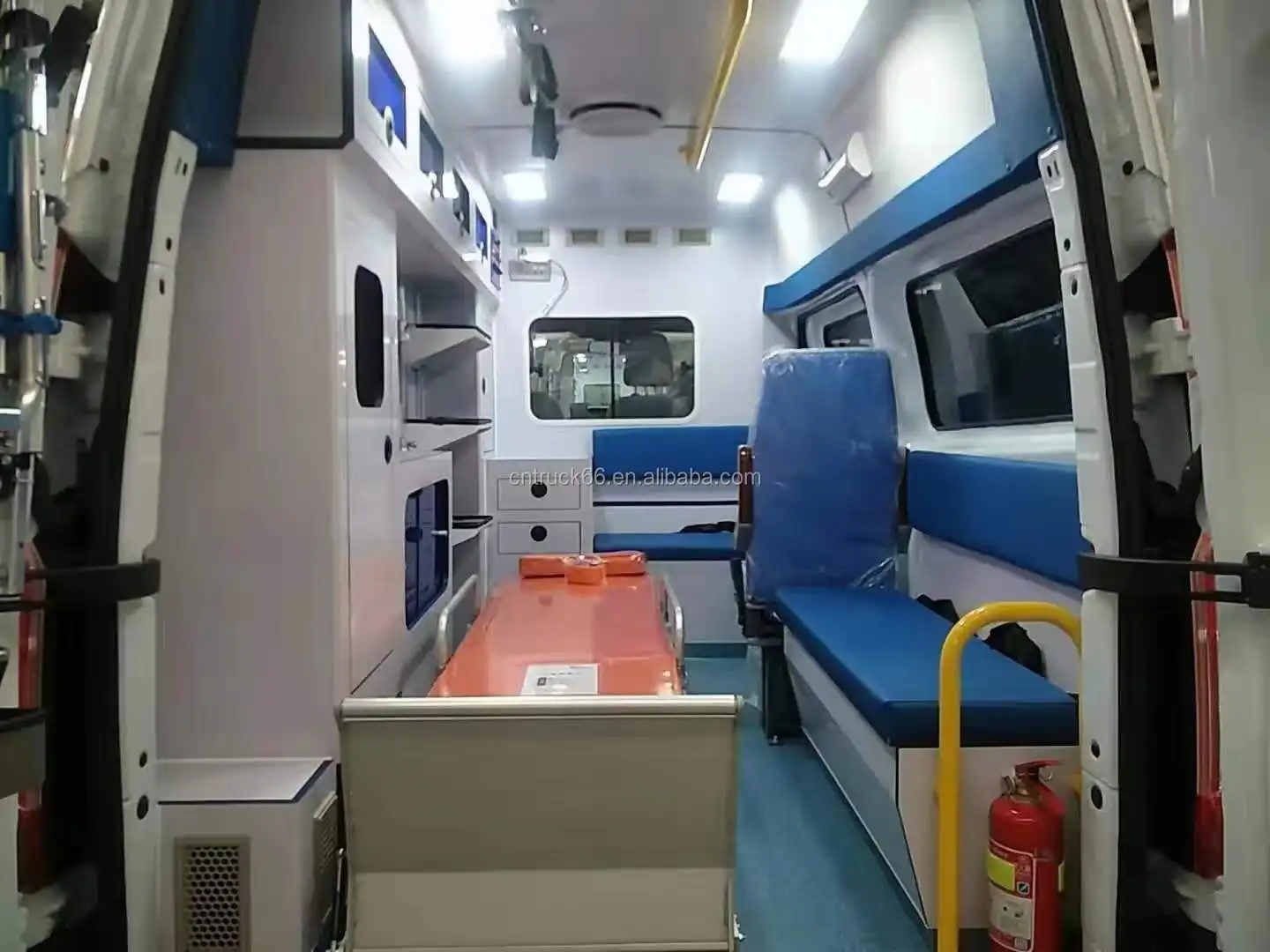

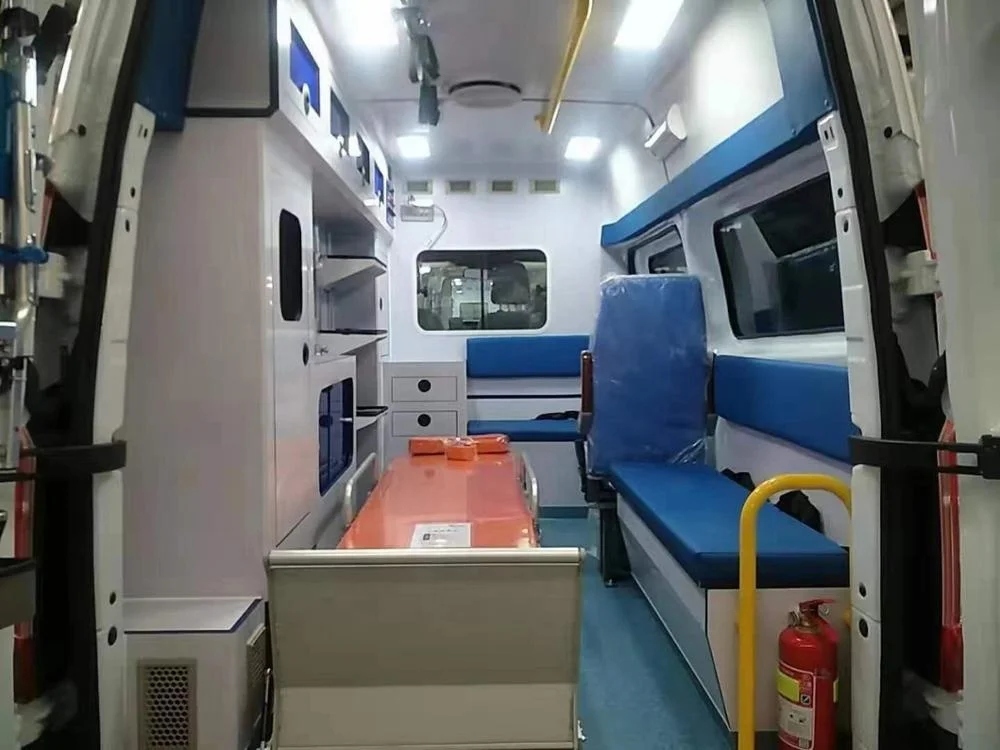

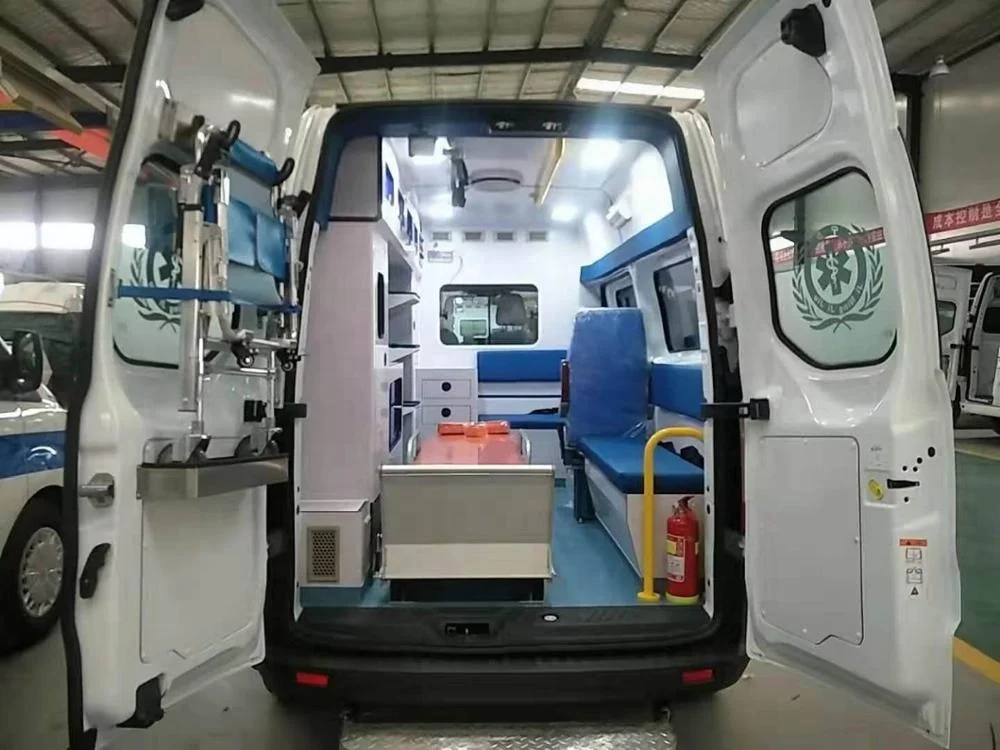

Medical Compartment Configeration | |
26 | The cabin and medical compartments are separated, but with slide window |
27 | The middle window of medical compartment is with slide window |
28 | Oxygen fixing box with pressure reduction valve installed in front left of cabin compartment |
29 | 10 liters oxygen tank is put in oxygen fixing box |
30 | Medical cupboard and equipment cabinet are installed at side of oxygen fixing box at front left of medical compartment |
31 | 220V socket(Electrical socket is installed at the suitable position) |
32 | 12V socket(Electrical socket is installed at the suitable position) |
33 | The humidification bottle,Ventilator oxygen Jack are installed in medical compartment |
34 | The left side of the medical compartment is fitted with a long cabinet seat or a foreskin front independent doctor seat with two armbands and seat belts |
35 | The right side of the capsule is fitted with foreskin, forward independent doctor's seat, hand guard and two seatbelts. |
36 | Installation of a hands-free intercom system for the middle partition of the medical compartment |
37 | The special floor for medical treatment is acid-resistant, alkali-resistant, fire-proof, anti-skid, anti-static floor. |
38 | The medical compartment is fitted with automatic carriage stretcher which with fastener, baffle, stainless steel bottom, seat belt |
39 | The medical compartment is fitted with fixing device for automatic carriage stretcher |
40 | The medical compartment is fitted with fire extinguisher and carriage |
41 | Top of medical compartment is fitted with infusion bottle holder |
42 | Top of medical compartment is fitted with antibacterial safety handrail |
Detailed Images
Our Services
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers' trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20'GP OR 40'GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Model: we have sewage suction truck and sewage suction cleaning truck;
6. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;
7.Chassis brand: Dongfeng FOTON JAC FAW I-SUZU IVECO Sinotruk HOWO Shacman JMC.etc;
9. Crane tonnage: 2 to 250T;
10. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
