Smart Wireless Supports Automatic Dynamic Wifi Intercom Smart Security Ring Wireless Camera Video doorbell

Share on:

Price in USD:Details


Product Overview


Home video doorbell for wardweb

Product Description




Product Aplication


Product Parameters

Master control (CPU)Hisilicon Hi3518EV200, built-in ARM926 Max.440MHz Fast Video Coprocessor
Sensor1/4 inch 720p OV9732 CMOS sensor
Lens1.7mm F2.4 166 ° wide-angle lens
Sensor performanceSupports automatic dynamic balance, automatic gain control, automatic backlight compensation
S / N≥39dB
Minimum illumination0.8Lux / F1.4 (color mode), 0.3Lux / F1.4 (mode)
Night visionNight vision
Automatic switching of dual filters, 6 850nmΦ28Mil high power infrared lights, night vision 10m
Video formatH.264 Main Profile/H.264 Baseline Profile/MJPEG/JPEG Baseline
Video size / frame rate720P30fps
Video mode1. Motion detection video doorbell; 2. 2. Press the button to trigger recording; 3. Automatic recording

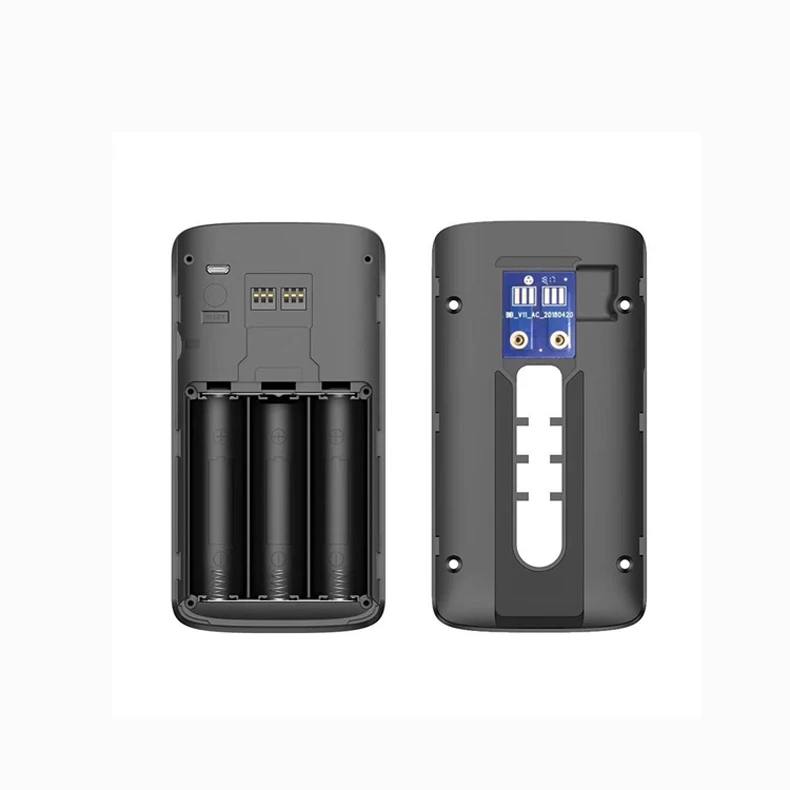

Battery type / capacity18650 battery 2600mAH
Battery discharge timeThree quarters 3-4 months
Network protocolTCP / IP, HTTP, TCP, UDP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPnP, RTSP, P2P, etc.
WIFI connectionSupport (802.11 b / g / n)
MemorySupport TF memory card 8GB ~ 32GB
Operating VoltageAC: 8-12V; DC: 5V 1.5A
Working current200mA
Charging voltageDC 5V / 1.5A
Storage temperature (℃)(0℃~50℃)
Operating temperature (℃)Operation temperature: -10 ~ 50 ℃, operation humidity <95%
Wake-up1. Doorbell button wakes up, 2. PIR detection wakes up, 3. Active wakeup
ApplicationVisitors can enter video language calls, and enter short-term video recordings. The host must open the door to inform visitors
FeaturesWiFi connection, ultra-low power consumption, remote active wake-up, can support 6 pointer users to watch online at the same time


Company Information

Related Certificate



Packaging & Shipping
