Switch Wholesale and Retail 4 port POE 1 port Uplink Ethernet POE Switch
- Category: >>>
- Supplier: Shenzhen Sunsoont Technology Co. Ltd.
Share on (62430679764):
Product Overview
Description

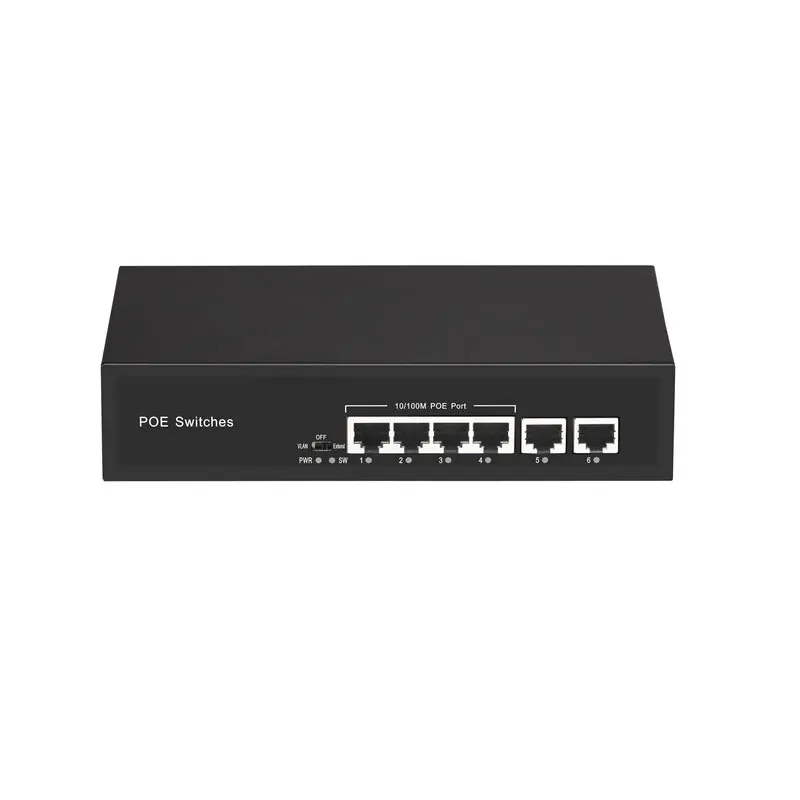

100M 4 Port POE Switch + 2 Port 100M Network for IP Camera/Wireless AP/CCTV Camera System
Product Description
6-port 100M Ethernet Power Switch (POE Switch), using high-quality high-speed network IC and the most stable
POE chip, POE port support 802.3af and 802.3at standard both, this series of POE switches can be 10/100M
Ethernet The network provides a seamless connection, and the POE power port can automatically detect and power
the powered devices that comply with the IEEE802.3af or IEEE802.3at standards. The non-POE device intelligently
detects no power and only transmits data.
PoE is Power over Ethernet, which refers to the transmission of data signals to some IP-based terminals (such as
IP phones, wireless access APs, network cameras, etc.), but also provides DC power for this device. Technology,
these devices that receive DC power are called powered devices.
With simple and convenient installation and maintenance methods and rich business features, it helps users to build
a safe and reliable high-performance network. It is mainly located in the core or convergence layer of user networks
such as industrial parks, buildings, factories and mines, government agencies, and residential broadband; it can be
widely used in Ethernet access scenarios such as small and medium-sized enterprises, Internet cafes, hotels, and schools.
Specifications
100M 4 Port POE Switch + 2 Port 100M Network for IP Camera/Wireless AP/CCTV Camera System
| ||||||||||
Product Name | 6-Ports PoE Switch | |||||||||
Model | SST-P4EH-2EH | |||||||||
Connector Type | 4 Port 10/100M PoE + 2 Port 10/100M Ethernet Uplink | |||||||||
Network Protocols | IEEE802.3 IEEE802.3u IEEE802.3x IEEE802.3af/at | |||||||||
PoE Parameters | PoE Standard: IEEE802.3at (30W) and IEEE802.3af (15.4w) PoE compatibility: IEEE 802.3af/at adaptive PoE port output: DC48V Power Pin : Power over spare pairs 1/2(+) , 3/6 (-) | |||||||||
Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 10BASE-T: Cat 6 UTP(≤250 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter) | |||||||||
Power Supply | Power input: AC100-240V 50/60Hz, Output: 52V1.25A, Power Budget: 65W | |||||||||
Performance Specification | Bandwidth: 1Gbps | |||||||||
MAC Address: 1K | ||||||||||
Packet Buffer Memory: 448K | ||||||||||
Packet Forwarding Rate: 0.744Mpps | ||||||||||
Forwarding Mode: Store-And-Forward | ||||||||||
Led indicator |
| |||||||||
Working Environment | Operating Temperature: -20℃ ~ 50℃; Storage Temperature: -40℃ ~ 85℃; Operating Humidity: Max 90%, non-condensing Storage Humidity: Max 95%, non-condensing Working Height: Max to 10,000 feet (3,000 meters) Storage Height: Max to 10,000 feet (3,000 meters) | |||||||||

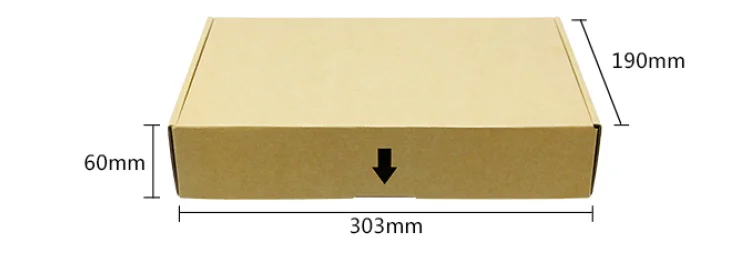

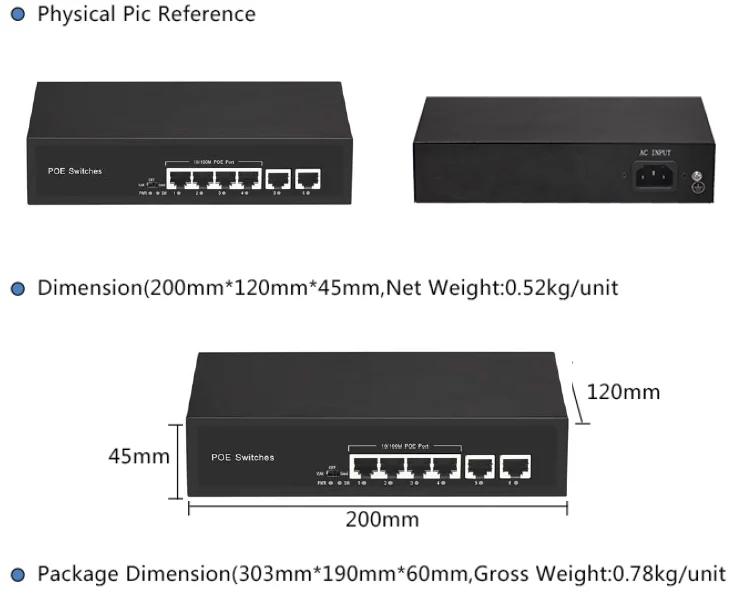

Physical Parameter | Product Dimension (L*W*H): 200mm*120mm*45mm Package Dimension (L*W*H): 303mm*190mm*60mm N.W: 0.6KG G.W: 0.9KG | |||||||||
Package Contents | 1.Ethernet Switch:1 unit 2.User Guide:1 unit 3.Warranty Card:1 unit 4.Power Cord:1unit 5.Wall Mount: 1 pair | |||||||||
Certification | CE ,RoHS, FCC, CCC | |||||||||
MTBF | 100,000 hours | |||||||||
Warranty | 2 years warranty | |||||||||
Product Avantages
100M 4 Port POE Switch + 2 Port 100M Network for IP Camera/Wireless AP/CCTV Camera System:
1, 4*10/100M POE ports + 2* 10/100M Ethernet Uplink ports
2, Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3af/at standards
3, Ethernet port supports 10/100M adaptive and POE functions
4, Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard
5, Support port auto flip (Auto MDI/MDIX)
6, Exchange mechanism using store-and-forward
7, All ports support wire-speed switching
8, Automatically supplied to adaptive devices
9, Panel indicator monitoring status and help failure analysis
10, Three-speed one-button intelligent dial switch with support for VLAN mode, OFF mode and Extend mode

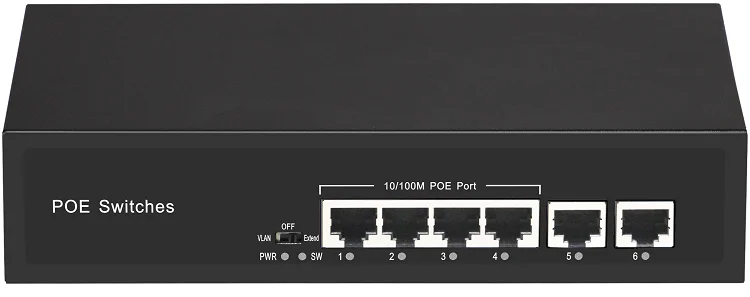

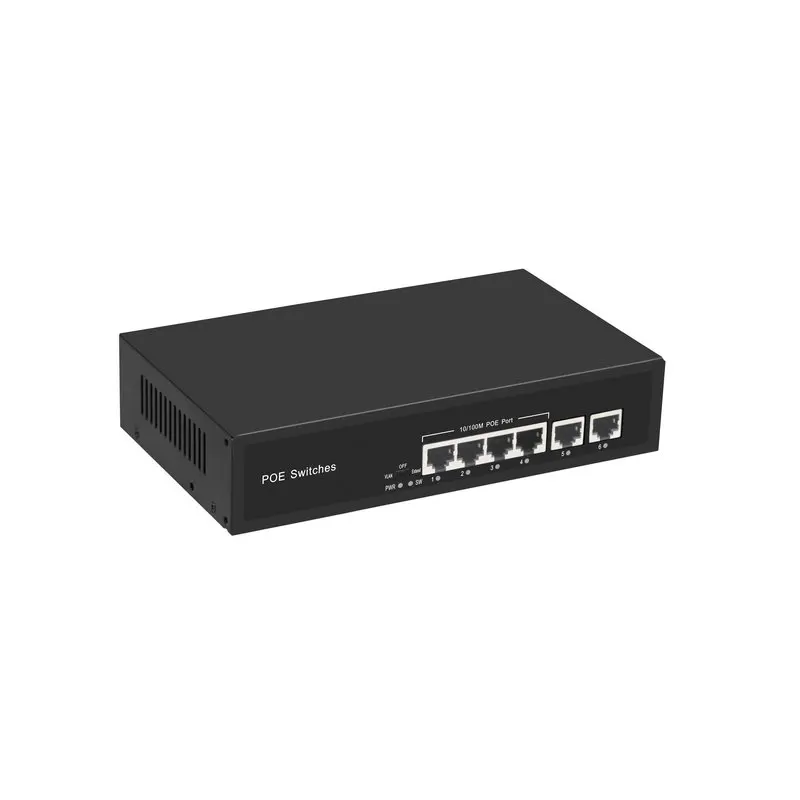

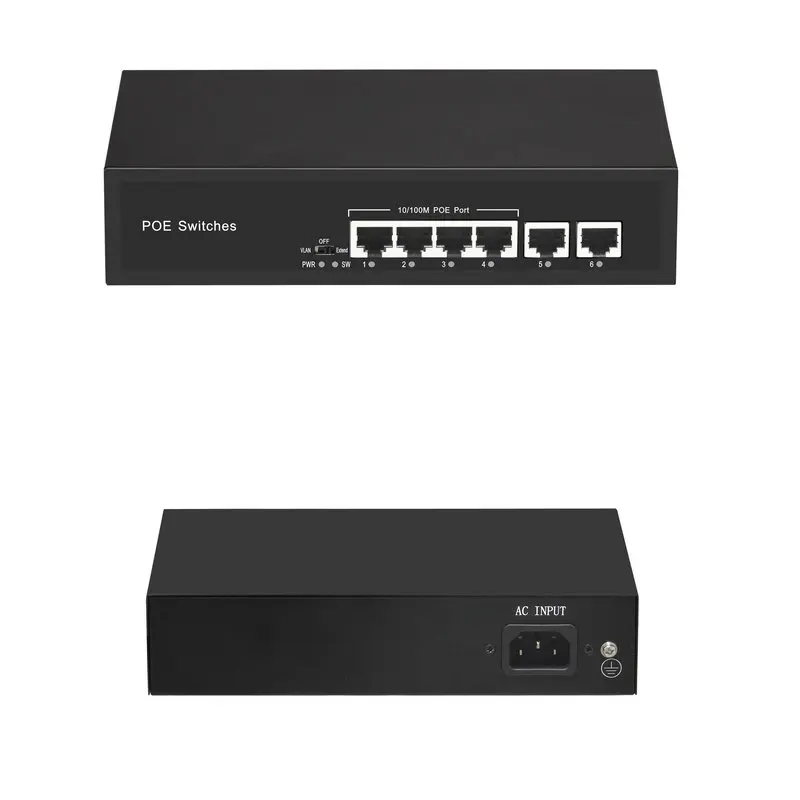

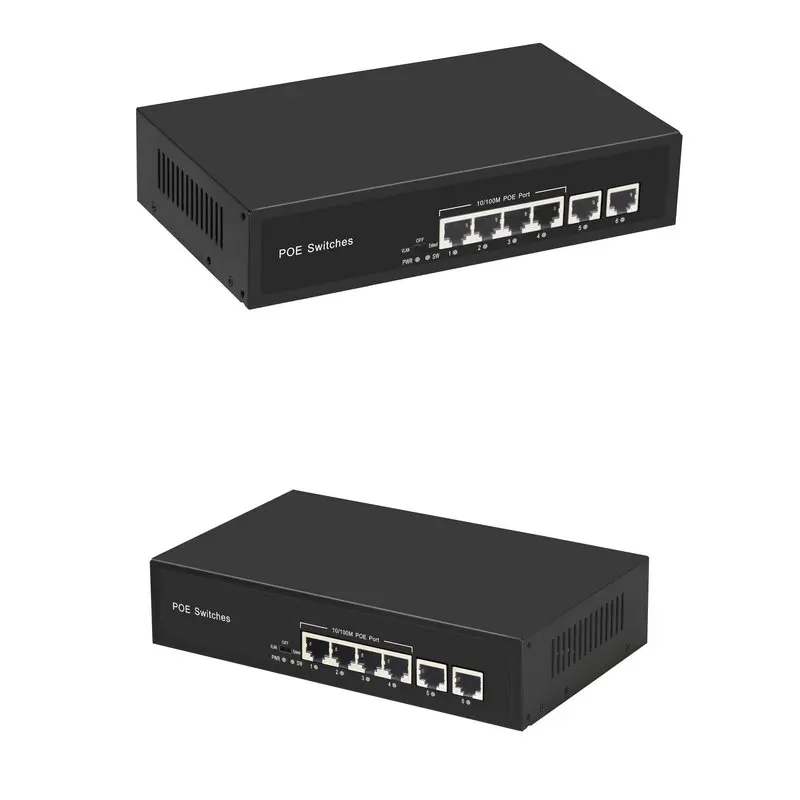

Detailed Images
Package Contents | PoE Switch * 1pcs |
AC Adapter * 1pcs | |
User Guide * 1pcs | |
Warranty Card * 1pcs |

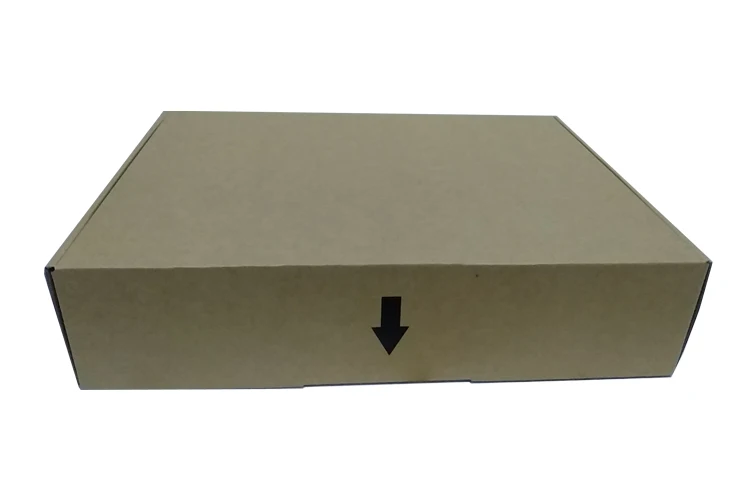

Packaging & Shipping
