Professional High Efficiency 10L Drone Agriculture Sprayer
Specifications
Model
DF-Q1
Aircraft frame

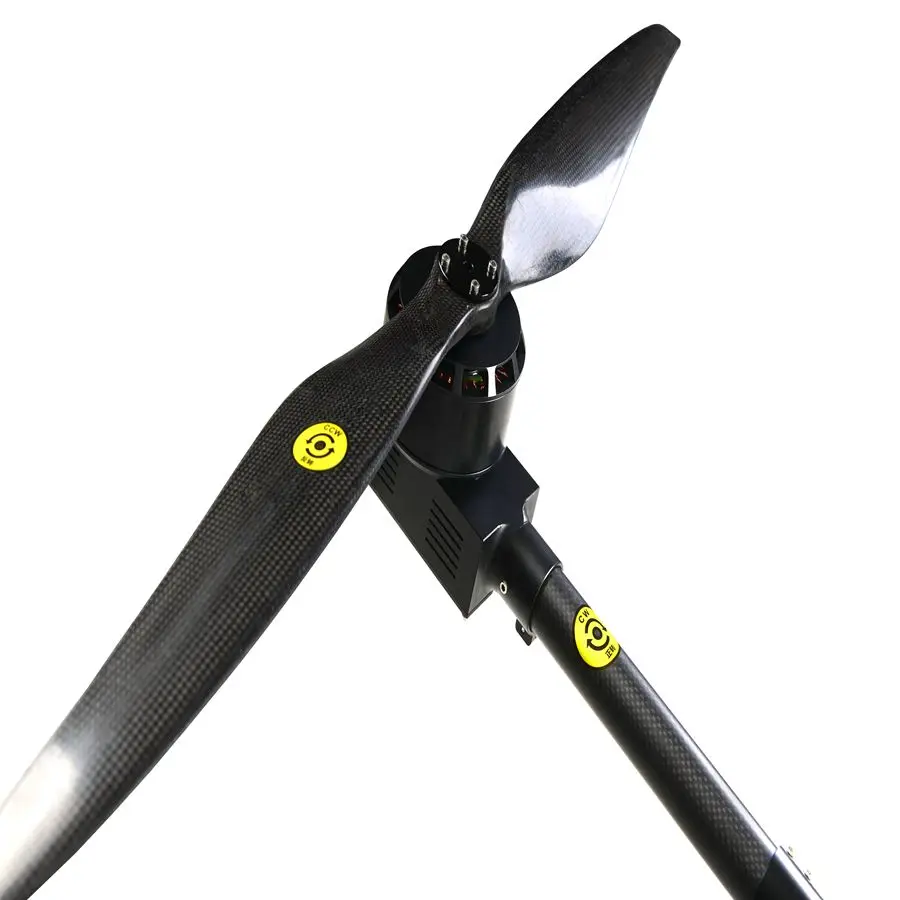

Motor
4 motors
Size Spreaded
1030*1030*530mm
SizeFolded
580*580*530mm
Material
Carbon Fiber
UAV Weight
11.2KG
Payload
10KG
Max. takeoff weight
24KG
Diagonal wheelbase
1300mm
Flying
Spray Hour
10-13mins
No load flying time
18-23mins
Spray speed
3-10m/s
Operation distance
1000m
Landing approach
Vertical take-off and Landing
Spraying
No. of Nozzle
4 pcs
Spray flow
1.4-1.8 L/min
Spray width
3-6 m
Spray efficiency
4-6 Ha/h
Spray height
2-5 m
battery
Battery Type
Lipo Battery
Battery Capacity
16000mAH 6S 25C
Number of batteries
2pcs
Charging Time
0.5-1.5h
Recharge Cycles
300-500 time
Others
Working Temperature
0 ℃-50 ℃
Self stabilizing module
GPS
Functions
Radar Detects Height, the downward radar provides high-precision height. As the radars scan, the device is able to perceive thechange of terrain, adjust its altitude and maintain its altitude above the crops.

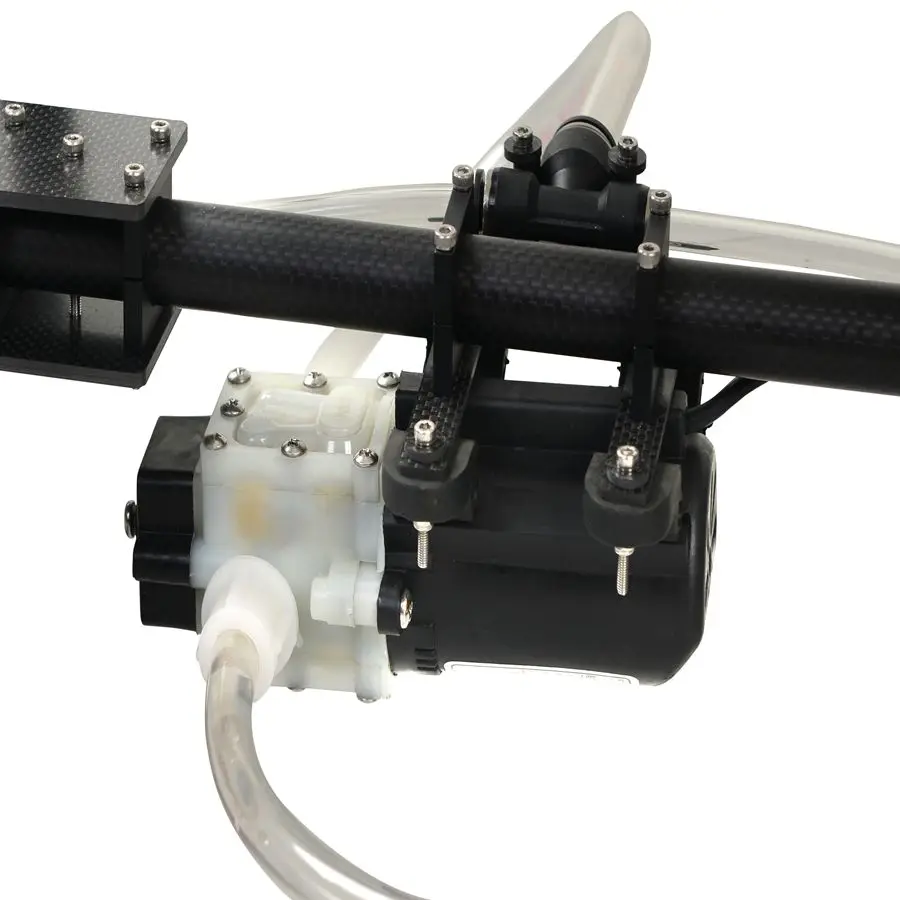

Nozzles with extended spray booms have been used to make better use of downward airflows. This spraying system now responds more accurately to commands, adding accuracy and effectiveness to spraying operations
