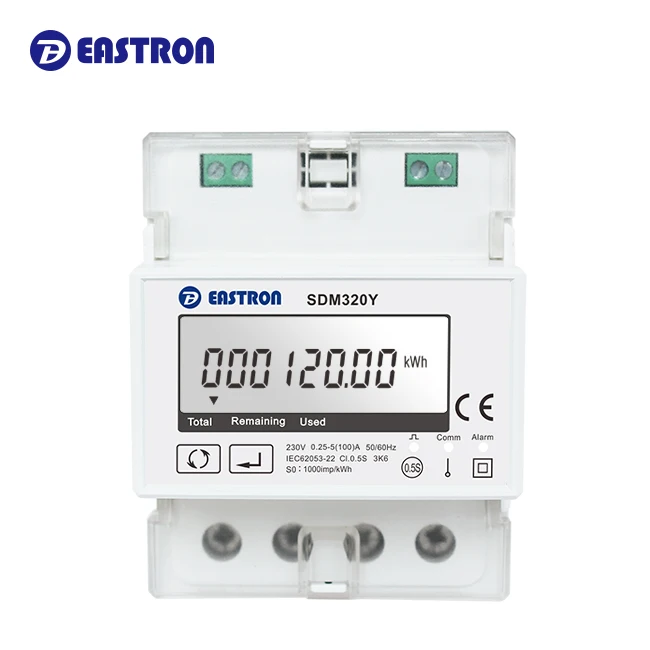

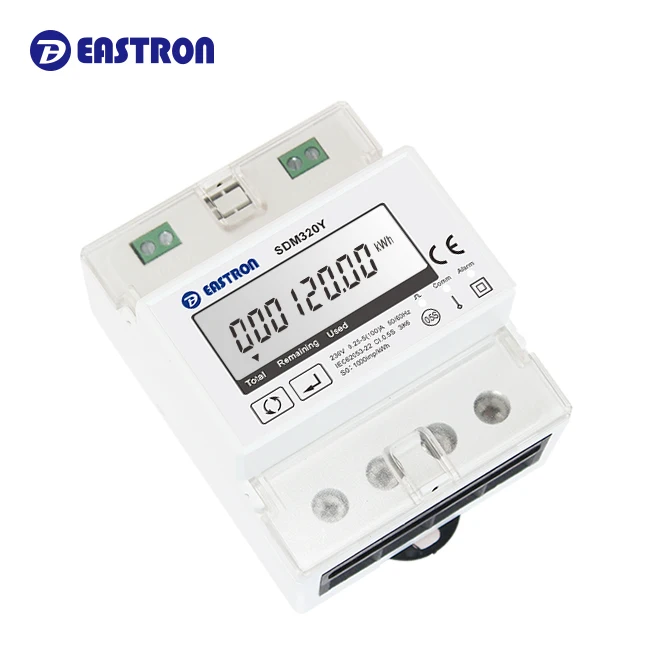

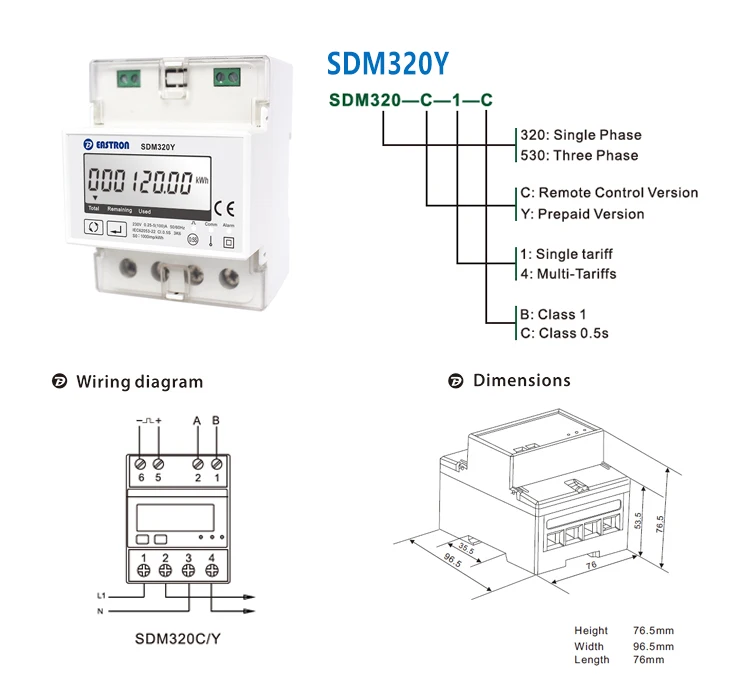

SDM320Y Single Phase Smart Modbus Remote Control Din Rail Prepayment Energy Meter

Product Overview

Description



SDM320Y prepaid energy meter is EASTRON’s latest model of single phase electronic prepaid energy meter. It is in full compliance with technical requirements of IEC62053-22 standard for Class 0.5S energy meter. It has a complete prepaid management system, which is convenient for power purchase. The system automatically deducts fees according to electricity consumption. Recharging operation can be done through network remotely, no need any medium such as IC card. The meter has two-level balance alarm function and an emergency amount function. It will automatically stop power supply when tenant in arrears or credit become zero or reaching the pre-set value and the real-time monitoring the look whether there is any abnormal situation.

The meter is with excellent reliability that can display remaining capacity, available remaining, total power consumption/ purchase of electricity, credit line, overdraft consumption, load threshold, pay model, voltage, current, active power, active energy, import energy, export energy, power factor and frequency. The reactive power, apparent power can be read by Modbus.



Characteristics

Direct connection up to 100A
Built-in relay for remote control
Prepaid Function
26 Alarm setting
S0 output for energy pulse emission
RS485 Modbus communication
0.5S accuracy
4 Module wide
LCD display with 8 main digits











Electrical characteristics
Type of measurement		RMS including harmonics on three phase AC system (1P+N)
Measurement accuracy	Active Energy	Class 0.5S



Technical Parameters
Input-Current	Rated Current	5A
	Max Current	100A
	Over Current Withstand	20 Imax for 0.5s
Input Voltage	Basic Value	230V AC
	Operating Voltage Range	±20% Basic Value
	Measurement Form	Valid Values
Input Frequency Range		45-65 Hz
Insulation Capabilities		AC voltage withstand 4KV/1min
Impulse Voltage Withstand		6kV – 1.2μS waveform
Power Consumption		≤ 2W
Pulse Output Rate		1000imp/kWh(Default)
Display		LCD with White Backlit
Max reading		999999.99 kWh



Performance Standard
Operating Temperature	-25 to 55°C
Storage Temperature	-40 to  70°C
Operating Humidity	<90%
Storage Humidity	<95%
Altitude	2000m
Installation Category	CATII
Protection against Penetration of Dust and Water	IP51 (Indoor)
Insulating Encased Meter of Protective Class	II



Modbus Communications
Interface standard and protocol	RS485 and MODBUS RTU
Communication address	1~247
Transmission mode	Half duplex
Data type	Floating point
Transmission distance	1000m Maximum
Transmission speed	1200bps~9600bps
Parity	None (default), Odd, Even
Stop bits	1 or 2
