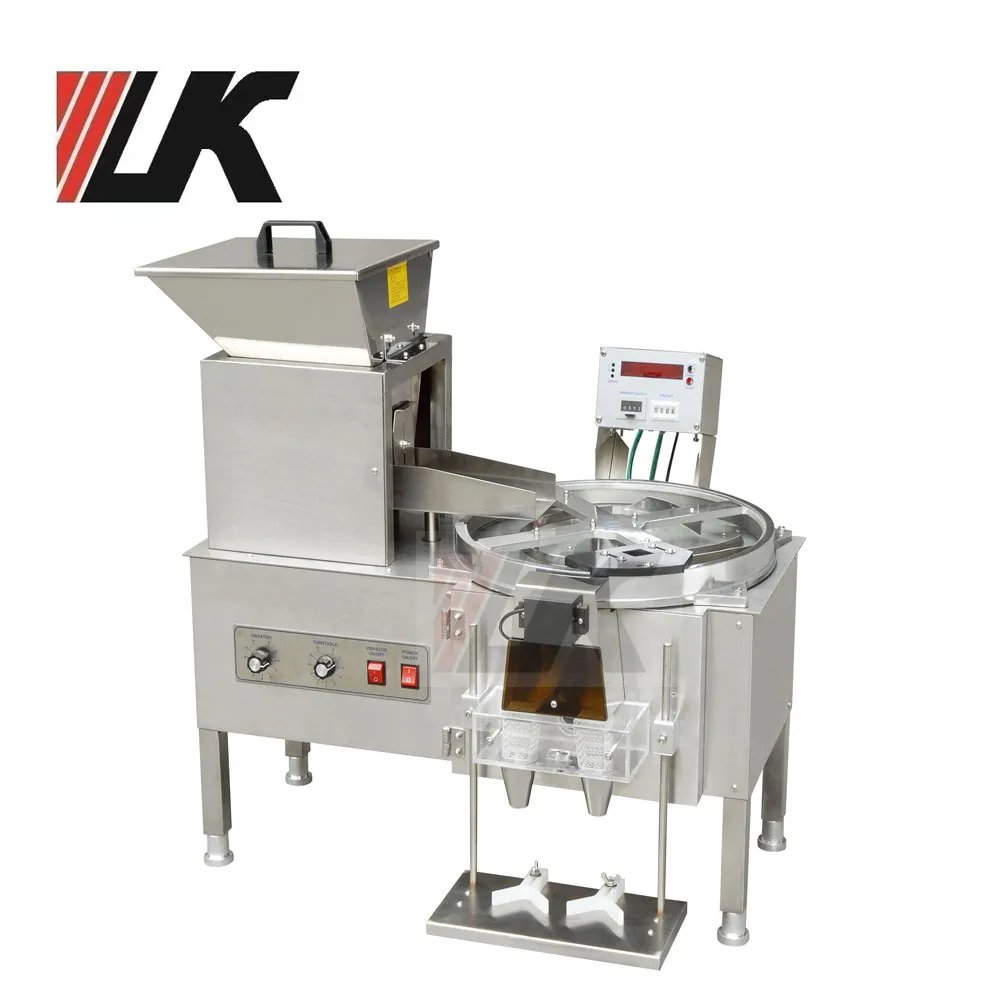

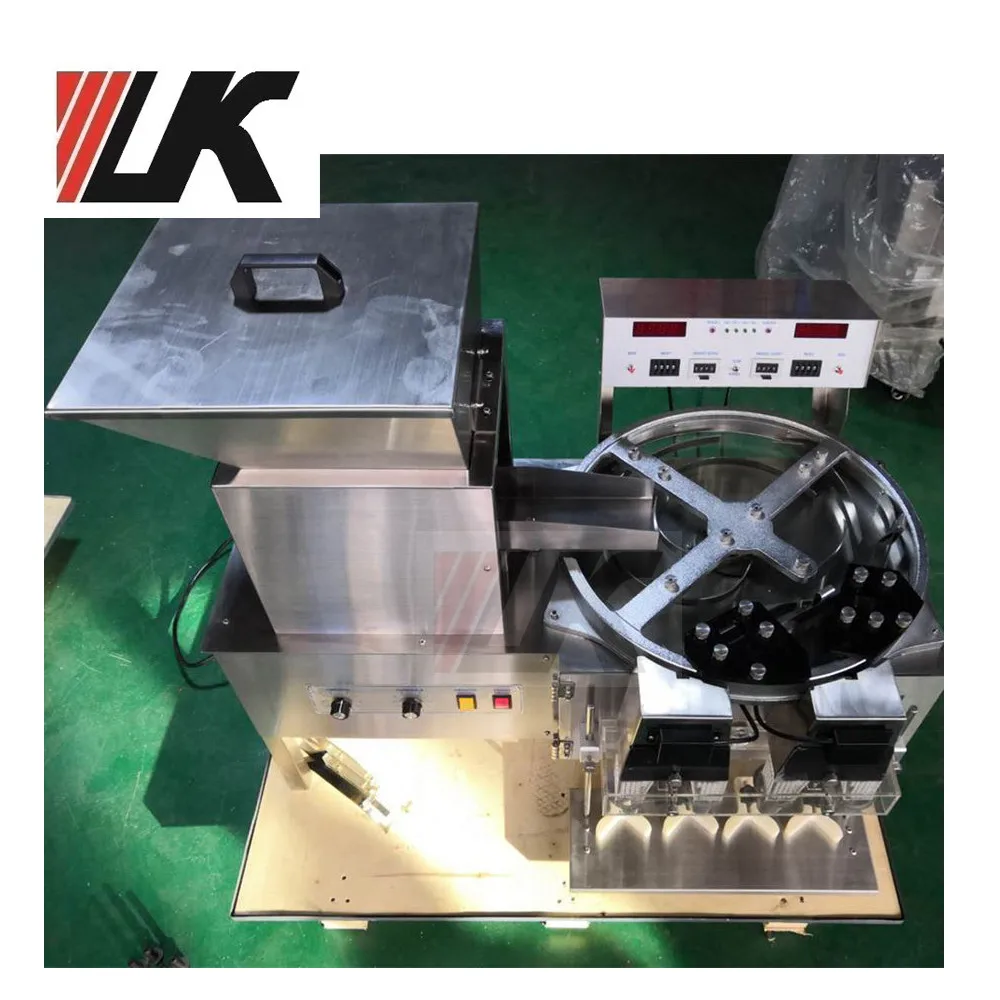

YL-2 pharmaceutical small tablet counting machine automatic capsule counter
Product Description
Machine Introduction
This machine is the intelligent and high precision automatic capsule counting machine, the newly developed and patented capsule counting device can automatically realize the precise counting and filling to any number (odd number, even number, prime number). It is new in design, small in size and low in noise when running, which is the ideal counting and bottle filling device for middle and small-sized pharmaceutical enterprise, health care product company and preparation laboratory.
Machine Feature
1) Vertical pathway compensated type counting (patented technology), the counting precision can reach up to 100%, which avoids the big error for counting precision in the traditional vibrating or rotating type.
2) Vertical pathway compensated type counting (patented technology), it can realize the set of any capsule bottle filling number without changing the mould for the same size capsule, so it is very convenient and fast.
3) The main machine adopts frequency control, which can realize soft start speed adjusting, it is reliable and steady and can bare pretty big starting torque.
4) The bottle conveying is the conveyor type, which reserves the connector for customer in the future to the auxiliary equipment (such as bottle unscramble, capping machine etc).
5) The control adopts touch screen and PLC, which can set any parameters in a short time.
6) The optical control technology to automatically inspect if there is bottle lacking or bottle turnover, which helps to reduce the capsule wasting by auto alarming.
7) All the moulds adopts cylindrical pin design, it only needs around 5 minutes to change the mould among different capsule size, which is fast and convenient.
8) All the parts contact with medicine adopts SS304, which meets with GMP strictly.
Main Technical Parameter
Model
YL-2
Size
81*72*84cm
Voltage
110-220V 50-60HZ
Weight
65KG
Power
100W
Capacity
1000-2000pcs/min
Volume
10600pcs (#1 capsule)
Rotating Speed
for tablet
6mm dia.
30-40
8mm dia.
35-50
10-12mm dia.
40-55
for capsule
#4 - #00
45-55
Remark
For #1 capsule, 0.4g/pcs, the capacity is around 1400pcs/min.
For round tablet dia. 7mm, 12mm, thickness 5mm, the capacity is around 2400pcs/min.
Suitable Capsule Size
#000 - #5
Suitable Soft Capsule Size
#000 - #5
Suitable Round Tablet Size
dia. 6-18mm, thickness ≥4mm
Suitable Oval Strip Tablet Size
#000 - #5, thickness ≥4mm
Suitable Pill Size
dia. 6-18mm
Suitable Special Shaped Tablet Size
dia. 6-18mm, thickness ≥4mm.
Edge must be smooth, triangel shape is workable. But bear shaped, soft sweets such ones with sticky surface and middle hollow design like swimming ring are all not suitable for this machine

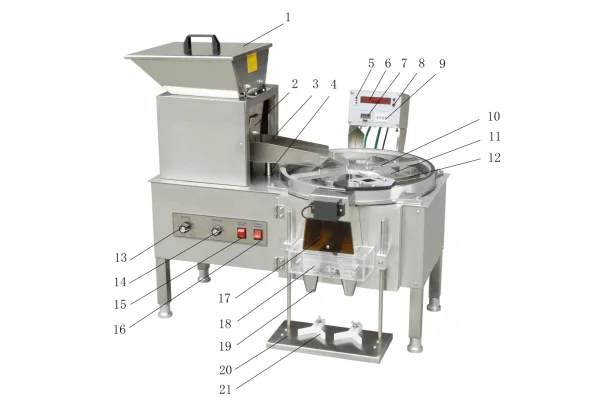

Working Process
1. Hopper 2. Baffle 3. Groove of vibrating feeder
4. Vibrator 5. Indicator 6. Display
7. Bottle counter 8. Return to zero 9. Tablet number set
