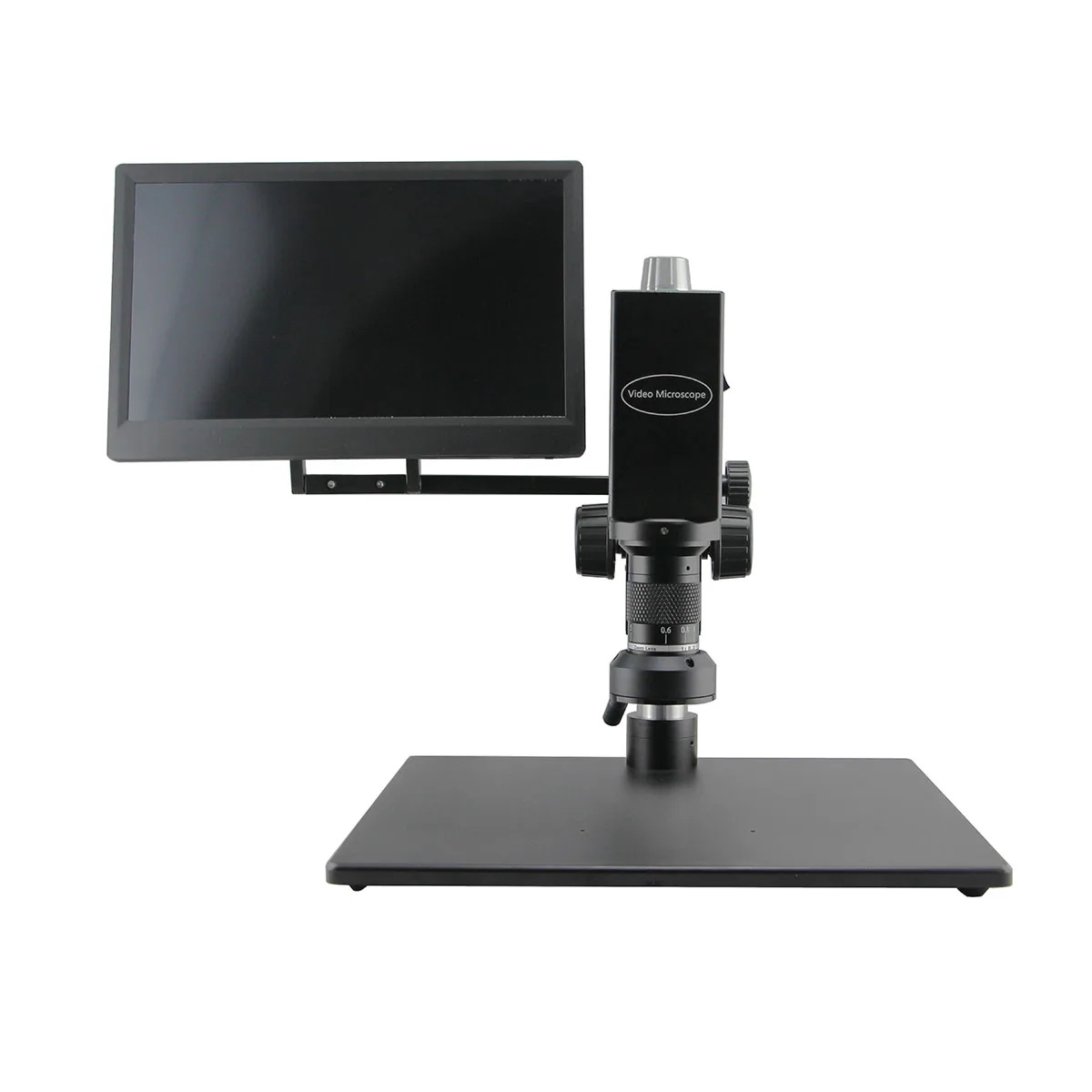

FM750I 1080P Full High Definition industrial inspection zoom video microscope
- Category: >>>
- Supplier: Guilin FT-Opto Co. Ltd.
Share on (62431332746):
Product Overview
Description
FM750I 1080P Full High Definition industrial inspection zoom video microscope
Product Description
1. Unique all-in-one machine design, simple and beautiful overall, more convenient to install and use.
2. The video microscope adopts ZOOM optical system, with high definition, high depth of field and excellent focus alignment.
3. High resolution 0.35-2.5X zoom lens.Total magnification 12-92X zoom magnification.
4. No need install software.Connected HDMI monitor directly.
5. 1920*1080 full HDMI image. Excellent color reduction.
6. Equipped with 5W LED ring light.0-100%Brightness adjustable.
7. 6 inch 1080P LCD monitor with arm stand.
8. Used widly in industrial production testing, PCB testing, semiconductor and component testing, teaching and research,
material analysis, microscopic image observation and analysis, laser processing, etc
2. The video microscope adopts ZOOM optical system, with high definition, high depth of field and excellent focus alignment.
3. High resolution 0.35-2.5X zoom lens.Total magnification 12-92X zoom magnification.
4. No need install software.Connected HDMI monitor directly.
5. 1920*1080 full HDMI image. Excellent color reduction.
6. Equipped with 5W LED ring light.0-100%Brightness adjustable.
7. 6 inch 1080P LCD monitor with arm stand.
8. Used widly in industrial production testing, PCB testing, semiconductor and component testing, teaching and research,
material analysis, microscopic image observation and analysis, laser processing, etc

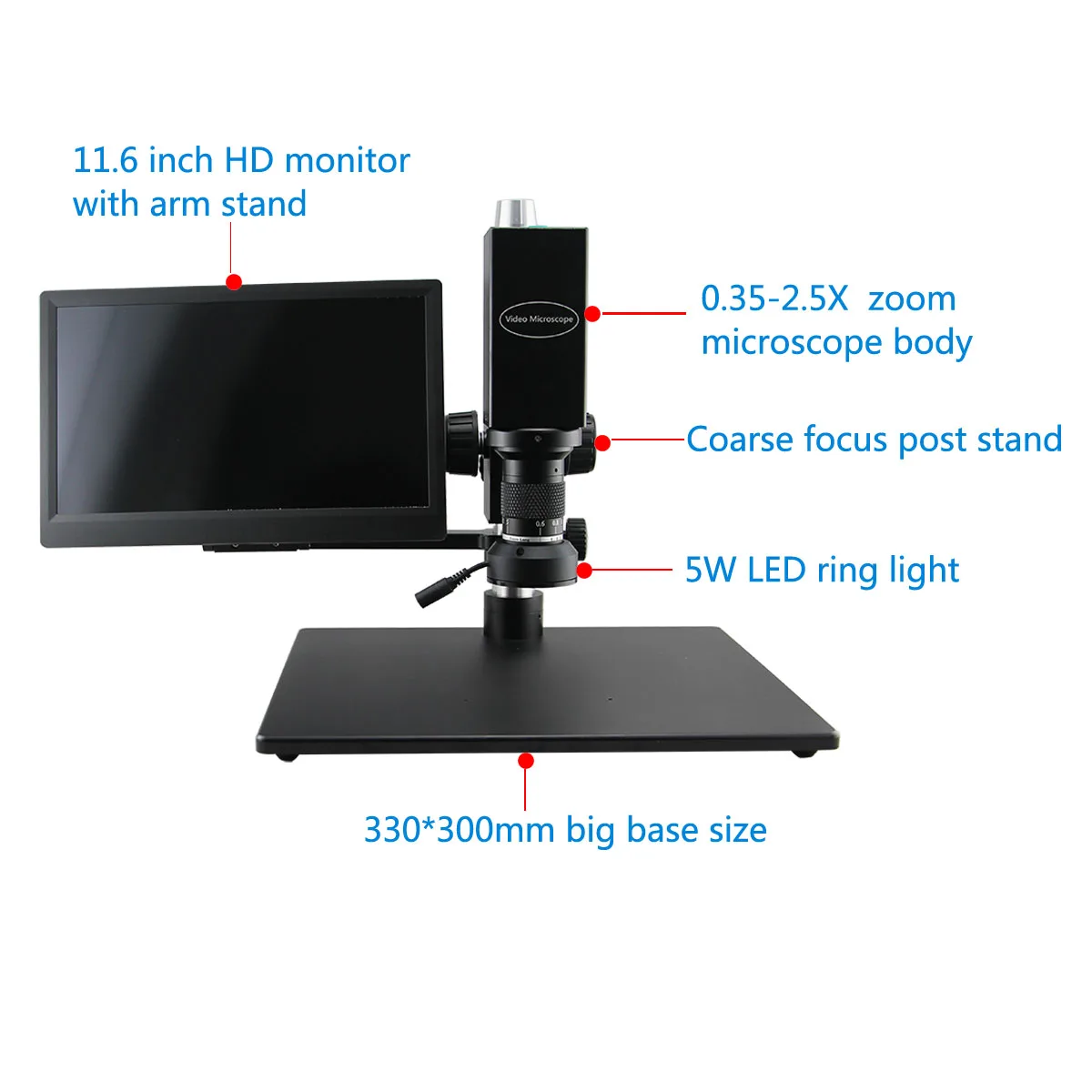

Product Detailed
Unique all-in-one machine design. simple and more convenient to install and use.

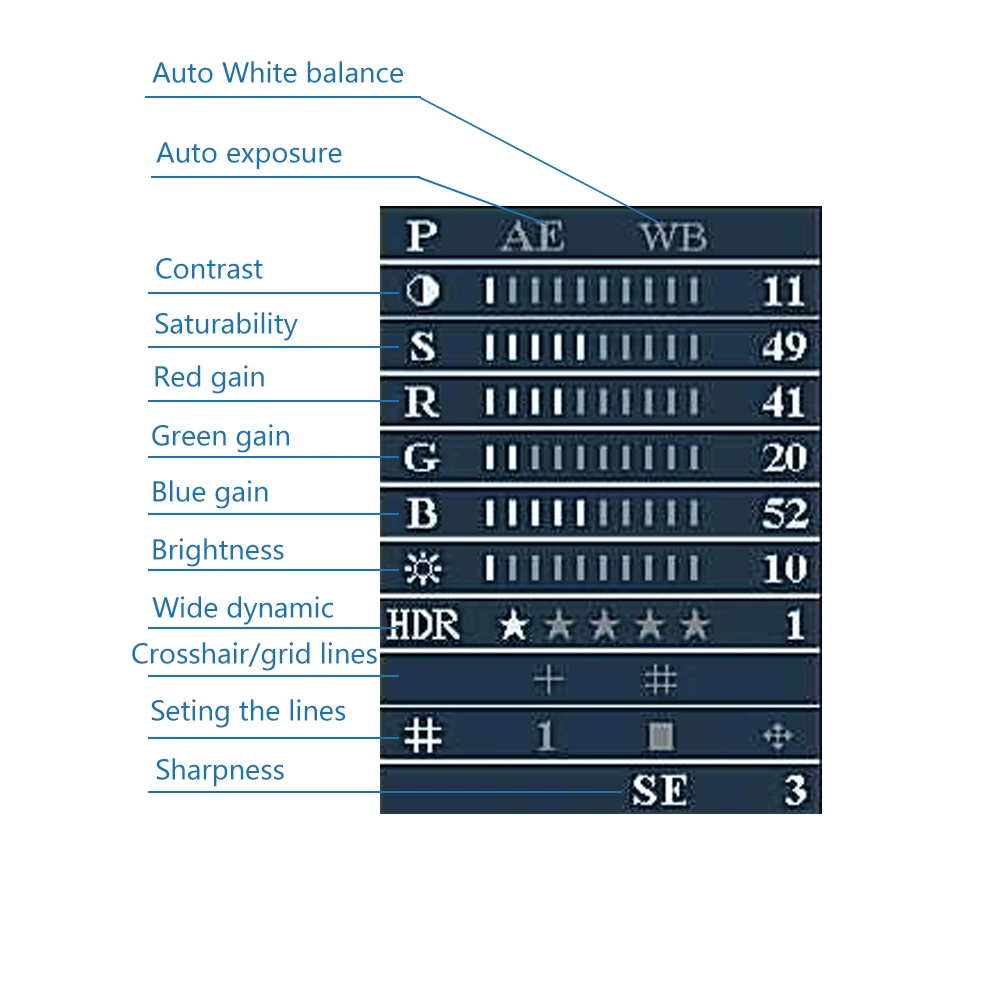

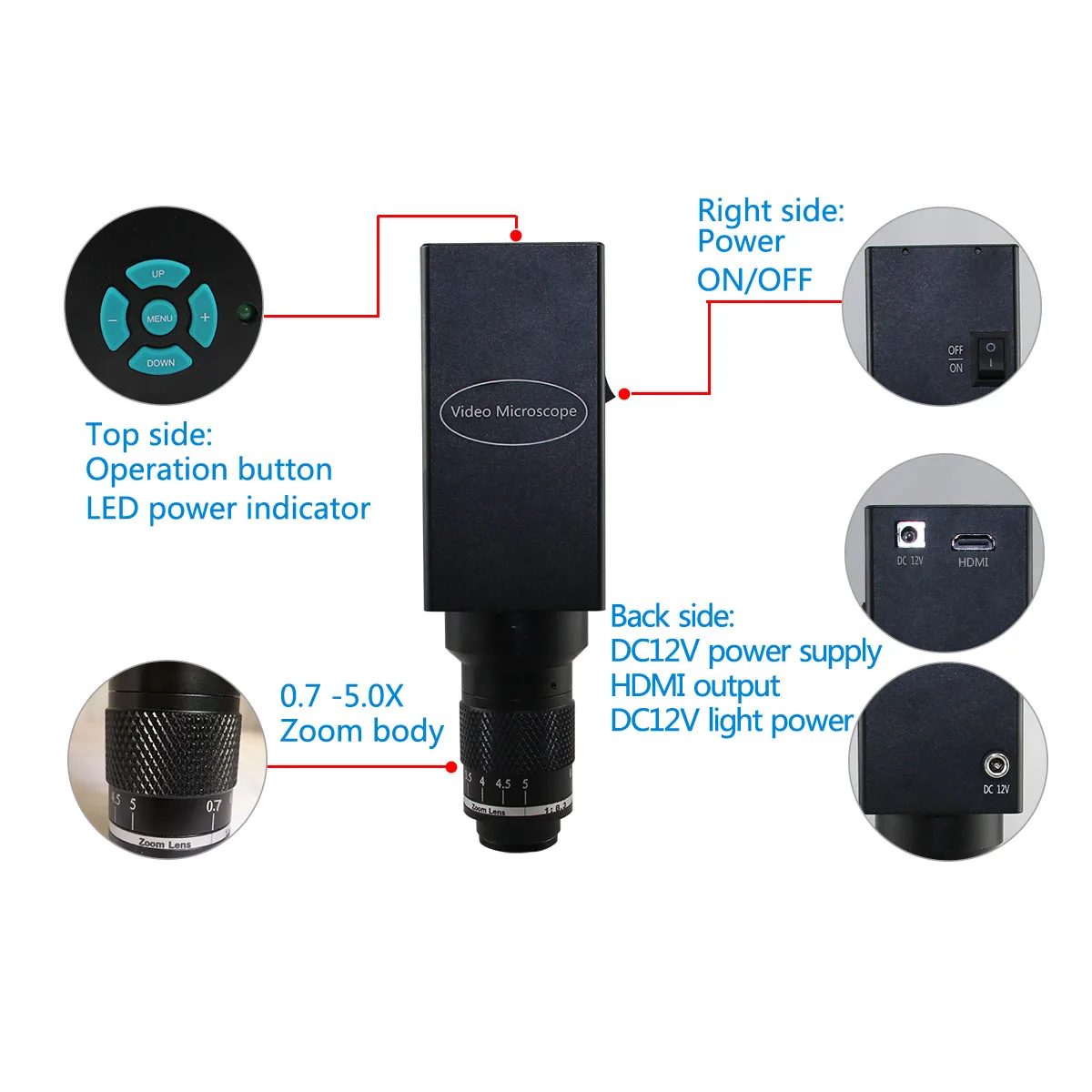

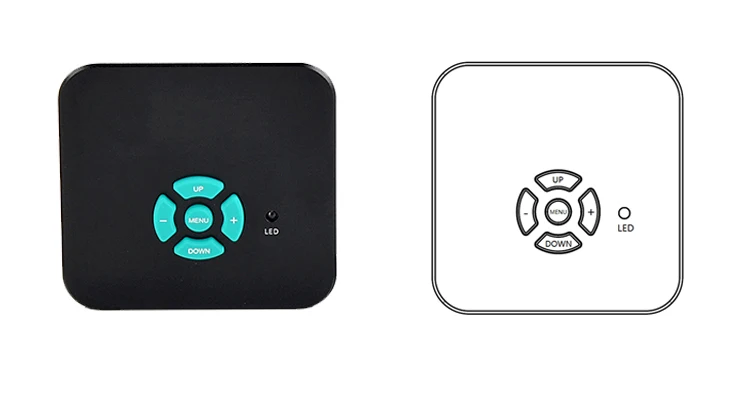

Microscope operation button and setting parameter
Menu:Open Menu/Confrim UP:Up button Down:Down button +：Add button -：Reduce button
Specification
Model | FM750I | ||
Optical parameter | 0.35-2.5X zoom | ||
Total magnification | 12-92X(base on 11.6 inch monitor) | ||
Zoom ratio | 1:7.14 | ||
Field of view(FOV) | 20.6*11.6-2.88*1.62mm | ||
Working distance | 86mm | ||
Sensor | 1/2” SONY CMOS | ||
Pixel | 2.0MP | ||
Resolution | 1920 x 1080 | ||
Pixel size | 3.75μm x 3.75μm | ||
White balance | Manual and Auto | ||
Exposure | Manual and Auto | ||
Output | HDMI | ||
Panel size | 11.6” | ||
System | NTSC/PAL | ||
Resolution | 1920*1080 | ||
Brightness | 400cd | ||
Visible angle | ISP all angles | ||
Power supply | DC12V | ||
Light Source Parameter | Light source | 5WLEDring light | |
Brightness | 0-100% adjustable | ||
Quantity of LED | 52pcs | ||
Focus | Coarse focus | ||
Base size | 330*300mm | ||
Post height | 318mm | ||

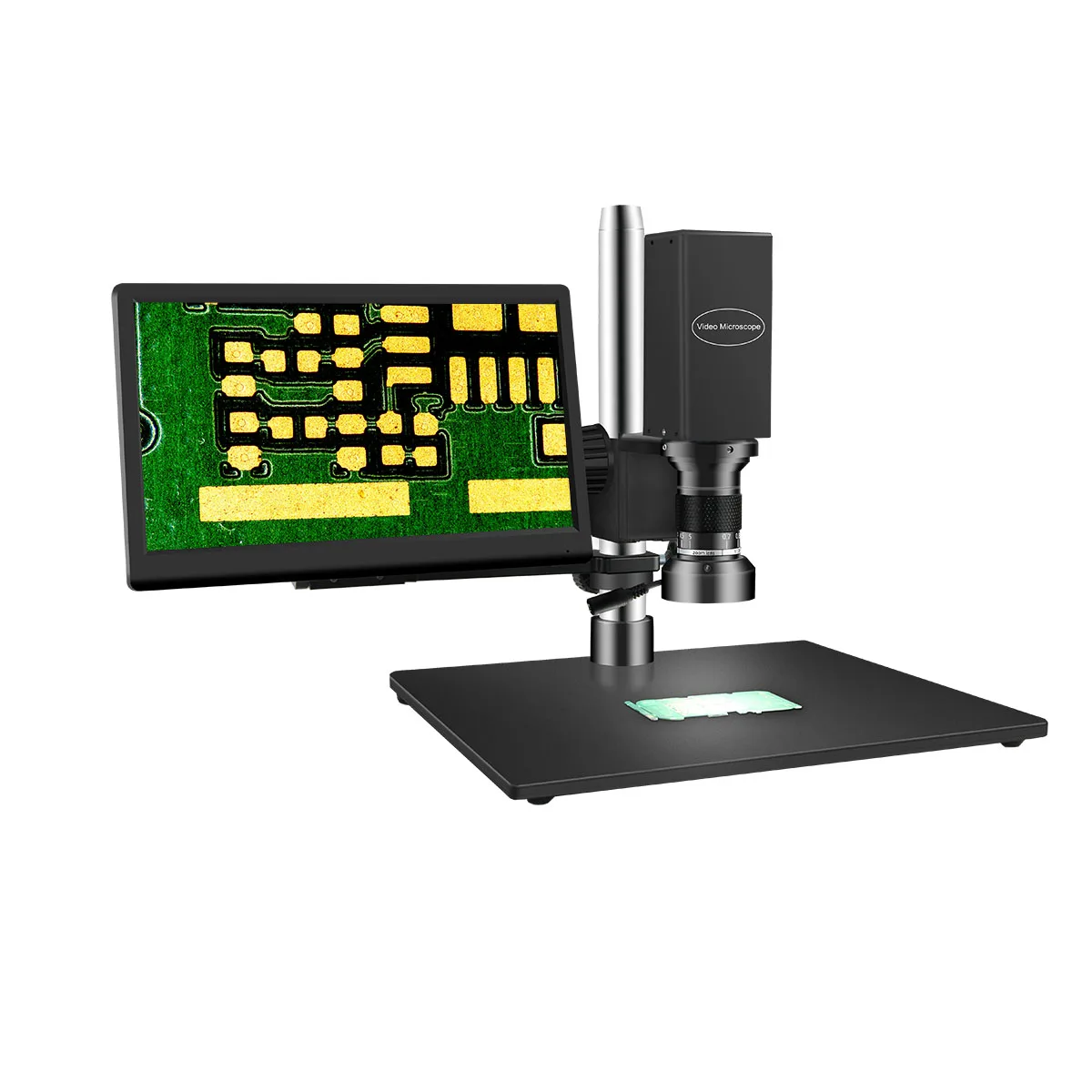

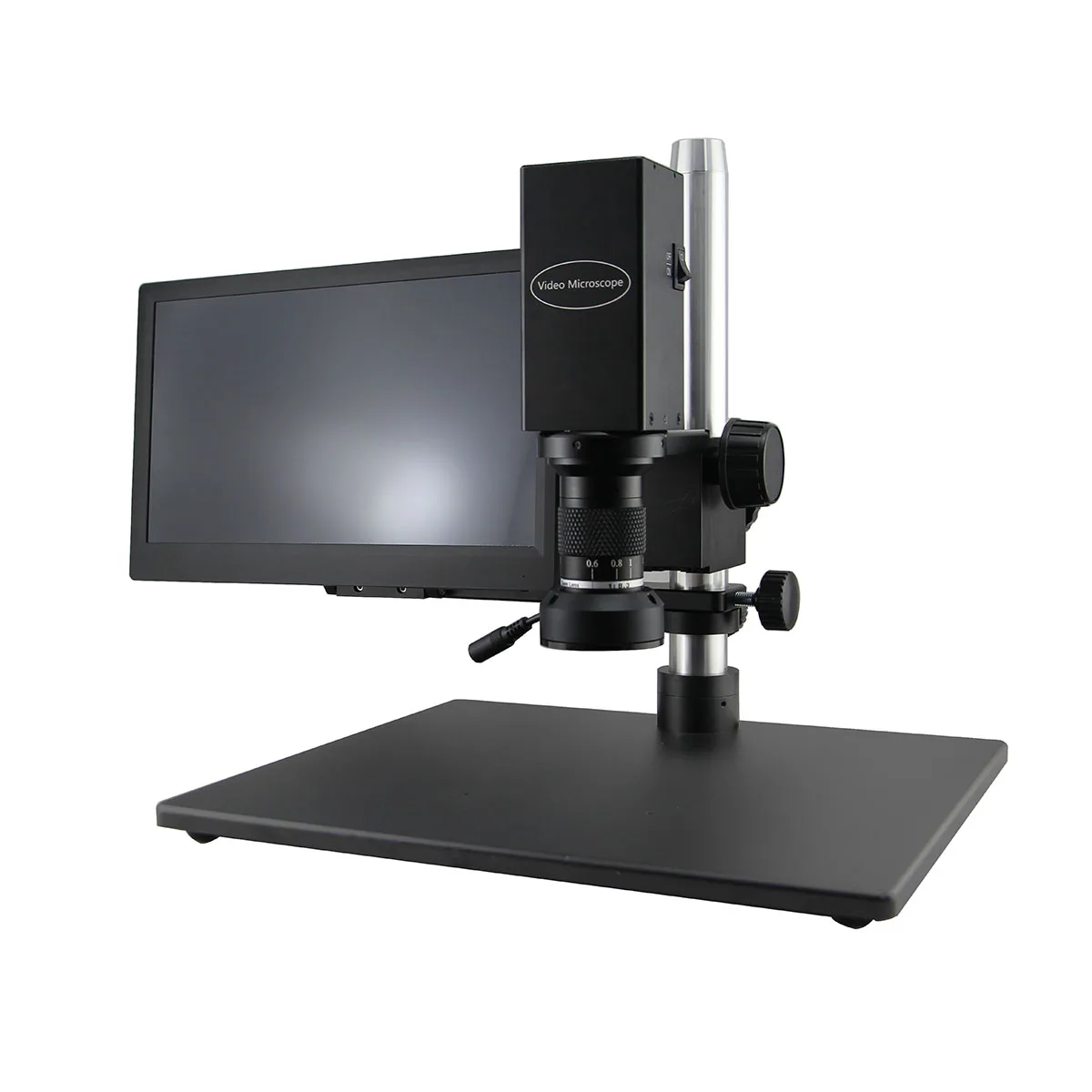

Product Pictures

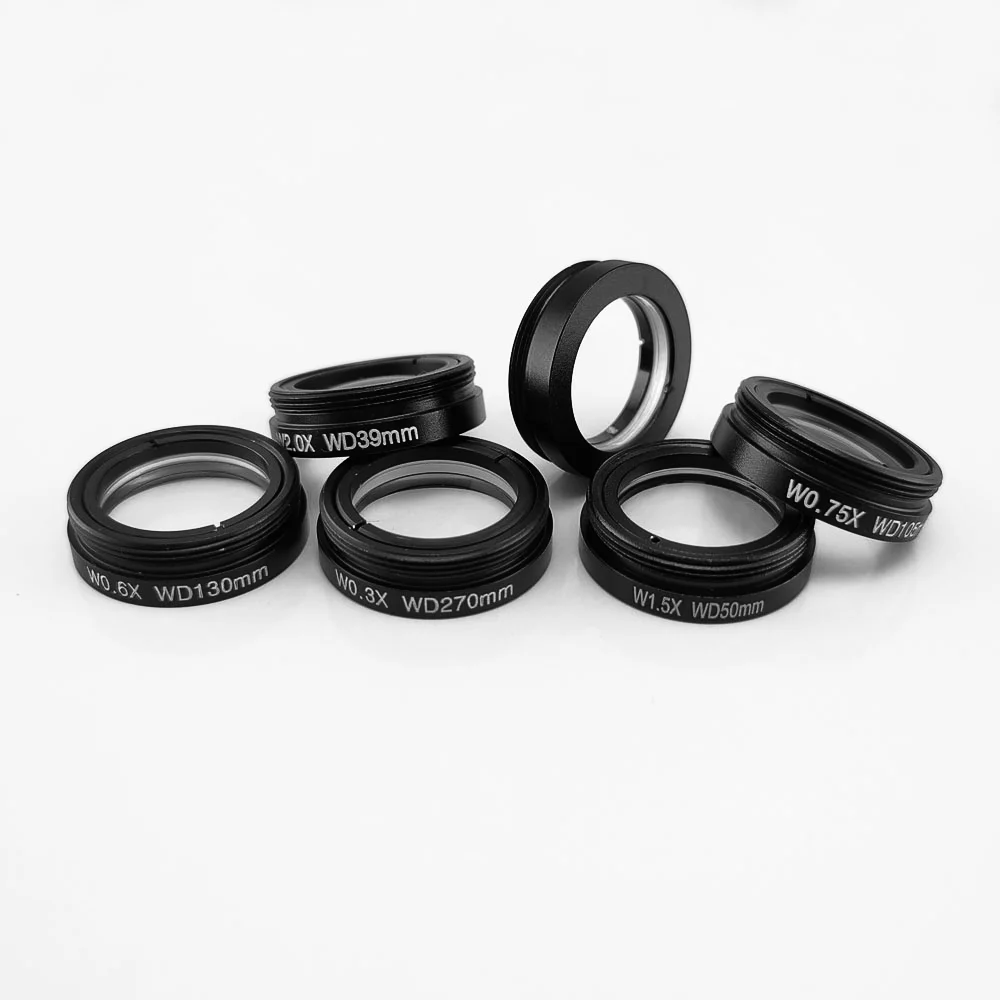

Optional Accessory
AW6503 0.3X , WD:270mm
AW6504 0.4X，WD:195mm
AW6504 0.4X，WD:195mm
AW6505 0.5X, WD:160mm
AW6506 0.6X, WD:130mm
AW6506 0.6X, WD:130mm
AW65075 0.75X,WD:105mm
AW6515 1.5X ,WD:50mm
AW6520 2.0X ,WD:39mm
AW6515 1.5X ,WD:50mm
AW6520 2.0X ,WD:39mm
L6511 Coaxial device
LC6511P Coaxial device with polarized
L6511 3W LED point light for coaxial device
LR65-R 12V 5W ring LED light source for Circular column of stand, the installation diameter is 32mm
LL65 Bar LED illumination, large lighting, suitable for low range, good uniformity
Packing & Delivery
Packing size | 39*36*42mm |
Gross weight | 9 kgs |
Packing style | polyfoam protection and strong carton |
Delivery time | sample order within 7 days |
