1 shaft longitudinal direction with 3 foil rolls + 1 shaft transverse direction with 2 foil rolls + Stripping

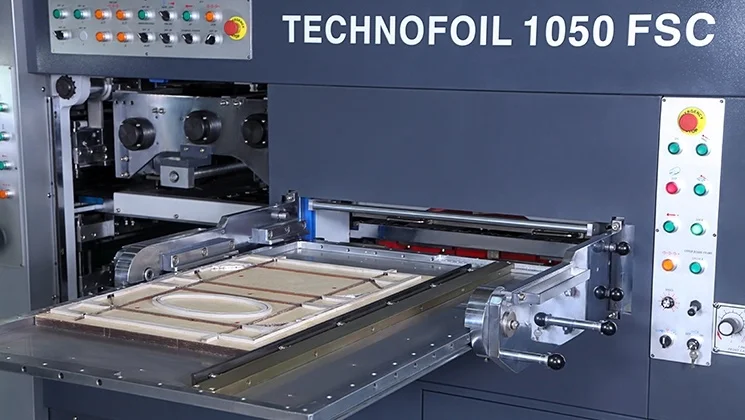

TECHNOFOIL 1050-FSC Automatic Platen Hot Foil Stamper & Die Cutting Machine. It can run large format die-cutting with stripping as well as stamping with 3 longitudinal and 2 transverse foil pull system. High precision, high speed, easy to operate, quick make-readies, durability and stable performance. Features that make the machine one of the best options when choosing.

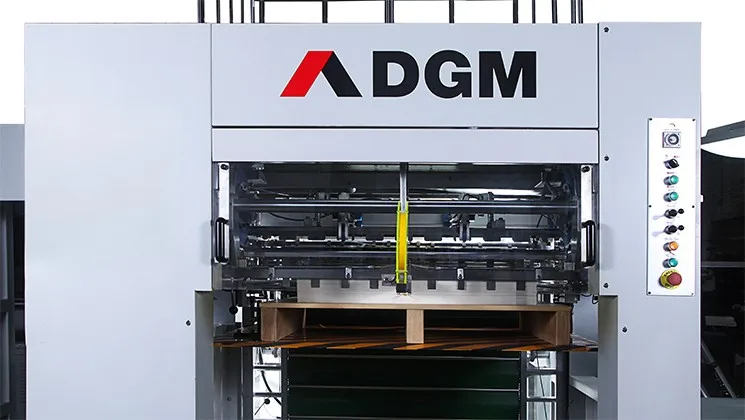

1. Feeder * Automatic feeder with non-stop system, with pallet and cart direct load. * 4 lift-up and 4 delivery suckers, designed to handle a wide range of materials from pa-per to corrugated board, guarantee the accuracy, reliability and smoothness of paper feeding. * Double sheet detector.
2. Register table * Side-register table with 8 belts. * 2 register side guides working with pulling and pushing system. * 4 register front lays, independently adjustable.
3. Press section * Closed chase with central positioning system device for fast positioning of the die. * Cutting plate 5 mm thickness. * Pressure control system, can be easily adjusted through touch screen. It has a securi-ty system to avoid any damage in the press. * Manual and automatic lubrication system. * 7 light weight gripper bars. * Turn-over bracket for cutting chase and honeycomb chase. * Pneumatic lock and release system for cutting chase and honeycomb plate.

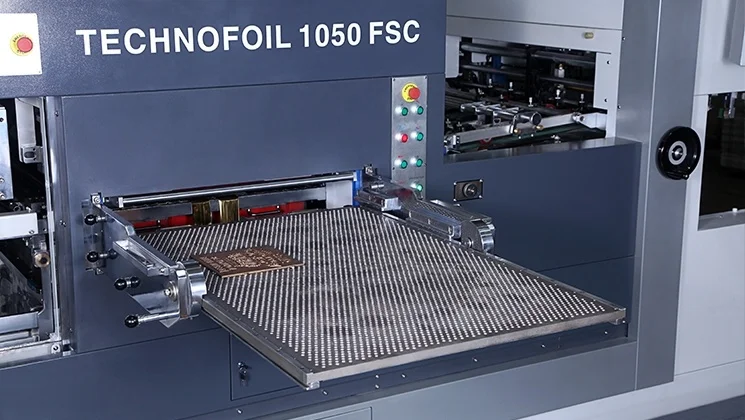

4. Foil stamping system * Heating system in 12 temperature zones with individual temperature control. * Foil break detector. * Films fasten device. * Foil unwind device. * Honeycomb chase.

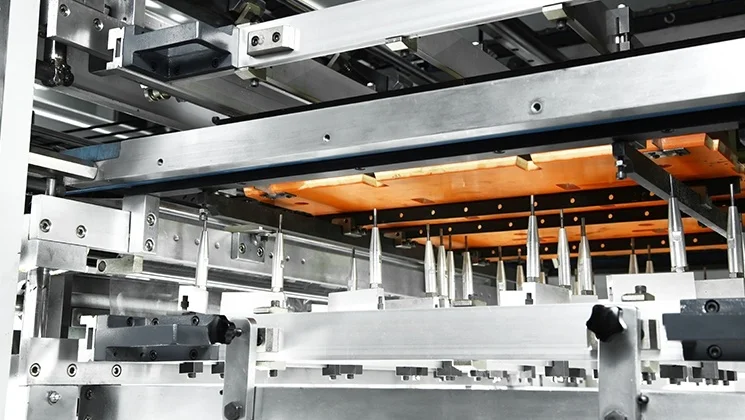

5. Stripping section * Optimized cam movement curve that guarantees stripping stability and accuracy. * Quick-locking and central positioning system to assure the waste is cleared with accuracy.
6. Delivery section * Non-stop device with automatic conveyor at delivery.

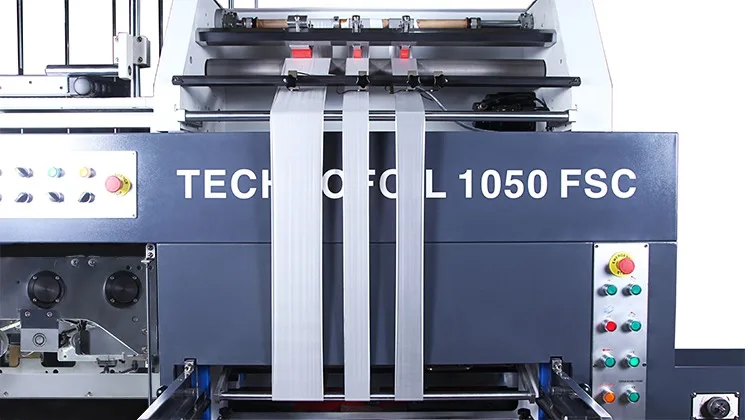

7. Motorized removable longitudinal foil system * 3 longitudinal shaft foil rollers. * Easy to remove and set up. * Can be used as a foil stamper machine with 3 longitudinal plus 2 transversal shafts or a regular die-cutter with stripping. * Air blast foil separation system. * Foil tensioning system.
8. Transverse shaft * 2 foil rolls in a high precision transversal foil feeding system.
Material

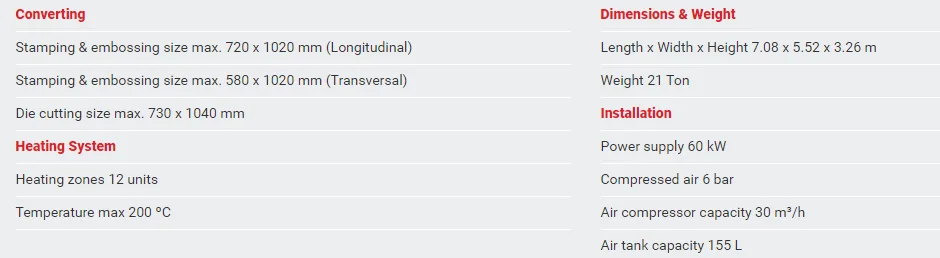

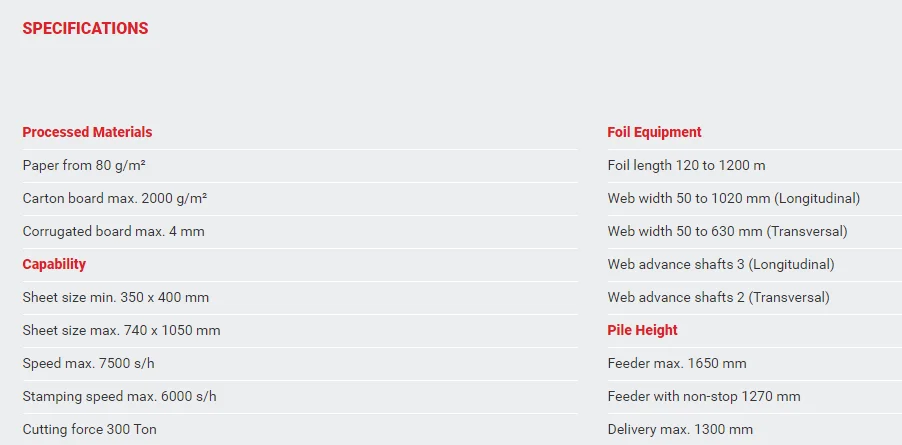

Size Information

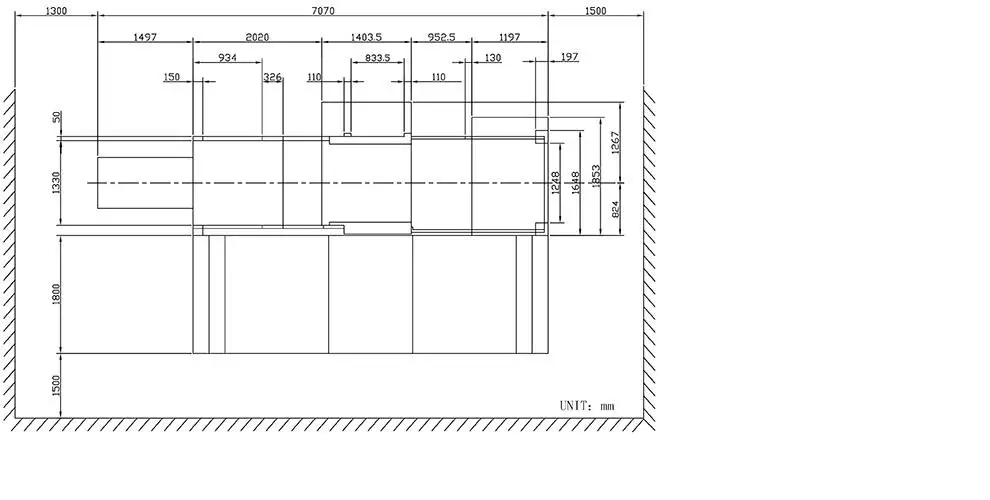

SCHEME
