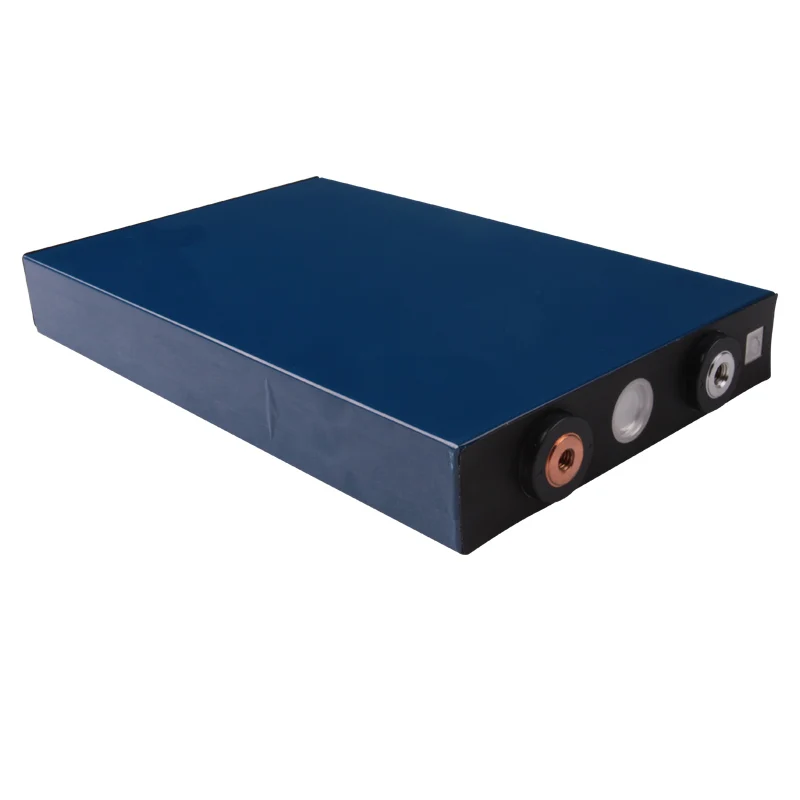

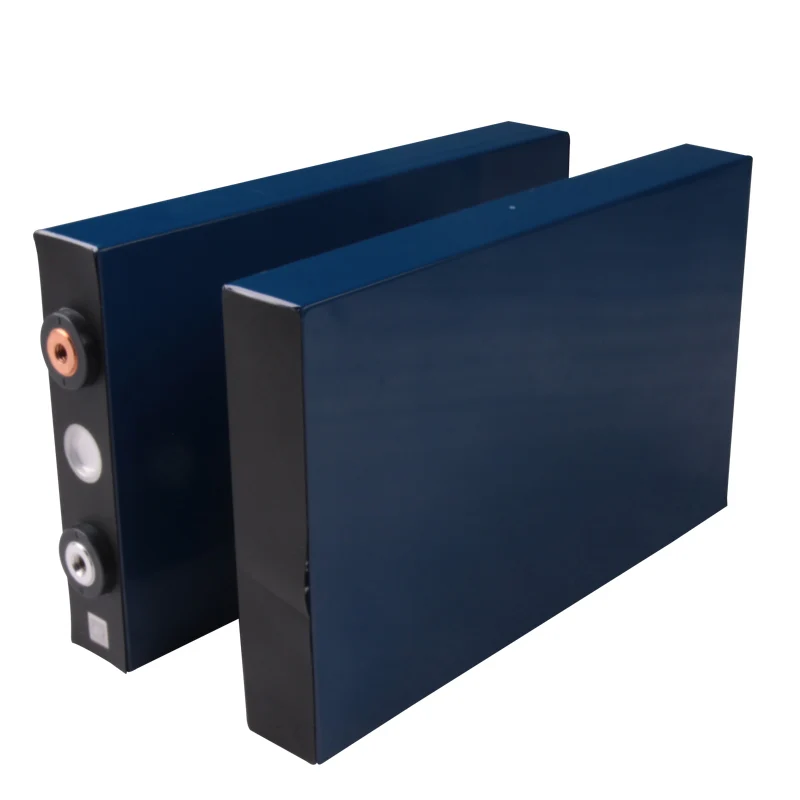

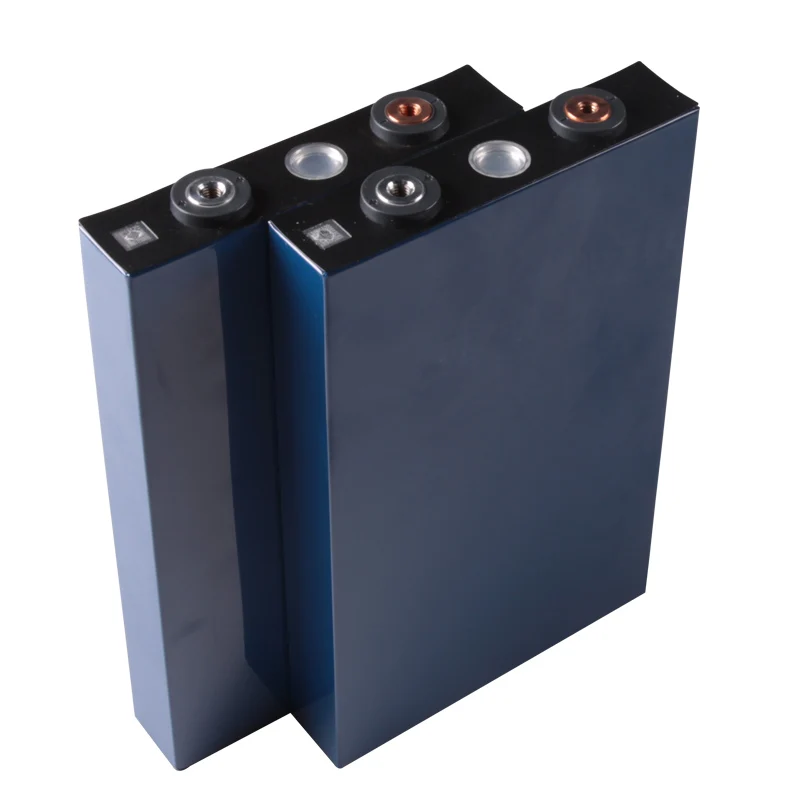

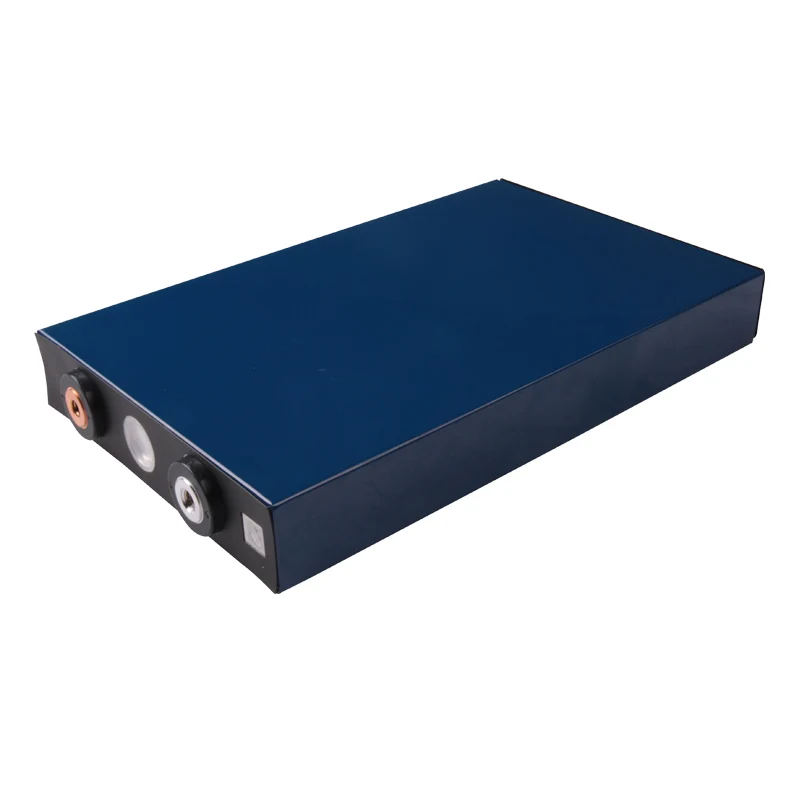

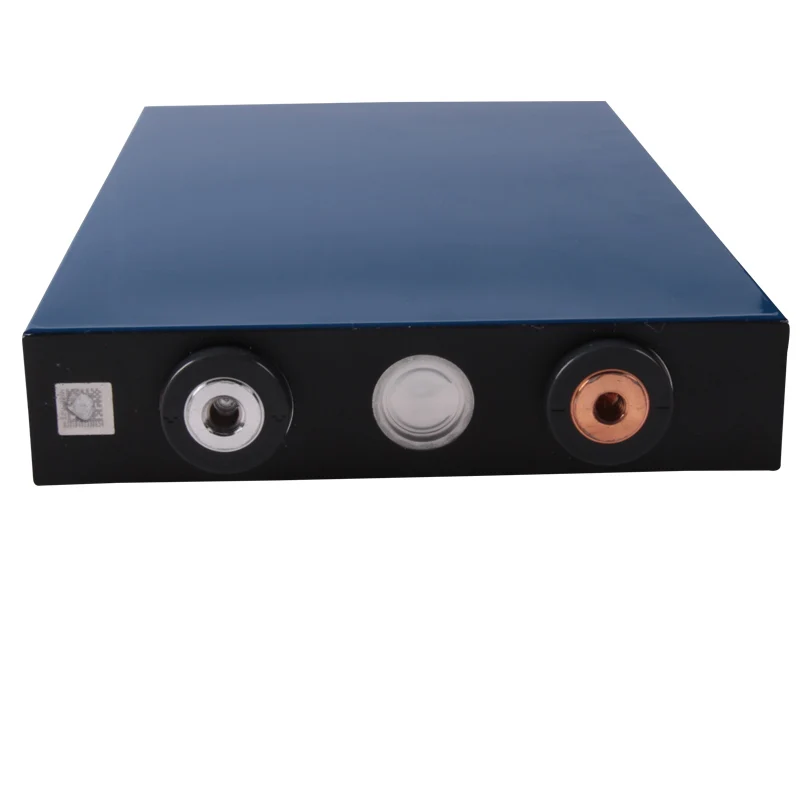

CALB L135F72 LiFePO4 Prismatic Cell 3.2V 72Ah For Solar Energy Application
1.More than 3000 cycles under the designed working condition
2.Anti-explosion safety valve applied
3.Aluminum shell for better cooling
4.Ceramic membrane technology applied to enhance safety
5.High energy density----121WH/KG
6.High charge/discharge rates
Specification
No. | Items | Specifications |
1 | Nominal Voltage | 3.2V |
2 | Nominal Capacity | 72Ah |
3 | Standard Charge Current | 0.2C |
4 | Max. Charge Current | 1C |
5 | Continuous DischargeCurrent | 2C |
6 | Peak Discharge Current | 3C |
7 | Full Charged Voltage | 3.65V |
8 | Charge Cut-off Voltage | 3.9V |
9 | Discharge Cut-off Voltage | 2V |
10 | Net Weight | 1.9kg |
11 | Dimensions | Length: 222mm Width: 135mm Thickness: 29.5mm |
Cells Overviews
We choose brand Chinese to make lithium battery packs like LTO battery cells, cylindrical cells and prismatic battery cells as follows
Applications
· Passenger and commercial plug-in hybrid electric vehicles (PHEVs)
· Passenger and commercial battery electric vehicles (BEVs)
· Mild and micro hybrid vehicles
· Long-Duration (LD) grid energy storage systems
1) Electric vehicles and charging stations, tourist coaches, yachts, wind and solar energy storage power, traffic signals
2) Solar hybrid street lighting, UPS power supply, home storage
3) Coal, disaster relief emergency, weather radar, electricity, smart grid, communication base stations
4) Hospitals, finance, telecommunications , system critical backup power systems
