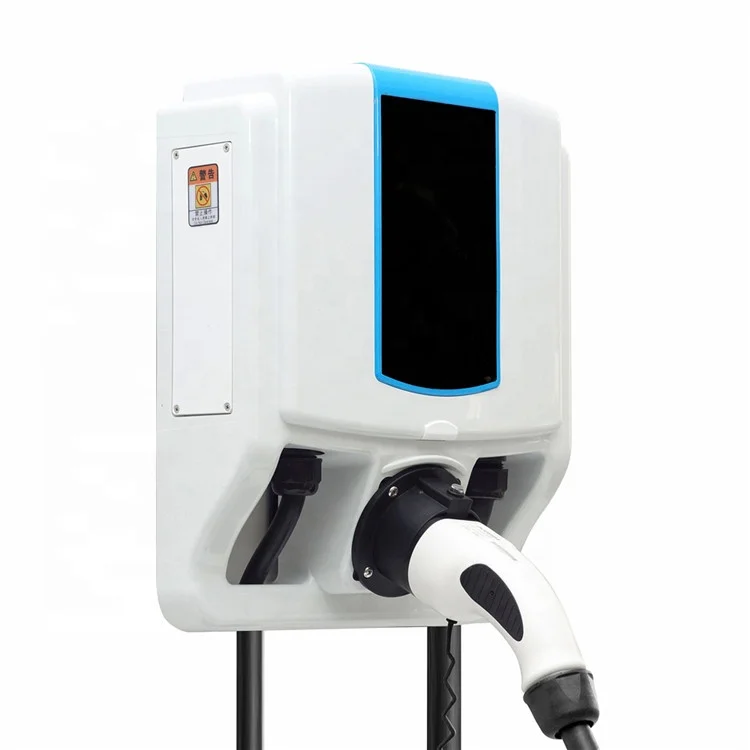

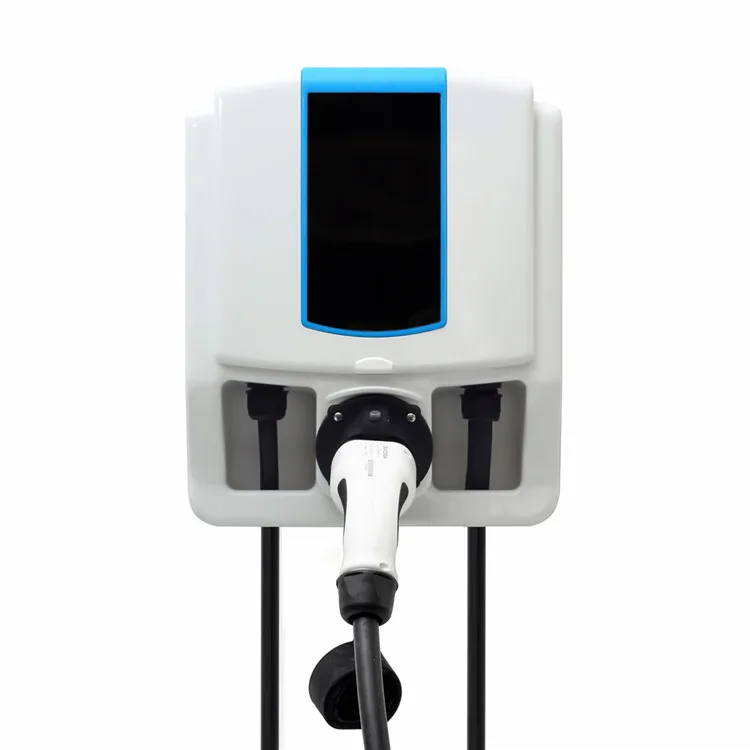

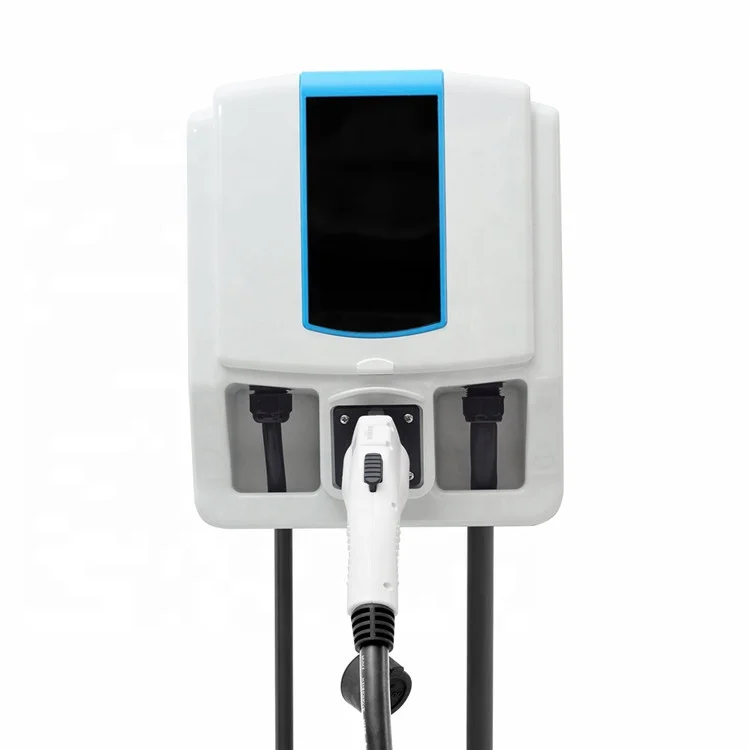

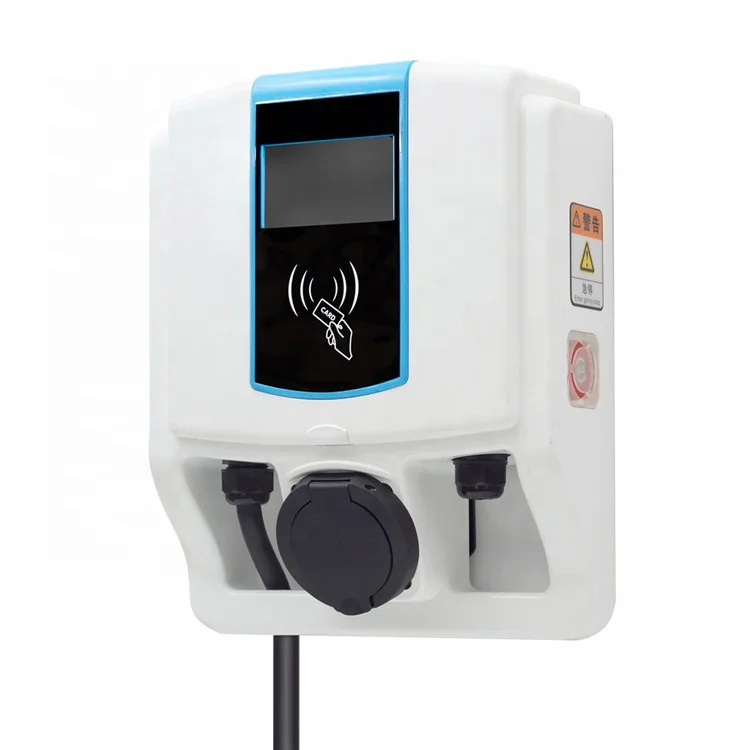

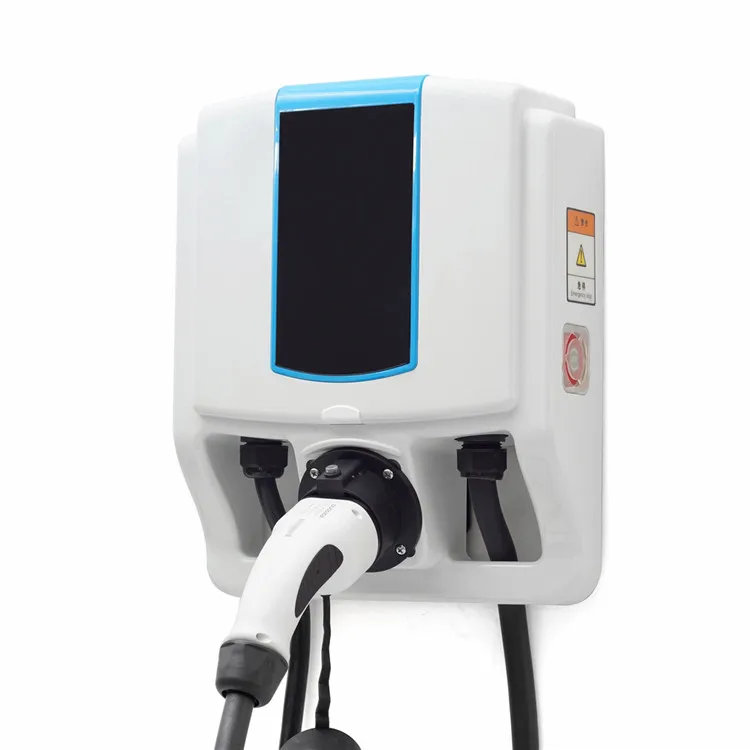

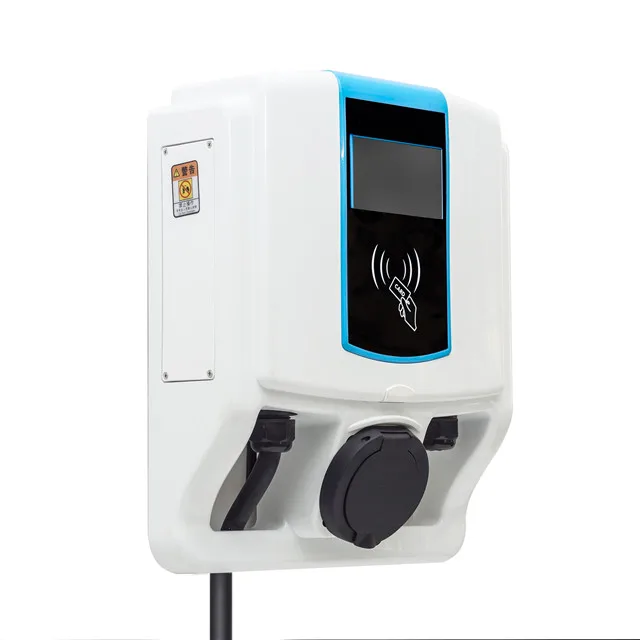

Home use car charger wallbox 22KW/7KW AC charging stations ev
- Category: Wall-mounted Charging Stations >>>
- Supplier: Guangzhou Electway Technology Co. Ltd.
Share on (62431449701):
Product Overview
Description
- Production Decsrition
1 . It could be load 1 car in one time by selecting option via the 4.3 inch touchable display screen.
2 ,It could be wall mounted or pile stationary mounted. With Emergency stop button.
3 . RFID payment system for car owner paying after charging finished.
4 . It can load single/three phase self-adaption.
If for single phase on board charger it will be 3~7kW output. If for 3-phase on board charger, it will be output 22KW.
5 . For any type2 or SAE J1772 port, it is 100% working.
eg: Tesla, Nissan leaf,Renault Zoe,Hyundai Ioniq,Hyundai Kona, BMW i3, VW E-golf...
specification parameter | |
AC input | Phase/lines: 3phase+Neutral +PE |
Voltage&frequency:220/380Vac ± 15% 50Hz | |
Norminal input current&power : 32A,30KVA | |
Efficiency : >99.9% | |
AC output | Voltage range : 220/380Vac± 15% 50Hz |
Current range : Up to 32A | |
Nominal power : 7kw/22kw | |
General Specifications | Communication with Server protocol : OCPP 1.6 |
Communication with EV : ± 12V PWM | |
AC plugs : IEC62196-2 Type 2,SAE J1772 Type 1 | |
Human machine interface - Display : 4.3 inch - Button : Emergency button | |
Place of installation : Wall mount or stationary | |
Protection temperature : -60 ~+45 °C | |
Operating temperature : 25℃ | |
Protection degree : IP67 | |
Payment system : RFID | |
Measures ( W x D x H) : 500 x300 x130mm | |
Weight : 18kg | |
- Detailed images
- Packing & Shipping
1pcs per carton ,
Sending by Express TNT , Fedex , DHL or By air , By sea by Customized
Express Freight cost Prepaid or Collect are both ok !
- Company information
Guangzhou Electway Technology Co., Ltd was founded on March 20th,2012.It is located in Huangpu District, Guangzhou and we are a manufacturer.
At present,Our main products are: AC and DC charging station (stationary&wall-mounted), mobile off-board DC chrger, AC charging EVSE,charging connectors,off - grid electric vehicle discharge device V2H, changing power module and its peripheral products.
Our company has applied for a number of utility model patents and appearance patents, andregistered the trademark "ELECTWAY". Our company is a general VAT payer and has the qualification of import and export rights.
- Certifications
- FAQ
Q1: Where is your factory located? Can I visit it?
A:Our factory is located in Guangzhou city, Guangdong Province,China.
All our clients,from home or abroad,are warmly welcome to visit us.
Q2:What’s the payment terms?
A:We accept T/T,L/C,Western Union,MoneyGram and so on.
Q3: What’s the transportation way?
A: By sea,by air or by express. According to clients requirements.
Q4: How about your delivery time?
A: Generally, it will takes 7-14 days. The specific delivery time depends on the items and the quantity of your order.
Q5: What about your after sale service.
A: We will according to the international quality standards to inspect every products before delivery.
Q6: Can you provide samples?
A: Yes,we can provide samples.The sample fee and the shipping cost will be charged by the buyers.
Q7: Can you make customized products and customized packing?
A: Yes, all products can customized according to customer requirements.
About custom packing, we can put logo or other info on the packing box.
Q8: Can I be an Agent/Dealer of your products?
A: Welcome! But please let me know your Country/Area first, We will have a check and then talk about this. If you want any other kind of cooperation. Please don’t hesitate to contact us.
