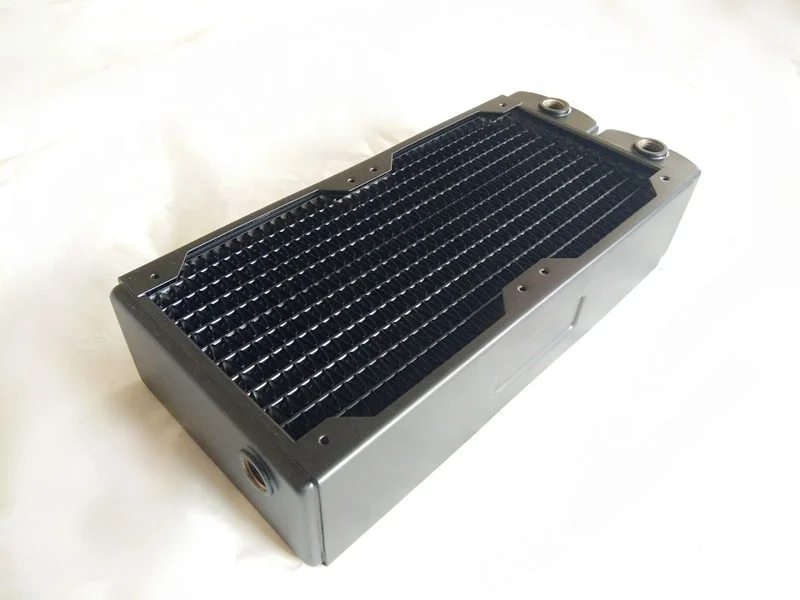

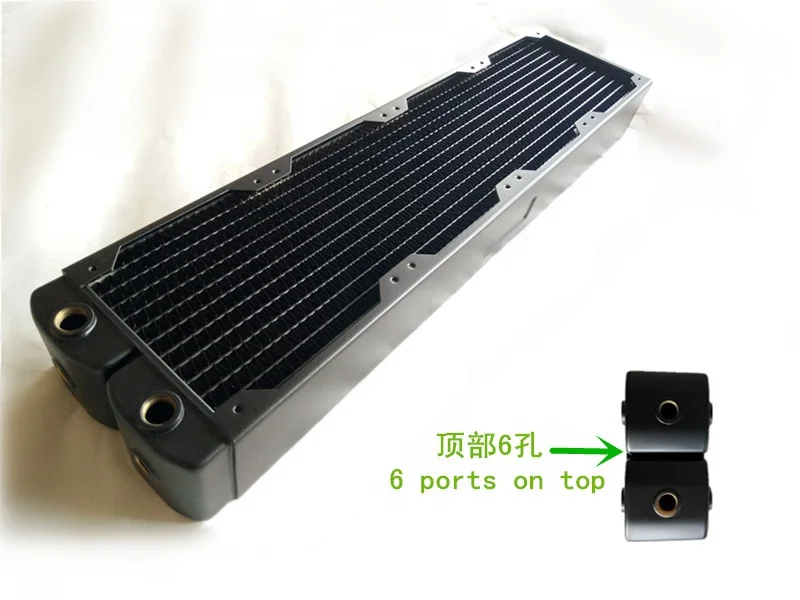

120/240/360/480 copper and brass liquid Heat exchanger

Product Overview

Description

120/240/360/480 copper and brass liquid Heat exchanger



Product Specification

Material	copper and brass

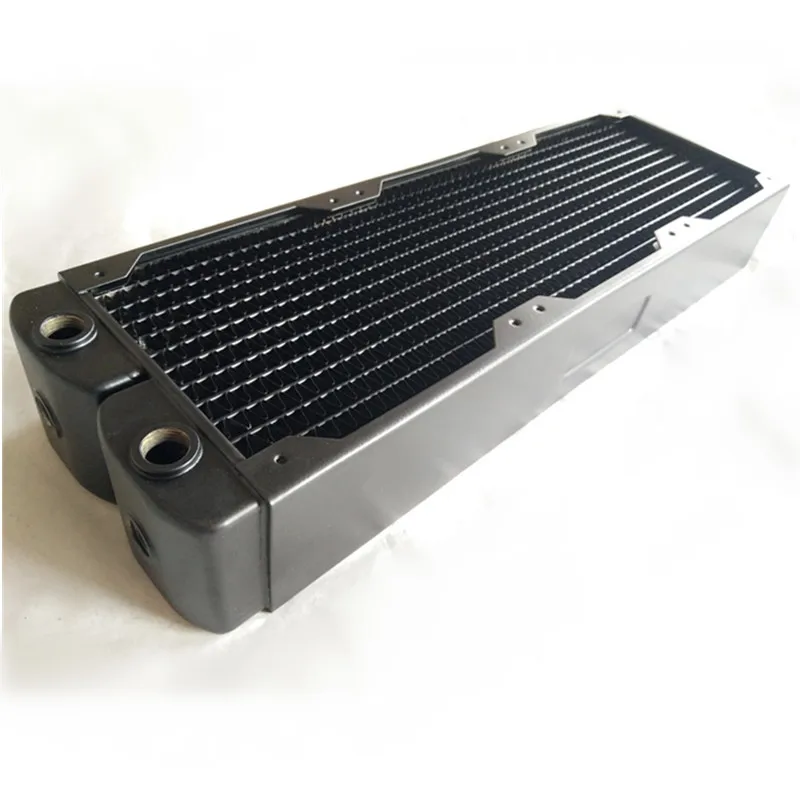

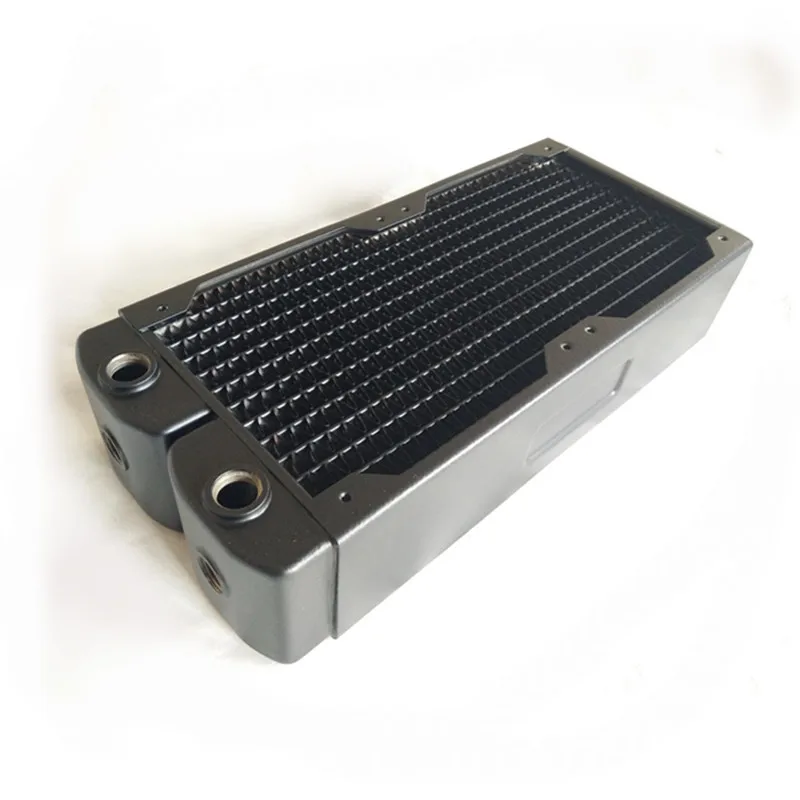

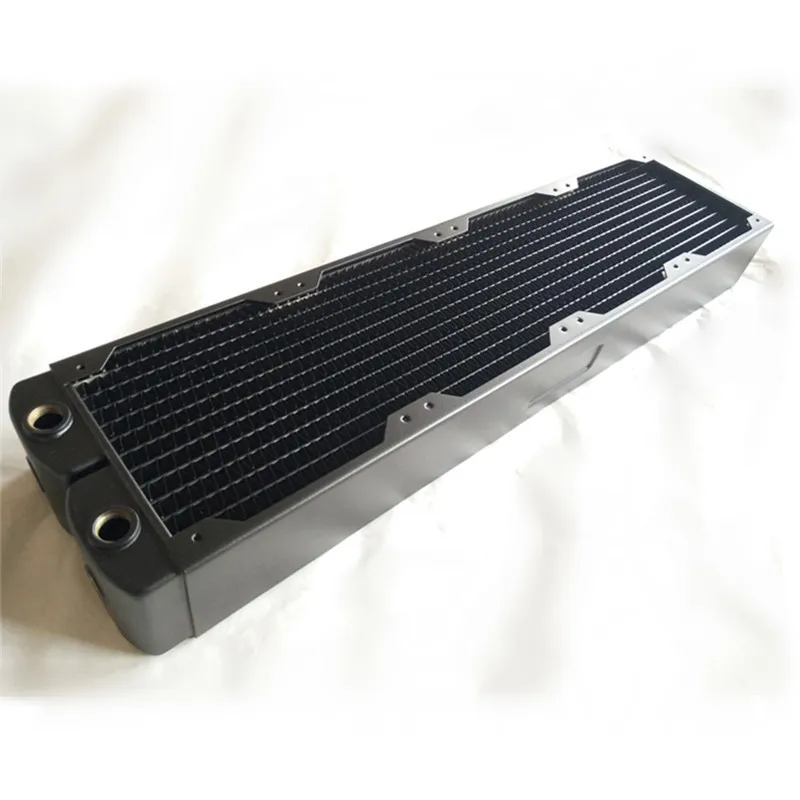

Dimension(l*w*h)	120model-156*125*62mm 240model-276*125*62mm 360model-396*125*62mm 480model-525*125*62mm

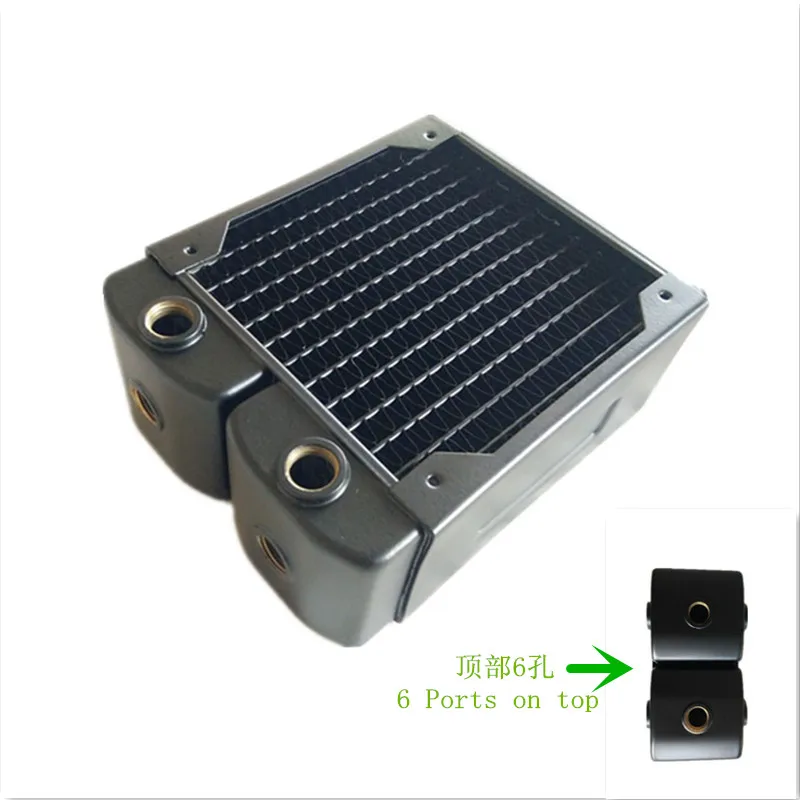

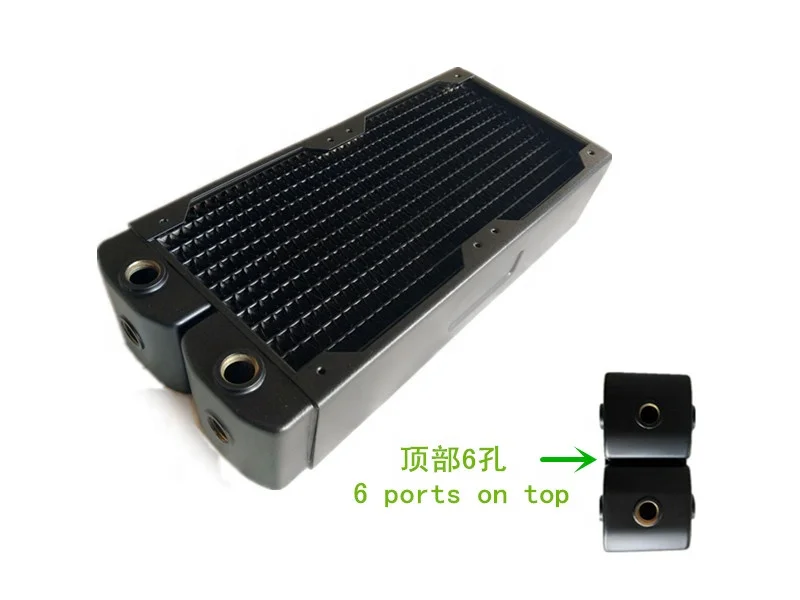

Connector	6*G1/4 on top and 1*G1/4'' on end
FPI	9
Weight	~650g ~1000g ~1300g ~1580g
Color	Matt black
Tubing	12 channels
Fan Hole	M3 screws
Certification	RoHS
Include	Long screws for fan and short screws for radiator



After inspection the radiators are packed in plastic bag then carefull put into carton. Inclduing long screws and short screws in the carton for your mounting.

Shipping Method

All shipping method aim to supply the most convenient for you.

By sea or by air is most suitable for large order.

By express like DHL,FEDEX,TNT is ok for trial order or sample confirmation.

Any other request method can adjust

Payment Terms

1.T/T is regular rule

2.Trade Assurance by alibaba is acceptable for both rights
3. Make sure that you have completed all your detailed information like Address, contact person and telephone number when you filling in the buyer's information

 Installation precaution

 If you use only a fan with 25 mm height, please use 30 mm long M3 screws.

Always double-check the screw length before installation, or you might poke a hole in the radiator water channels.

120mm × 120mm fans are advised to be installed with the radiator.



Features

Single-pass parallel-flow configuration utilizing high-flow tubes for up to 50%

increase in internal flow rates.
Custom compressed core width to maximize airflow and enhance heat exchange.

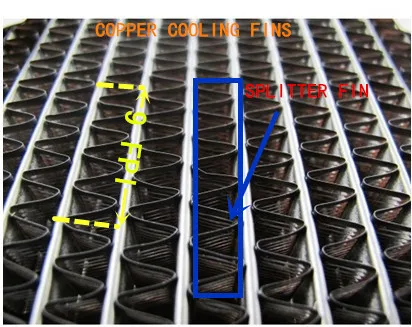

Optimized custom 9FPI (Fins Per Inch) .
Built-in 7mm deep plenum for equalized core air pressure distribution.
M3 Threaded Screw Holes for easier mounting and greater adaptability.
Standard G 1/4''; female threaded fittings.
Full high-temper brass structural construction for weight reduction and superior corrosion resistance.
High performance compact radiator compatible as an upgrade to the most 120mm fan form factor radiators.
Uses 100% Non-corrosive water-soluble fluxing process.
Fully RoHS compliant.
Matt Black Finish.
Patent Pending Design
All radiators are cleaned to removed solder flux
Both hydraulic and pneumatic tests(1.5bar and 30 seconds)
