FG 200 High Efficient Manufacturer Fluid Bed Dryer Fluidized Bed Granulator
- Category: Fluid Bed Drying Equipment >>>
- Supplier: Wenzhou Liangke Machinery Co. Ltd.
Share on (62431507935):
Product Overview
Description
FG-200 Manufacturer High Capacity PharmaceuticalFluid Bed Dryer
Product Description
Technical Parameter
Model Item | FL-15 | FL-30 | FL-60 | FL-120 | FL-200 | FL-300 | FL-500 |
Material container volume (L) | 45 | 100 | 220 | 420 | 670 | 1000 | 1500 |
Material container diameter (mm) | 550 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 |
Production capacity (KG/batch) | 15 | 30 | 60 | 120 | 200 | 300 | 500 |
Steam pressure (MPa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
Steam consumption (Kg/h) | 20 | 60 | 120 | 140 | 180 | 310 | 400 |
Compressed air pressure (MPa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
Compressed air consumption (m3/min) | 0.6 | 0.6 | 0.9 | 0.9 | 1.1 | 1.1 | 1.5 |
Fan power (KW) | 3 | 5.5 | 11 | 18.5 | 22 | 30 | 45 |
Electric heater power (KW) | 12 | 21 | 30 | 48 | 87 | 163 | 185 |
Noise (dB) | With isolating treatment, the noise of draught fan is less than 75 dB. | ||||||
This machine unit is suitable for mixing and granulating powder kind materials in such industries as pharmaceuticals, chemical, food and so on. It has been approved by province creative products and certified by CE (CONFORMITE EUROPEENNE).
Characteristics

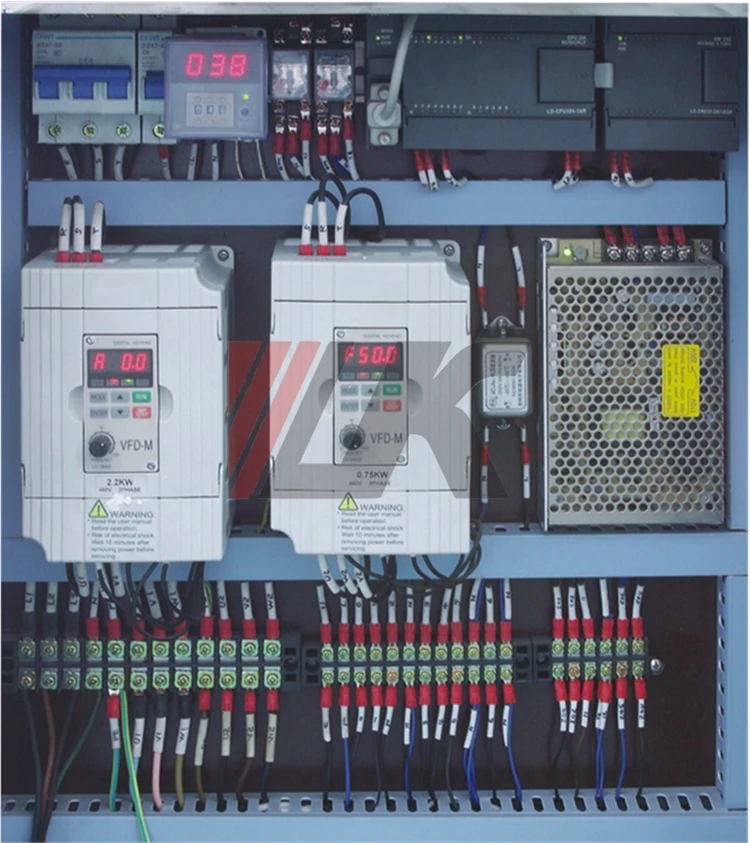

1.This machine unit is controlled by PLC in the whole process (HMI-optional) to unify the technology and guarantee stable quality, which can also be operated manually, convenient to find out the technical parameters and process.

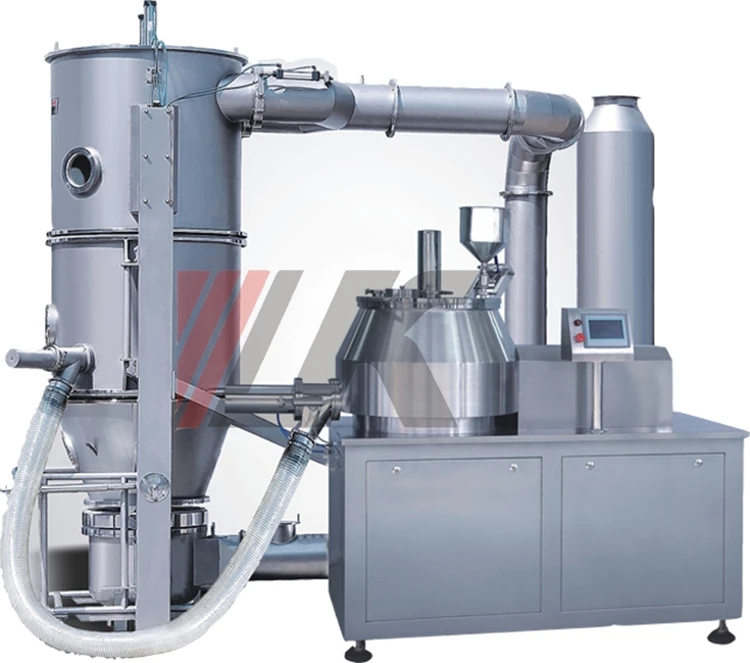

2.It integrates the wet mixing, granulating and drying functions.
3.It saves labor resource and improves the production efficiency.
4.It’s the ideal equipment for producing Chinese patent medicines, synthetic instant soluble medicines, tablets and capsules.
Samples

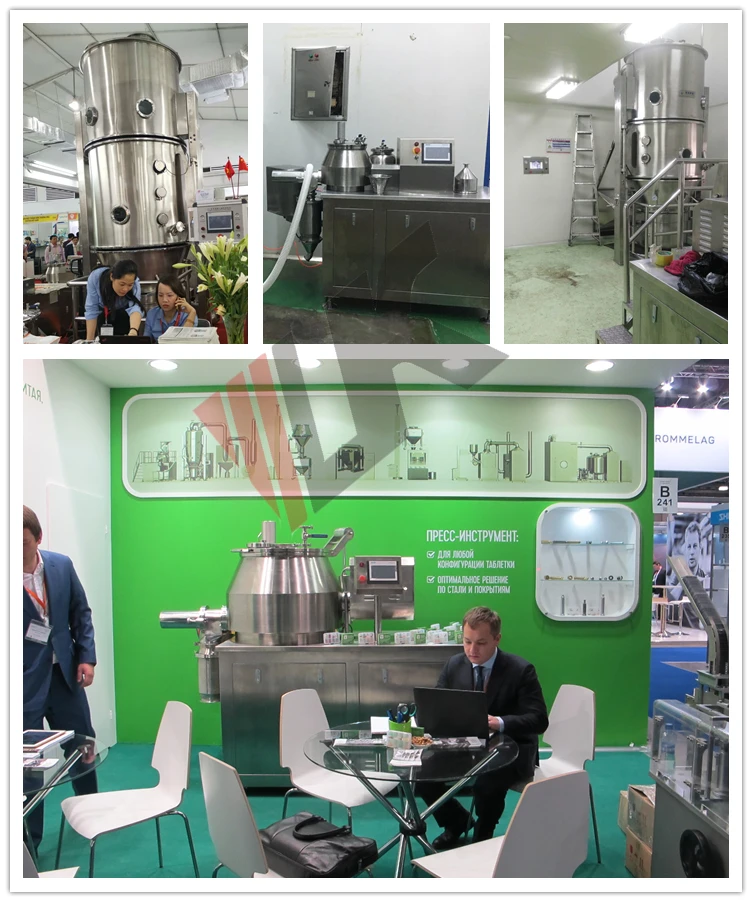

Company Information
Wenzhou Liangke Machinery has specialized in production of solid preparation process machine for more than 20 years, including wet granulator, roll compactor, fluid bed dryer, mixer, tablet press, coating machine, capsule filling machine etc. Also engaged in pharmaceutical trade,chemical trade as well as food trade with qualified team and mature technology.

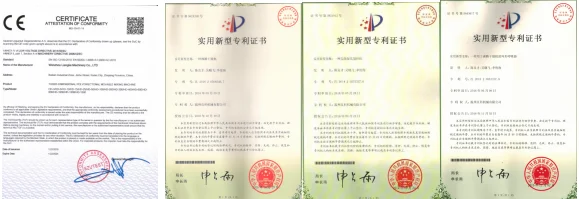

Certifications

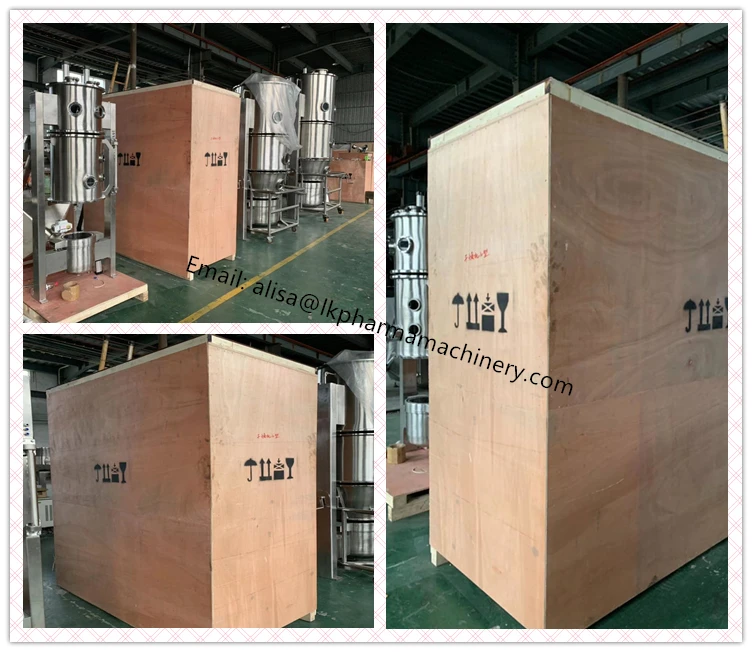

Packaging & Shipping
Our Services
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to instal the machine, training how to
* Sample testing support. use the machine.
* View our Factory. * Engineers available to service machinery overseas.
Related Products

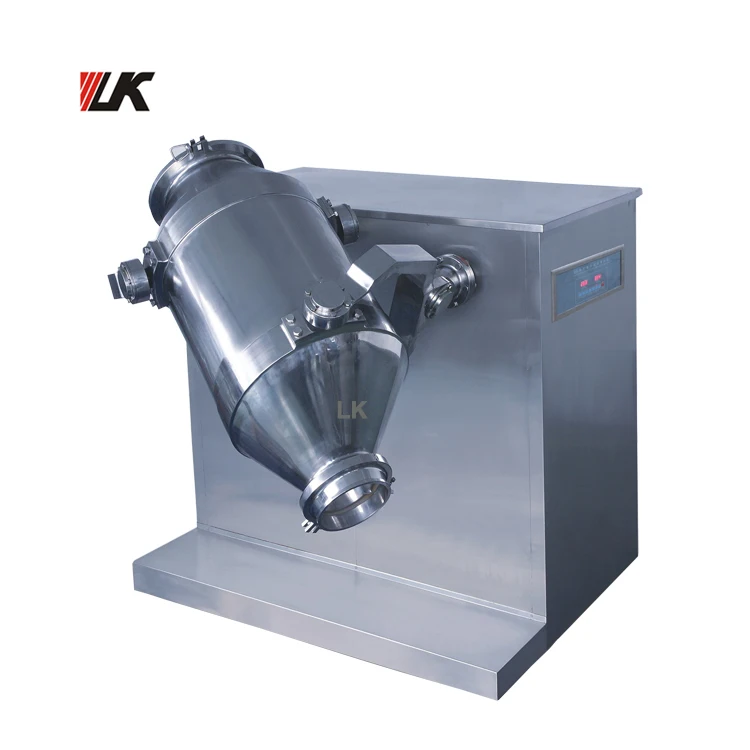

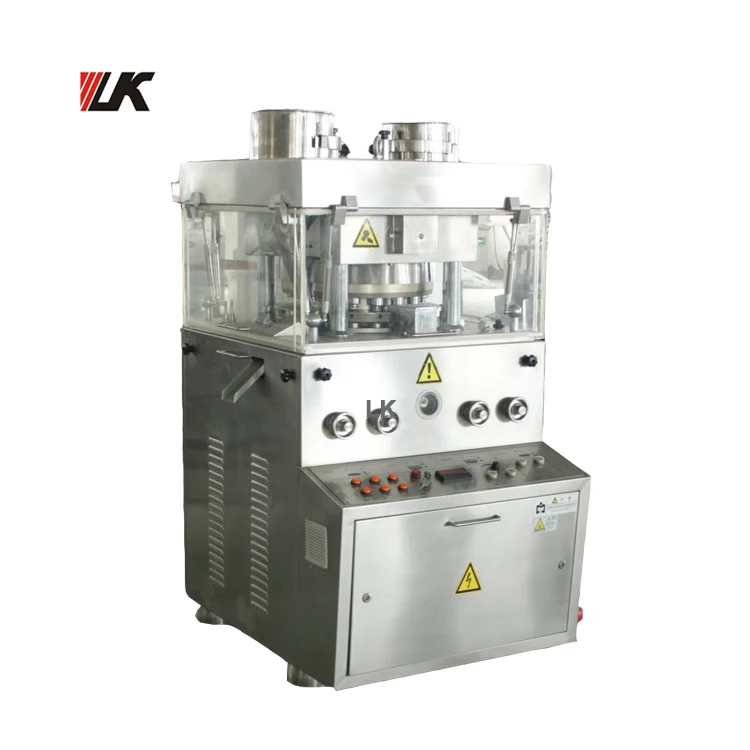

Wet Granulator Three Dimensional Mixer Tablet Press Machine
