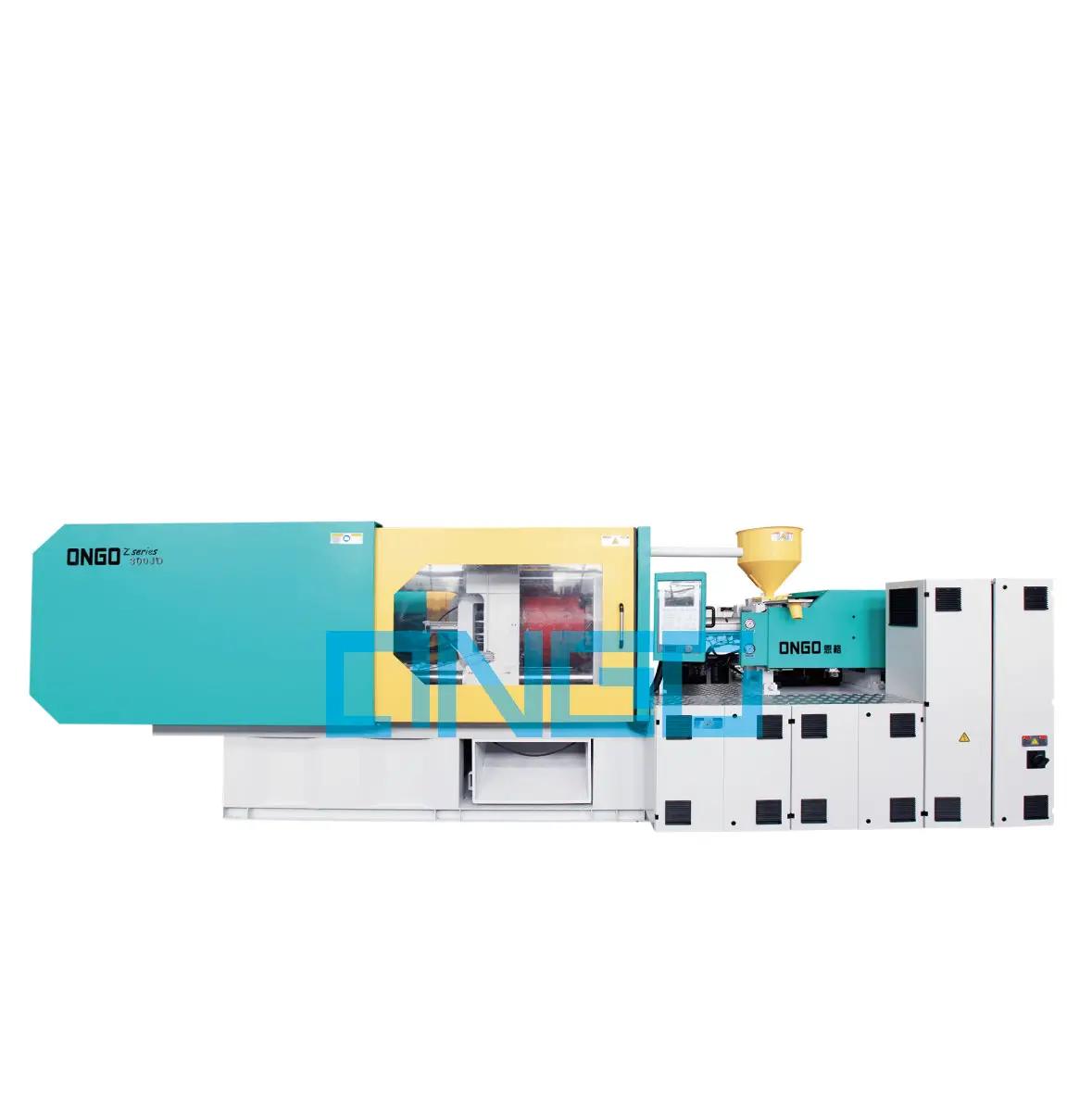

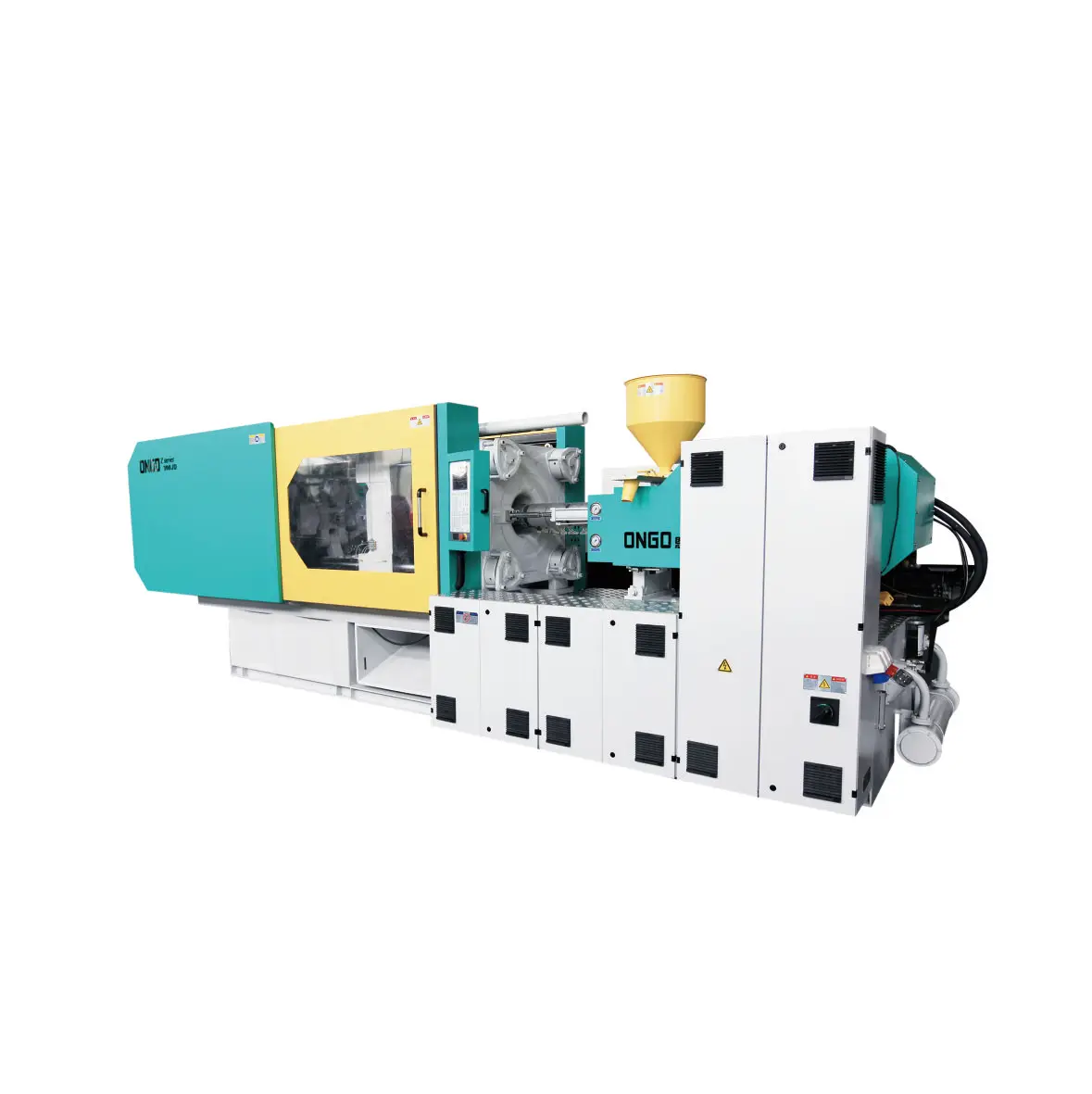

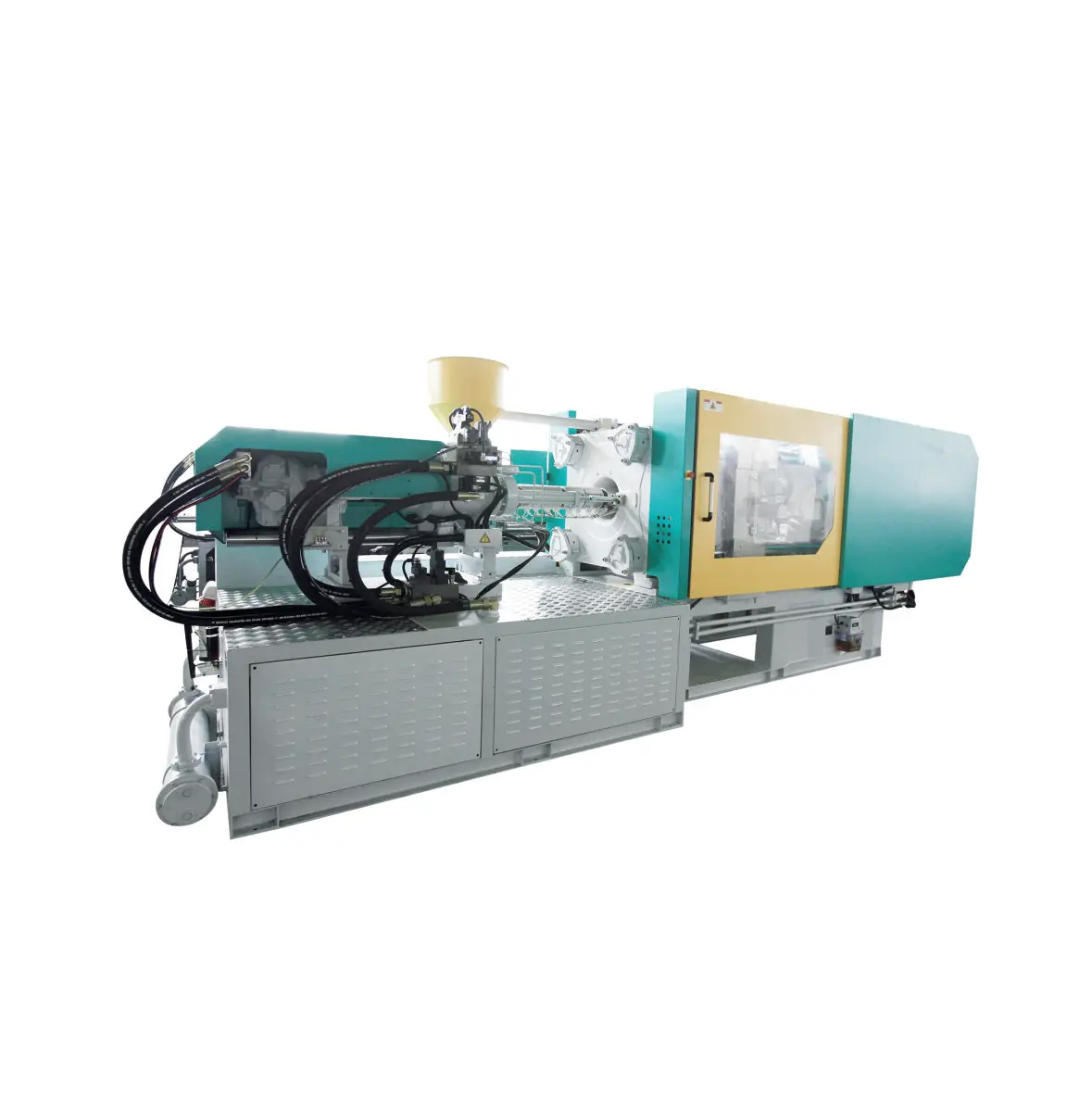

Disposable Cutlery syringe high speed Injection Molding Machine

Product Overview

Description

ITEM		N550
INJECTION UNIT
screw diameter	mm	60
Screw diameter	L/D	25
shot volume(theoretical)	cm3	820
injection weight(ps)	g	746
Injection speed	mm/s	375
injection rate	g/s	964
injection pressure	Mpa	185
screw speed	rpm	350
CLAMPING UNIT
clamping force	kN	5500
open stroke	mm	755
space between tie bars(WxH)	mm	780x780
max mould height	mm	850
min mould height	mm	330
ejector stroke	mm	233
ejector force	kN	151
OTHERS
max pump pressure	Mpa	16
pump motor power	kW	102/96
heating power	kW	31
machine dimension(LxWxH)	m	8.9x2.2x2.3
oiltank cubage	l	700
machine weight	t	25



FAQ



Q1: Are you trading company or manufacturer?
A: We are factory which has over 15 years' manufacturing experience and 80% engineer work have more than 10 years.
Q2: How long is your delivery time?
A: 5 - 20 days after order confirmed. Based on the item and quantity.
Q3: What's the MOQ?
A: 1 set.
Q4: What is your terms of payment?
A: If amount ≤ 1000 USD, 100% in advance, if amount ≥ 1000 USD, T/T 30% as deposit, and 70% balance before shipping. We'll show you the photos of the products and package.
Q5: Where's your general loading port?
A: Ningbo port and Shanghai Port
Q6: Can you do OEM?
A: Yes, we can do OEM.
Q7: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How to deal with the faulty?
A: First, our products are produced in strict quality control system, but if any faulty, we'll send new spare parts for free in one warranty year.
Secondly, our technician will periodically follow up customer to help to do maintenance and ensure equipment operation 7/24 be guaranteed.
Q9: How can get the shipping cost?
A: You tell us your destination port or delivery address, we check with Freight Forwarder for your reference.
