FTTH FTTB Fiber Optic OLT ONT Network Router Dual 8 Pon 10G 4 Ports 8 Ports 16Ports GEPON GPON EPON ONU Terminal modem SFP SLOT
- Category: >>>
- Supplier: Shenzhen Ih Optics Co. Ltd.
Share on (62431711864):
Product Overview
Description
Product Description

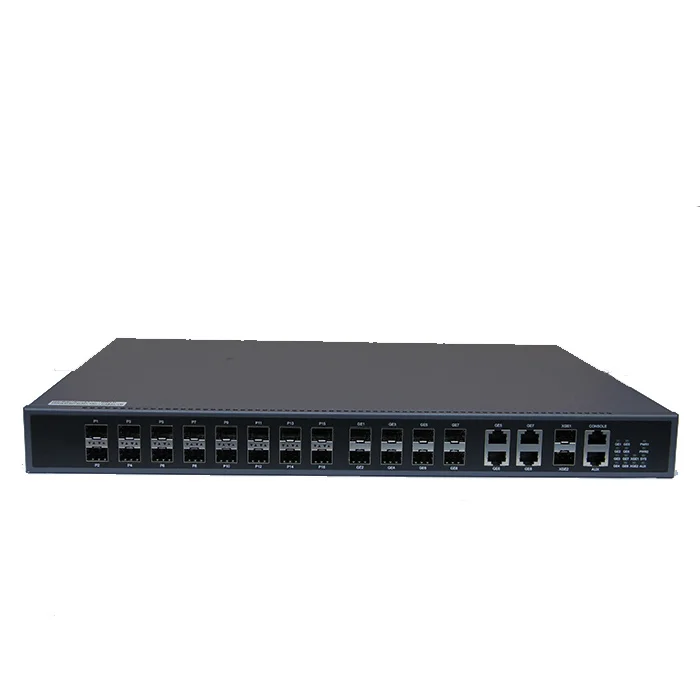

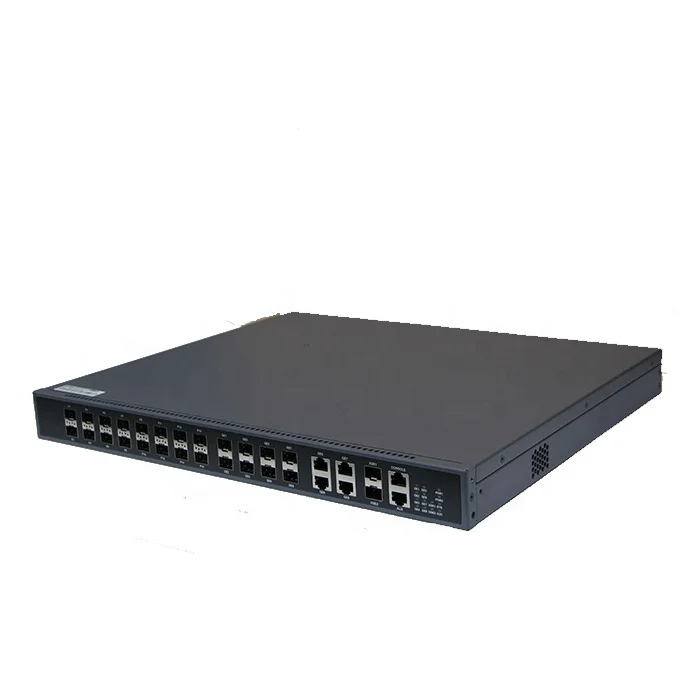

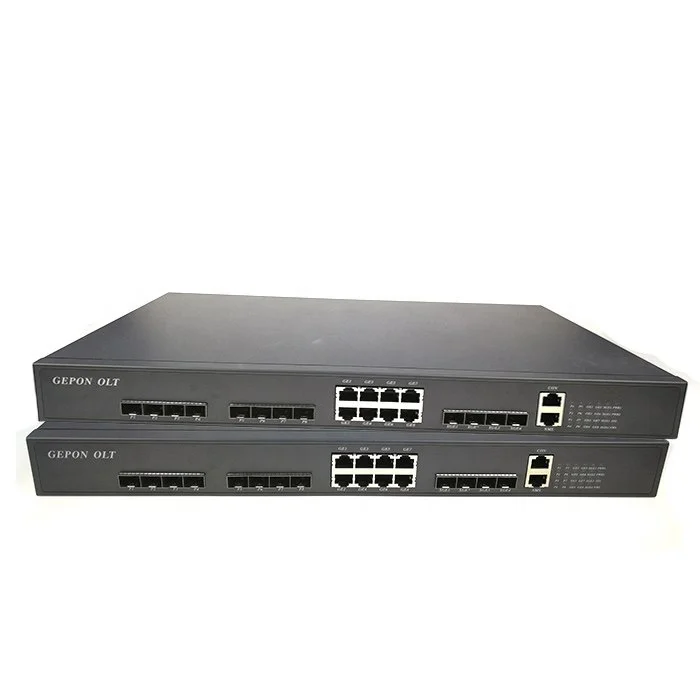

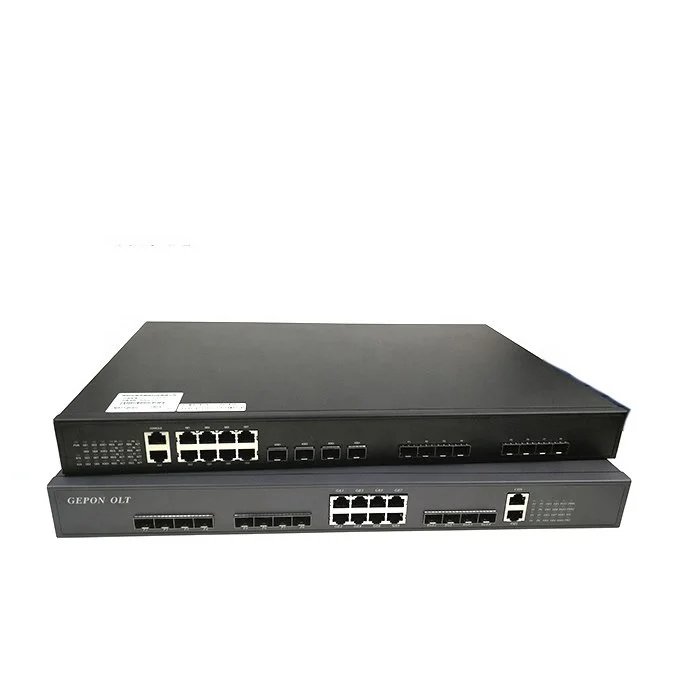

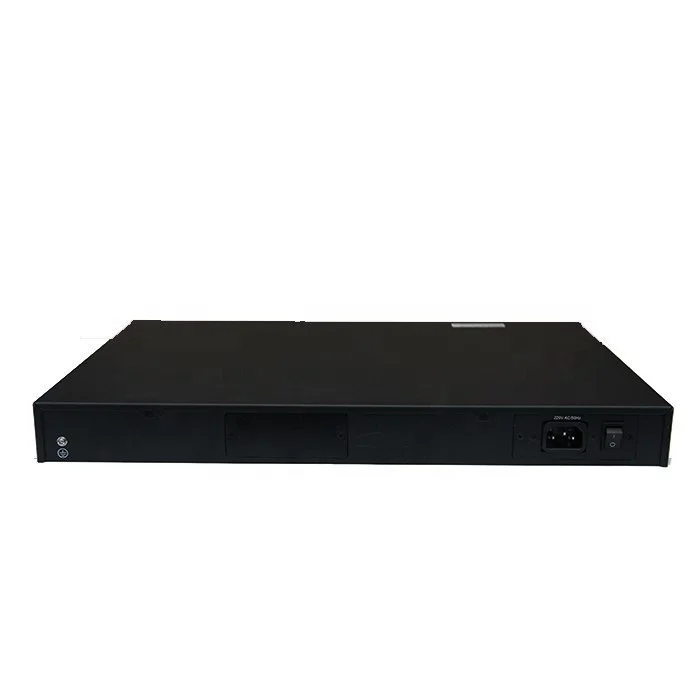

GPON OLT 8 port type it provides 8 downlink GPON ports ,8 uplink GE optical ports,8*10/100/1000M electrical ports with an expansion slot,can access 2*10G SFP+ ports. only 1U height,easy to install and save space. And 16 port type it provides 16 downlink GPON ports ,4 uplink GE optical ports ,4*10/100/1000M electrical ports with an expansion slot , cab access2*10G SFP+ports, 1U high .
Gpon OLT it can splitting ratio up to 1:128,supports different types of ONU hybrid networking which minimizes network operator's investment. It has powerful ethernet service and QoS guarantee, supports SLA and DBA.
1. GPON series complies with ITU.T G.984.x and YD/T 1475-2006 standard.
2. System capacity:Single PON port can support the access of 128 terminals,the overall unit can support 1024 ONU terminals.
3.Uplink port: support many different types of metropolitan area network interface combination,according to network situation,select 1000M or 10000M port.
4.Device size: 1U,occupies little space in the computer room,less power consumption,reduces business operating cost.
5.High reliability guarantee,support dual power supply.
2. System capacity:Single PON port can support the access of 128 terminals,the overall unit can support 1024 ONU terminals.
3.Uplink port: support many different types of metropolitan area network interface combination,according to network situation,select 1000M or 10000M port.
4.Device size: 1U,occupies little space in the computer room,less power consumption,reduces business operating cost.
5.High reliability guarantee,support dual power supply.

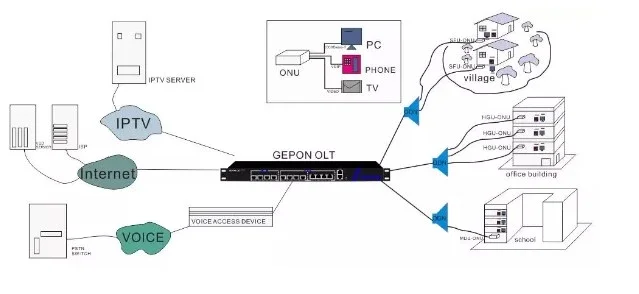

-Local Area Network (LAN)
-Data communication network
-Telecommunication optical transmission network
-Optical access network(OAN)
-Active device termination
-Fiber optics data transmission(FODT)
-Test Equipment
-CATV
-Data communication network
-Telecommunication optical transmission network
-Optical access network(OAN)
-Active device termination
-Fiber optics data transmission(FODT)
-Test Equipment
-CATV
Product Parameter:
Item | Parameter |
Switching capacity | 512Gbps |
Throughput(IPv4/IPv6) | 100Mpps |
Service port | 8/16*PON ports,8/4*1.25G SFP slots, 8/4* electrical ports, 2*10G SFP+ slots. |
Redundancy design | Dual power supply,support dual AC input,dual DC input and AC+DC input |
Power supply | AC:input 100~240V 47/63Hz, DC:input-36V~-75V |
Power consumption | ≤85W |
Outline dimensions (mm) (W*D*H) | 440mm×44mm×380mm |
Weight (in maximum configuration) | ≤3kg |
Working temperature | 0°C~40°C |
Storage temperature | -40°C~70°C |
Relative humidity | 10%~90%,no condensing |
Perfomance Specifications:
Related Products
Product Line
Packing&Shipping
This easy to take and well-protected fiber optical cable package has been labeled and marked by IHong as default. Customized label
or package solution are available on request.
or package solution are available on request.
Company Introduction
Contact Me
FAQ
Q1: Can I have some samples for testing quality?
A1: Yes, you can buy some samples of any our products for testing quality and market.
A1: Yes, you can buy some samples of any our products for testing quality and market.
Q2: What is delivery time if we place an order?
A2: It depends order quantities. Usually, we can deliver goods within 3 -5 working days for small orders, for more QTY. order, let's confirm when you place offical order.
A2: It depends order quantities. Usually, we can deliver goods within 3 -5 working days for small orders, for more QTY. order, let's confirm when you place offical order.
Q3: Do you accept OEM/ODM?
A3: We support OEM/ODM service: Pls don’t hesitate to tell us your ideas.
A3: We support OEM/ODM service: Pls don’t hesitate to tell us your ideas.
