4K HDMI input ,
3G-SDI input & loop output,
1920x1080, Full HD resolution,
1000cd/m² high brightness,
1000:1 high contrast,
HDR support HDR 10 & HLG.

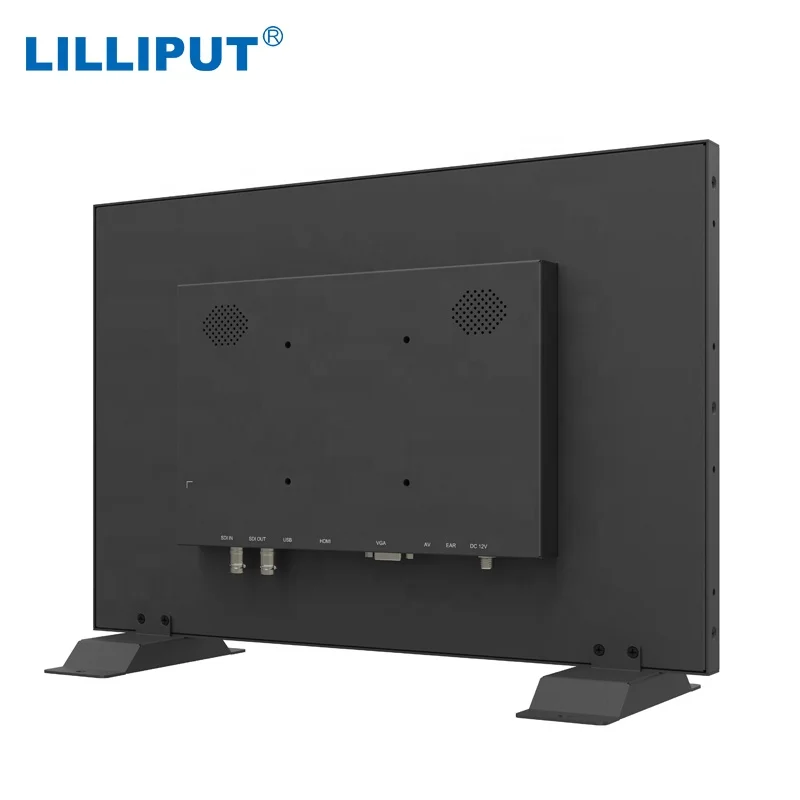

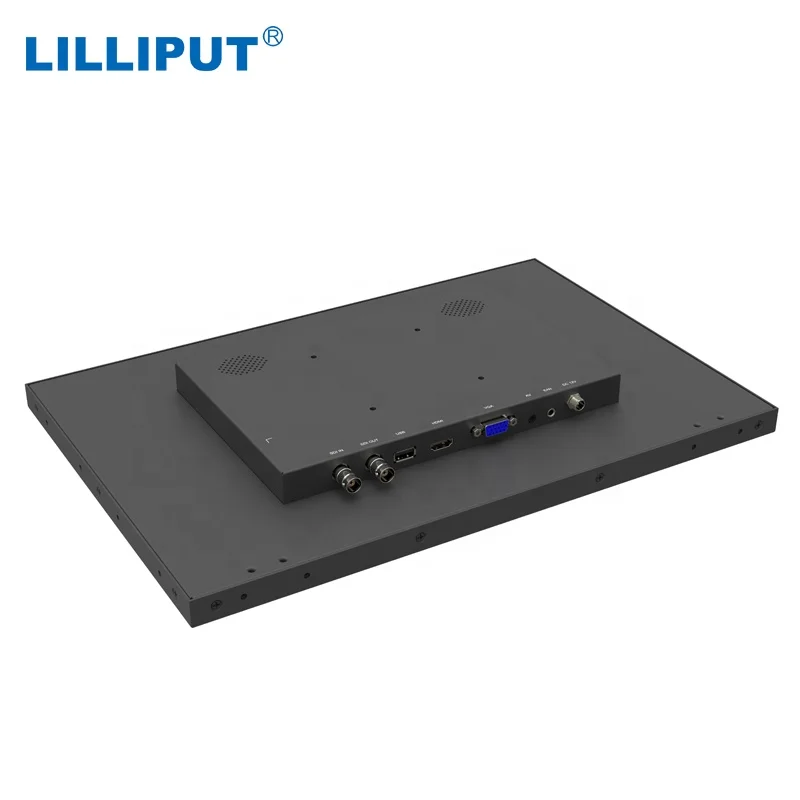

4K HDMI / 3G-SDI / VGA / Composite HDMI 1.4b supports 4K 30Hz signal input, SDI supports 3G-SDI, HD-SDI and SD-SDI signal inputs.Universal VGA and AV composite ports can also meet different usage environments.
FHD Resolution
Creatively integrated the 1920×1080 native resolution into a 15.6 inch LCD panel, which is far beyond from HD resolution.
1000nit High Brightness
Features with 1000:1, 1000 cd/m2 high brightness & 178° WVA.
As well as seeing every detail in massive FHD visual quality, it is sunlight readable in the open air.
DISPLAY | Display Screen | 15.6" 8bit IPS |
|---|---|---|
| Physical Resolution | 1920×1080 | |
| Aspect Ratio | 16:9 | |
| Brightness | 1000cd/m2 | |
| Contrast | 1000:1 | |
| Viewing Angle | 178°/178°(H/V) | |
INPUT | 3G-SDI | 1 |
| HDMI 1.4b | 1 ( support 4K 30Hz ) | |
| VGA | 1 | |
| AV | 1 | |
OUTPUT | 3G-SDI | 1 |
AUDIO | Speaker | 2 |
| Ear Phone Slot | 1 | |
POWER | Current | ≤2A(12V) |
| Input Voltage | DC 10-24V | |
| Battery Plate | F970 | |
| Power Consumption | ≤24W | |
ENVIRONMENT | Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ | |
DIMENSION | Dimension(LWD) | 252mm × 157mm × 25mm |
| Weight | 2.87kg |
