Industrial Herbs spices dryer steam sterilizer
- Category: >>>
- Supplier: Zhucheng Zhonggong Machinery Co. Ltd.Zhucheng Ltd.
Share on (62431817427):
Product Overview
Description
Product Description

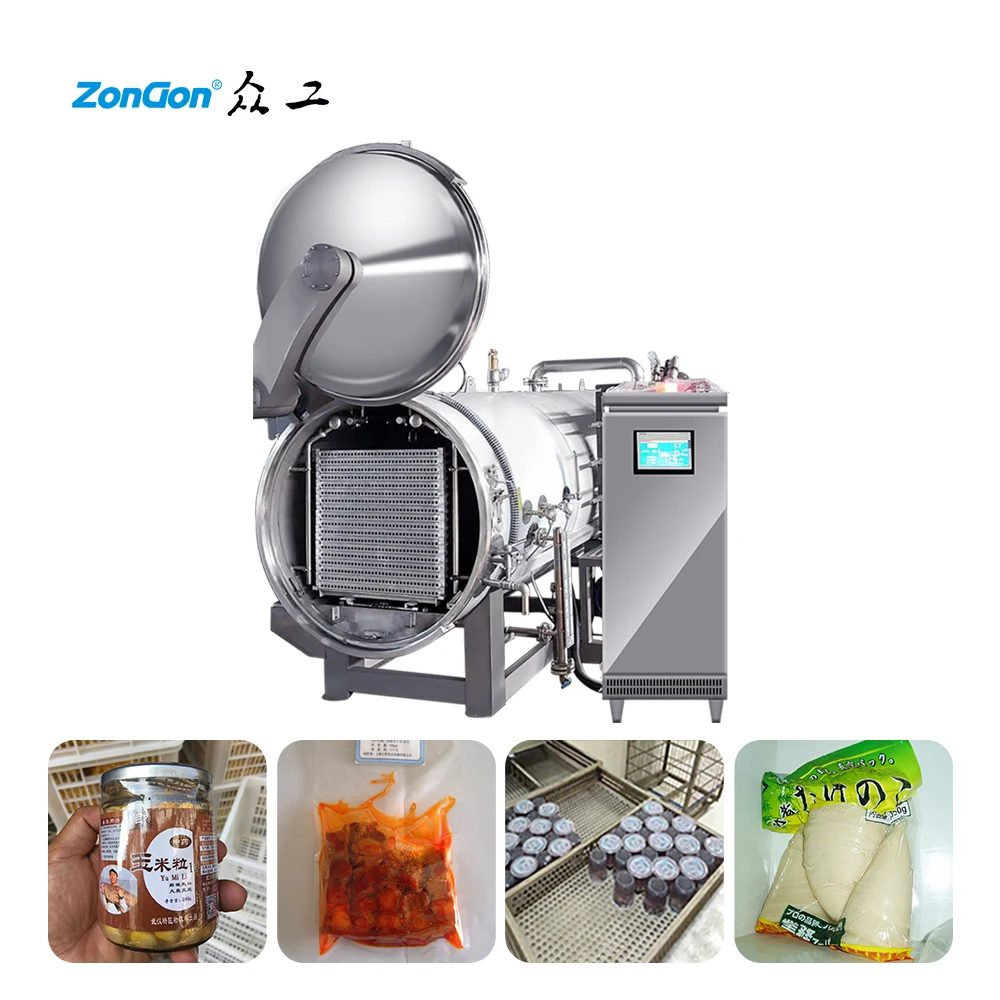

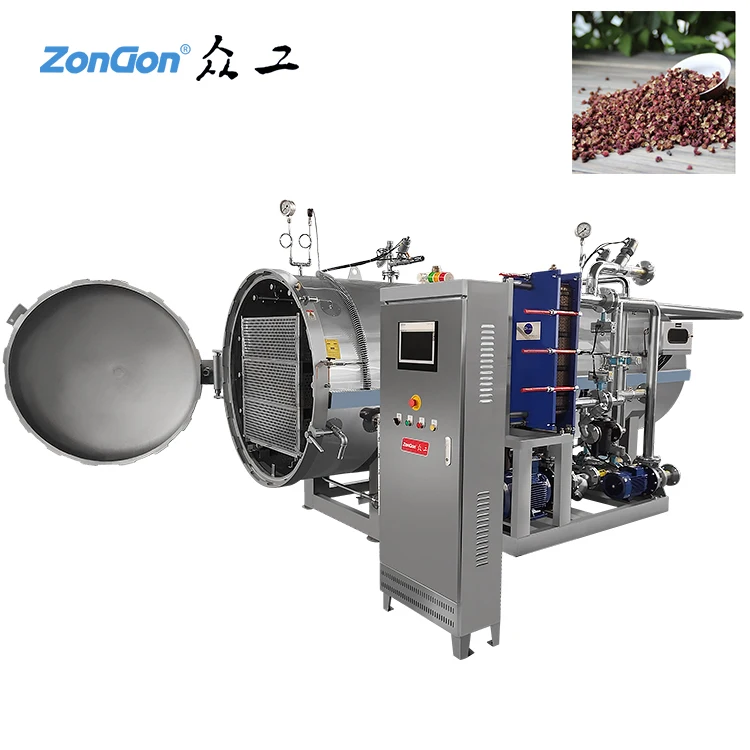

Industrial Herbs spices dryer steam sterilizer
Steam sterilizer retort Mean Features:
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Running in a high automatization and intellectualization,no pollution
3) Running in a high automatization and intellectualization,no pollution
Model | 900 | 1000 | 1200 | 1300 | ||||||||
Kettle length(mm) | 1800 | 2200 | 2400 | 2700 | 3600 | 4000 | 3600 | 4000 | ||||
Capacity(m³） | 1.35 | 2.06 | 2.16 | 3.70 | 4.60 | 5.00 | 5.20 | 5.82 | ||||
Body thickness(mm) | 4 | 4 | 4 | 5 | 5 | 5 | 5 | 5 | ||||
Installed power(KW) | 6.2 | 7 | 7 | 11.5 | 11.5 | 13 | 13 | 13 | ||||
Designed pressure(Mpa) | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | ||||
Designed Temperature(℃） | 147 | 147 | 147 | 147 | 147 | 147 | 147 | 147 | ||||

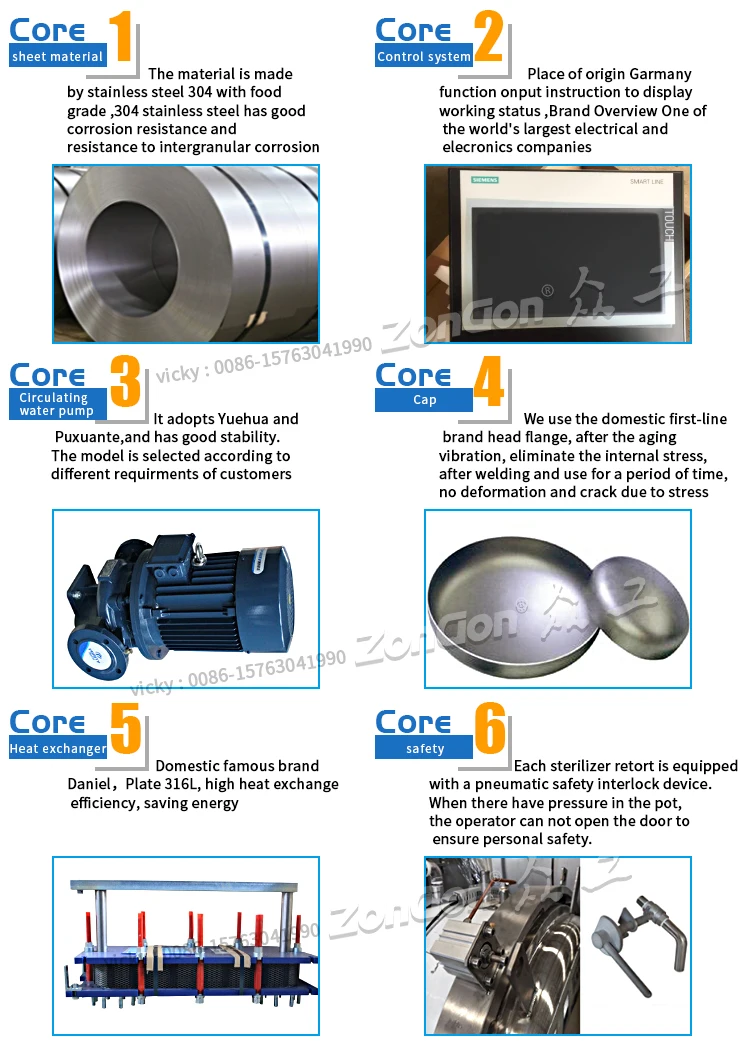

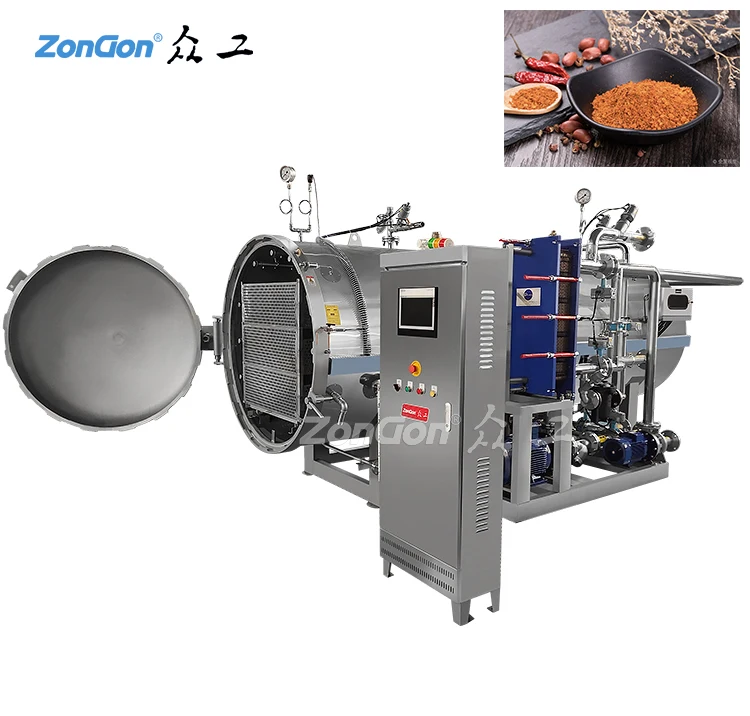

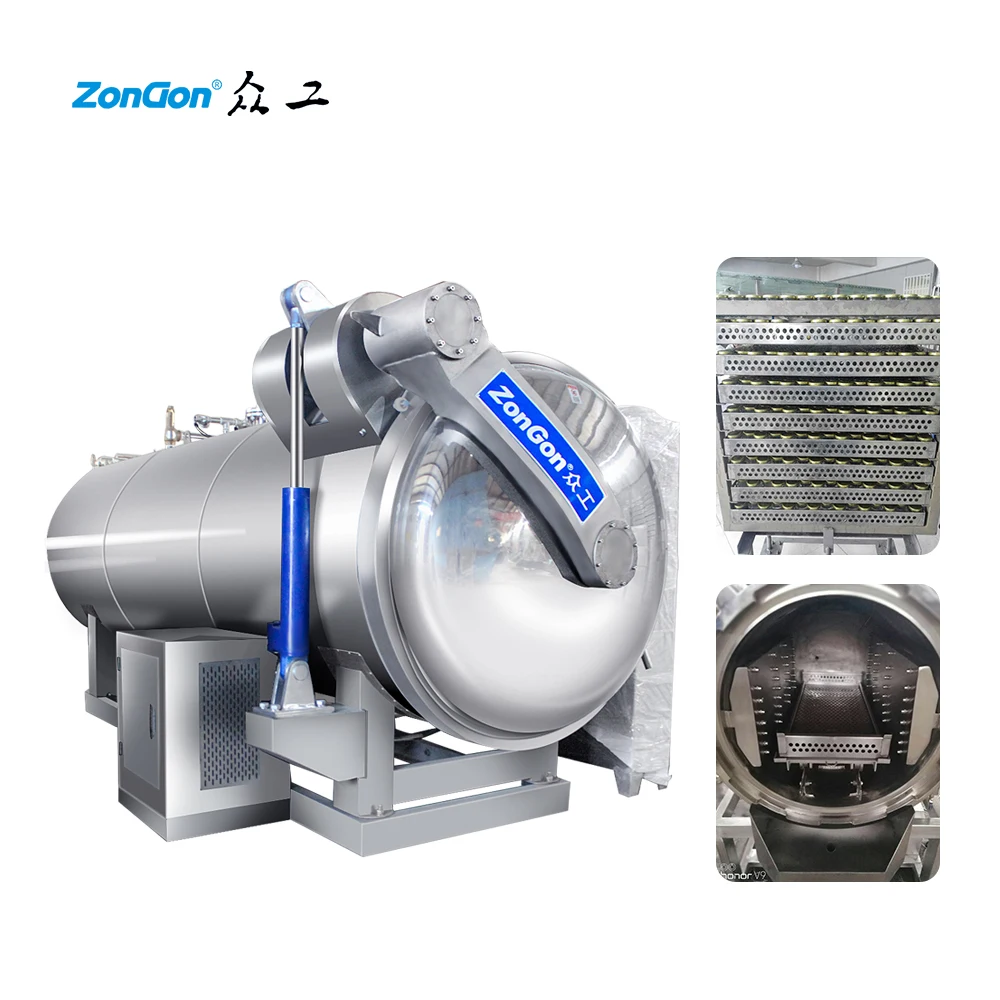

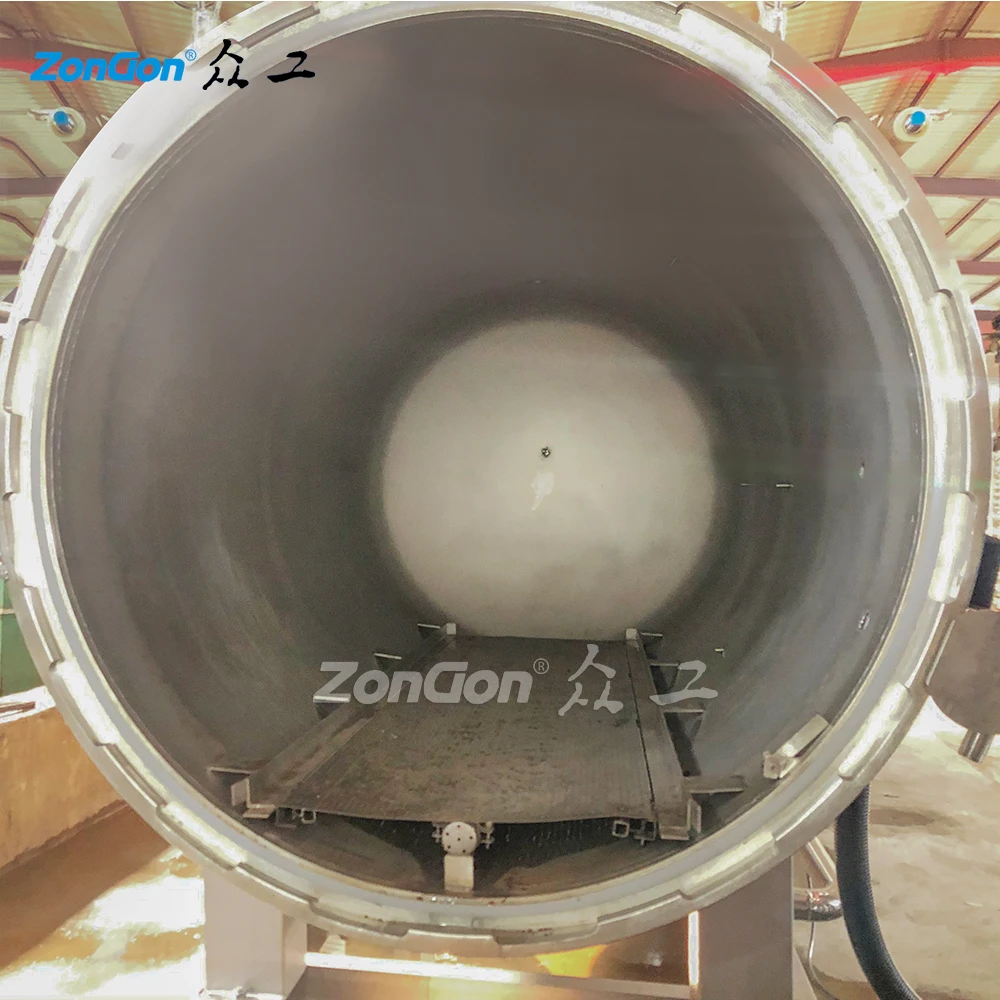

Detailed Images
Equipment Characteristics
1. Uniform temperature distribution:In the process of heating and sterilization, the water is continuously sprayed from nozzles adopted high speed spraying, so that the temperature in the pot is kept stable and the sterilization effect is improved.
2. Direct heating and indirect cooling, and prevent the second pollution. Sterilizing and cooling processes use the same water. Circulating water is directly heated by steam diffusion tube in the heating process. Under 0.5MPapressure, it only takes 6-12min to rise the temperature from 20 DEG to 121 DEG. Continuous cooling by heating exchanger is isolated from the products, preventing the second pollution in the cooling effectively
2. Direct heating and indirect cooling, and prevent the second pollution. Sterilizing and cooling processes use the same water. Circulating water is directly heated by steam diffusion tube in the heating process. Under 0.5MPapressure, it only takes 6-12min to rise the temperature from 20 DEG to 121 DEG. Continuous cooling by heating exchanger is isolated from the products, preventing the second pollution in the cooling effectively
3.Full-automatic control system
a.Simens touch screen
b.No-paper recorder
c.Imported automatic valves
Mean Feature
From single machines to complete processing lines, we enhance value and capture quality, nutrition and taste in food products.
High quality is our goals, our product is equipped with components made by top-class companies (SIEMENS ,MITSUBISHI,SMC) and
humanrized human machine interface. All of this help our users get the best sterilization effects with simplest operations. "
Nanny Style Service" is our crucial service ideas. 24 Hours Services Hotline offer our best services.
Focusing on science, and introduce advanced sterilization technology. More than 10 engineers New Product Development Center
researches new products according to various users. Our new invention which controls sterilization with F value was patented . We
would like to change our lives with our exquisite and advanced technology.
Until now
High quality is our goals, our product is equipped with components made by top-class companies (SIEMENS ,MITSUBISHI,SMC) and
humanrized human machine interface. All of this help our users get the best sterilization effects with simplest operations. "
Nanny Style Service" is our crucial service ideas. 24 Hours Services Hotline offer our best services.
Focusing on science, and introduce advanced sterilization technology. More than 10 engineers New Product Development Center
researches new products according to various users. Our new invention which controls sterilization with F value was patented . We
would like to change our lives with our exquisite and advanced technology.
Until now

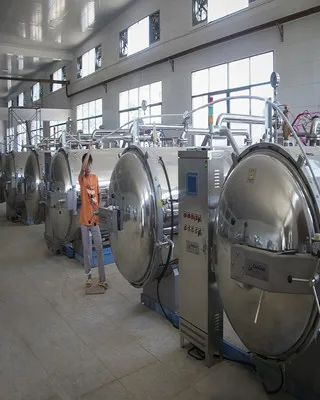

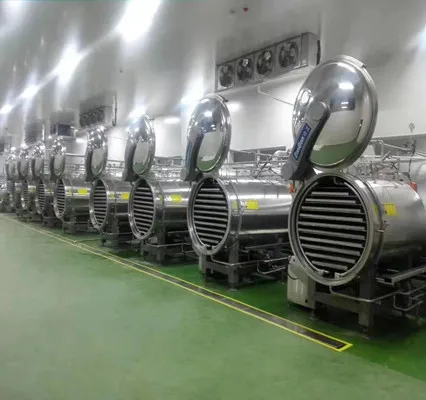

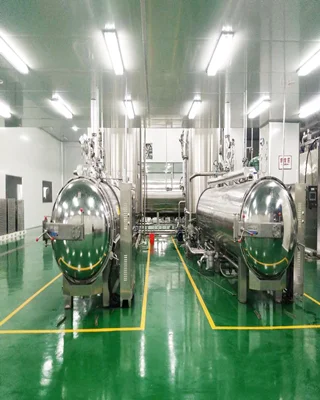

Customer case
Our Serviecs
VISITING CUSTOMERS
IF YOU WANT TO KNOW MORE ABOUT OUR PRODUCTS, WELCOME TO OUR COMPANY FOR DETAILED INFORMATION. HERE WE HAVE PROFESSIONAL ENGINEERS
AND TECHNICIANS TO INSTRUCT YOU.
IF YOU WANT TO KNOW MORE ABOUT OUR PRODUCTS, WELCOME TO OUR COMPANY FOR DETAILED INFORMATION. HERE WE HAVE PROFESSIONAL ENGINEERS
AND TECHNICIANS TO INSTRUCT YOU.
PRE-SALES SERVICE
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
AFTER-SALES SERVICE
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.
Related Products

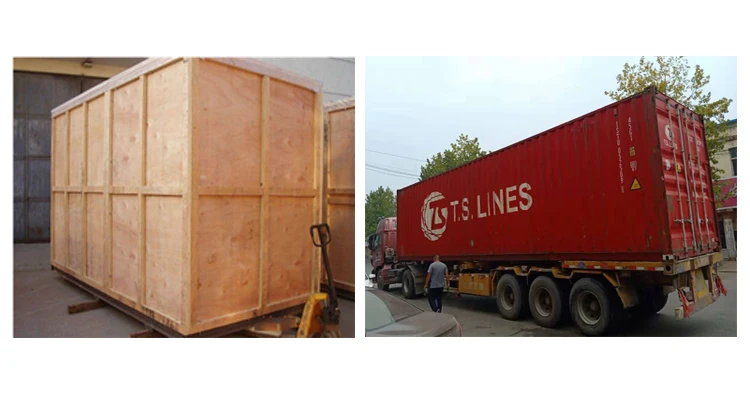

Packing&Shipping
Sterilizer-Exporting package , per your requirements
Before delivery, our professional technician will do trial run for each product to check until everything is functional, you also can come to our factory and test our machine together with us.
When loading, our workers will fix the retorts sterilization tightly with wire rope so that the retorts can't move in the container.
Company Introduction
Our company was established in 2002, and we are committed to engaging in food fully automatic new atmosphere retorts, automatic universal cooking pot, new gas modulation nitrogen machine, new modified atmosphere packaging machines, new modified atmosphere food technology, conventional high-temperature sterilization retort pot sandwich pot research, design, manufacturing, modern services in one company, and our company has a national pressure vessel manufacturing license qualification(Certificate Number: TS2237350-2013), and successfully passed the food safety regulator's Shandong Province, the KYL type retorts Open the door security chain device identification(ID: SY-WT-2010-0019), and the products have passed the ISO9001 international management system certification, and our company has independent import and export operation rights.
FAQ
WE ALWAYS EXPLOR ALL THE POSSIBILITIES TO HELP CUSTOMERS TO SOLVE PROBLEMS AND UPGRADE THEIR PRODUCTS QUALITY-sterilizer retort
1. What if there is something wrong with the machine within one and half year?
We have two ways to solve this problem:
1) Phone call guidance to confirm the problem.
2) We will take video to show 'how to solve the problem'. All the problem can be solved by video guidance.
2.What if the PLC is suddenly broken down?
We use German Brand PLC, it is quite stable brand. If really broken down, what we usually do is:
1) We suggest customer to buy one more for storage. The computer we will also upload the program.
2) Once it is broken down, then take replace the new one, the broken one, send back to us, we re-do the system, and send it back to you again.
3.What is the difference between retort and autoclaving?
Both words refer to the process of sterilizing a given item. This item could be medical instruments, a sealed container of food,
or anything else.So there is no difference between these two terms. They are two different ways to say the same thing.
4.Is retort machine advisable to replace autoclave in microbiology laboratory?
A retort is an autoclave. The difference here is that our retorts can perform various processes i.e. water spray, water immersion
and steam-air in addition to saturated steam with or without horizontal or rotational agitation.
1. What if there is something wrong with the machine within one and half year?
We have two ways to solve this problem:
1) Phone call guidance to confirm the problem.
2) We will take video to show 'how to solve the problem'. All the problem can be solved by video guidance.
2.What if the PLC is suddenly broken down?
We use German Brand PLC, it is quite stable brand. If really broken down, what we usually do is:
1) We suggest customer to buy one more for storage. The computer we will also upload the program.
2) Once it is broken down, then take replace the new one, the broken one, send back to us, we re-do the system, and send it back to you again.
3.What is the difference between retort and autoclaving?
Both words refer to the process of sterilizing a given item. This item could be medical instruments, a sealed container of food,
or anything else.So there is no difference between these two terms. They are two different ways to say the same thing.
4.Is retort machine advisable to replace autoclave in microbiology laboratory?
A retort is an autoclave. The difference here is that our retorts can perform various processes i.e. water spray, water immersion
and steam-air in addition to saturated steam with or without horizontal or rotational agitation.
