1/2.8 Inch StarLight Low Illumination 1080P 1920*1080 Pixel IMX307 Camera Module

Product Overview

Description



1/2.8 Inch StarLight Low Illumination 1080P 1920*1080 Pixel IMX307 Camera Module

IMX307 Camera Module

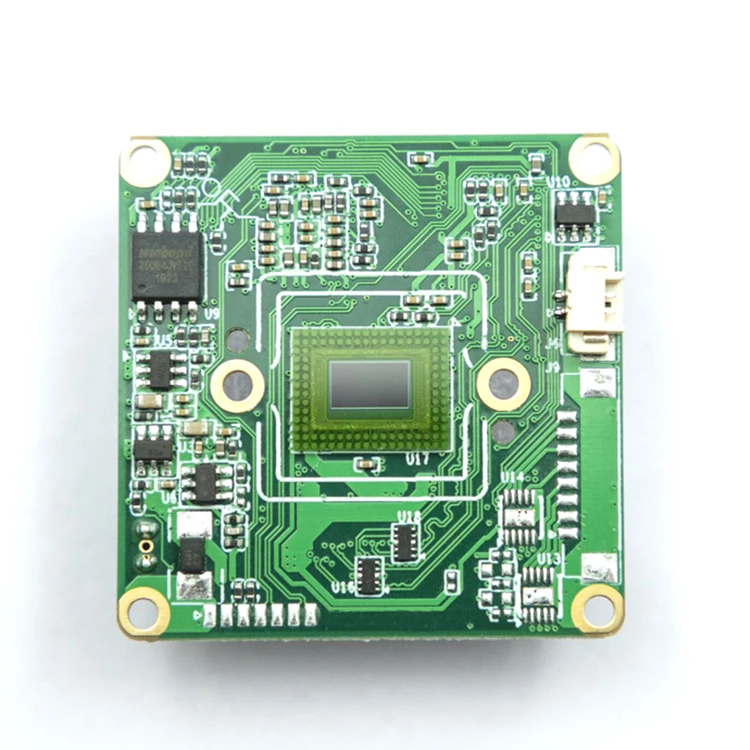

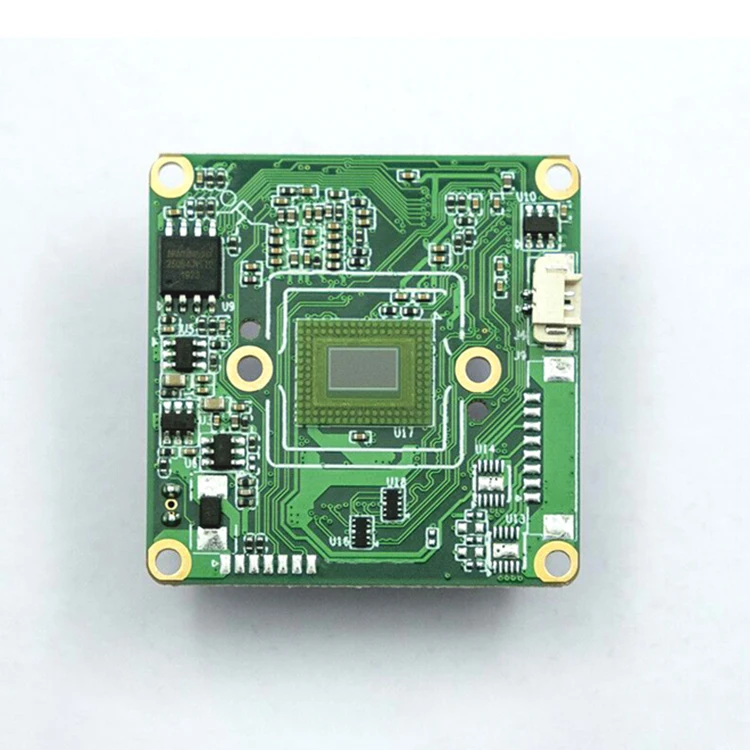

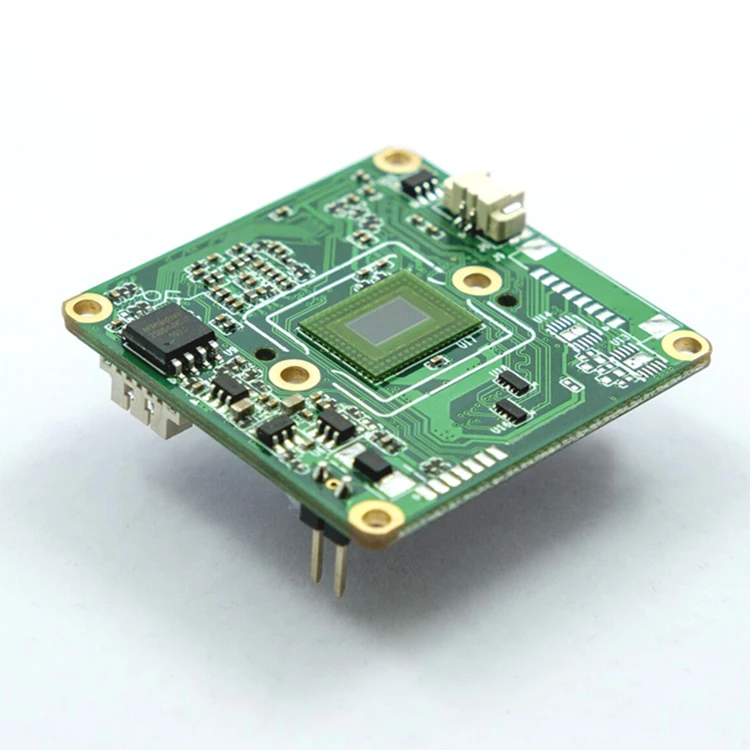

Model:NLK-MIPI-IMX307 a high quality Sony STARVIS IMX307 image sensor custom designed add-on board for Raspberry PI.



Features
1/2.8 inch Sony IMX307 STARVIS sensor
Built-in ISP processing, CSI-2 interface
Uncompressed UYVY format, YUV422-8bit data
Stanard Lens mount / IR-CUT circuit
BLC/Digital WDR, 2D/3D noise reduction, Anti-fog.
Brightness, Contrast, Sharpness, Saturation adjustable
Support Raspberry PI,FPGA,ZYNQ,RK3288,RK3399,JETSON NANO, TX2



Applications

Video surveillance
Machine Vision, AI
Smart Home and Machines
ADAS



Main Parameters

SENSOR Sensor	SONY IMX307LQD-C STARVIS
Pixels	2.07M pixels Resolution 1920*1080
Image Size	Diagonal 6.46 mm (Type 1/2.8)
Unit Cell Size	2.9um (H)*2.9um(V)
Frame Rate	1080p@25 /30fps ,720p@60fps/50fps
Exposure	Auto or Manual
White balance	Auto or Manual
Shutter	1/25(1/30)s to 1/50,000s
Slow Shutter	TBD
Denoising	2D/3D noise reduction
Image Setting	Brightness, Contrast, Sharpness, Saturation, Flip, Mirror
Image Enhancement	BLC, Digital WDR, Defog
Day/Night Switch	Manual or IR-CUT filter with external trigger
Lens	3.6mm
Lens Mount with IR-CUT	MTV12 or MTV16

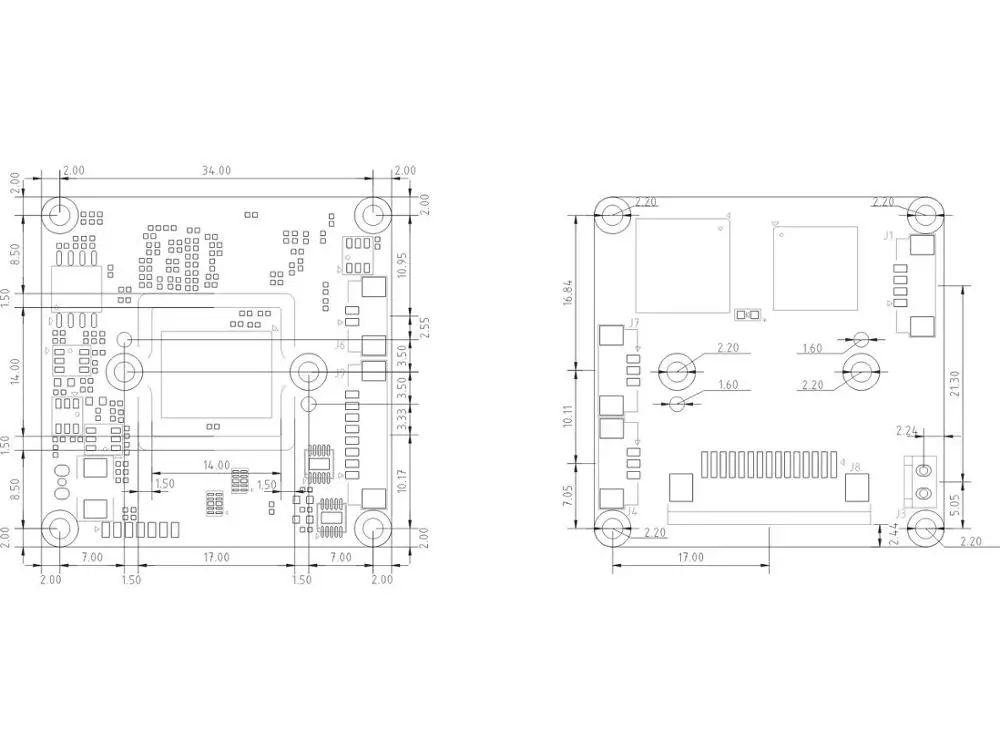

Mounting hole	2 screw holes with diameter of 2.2mm, 20mm Center-to-Center Spacing

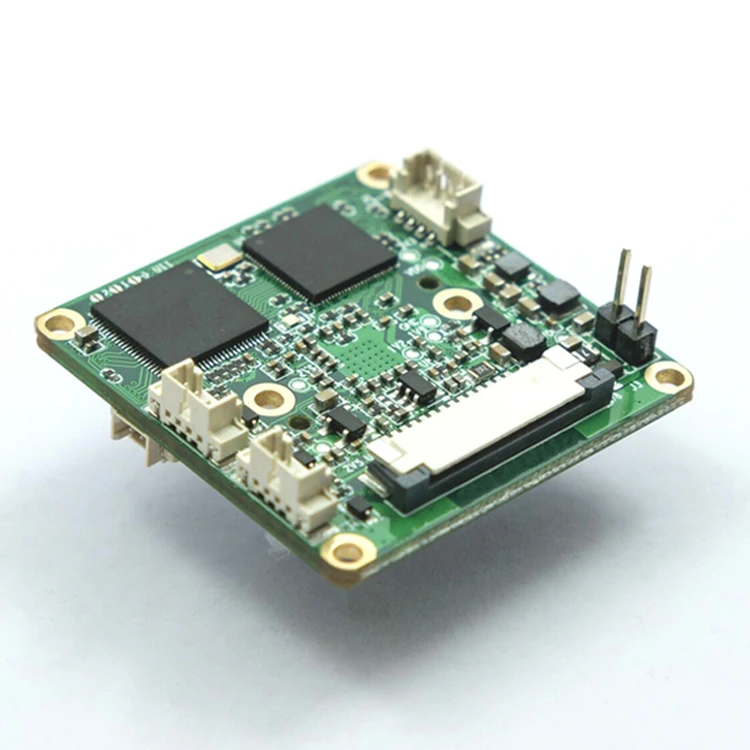

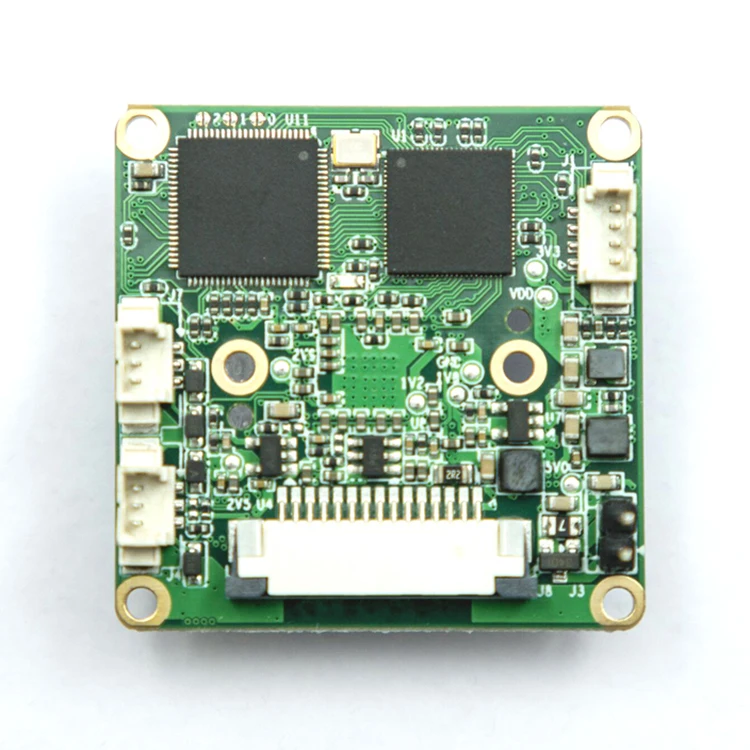

PCB Connector	15PIN FPC, Compatible with Raspberry PI
Communication Interface	IIC, 3.3VDC
Video Data Interface	CSI2,2 Data Lanes, CSI-2 YUV422-8bit,Data Type: Datarate=594Mbps/lane.
IR-CUT Control	IR-CUT motor control, 3.3VDC
Day/Night External Trigger	3.3VDC to 5VDC compatibility
Operating Conditions	-10℃-50℃, Humidity 95% or less, non-condensing
Power Supply	5VDC,1.4W
Dimension	38mm*38mm*10mm(not include lens and lens holder)
