SW CJ 2F Portable Dust Free Working Room Bench Clean Room Free Dust Room

Share on (62431980104):


Price:$1,555.00 - $1,999.00

Quantity:


Product Overview

Description

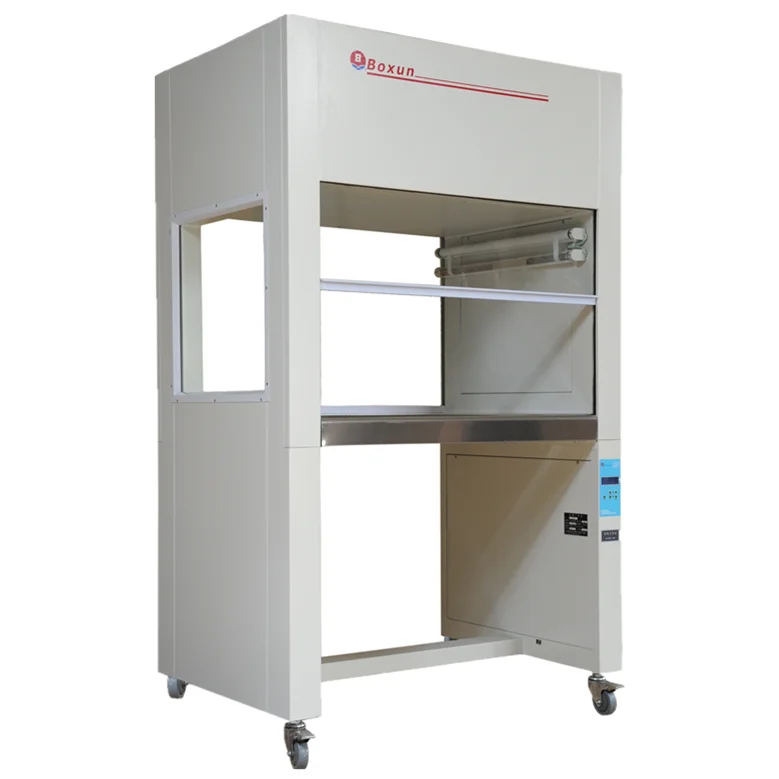

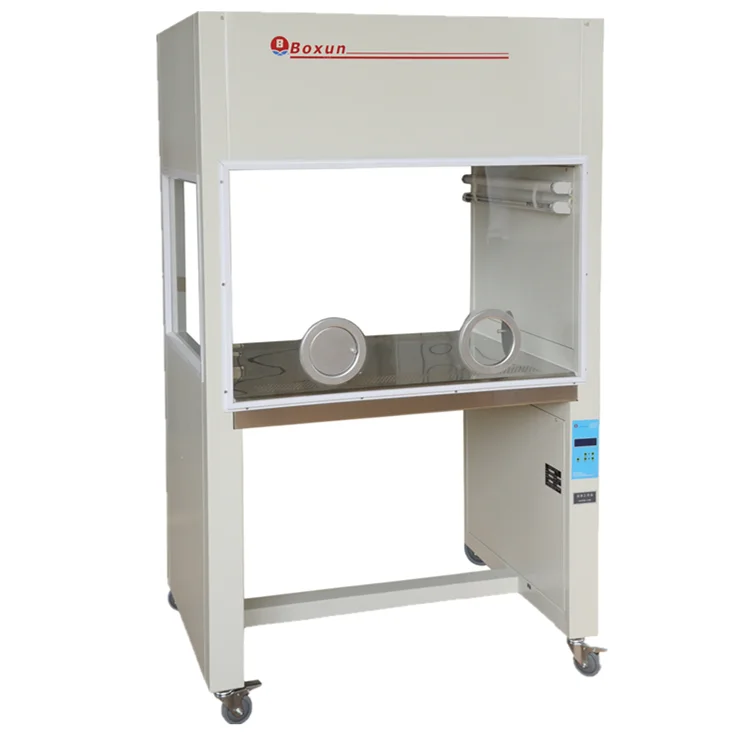

SW-CJ-2F Portable Dust Free Working Room Bench Clean Room Free Dust Room

Product Description

Vertical Airflow Clean Bench

Model

SW-CJ-1F

(single,two sides)

SW-CJ-1FD

(single,one side)

VS-840-1

(single,one side)

option locating

VS-840-2

(single,two sides)

option locating

SW-CJ-2F

(double,two sides)

option locating

SW-CJ-2FD

(double,one side)

option locating

DisplayLCD
Airflow DirectionVertical Airflow
Working Sidetwo sidesone sidetwo sideone side
PerformanceCleanliness ClassClass 100(99.99%≥ 0.5μm)
Wind Speed0.3-0.6m/s(Adjustable)
Noise≤67dB
Vibration Half Peak Value≤5μm(x/y/z direction)
Illumination≥300LX
DimensionsWorking Zone870x700x520870x700x520830x650x520830x650x5201300x650x5201300x650x520
Overall Size990x724x1650990x724x1650990x700x1650990x700x16501460x700x16501460x700x1650
HEPA820x615x50x1820x615x50x1780x565x50x1780x565x50x11250x560x50x11250x560x50x1
lamp/UV Light

20wX1

20wX1

20wX1

20wX1

20wX1

20wX1

20wX1

20wX1

40wX1

20wX1

40wX1

20wX1

OthersWeight(kg)110110115120210200
Power(kw)0.150.150.150.150.30.3
Power SupplyAC220±10V 50/60Hz



1.L*W*H(mm)

2.Working ambient temp.:5-40℃, Humidity≤70%

3.No obvious vibration and dust

APPLICABLE SCOPE:
The clean bench is a necessary basic equipment for biologic technical researches and experiments. It is widely applicable in the field of pharmaceuticals, biochemistry, environmental monitoring and electronic instruments for purifying air in the operation area.
PRODUCT CHARACTERISTICS:
The shell is made of quality cold-rolling steel with static spray plastics, the operation table is made of SUS304 which is corrosion-resistant and easy to clean;
Centrifugal fan which has steady rotate speed and low noise;
LCD control system, touch type switch, six steps of wind speed control;
Be equipped with UV light and lamp control, timer range of sterilization is 0-999min;
Vertical close type table, the down airflow formed in the operation area can prevent the air outside from permeating and keep the operation area clean;
The moveable window equipped with operation holes;

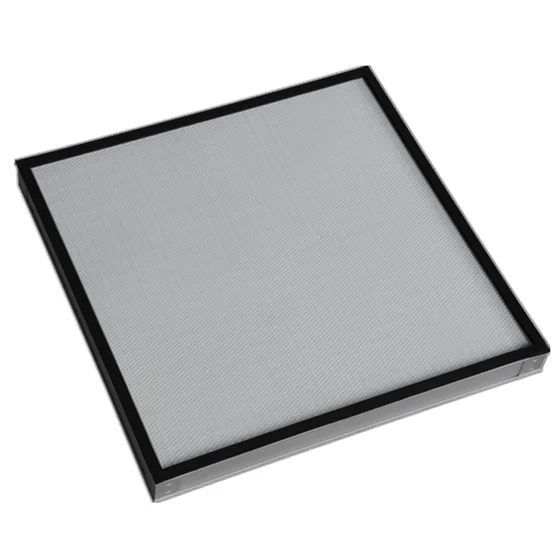

Be equipped with HEPA, the prefilter is set as the medium efficiency filter system to extend HEPA’s life.

 SW-CJ-2FD.png SW-CJ-1FD.png

 BJ-1CD .png
