Outdoor Waterproof 220V Electric DC Motor Industrial Stand Fan
- Category: >>>
- Supplier: Fujian Diamond Electrical And Mechanical Equipment Co. Ltd.
Share on (62431980133):
Product Overview
Description
Product Description

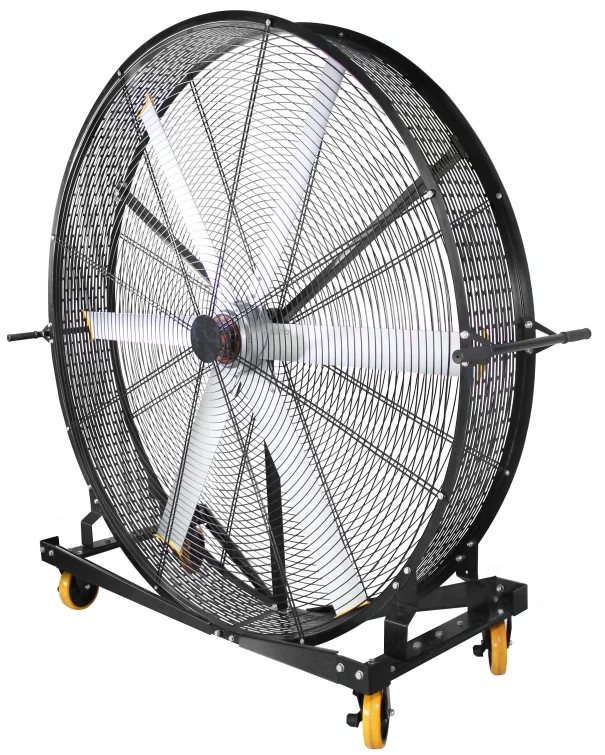

79'' Diameter Brushless DC Motor Waterproof Large Cooling Portable Floor big HVLS Fans
Super large air volume, ultra-long air blowing,feel the free wind everywhere
Model | Big movable fan WYFJ-F2000 |
Diameter | 2m |
Voltage &Power | 180V-260V 950W |
Max rotating speed | 260rpm |
Air volume | 1508m3/min |
Number of blades | 6pcs |
Noise | No more than 60db |
Long distance | 36m |
Effective area | 254 square meters |
Weight | 137kgs |

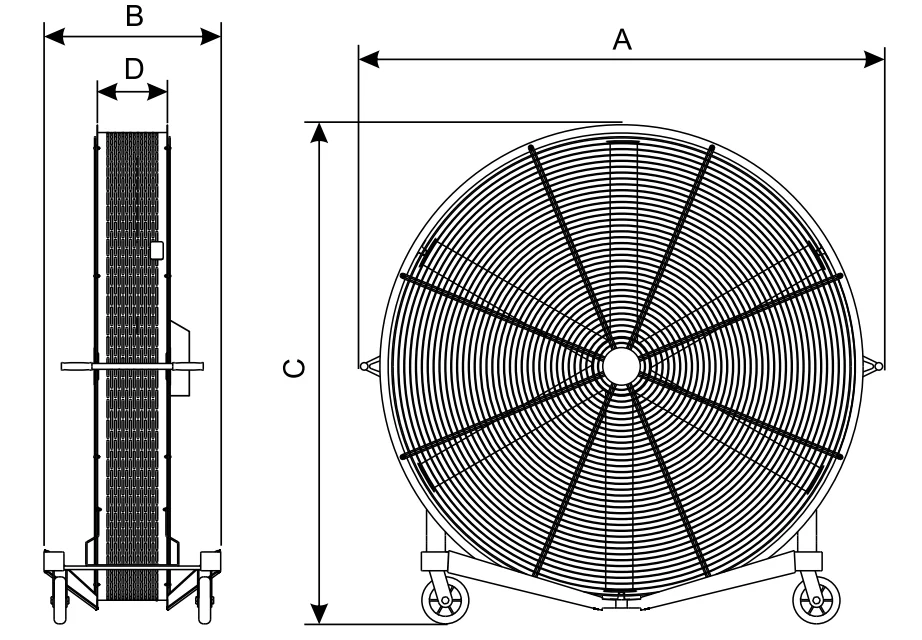

Grid fan diamensions (mm)
A: 2230mm B: 770mm C: 2130mm D: 310mm
Mesh spacing: no more than 12.5mm
Detailed Images
The whole big movable fan is made of DC brushless motor , blades, controller，bear and other spare parts

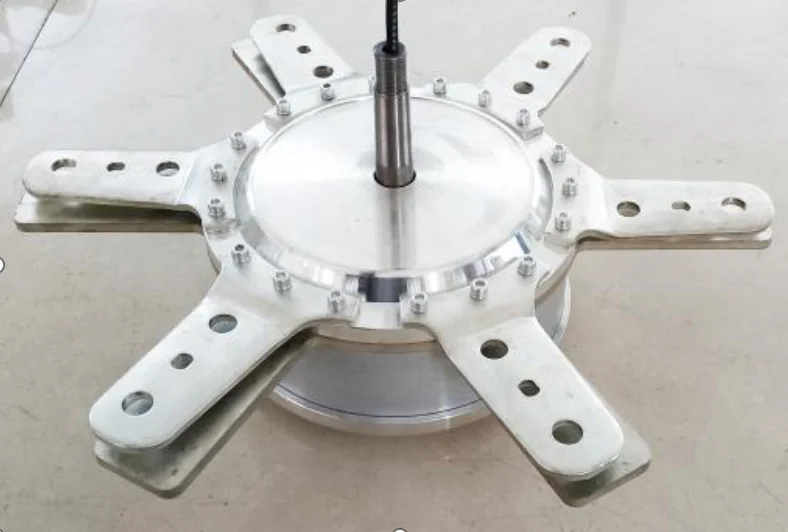

DC blushless motor
DC Brushless motor has fast speed ,low noise ,low energy consumption and long service life.
Controller
Stepless speed control can meet your demand for precise control of air volume

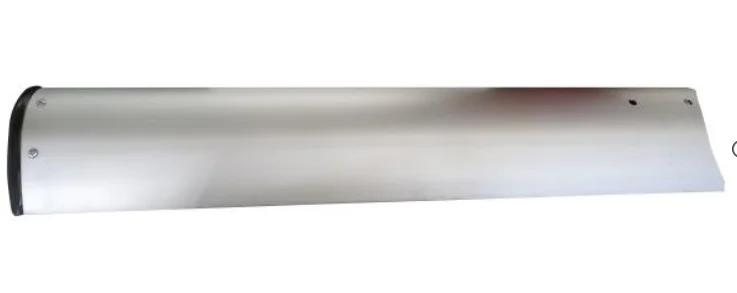

Fan blades
Blade material : aviation aluminum 6063.The fan blade surface is treated with T5+ bright surface oxidation treatment,which enhances the corrosion and oxidation resistance of the fan blade and can cope with special enviromental operations
Big Sized Warehouse Portable Large Stand DC Fans Airmove series Main Features
1. Super large air volume: Ultra-long air blowing, the effective distance is more than 36m;
2. Move easily: Designed with 4 wheels, the fan is able to move everywhere easily;
3. Energy saving: With only 0.95KW power, very low energy comsuption;
4. Quiet & Low noise: Low noise with only 43DB level.
5. Stepless Speed Control: PMSM motor driving fan blade, VFD stepless peed control, easy to operate;
6. Waterproof/Dustproof: Protection level is IP55, waterproof in overall.
7. Durable: All materials of appearance are treated with spray-painted , the barrel is 2mm thick, the ovrall hollowing out to reduce weight. 8. Plug and play: No on-site installation, all factory pre-installed and commissioned avoiding cumbersome installation and maintenance-free use.
2. Move easily: Designed with 4 wheels, the fan is able to move everywhere easily;
3. Energy saving: With only 0.95KW power, very low energy comsuption;
4. Quiet & Low noise: Low noise with only 43DB level.
5. Stepless Speed Control: PMSM motor driving fan blade, VFD stepless peed control, easy to operate;
6. Waterproof/Dustproof: Protection level is IP55, waterproof in overall.
7. Durable: All materials of appearance are treated with spray-painted , the barrel is 2mm thick, the ovrall hollowing out to reduce weight. 8. Plug and play: No on-site installation, all factory pre-installed and commissioned avoiding cumbersome installation and maintenance-free use.
Packing&Shipping
Size | 2290*800*2200mm |
Packing | Iron Frame+ PE film/ plywood case/ or by your requirements |
Gross weight | 367kgs |
Company Introduction
For more than ten years, the company focuses on the research, development and production of HVLS Ceiling fan, movable fans. Main markets are USA , Canada, The Philippines, Malaysia, India,Thailand,etc.
Pre-sales service
* Inquiry and consulting support.
* Sample testing suppoting
* Sample testing suppoting
* View our factory
After-sales service
* Training how to install and use the fans * Technical supporting video
