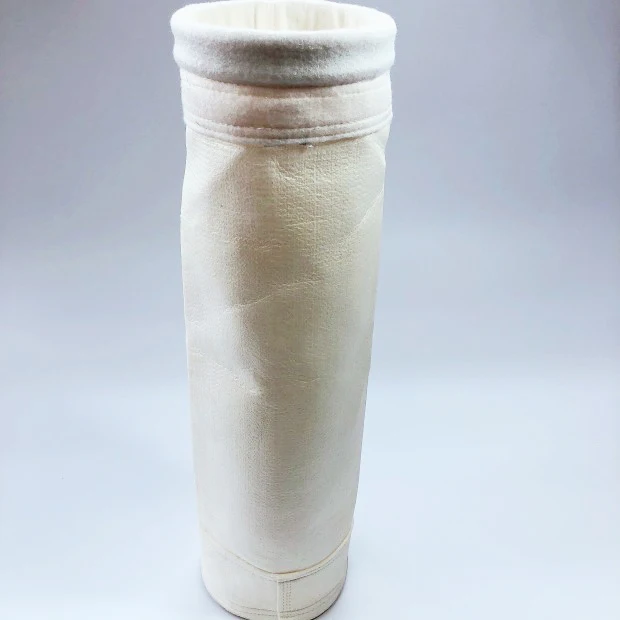

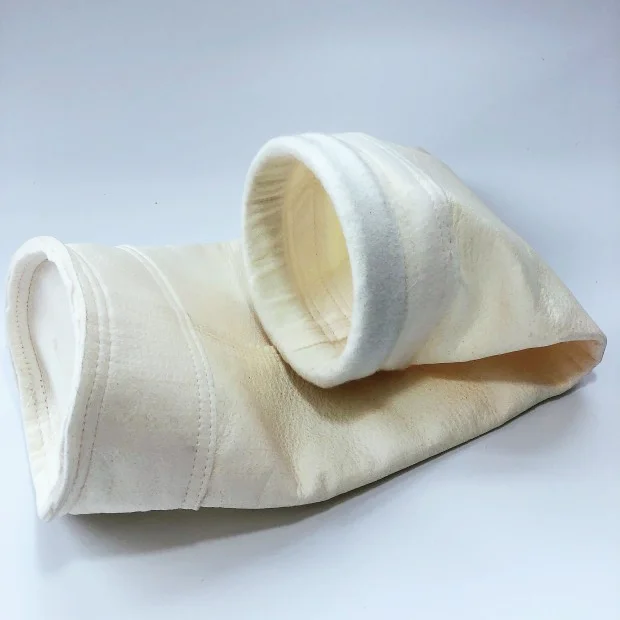

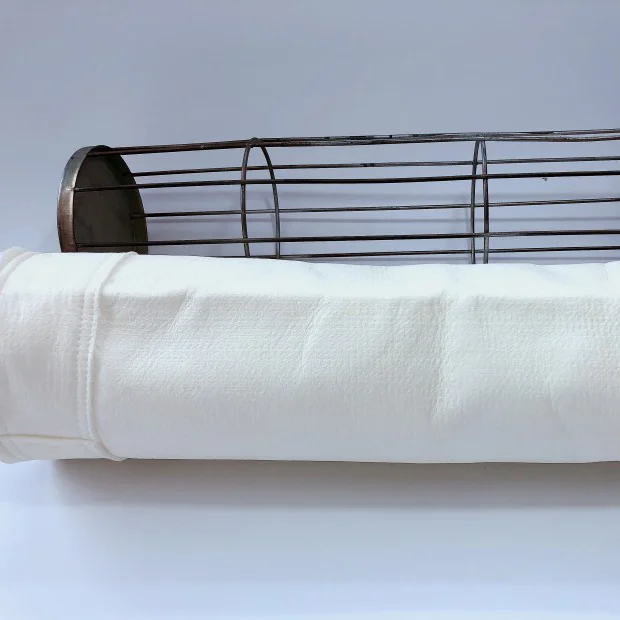

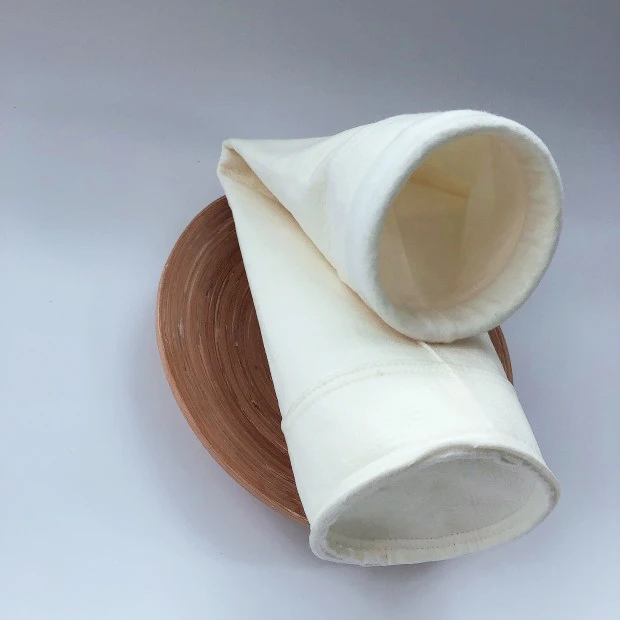

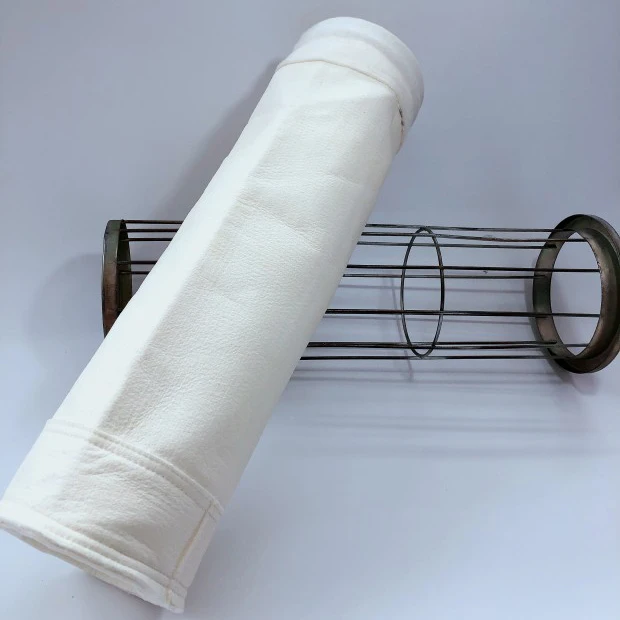

Acrylic dust collector filter bags for asphalt plant
- Category: >>>
- Supplier: Sino Clean Dust Collection Group Co. Ltd.
Share on (62431992545):
Product Overview
Description
Product Description
Water and oil repellent polyester dust collect filter bag
Our company choose different fineness polyester fiber make into gradient type structure of filter material , make the product not only has the common felt high voidage , good air permeability,high dust collecting efficiency, high tensile strength, strong elongation,long service life, but also moderate temperature rating.
Operating temperature about 130 to150℃,moderate antacid and anti-alkali, and has very good abrasion resistance. Gram weight is from 350 g/m2 -600 g/m2, Thickness is from 1 mm to 4 mm, width is below 2.5 meters, our factory can produce, and can be cut to various width. Most popular in Turkey, Russia, Middle east, Asia, Africa,South America etc .
According to different requirements of working condition,Surface treatment can be singeing, calendering, oil and water proof, PTFE impregnation, coating , laminating process.
Application:
mining industry, grain processing, stone crusher, build material, waste incineration plants, steel plants, cements plants, etc .
Our company choose different fineness polyester fiber make into gradient type structure of filter material , make the product not only has the common felt high voidage , good air permeability,high dust collecting efficiency, high tensile strength, strong elongation,long service life, but also moderate temperature rating.
Operating temperature about 130 to150℃,moderate antacid and anti-alkali, and has very good abrasion resistance. Gram weight is from 350 g/m2 -600 g/m2, Thickness is from 1 mm to 4 mm, width is below 2.5 meters, our factory can produce, and can be cut to various width. Most popular in Turkey, Russia, Middle east, Asia, Africa,South America etc .
According to different requirements of working condition,Surface treatment can be singeing, calendering, oil and water proof, PTFE impregnation, coating , laminating process.
Application:
mining industry, grain processing, stone crusher, build material, waste incineration plants, steel plants, cements plants, etc .
Specification
Product name | PET/PET 500A1 | ||
Craft | Needle-punched | ||
Fiber | Polyester | ||
Scrim | Polyester | ||
Weight | 500±5% | g/㎡ | |
Thickness | 1.8±10% | mm | |
Air Permeability | 12±25% | m³/㎡/min | |
Breaking Strenght-Warp | ≥1200 | N/5cm | |
Breaking Strenght-Weft | ≥1600 | N/5cm | |
Breaking Elongation-Warp | ≤30 | % | |
Breaking Elongation-Weft | ≤45 | % | |
Working Temperature | 130 | ℃ | |
Instant Temperature | 150 | ℃ | |
Finish Treatment | Heat set,Singeing,Calendering,Water and oil Proof,PTFE Membrane | ||
Application
Factory&Workshop
Details
Paking&Delivery
FAQ
Q1. What is your terms of payment?
A: T/T will usually be accepted,details could be negotiated.
Q2. What is your terms of delivery?
A: FOB, CFR, CIF, DAP, FCA, EXW
Q3. How about your delivery time?
A: Generally, it will take 7 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q5. What is your sample policy?
A: We could offer the sample for free charge but do not pay the cost of freight.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
A:2. We respect every customer as our friend and we sincerely do business and make friends with them.
A: T/T will usually be accepted,details could be negotiated.
Q2. What is your terms of delivery?
A: FOB, CFR, CIF, DAP, FCA, EXW
Q3. How about your delivery time?
A: Generally, it will take 7 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q5. What is your sample policy?
A: We could offer the sample for free charge but do not pay the cost of freight.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
A:2. We respect every customer as our friend and we sincerely do business and make friends with them.
