Tester alternator starter testing bench smart machine
- Category: >>>
- Supplier: Qingdao Furun Automobile Repair Equipment Factory
Share on (62431999408):
Product Overview
Description
Product Description

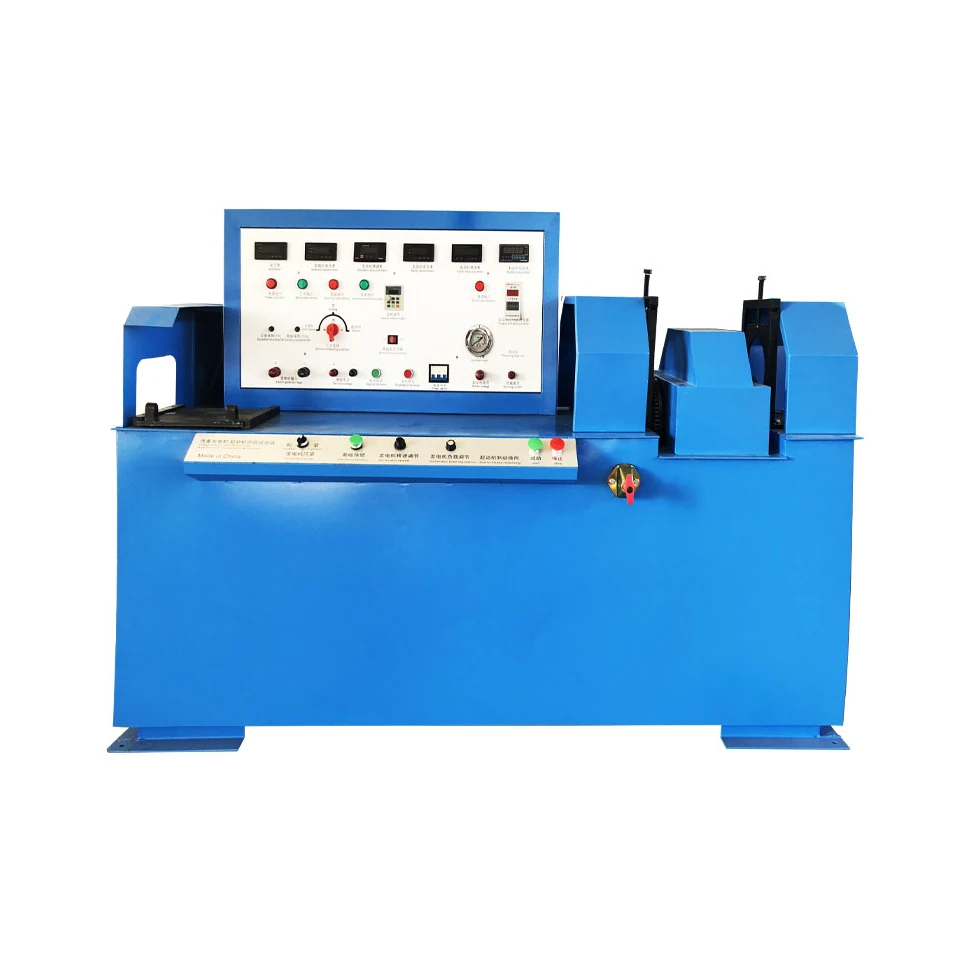

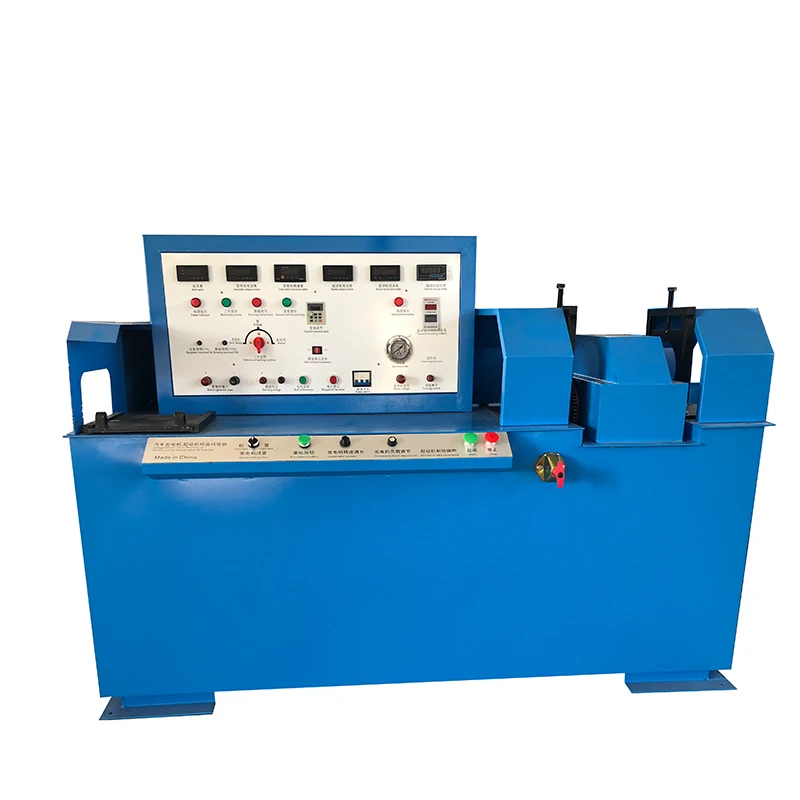

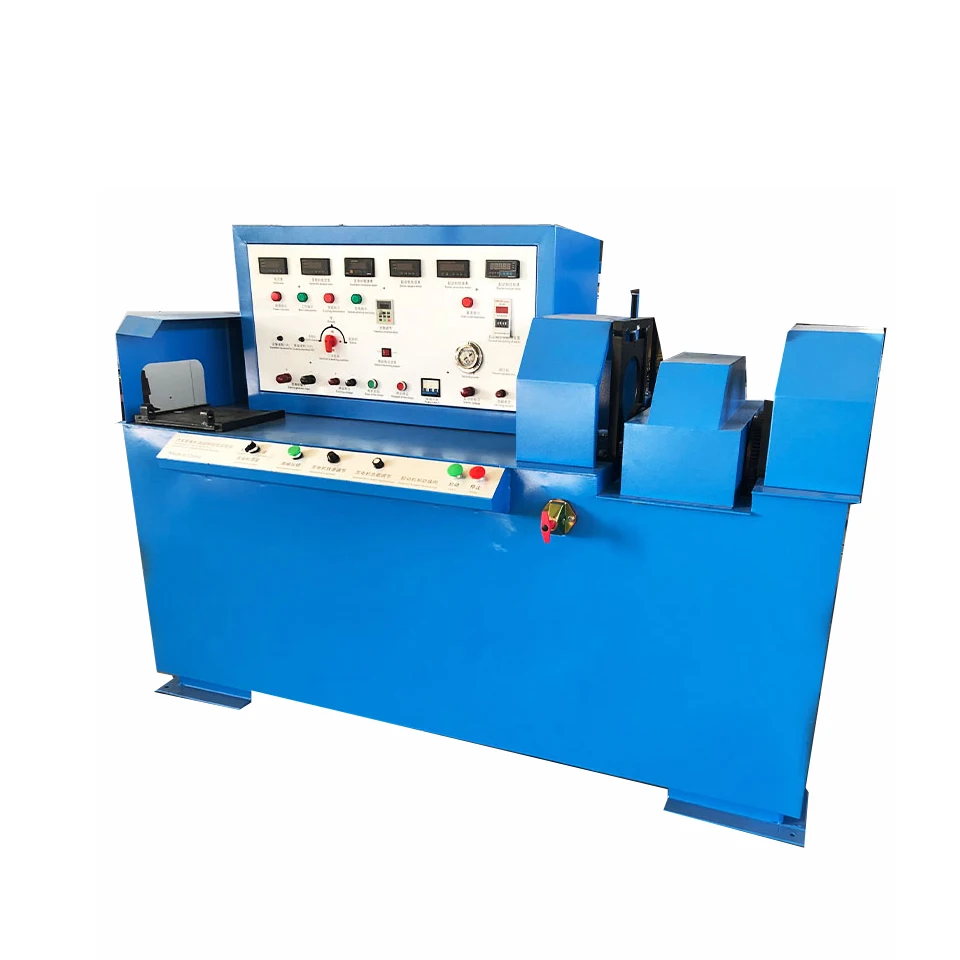

Tester - alternator starter testing bench smart machine
Detailed Images
Direction for use
The test bench using variable frequency speed regulation and digital display is special electrical equipment used for testing
large power automobile generator and starter and possesses high control sensitivity and strong controllability. Display instrument
uses digital display mode, reads data directly and is electronic load module type. This test bench is especially applicable for
testing large vehicles generator and starter.
large power automobile generator and starter and possesses high control sensitivity and strong controllability. Display instrument
uses digital display mode, reads data directly and is electronic load module type. This test bench is especially applicable for
testing large vehicles generator and starter.
1. Input working voltage 380V AC 50HZ
2. Motor power: 7.5 KW
3. Frequency converter power：7.5KW（three-phase AC）
4. Motor Rotation: positive and reverse
5. RPM: Non Load 0-8000 r/min, Load 0-6000 r/min,
6. Load mode: electronic module type DC (0 ~ 200A)
7. Working current of starter: 0-200 A (Continuing Adjust)
8. Frequency converter factory Settings: 0 ~ 80 Hz
9. Exciting voltage: DC 12 v and 24 v
10. Exciting current：10A
11. Generator jig: electrodynamics type
12. Generator speed regulation: rotary type
13. Generator load regulation: rotary type
14. Displaying mode: digital (voltage, electric current, rotational speed)
15. Starter operating voltage (according to the starter)
2. Motor power: 7.5 KW
3. Frequency converter power：7.5KW（three-phase AC）
4. Motor Rotation: positive and reverse
5. RPM: Non Load 0-8000 r/min, Load 0-6000 r/min,
6. Load mode: electronic module type DC (0 ~ 200A)
7. Working current of starter: 0-200 A (Continuing Adjust)
8. Frequency converter factory Settings: 0 ~ 80 Hz
9. Exciting voltage: DC 12 v and 24 v
10. Exciting current：10A
11. Generator jig: electrodynamics type
12. Generator speed regulation: rotary type
13. Generator load regulation: rotary type
14. Displaying mode: digital (voltage, electric current, rotational speed)
15. Starter operating voltage (according to the starter)
Size Information
Size Chart of This Design
Warranty period | 12 months |
Delivery time | 15 days after receiving downpayment |
The external battery | 12 v and 24 v (Equipped by user) |
