5HL beer brewing equipment micro brewery for craft beer
- Category: >>>
- Supplier: SHANDONG SHENDONG CO. LTD.
Share on (62432030959):
Product Overview
Description
5HL beer brewing equipment microbrewery for craft beer
Product Description
1. 500L Brewery Configurations(A typical 2-vessel)
Milling system | Malt miller | 300-500kg/h | 1pcs |
Auger(option) | Ability is 1000-1500KG/h | 1pcs | |
Hopper(option) | Volume is 0.5m3. SUS 304 with pre-masher | 1pcs | |
Brewhouse | Mash tun/ Lauter tank | Volume is 500L, with a false bottom, grant, raker with motor | 1pcs |
Kettle/Whirlpool tank | Volume is 500L, electric heating | 1pcs | |
HLT water tank | Volume is 1000L, electric heating | 1pcs | |
Includes plate heat exchanger, wort pump, motors, hops filter, yeast adding tank, oxygen device, and pipelines | |||
Fermenting | Fermenters | Volume is 500L or 1000L (double batches) | 6pcs |
BBT(option) | Volume is 500L or 1000L (double batches) | 2pcs | |
Racking arm, spunding valve, pressure gauge, carbonation stone, sample valve | |||
Cooling system | Glycol tank | Volume 1000L or 1500L | 1pcs |
Cold water tank(option) | Volume 1000L, cooled by glycol tank | 1pcs | |
Chiller | 3HP, Copeland | 2pcs | |
Cleaning | CIP | 50L two tanks, heated by electricity, with pump and trolley | 1pcs |
Controlling | Control cabinet | PLC touch screen or PID controller | 1pcs |
2. 500L Brewhouse System
NDL Craft's experienced team of engineers and brewers work together to design every brewhouse. We meticulously focus on the details, like pump and valve placement, aiming to maximize brewhouse efficiency and ease of use. With an NDL Craft Brewhouse, you will hit your gravity targets quicker and run up and down the platform less often.
500L Brewhouse Can Be Combined In Different Ways:
Model1(most economic):
Choose State-of-the-Art 2, 3, and 4 Vessel Brewing Systems Whether you want to save space, money, and time by only using a 2-vessel mash and boil a kettle or you need a dedicated HLT tank alongside them, we have a solution for you.
Save Space
Save Money
Save Time
Model2(classic):

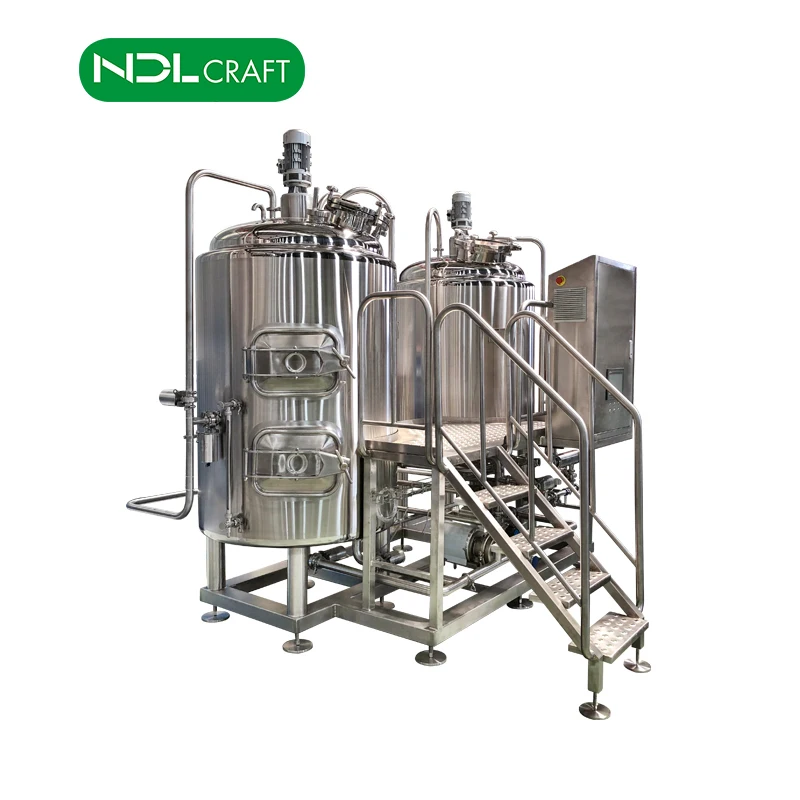

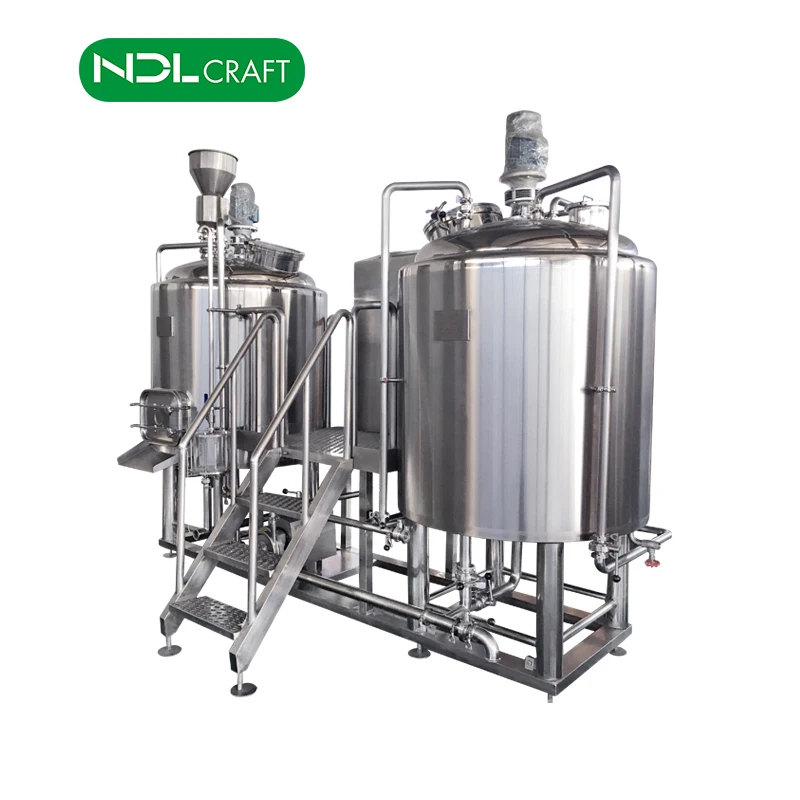

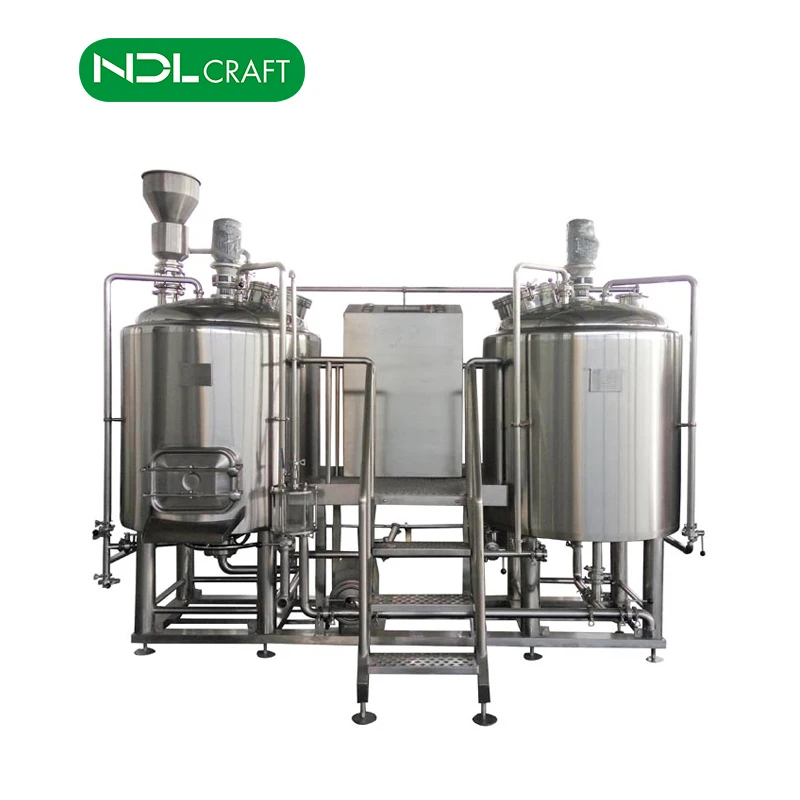

A typical two-vessel
Combination Mash Lauter Tuns are the first combination vessel in these smaller brewhouses lineups. This vessel should be sized to favor the Lauter operation, and have the mechanics for mixing mash and graining out. The next inline is the combination of the Kettle and Whirlpool tanks. This combination vessel is designed and sized for being primarily a kettle but is equipped with a tangential fitting for whirlpooling.

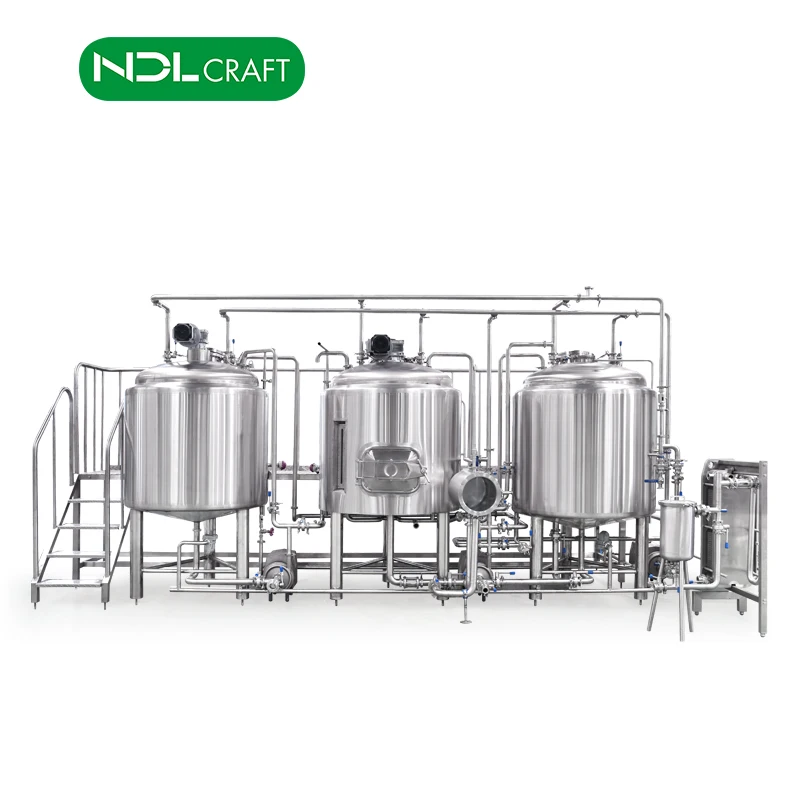

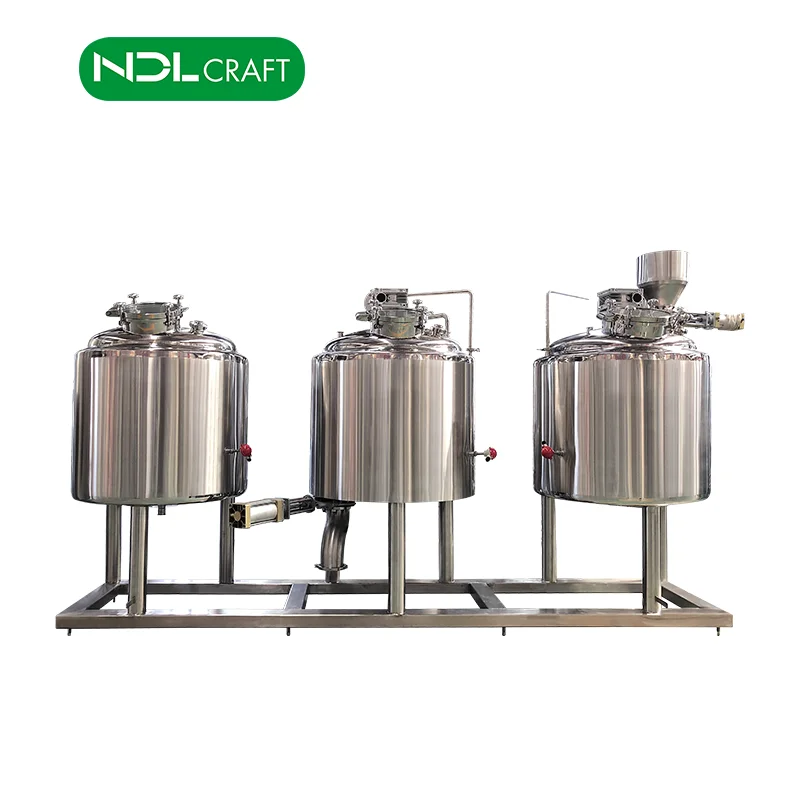

Model3(most efficient):
A three-vessel brewhouse is a hybrid system that incorporates at least one combination vessel and two dedicated process vessels. For example, a medium-sized brewery with a focus on heavily hopped beers might choose to go with a combination of Mash Lauter Tun, a dedicated Kettle, and a dedicated Whirlpool. Whereas, someone focusing on lagers or feeding a distilling operation might go with a dedicated Mash Tun, a dedicated Lauter Tun, and a combination Kettle/Whirlpool. Three-vessel systems don’t have the same output and versatility as four-vessel systems, but they will still outperform a two-vessel system and provide increased efficiency.
3. 500L Fermentation System
1). A serial of the fermentation tanks
Fermentation tank series | Volume in US Gallon | Diameter | Height |
100l Fermentation tank | 26US Gallon | 640mm | 1500mm |
200l Fermentation Tank | 53US Gallon | 760mm | 1800mm |
300l Fermentation Tank | 79US Gallon | 860mm | 2000mm |
500l Fermentation Tank | 132US Gallon | 960mm | 2350mm |
1000l Fermentation Tank | 264US Gallon | 1260mm | 2650mm |
2000l Fermentation Tank | 528US Gallon | 1560mm | 3150mm |
3000l Fermentation Tank | 793US Gallon | 1800mm | 3550mm |
5000l Fermentation Tank | 1321US Gallon | 2000mm | 4450mm |
10000 Fermentation Tank | 2642US Gallon | 2200mm | 6100mm |
2). Details of 500L Fermentation Tanks:
Send Inquiry>>
4. Auxiliary Equipment
5. Brewery Processing Line
Related Products
Company Information
NDL Craft, founded in 2011, is a brewing equipment manufacturer and brewing technology engineering company that provides many kinds of customized tanks and turnkey projects throughout the world. The company attaches great importance to the research and development of core technology. On the basis of maintaining the manufacturing cost of China, the company can design according to CE PED standards and ASME design codes and institutes production and quality control methods according to both European and American quality standards.
Certifications
NDL Craft has passed quality audits for internationally recognized certifications;
ISO9001, 2000 International Quality Management System Certification,
ISO14001 Environmental Certification,
ISO18001 Occupational Health and Safety System Certification,
DI, and DII Pressure Vessel Certification.
We have also been recognized at a national level as a scientific and technological innovation enterprise with 15 patented technologies granted in China.
Exhibition
Packaging & Delivery
Our Service
Contact Us
We are grateful that you are interested in our product and thanks for your time.
For any query regarding our Beer Brewery Equipment, please feel free to contact us.
We will be more than happy to support you!
