HW PNEUMATIC AIR COMPRESSOR DRILLING RIG HQZ150L (CRAWLER TYPE) Super hydraulic transmission, CNC control, automatic drilling experience Drilling Rock:20M~40M/Hour
Mud pump hammer air compressor drill rig for rock mine
Model
HQZ150L
HQZ180L
HQZ260L
HQZ300L
HQZ400L
HQZ500L
Overall weight (T)
3.5
4.2
6.4
8
8.7
9.5
Dimension (mm )
3400*1500*2400
3800*1700*2350
4100*1900*2600
5500*1950*2780
5300*2050*2700
5350*2100*2700
Drilling diameter(mm )
130-245
130-294
140-300
140-325
130-400
140-400
Drilling depth(m)
150
180
260
300
400
500
One-time advance length of the drill(mm)
3000
3000
3000
3000/6000
3000/6000
3000/6000
Traveling speed(km/h )
2.5
2.5
2.5
2.5
6
6
Climbing ability(max )
25
30
30
30
25
25
Minimum Ground Clearance(mm)
250
250
250
230
300
350
Working Air Pressure(mpa )
1.45 - 2.5
1.7-2.5
1.7-3.0
1.7-3.3
1.7-3.5
1.7-3.5
Air consumption
15 - 27
15 - 27
17-35
23
17-35
17-35
Main machine power(kw)
42 /Yunnei
60/ Yunnei
85/Yuchai
92/Yuchai
100/6 cylinder
114/6 cylinder

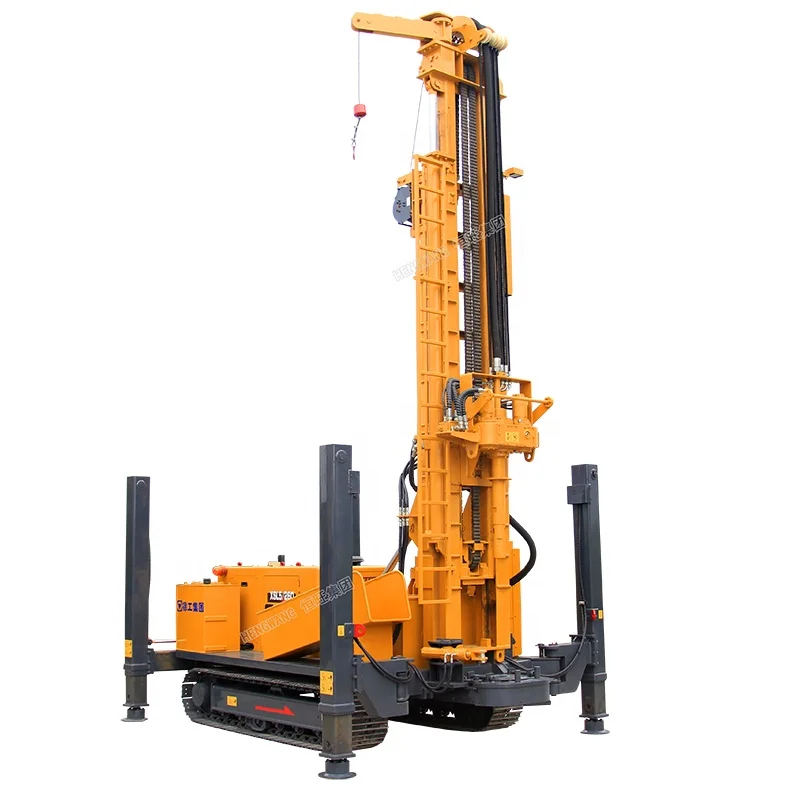

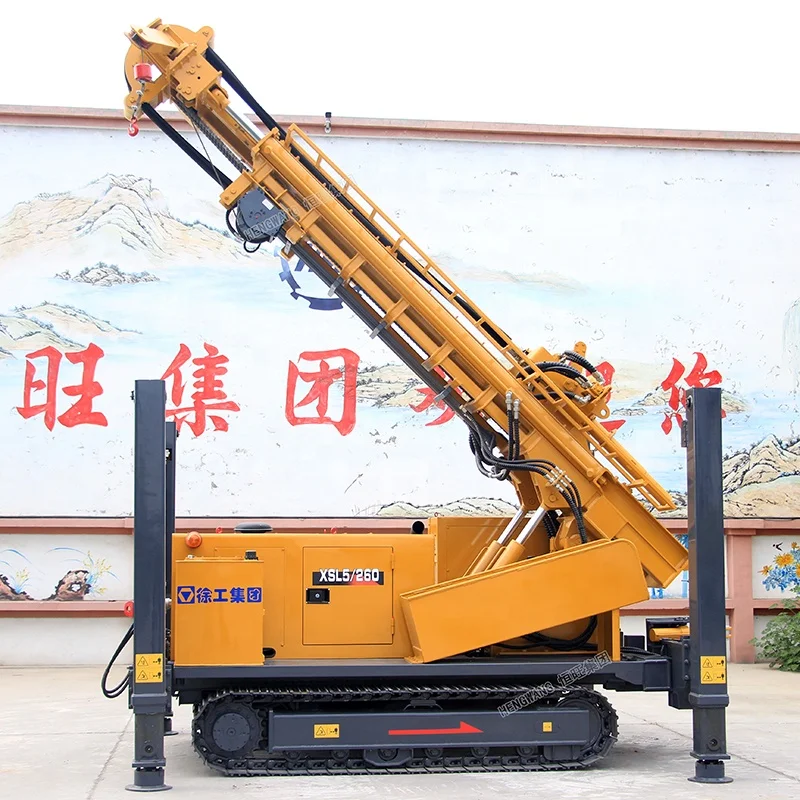

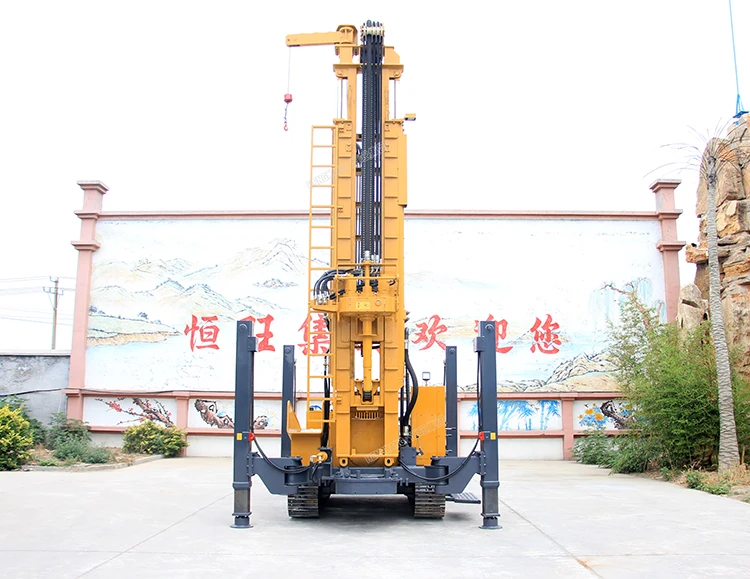

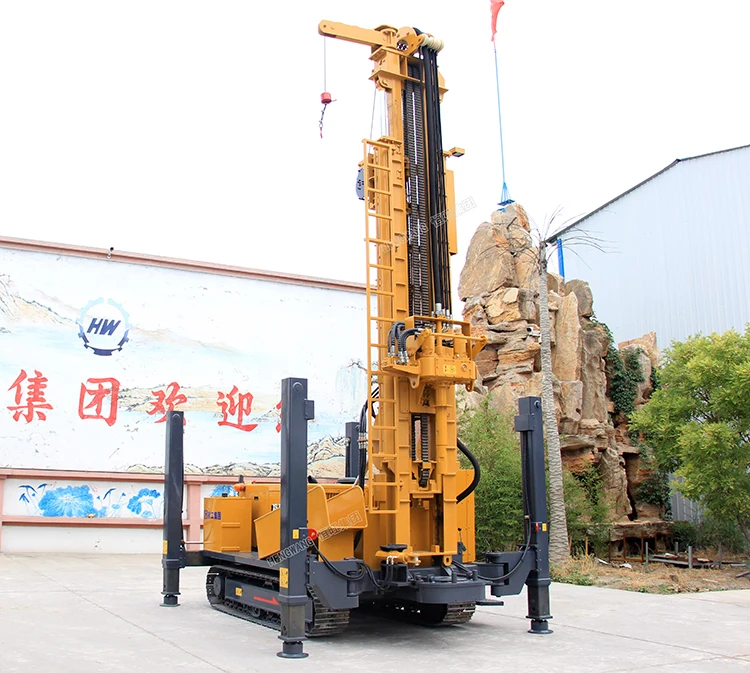

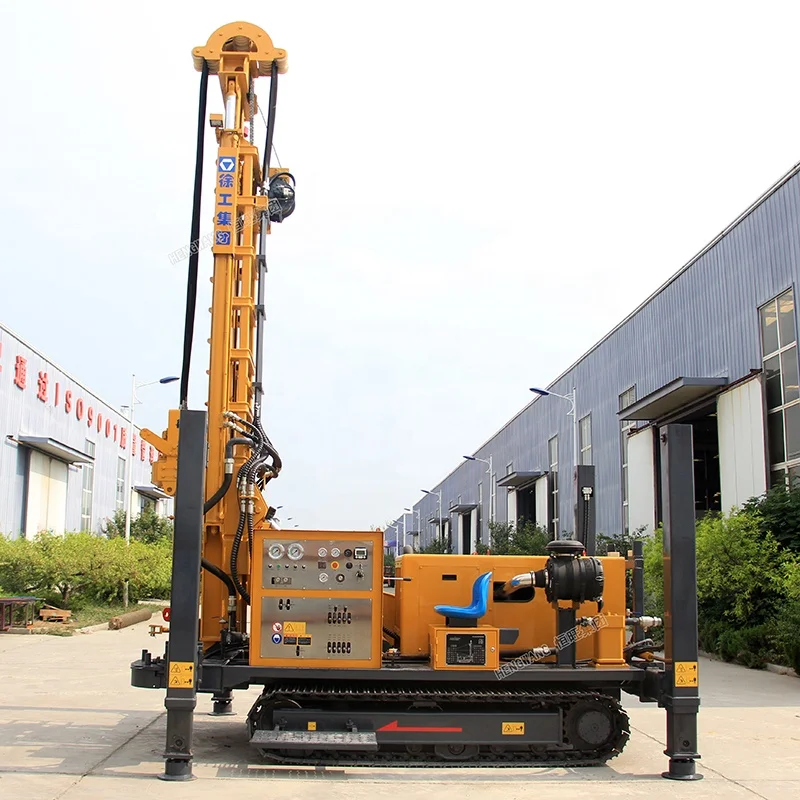

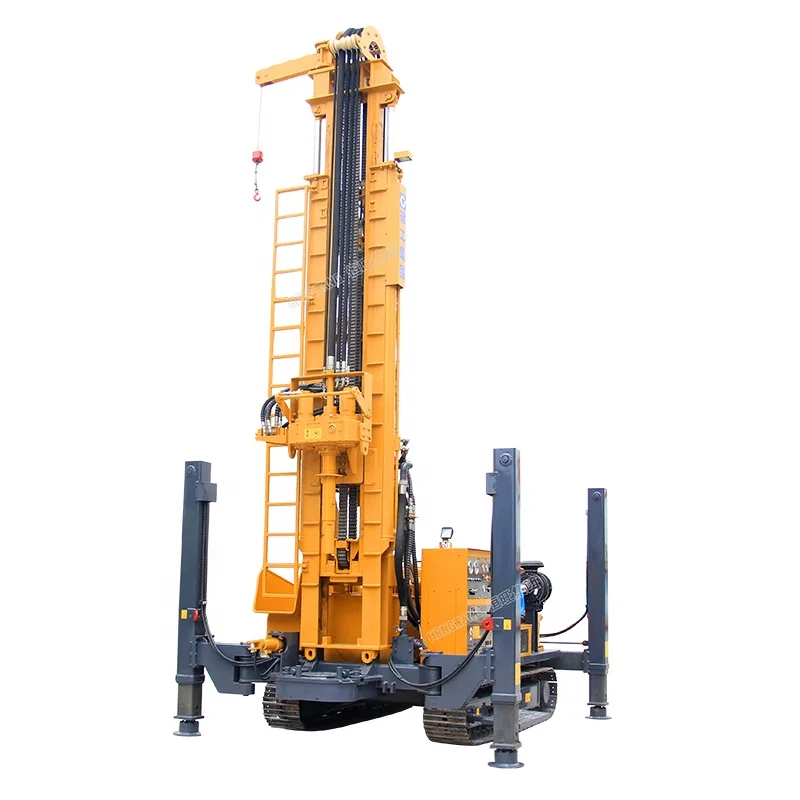

Detailed Images
Features of air compressor water well drill rig
1.High drilling efficiency, power provided by 42KW diesel engine 2.High efficiency, large rotary torque 3.Integrated automation equipment,All terrain moves by itself 4.Adopt consummate design, long service life 5.Self loading and unloading,Easy to operating

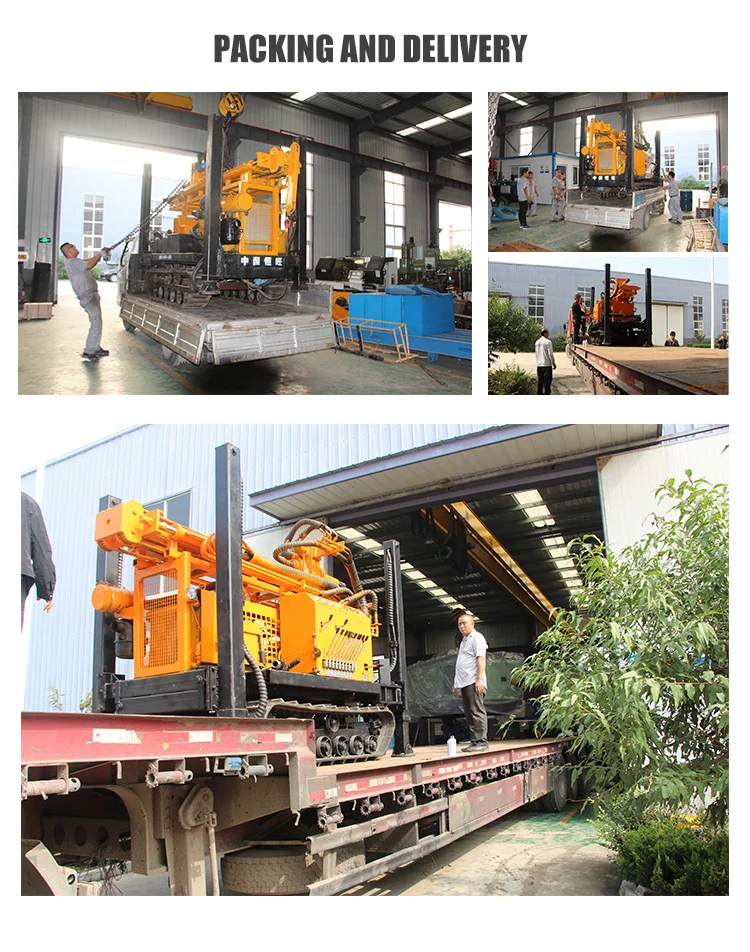

Packing&Shipping
Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
double hydraulic motor hammer air compressor drill rig for rocky mine
Company Introduction
Headquarters--Shandong Hengwang Group CO.LTD Jining luheng machinery equipment co.,as one branch of Shandogn Hengwang Group Co.Ltd. is the professional manufacturer of Pile driver,Drilling rig,Road construction machine . With more than 300 workers and 25 Senior engineers,high quality produts and best after sales service can both be guaranteed. main clients are around Southeast Asia,Mid East and South America. Welcome visit our factory and sent inquiry to us.
FAQ
Q1.What is the main function of our drill rig? Ans.: It has different models used for water well drill rig,mine blast hole drill,underground drill project,,etc
Q2. What is your terms of payment? Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery? Ans.: EXW, FOB, CFR, CIF.
Q4. How about your delivery time? Ans.: Generally, it will take 7 -10 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. What is the warranty of our machine? Ans.:Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories broken can be changed for a new one.And we provide videos for machine install and operation.
Q6. What is your terms of packing? Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
Q7. Do you test all your goods before delivery? Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
Q8.Do you Preferred provide wear parts for transacted clients? Ans.: Yes, we have recor d s for your clients, and will prefer provid ing accessories to clients.
Q9: How do you make our business long-term and good relationship? Ans.: 1. We keep good quality and competitive price to ensure our customers benefits; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q10.Do you have any certificates for your machine? Ans.: All of our produ c ts coming with the certificates of CE, ISO9001
