Water irrigation sludge pumps engine electric submersible sewage small farm sprinkling for centrifugal diesel pump
- Category: >>>
- Supplier: Jiangsu Wang-Da Sprinkler Co. Ltd.
Share on (62432237124):
Product Overview
Description
1.Product advantage
Product Description

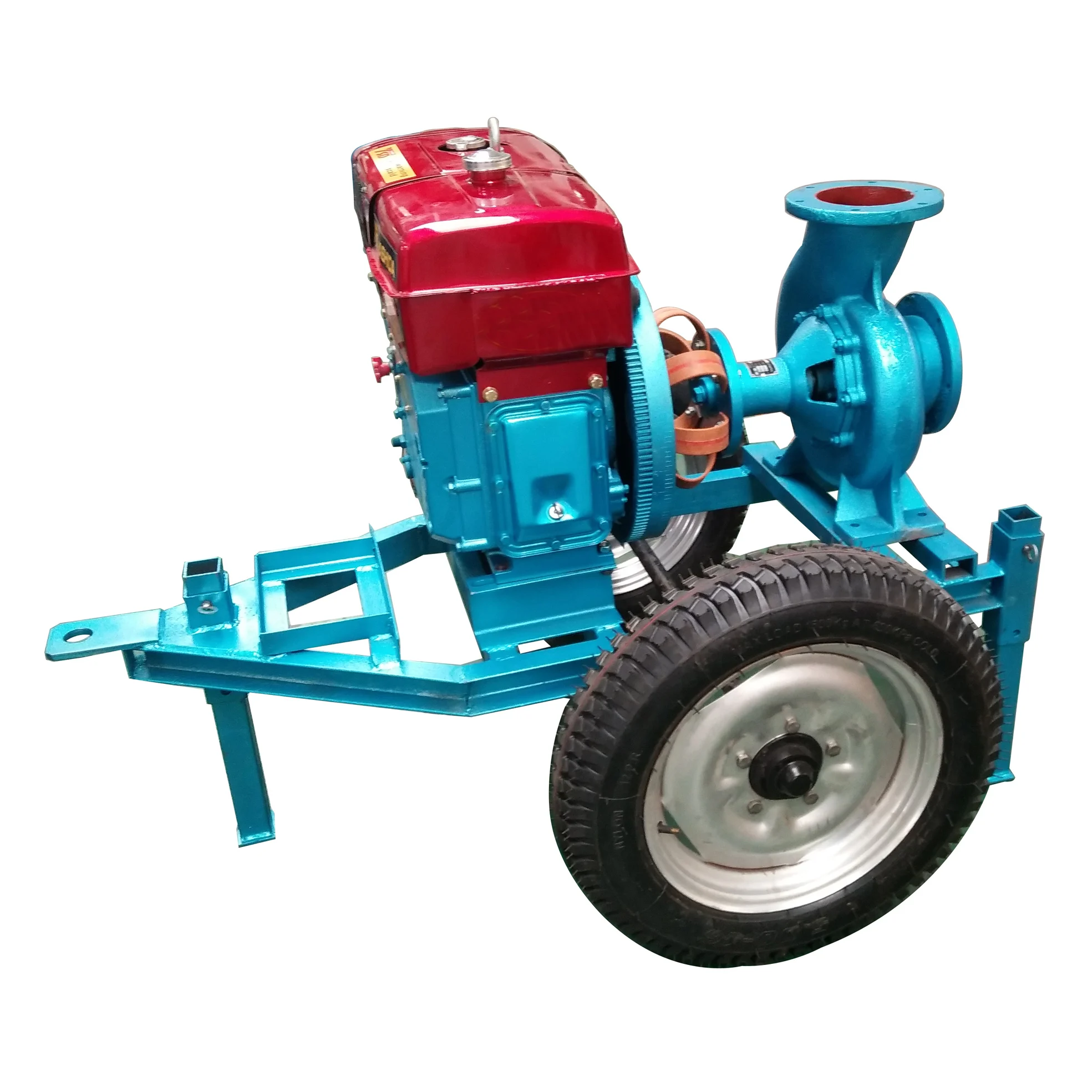

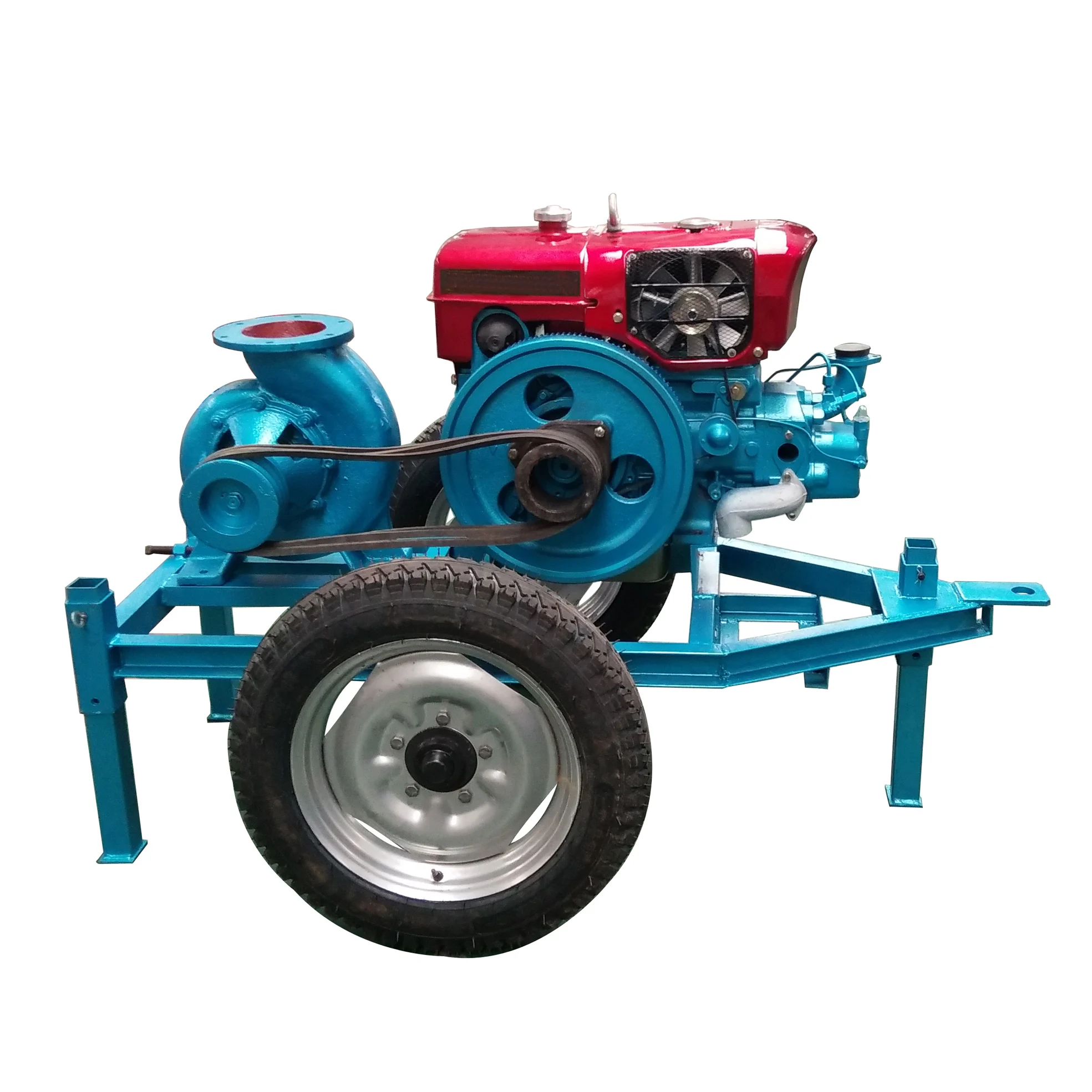

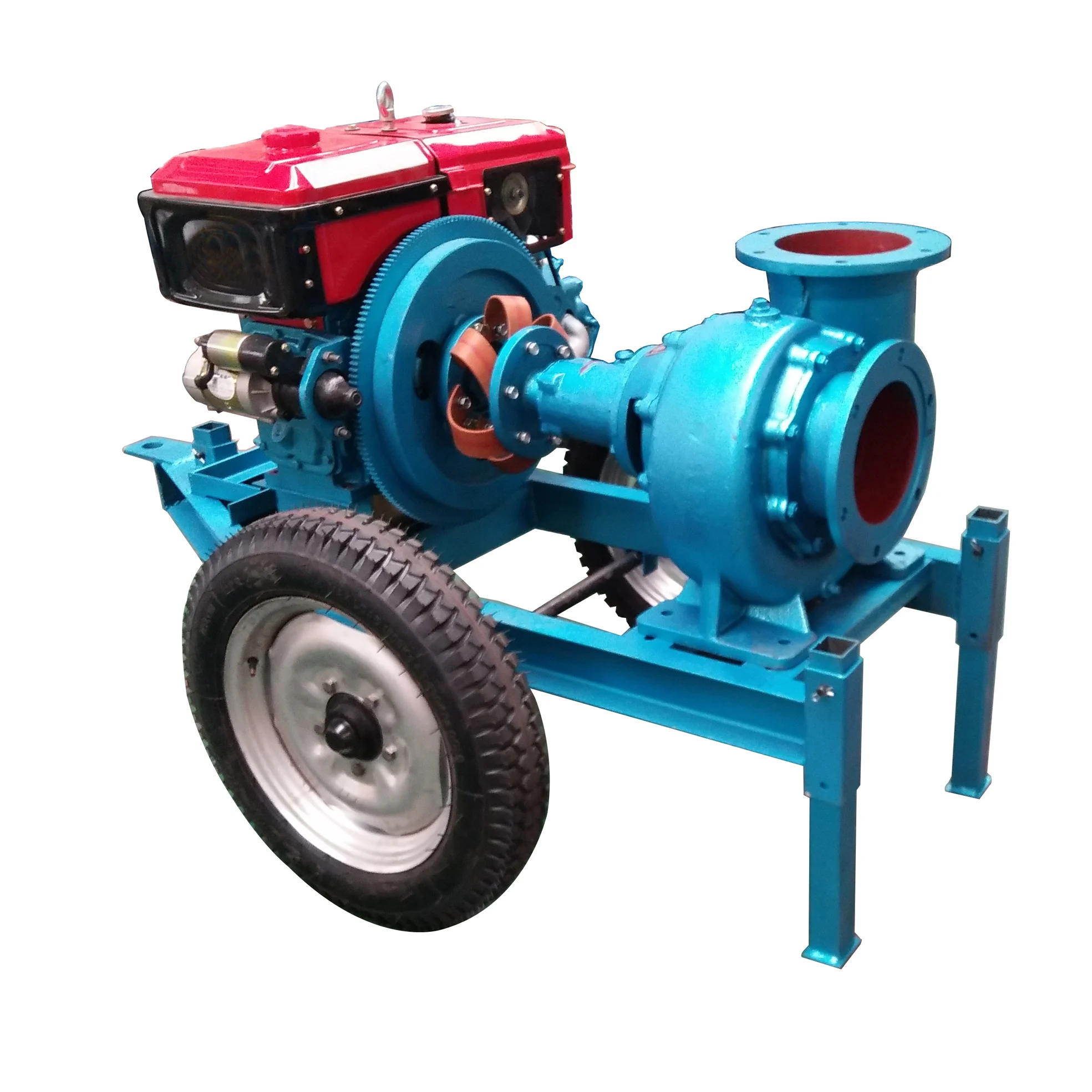

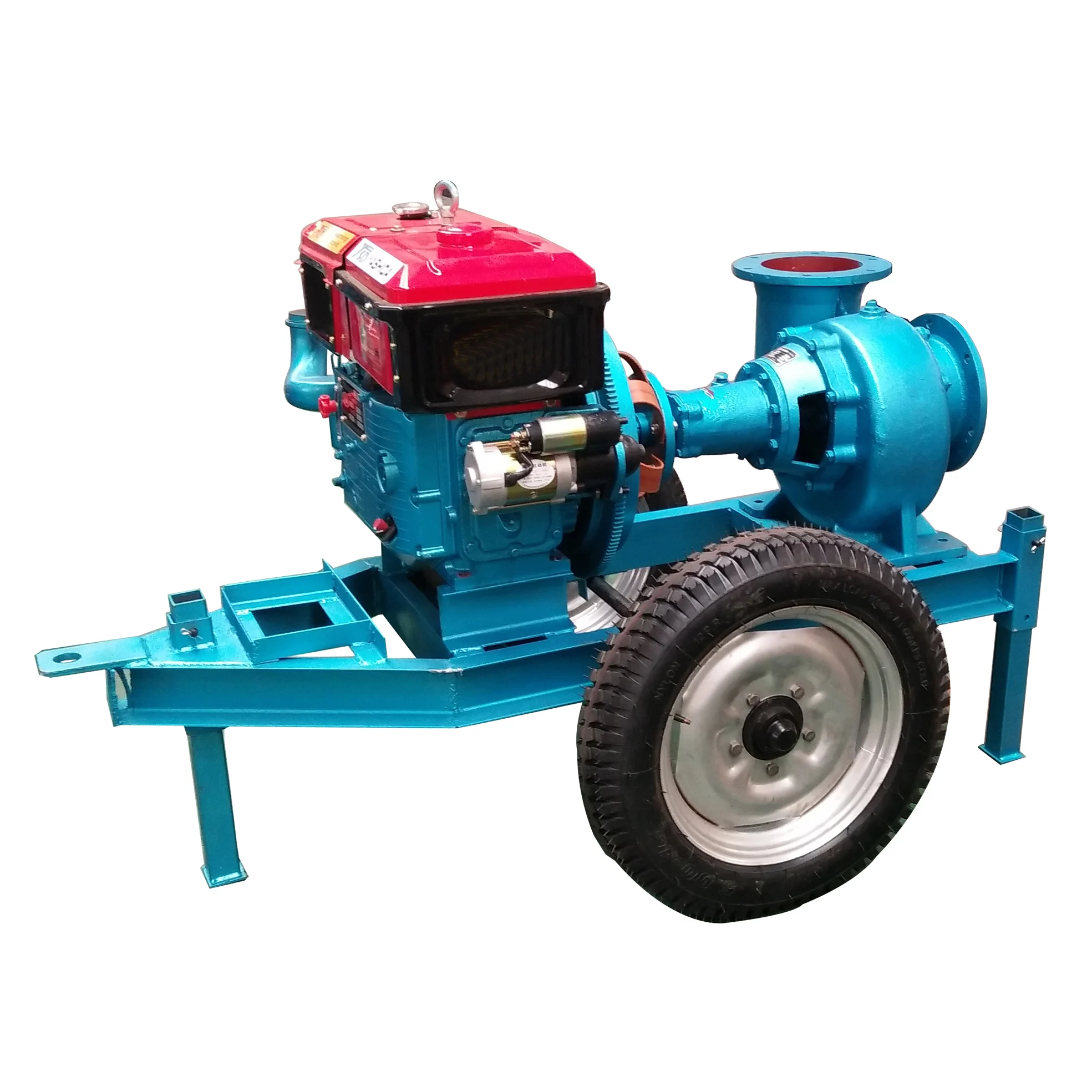

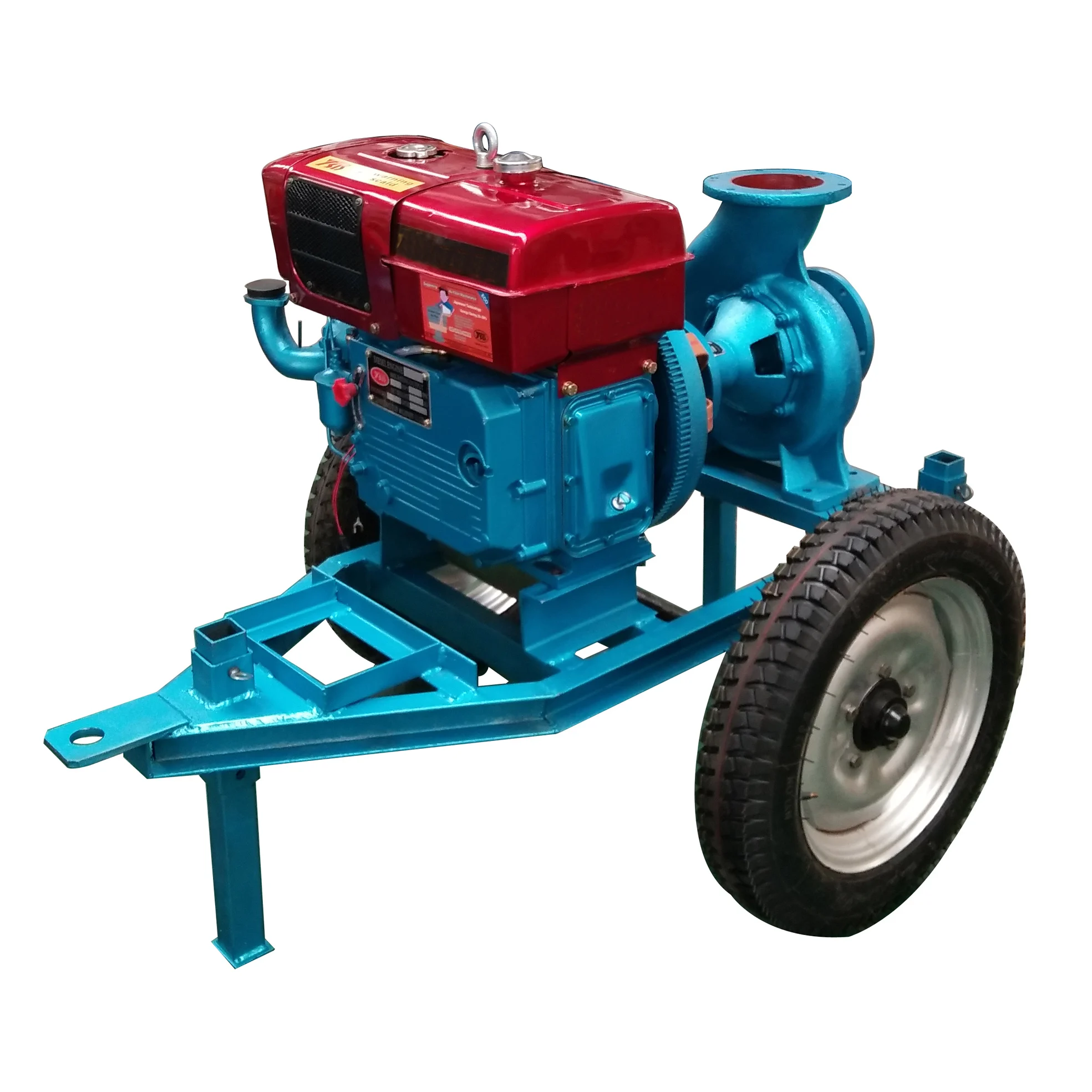

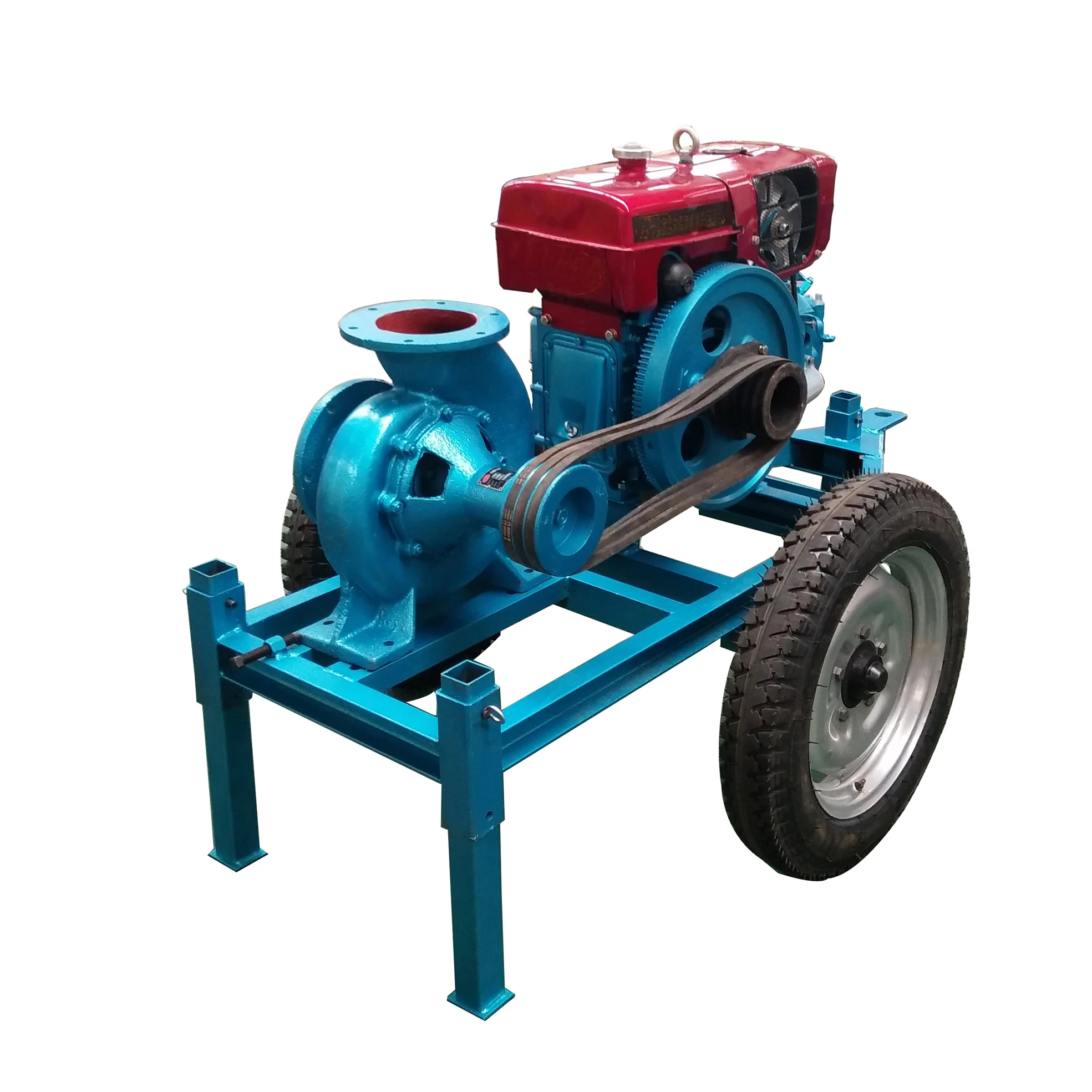

Farm Irrigation Diesel Centrifugal Pump Unit
| Unit Model | Engine | Pump | Spray Gun | Pipe Diameter (mm) | ||||||||||||||
| Model | (KW) | Model | Flow (m3/h) | Head m | Speed r/min | Shaft % | NPSHc m | Model | Provided No. | Nozzle Diameter (mm) | Pressure (Mpa) | Range (m) | Spray Rate (m³/h) | Application Intensity (mm/h) | ||||
| 2.2CP-20 | R165 | 2.2(3HP) | 50BP-20 | 15 | 20 | 2600 | 58 | 7-9 | PY15 | 7 | 6×3.0 | 0.20 | 14.5 | 2.26 | 10 | 50 | ||
| 2.9CP-35 | 170F | 2.9(4HP) | 50BP-35 | 15 | 35 | 2600 | 56 | 7-9 | PY20 | 4 | 6×3.0 | 0.30 | 19.0 | 2.97 | 9.2 | 50 | ||
| 2.9CP-35 | 170F | 2.9(4HP) | 50BP-35 | 15 | 35 | 2600 | 56 | 7-9 | PY30 | 1 | 12 | 0.35 | 27.0 | 9.5 | 50 | |||
| 4.4CP-45 | R175 | 4.41(6HP) | 50BP-45 | 20 | 45 | 2600 | 58 | 7-9 | PY20 | 6 | 6×3.1 | 0.40 | 19.5 | 3.4 | 8.3 | 50 | ||
| 4.4CP-45 | R175 | 4.41(6HP) | 50BP-45 | 20 | 45 | 2600 | 58 | 7-9 | PY40 | 1 | 15 | 0.40 | 35.0 | 17.6 | 50 | |||
| 8.8CP-55 | S195 | 8.8(12HP) | 65BP-55 | 36 | 55 | 2900 | 64 | 7-9 | PY20 | 10 | 6×3.1 | 0.40 | 19.5 | 3.4 | 9 | 65 | ||
| 8.8CP-55 | S195 | 8.8(12HP) | 65BP-55 | 36 | 55 | 2900 | 64 | 7-9 | PY40 | 2 | 15 | 0.35 | 29.5 | 14 | 65 | |||
| 8.8CP-55 | S195 | 8.8(12HP) | 65BP-55 | 36 | 55 | 2900 | 64 | 7-9 | PY50 | 1 | 20 | 0.50 | 42.3 | 31.2 | 65 | |||
| 11CP-55 | S1100 | 11(15HP) | 80BP-55 | 50 | 55 | 2900 | 66 | 7-9 | PY20 | 15 | 6×3.1 | 0.40 | 19.5 | 3.4 | 8.5 | 80 | ||
| 13.2CP-55 | S1110 | 13.2(18HP) | CB80-55 | 50 | 55 | 2900 | 70 | 7-9 | PY20 | 16 | 6×3.1 | 0.40 | 19.5 | 3.4 | 8.5 | 65 | ||
| 18.5CP-55 | S1125 | 18.5(25HP) | 100BP-60 | 60 | 60 | 2900 | 68 | 7-9 | PY20 | 20 | 6×3.1 | 0.40 | 19.5 | 3.4 | 8.5 | 80 | ||
Application
Widely used for farmland irrigation, spray irrigation, nursery, tea garden and micro for the economic crop. It’s also used to other places requiring high head, such as supplying water to the building, increasing oxygen in the pool, pressuring vessel stores and so on.
