Product Overview

Description


Product Description
Rotary drilling rig is a kind of construction machine suitable for hole formation in building foundation engineering. Mainly suitable for sandy soil, cohesive soil, silty soil and other soil construction, widely used in cast-in-place piles, continuous walls, foundation reinforcement and other ground foundation construction. The rated power of rotary drilling rig is generally 125 ~ 450kW, power The output torque is 120 ~ 400kN · m, the maximum hole formation diameter can reach 1.5 ~ 4m, and the maximum hole formation depth is 60 ~ 90m, which can meet the requirements of various large-scale foundation constructions.
Crawler rotary drilling rig parameter
Parameters/Model
HWDR150
HWDR200
Outsize
Working Size（length×Width×Height）
m
5.9×2.3×10.5
7.1×2.6×12
Transport Size（length×Width×Height）
m
8.2×2.3×3.25
10×2.6×3.38
Machine Weight
t
17
22
Max Drilling Diameter
mm
1200
1400
Max Drilling Depth
m
15
20

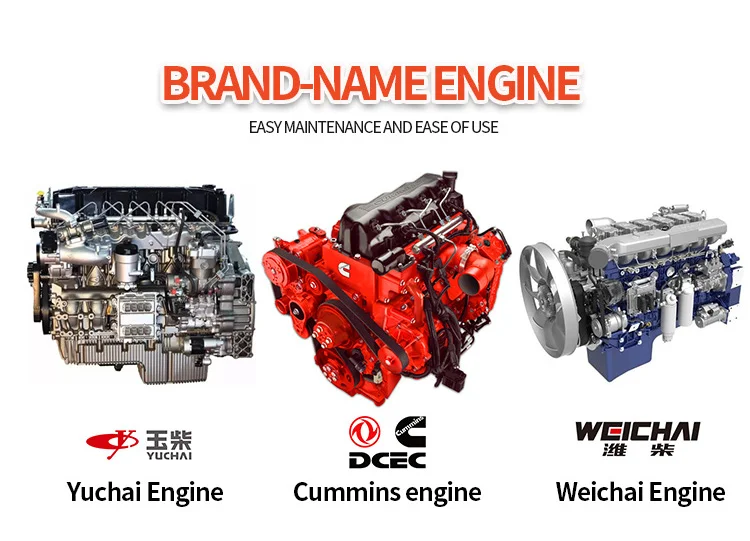

Engine
Brand
Yuchai
Cummins
Model
4A115Z
6BT5.9-C150
Rated Power
kw/rpm
86/2400
110/2300
Hydraulic Flow
Woring Pressure
Main Pump
Mpa
30
30
Secondary Pump
Mpa
/
/
Max Flow
Main Pump
L/min
2×63
2×63
Secondary Pump
L/min
/
/
Power Head
Maximum Torque
Kn.m
60
80
Rotating Speed
rpm
5-90
5-85
Maximum Throwing Speed
rpm
90
85
Pressurized System
Maximum Pressure
Kn
50
70
Maximum Lifting Force
Kn
60
80
Maximum Travel
mm
2800
2800
Main Hoist
Maximum Lifting Force
kn
10
15
Maximum Lifting Speed
m/min
72
71
Deputy hoist
Maximum Lifting Force
kn
15
20
Maximum Lifting Speed
m/min
60
70
Mast
Tilt Left And Right
°
±5
±5
Anterior Angle
°
8
8
Chassis
Maximum Walking Speed
km/h
4
3
Maximum Grade
°
35
35
Track Width
mm
500
600
Track Chain Pitch
mm
154
190
Chassis Length
mm
3600
3800
Average Grounding Ratio
kPa
66.3
77
Rotary drilling rig features:
1.This type of drilling rig generally adopts hydraulic crawler-type telescopic chassis, self-lifting and collapsible drilling mast, telescopic drilling rod, with automatic detection and adjustment of verticality, and digital display of hole depth.
2. It is easy to operate and comfortable. The main and auxiliary winches can be applied to the needs of various situations on the construction site.
3.This type of drilling rig is used with different drilling tools, suitable for dry (short spiral) or wet (rotary bucket) and rock formation (core drill) hole-forming operations.
4.It can also be equipped with long auger, underground continuous wall grab, vibrating pile hammer To achieve a variety of functions, mainly used for municipal construction, highway bridges, industrial and civil buildings, underground diaphragm walls, water conservancy, anti-seepage slope protection and other basic construction

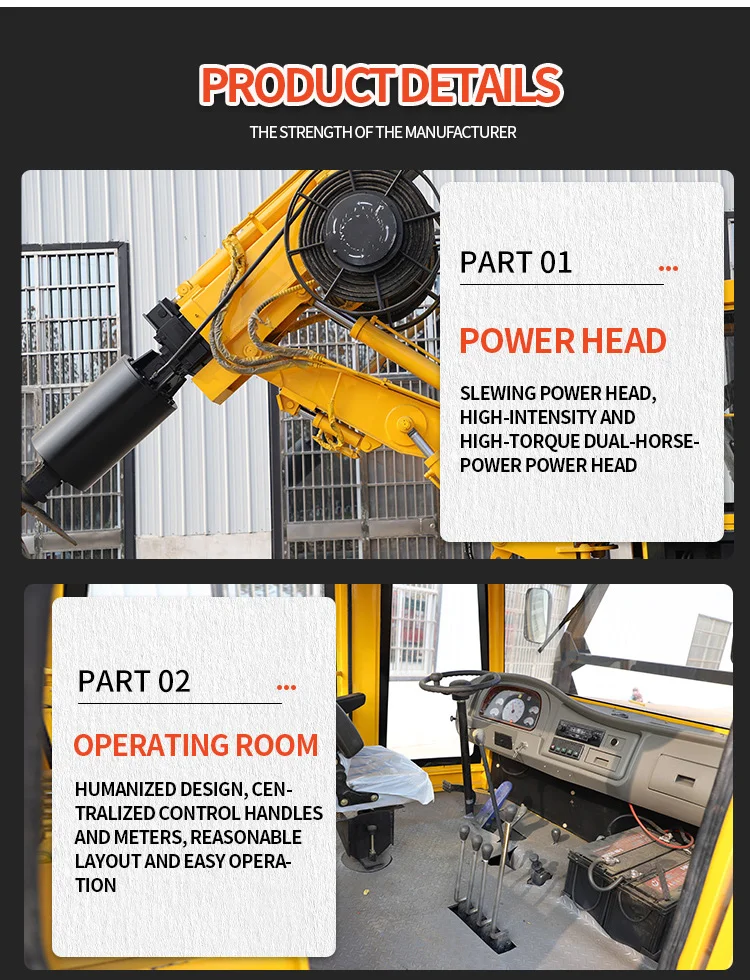

Products Details

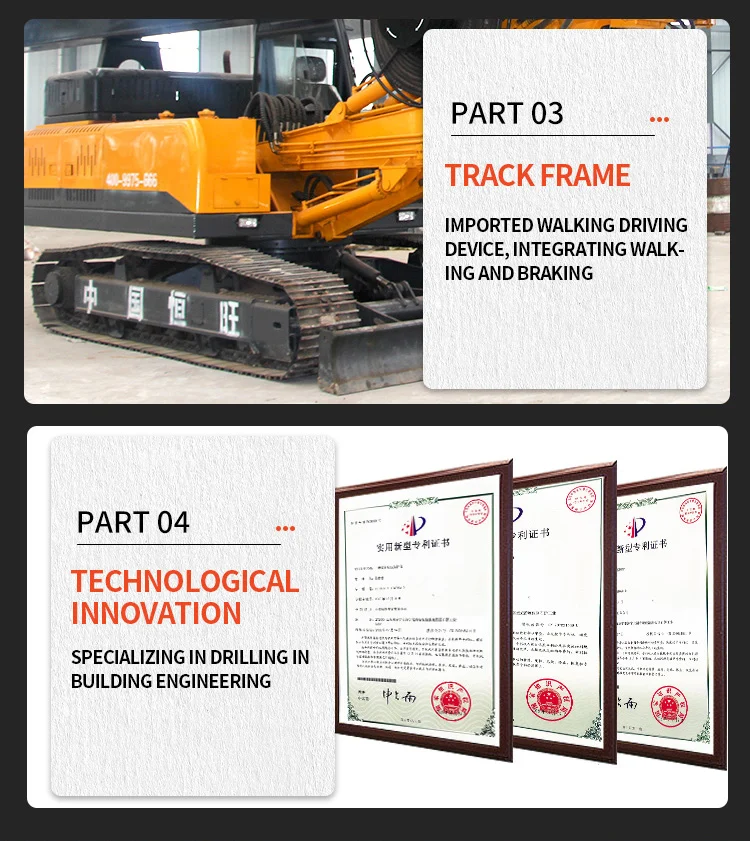

Rotary drilling rig we choose the best power head and diesel engine
Certification
Rotary Drilling rig have CE and ISO9001 certificate
Shipping
Rotary Drilling rig can loading within full container FCL
Our Company
User feedback
We have nice service for our customer about our rotary drilling rig
